PIONEER PDP-S13-LR Owner's Manual

Cover page of PIONEER PDP-S13-LR Owner's Manual

Owner's Manual for PIONEER PDP-S13-LR, downloadable as a PDF file.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 40 pages
  • File size: 4.66 MB
  • Available language versions: French, English, Spanish, Dutch, German, Chinese Simplified, Italian
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
PDP-S13-LR
Operating Instructions
Mode d'emploi
Bedienungsanleitung
Istruzioni per l'uso
Gebruiksaanwijzing
Manual de instrucciones
Speaker System
Enceintes acoustiques
Lautsprechersystem
Sistema di diffusori
Luidsprekersysteem
Sistema de altavoces
PDPS13LR.01-06/En
2003.5.27, 2:58 PM
1
background image
PDP-S13-LR
Operating Instructions
Mode d'emploi
Bedienungsanleitung
Istruzioni per l'uso
Gebruiksaanwijzing
Manual de instrucciones
Speaker System
Enceintes acoustiques
Lautsprechersystem
Sistema di diffusori
Luidsprekersysteem
Sistema de altavoces
PDPS13LR.01-06/En
2003.5.27, 2:58 PM
1
background image
English
2

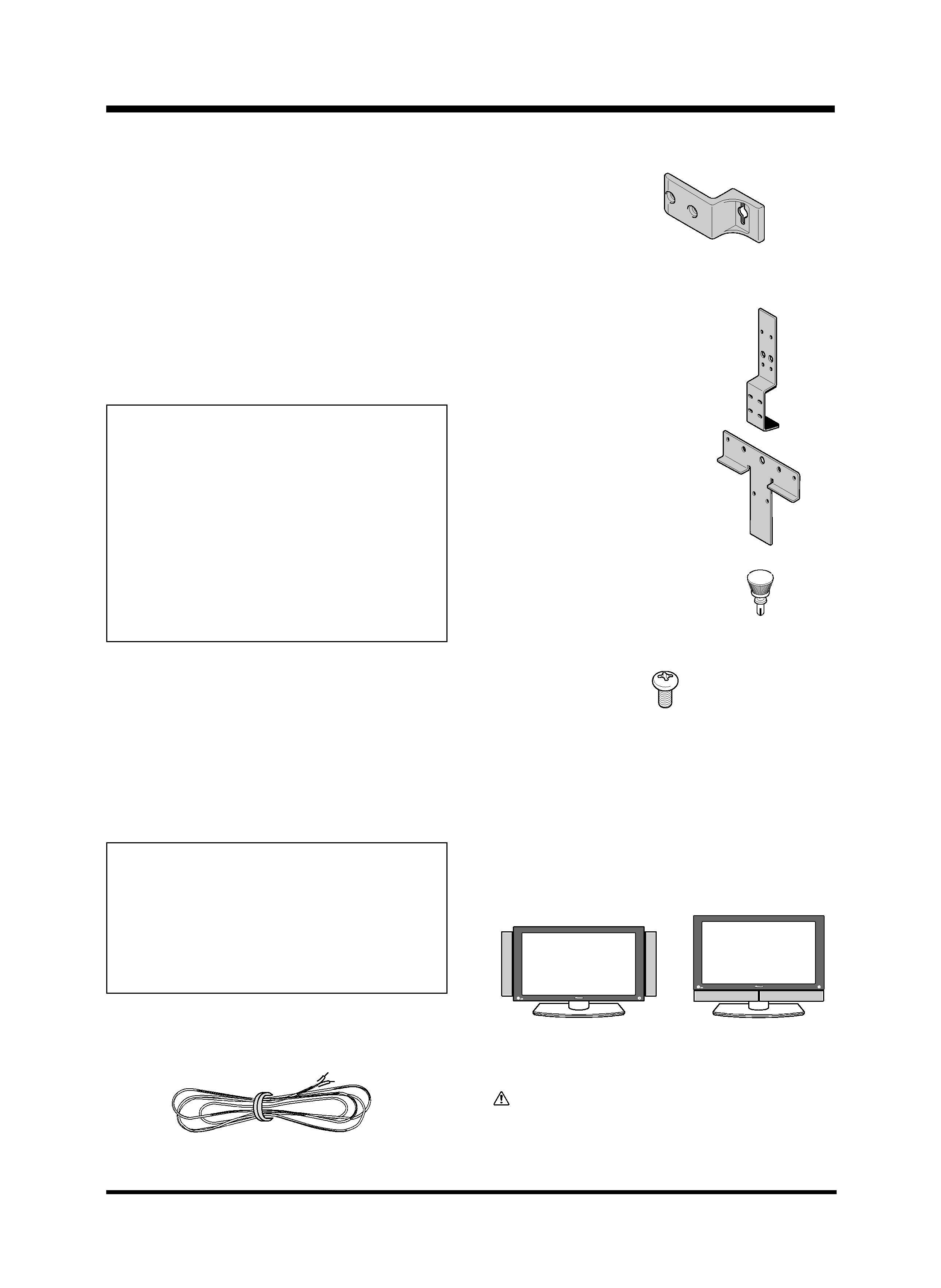

CHECKING THE ACCESSORIES
7 Speaker cable x 2
Thank you for buying this Pioneer product.
Please read through these operating instructions before
using your speaker system so you will know how to make
the most of its performance. After you have finished reading
the instructions, put them away in a safe place for future
reference.
BEFORE USE
÷ The nominal impedance of this speaker system is 8 ohms.
÷ In order to prevent damage to the speaker system
resulting from input overload, please observe the
following precautions:
÷ Do not supply power to the speaker system in
excess of the maximum permissable input. This
can result in damage or a possible fire hazard.
÷ When connecting or disconnecting pin-plugs, be
sure that amplifier power is OFF.
÷ When using a graphic equalizer to emphasize loud
sounds of a high frequency range, do not use
excessive amplifier volume.
÷ Do not force a low-powered amplifier to produce a
loud volume of sound (the amplifier's harmonic
distortion will be increased, and you may damage
the speaker).
÷ An automatic restore-type protective device is incorporated
to protect the speakers from excessive input signals or
abnormal signals. When an excessive input signal is sent
to the speakers, the protective device is activated and
loud high-pitched sounds will be prevented. In this case,
lower the volume of the plasma display during use. After
5 to 10 seconds, the speakers are restored automatically.
÷ Placing a CRT computer screen or CRT monitor near to
the speakers may result in interference or color distortion.
If this happens, distance the monitor from the speakers.
This product is designed exclusively for use with the
PDP-4340HD,PDP-434HDE,PDP-434HDG Pioneer plasma
display. For more information on compatibility, please
consult with your nearest Pioneer authorized dealer or
service center.
7 Operating Instructions
7 Speaker mounting fittings (Used when installing the
speakers on the right and left sides of the display)
Holder for installing
the speakers on
the right and left x 4
7 Speaker mounting fittings (Used when installing the
speakers at the bottom of the display)
7 Speakers mounting screws
NOTE:
÷ Always use the accessory mounting fittings for
installation.
÷ When screws other than those enclosed as accessories
are used to install the speakers, the speakers may drop
off or accidents may be caused. Always use the screws
enclosed as accessories.
Notes on Installation Work:
This product is marketed assuming that it is installed by
qualified personnel with enough skill and competence.
Always have an installation specialist or your dealer install
and set up the product.
PIONEER cannot assume liabilities for damage caused
by mistake in installation or mounting, misuse,
modification or a natural disaster.
CAUTION
x 12
The customer can select whether to install the speakers on
the right and left sides of the display or at the bottom of the
display.
When the speakers are installed
on the right and left sides
When the speakers are
installed at the bottom
See the description below for details of the installation.
CAUTION:
÷ Attach the plasma display to the stand (PDK-TS04) before
installing the speakers. See the Operating Instructions
packed together with the stand for how to assemble the
stand.
Bracket for installing the speakers at
the bottom x 2 for right and left sides
Bracket for installing the speakers
at the bottom x 1 for center
Rivet for installing the speakers at
the bottom x 2
PDPS13LR.01-06/En
2003.5.27, 2:58 PM
2
background image
3
English
English

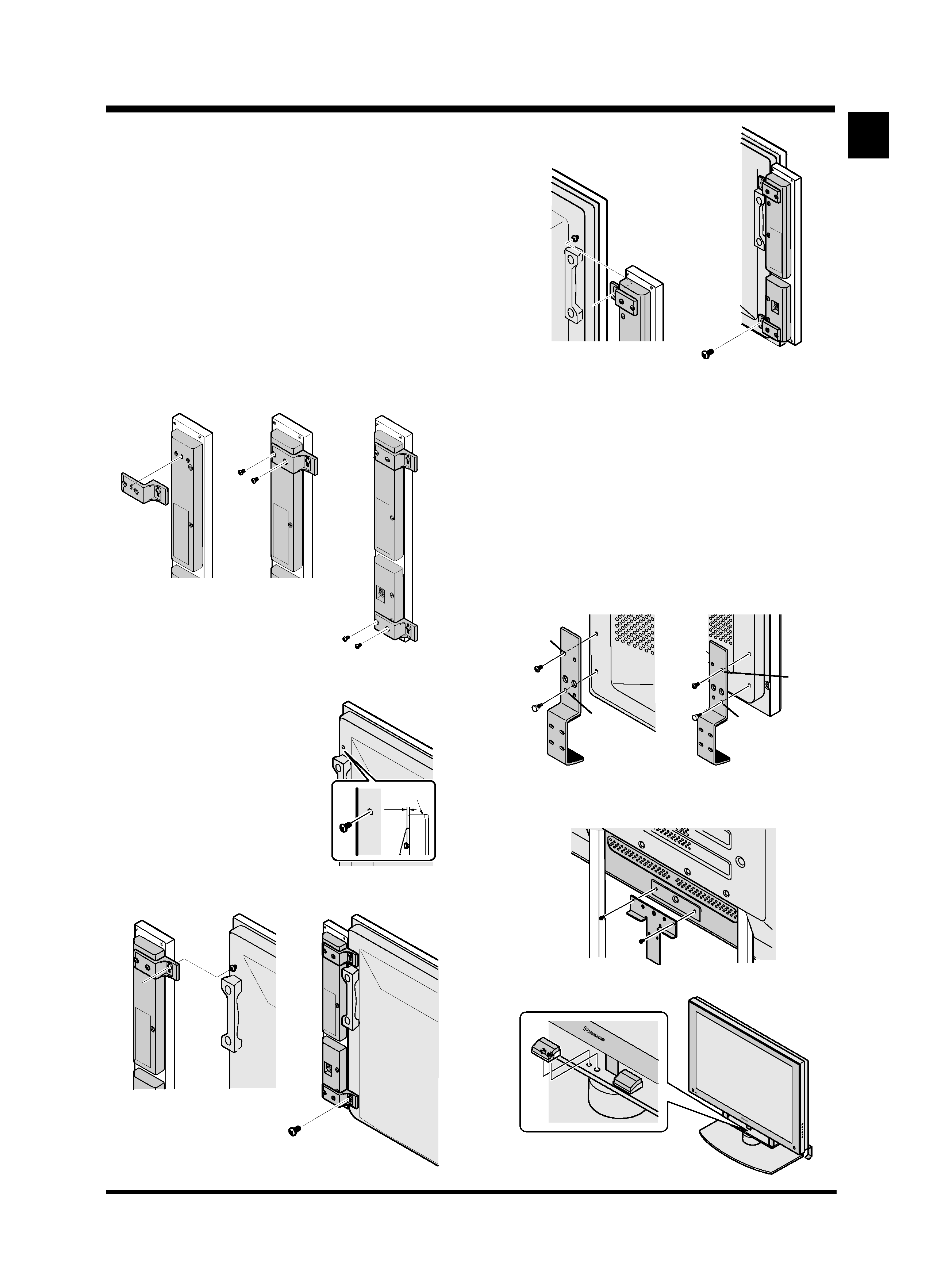

INSTALLATION ON THE PLASMA
DISPLAY
(WHEN INSTALLING THE SPEAKERS ON THE RIGHT AND
LEFT SIDES OF THE DISPLAY)
1 Attach the mounting fittings to the
speakers.
The illustration below shows the right speaker.
1 Align the convex portion of the holder for installing the
speakers on the right and left sides with the concave
portion of the speakers.
2 Fix the two points with screws.
3 Attach holders to the top and bottom of one speaker.
4 Similarly, attach two holders to
the top and bottom of the other
speaker.
2 Attach the speakers to the display.
The illustration below shows how to attach of the right speaker.
1 Fix the upper screw temporarily in
advance to hang the speaker on
the display (In this case, leave a
space of about 5 mm between the
head of the screw and the display).
2 Hang the speaker on the upper
screw.
3 Fix the lower screw temporarily.
4 Adjust the position so that the speaker is parallel to the
display and then fix the upper and lower screws firmly.
Perform installation according to the following steps 1 to 2.
INSTALLATION ON THE PLASMA
DISPLAY
(WHEN INSTALLING THE SPEAKERS AT THE BOTTOM
OF THE DISPLAY)
1 Attach the mounting fittings to the
display.
1 Push rivets into each outside hole A of brackets (on the
right and left sides) for installing the speakers at the bottom.
2 Fix each outside hole B of brackets (on the right and left sides),
for installing the speakers at the bottom, with screws.
3 Insert the screws into the two outside holes of bracket
(at the center), for installing the speakers at the bottom,
and tighten them.
4 Align the bosses of the spacer with the holes of the stand
and insert them.
23
5mm
The display
1
24
3
Perform installation according to the following steps 1 to 2.
5 Attach the left speaker following the
same procedure as described above.
1
1
2
2
B
B
A
A
PDPS13LR.01-06/En
2003.5.27, 2:59 PM
3
background image
English
4

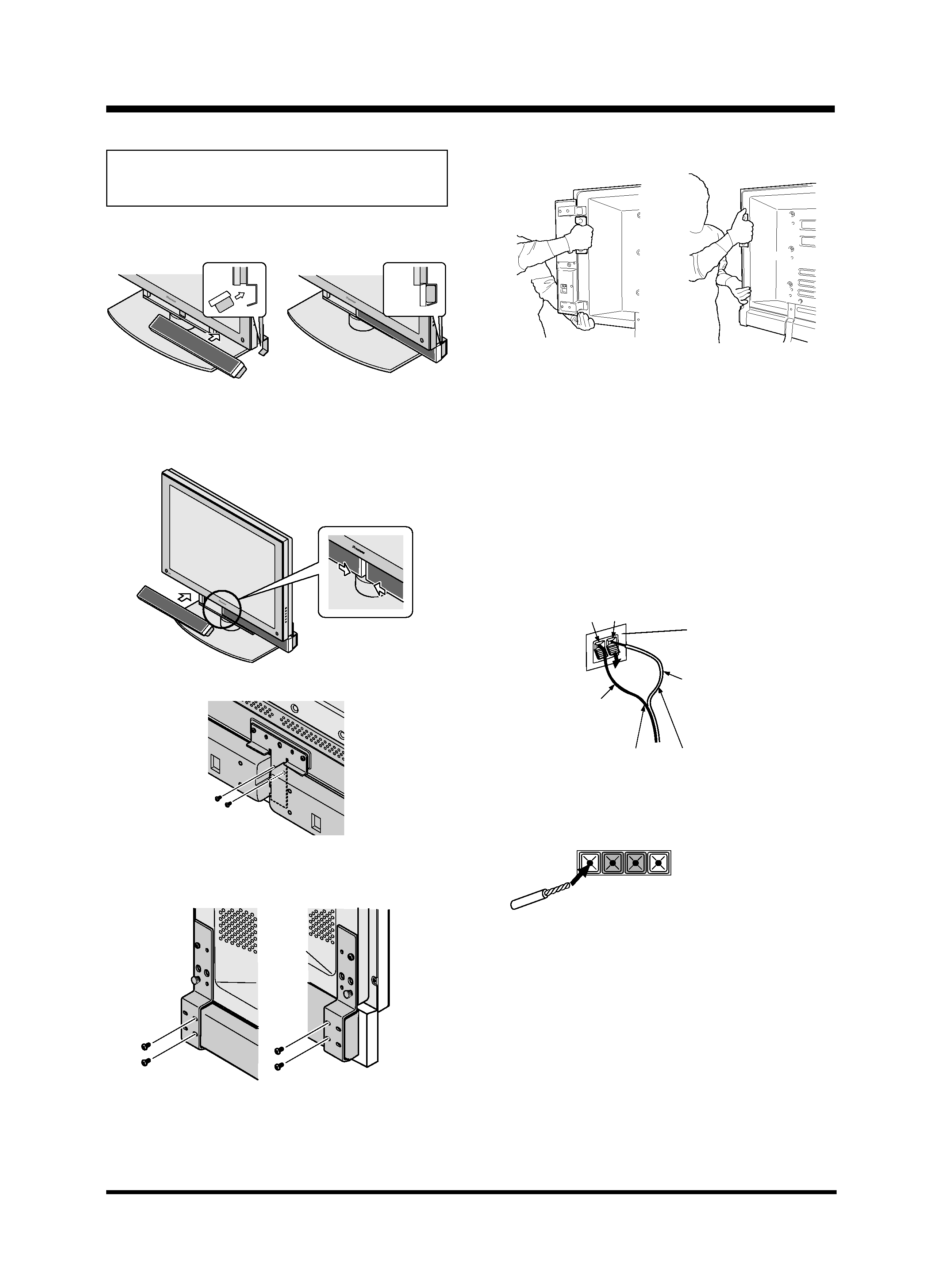

NOTE:
÷ When the display is to be moved after speaker
installation, do not hold the display by the speakers. Hold
the handle of the display and the side or bottom of the
display with reference to the figures below when moving
5 Fix the two points (four points in all) on the right and left
sides with screws. Adjust so that the speaker system is
parallel to the display and then fix the speaker system.
When the speakers are installed
on the right and left sides
When the speakers are
installed at the bottom
2 Attach the speakers to the display.
Take care to ensure that the display does not hit the
speakers in steps 1 and 2 when speakers are installed on
the display.
1 Place it below the display while inclining one speaker and
insert it into the bracket on the right side.
2 Similarly, insert the other speaker into the bracket on the
left side.
3 Adjust so that the clearance between the speakers is lost
and so that the speakers are not shifted to the right or left.
4 Fix the two points in the center of the display with screws.
CONNECTION TO A PLASMA
DISPLAY
1 Connecting the speaker cables
1 Switch off the power of the plasma display.
2 Connect the input terminals of the speaker system and
the speaker output terminals of the plasma display with
the accessory speaker cable. Make sure the positive (
ª)
and negative (
·) terminals match when connecting.
1. Push the lever, insert the cable into the hole, and release the lever.
2. For the output terminals on the plasma display, push the lever,
insert the cable into the hole, and release the lever.
÷ After connection to the terminals, pull lightly on the cable
to confirm that the tips of the cable are properly connected
to the terminals. An imperfect connection can cause
sound interruptions and noise.
÷ When cable cores stick out and ª and · lines are short-
circuited, an excessive load will be applied to the plasma
display and the operation will stop or trouble will be
caused.
÷ When the polarity is reversed for one speaker (left or right)
at the time of connection to the plasma display, the bass
reproduction will be reduced, the sound positioning will
be lost, and a correct stereo effect will not be obtained.
To the
· terminal
To the
ª terminal
(Speaker input terminals of the speaker system)
· terminal (black) ª terminal (red)
Input terminal of speaker
Black
Red
ª ··ª
RL
Output terminal of plasma
display
the speaker system. Do not hold the speakers and raise
the display. This may cause the deformation or damage
of products.
PDPS13LR.01-06/En
2003.5.27, 2:59 PM
4
background image
5
English
English

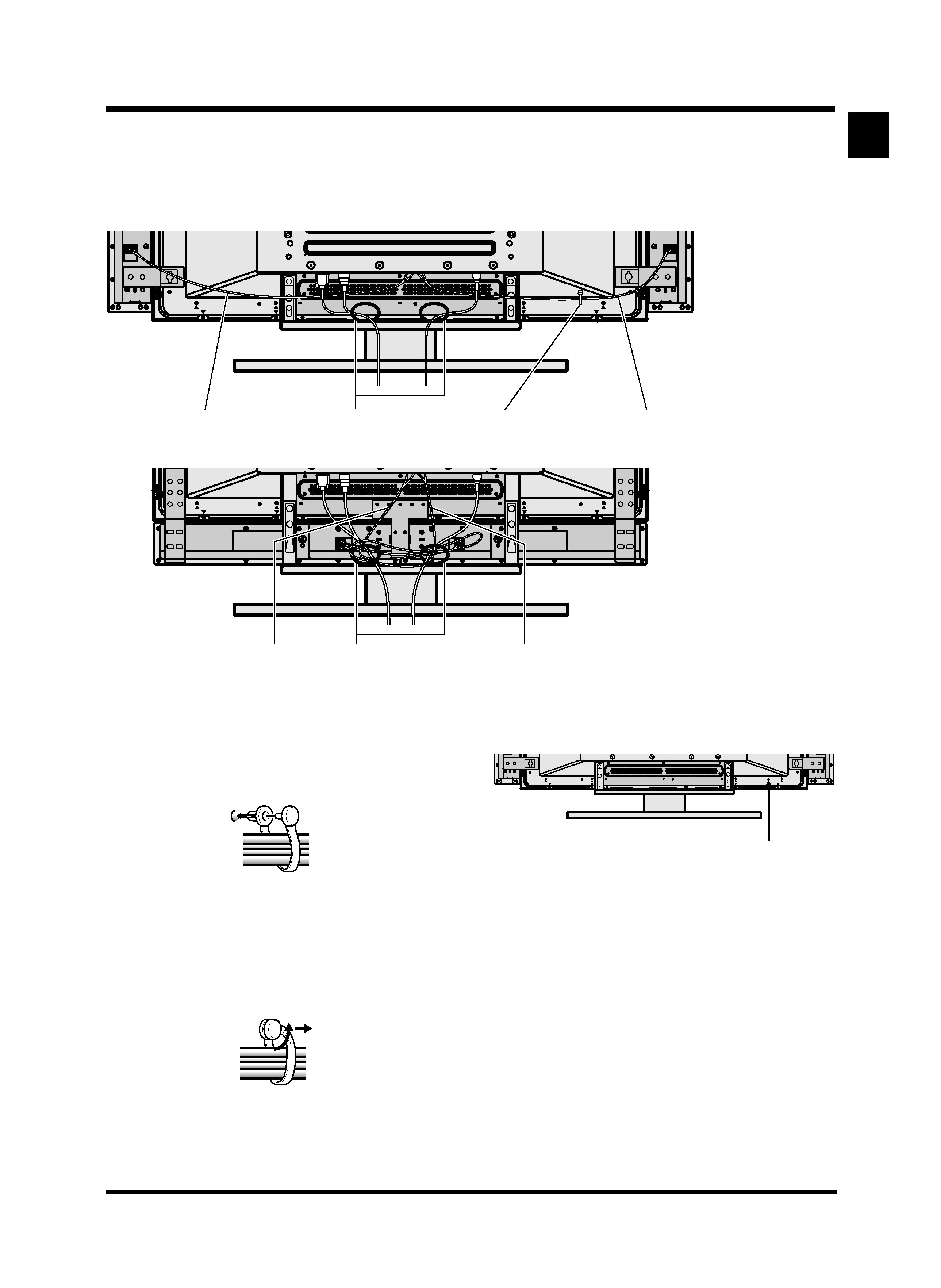

2 How to route cables
Speed clamps are included with the plasma display for
tidying your cables and keeping extra cable length out of the
way.
· Organize cables together using the
speed clamps provided with the
plasma display.
Insert 1 into an appropriate hole on the rear of the unit, then
snap 2 into the back of 1 to fix the clamp.
Speed clamps are designed to be difficult to undo once in
place. Please attach carefully.
To remove speed clamps
Using pliers, twist the clamp 90° and pull it outward.
In some cases the clamp may have deteriorated over time
and may be damaged when removed.
1
2
When installing the speakers on the right and left sides of the display
Speed clamps
Speaker cable
Speaker cable
When installing the speakers at the bottom of the display
A speaker cable or system cable is put in
the rack using a supplied wiring clamp so
that it cannot be viewed from the front.
Speaker cable
Wiring clamp
Wiring clamp
Speaker cable
To attach the speed clamps to the main unit
Connect the speed clamps using the 1 hole marked with ·
below, depending on the situation.
PDPS13LR.01-06/En
2003.5.27, 2:59 PM
5

Reviews

There are no reviews of this manual yet.

Related Products

Cover page of PIONEER DEH-2100X1M Service Manual

This manual has 67 pages, file size: 3.22 MB. It's available in languages: English.

Cover page of PIONEER DEH-P460MP/XIN/UC Owner's Manual

This manual has 140 pages, file size: 2.12 MB. It's available in languages: French, English, Spanish.

Cover page of PIONEER VSX-D2011-G/FXJI Service Manual

This manual has 150 pages, file size: 10.14 MB. It's available in languages: English.

Cover page of PIONEER CT-447S Service Manual

This manual has 31 pages, file size: 4.3 MB. It's available in languages: English.

Cover page of PIONEER CLD-1850 Service Manual

This manual has 89 pages, file size: 18.3 MB. It's available in languages: English.
