PIONEER PDP-S13-LR/XIN1/E Service Manual

Cover page of PIONEER PDP-S13-LR/XIN1/E Service Manual

Service Manual for PIONEER PDP-S13-LR/XIN1/E, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 3 pages
  • File size: 0.61 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2003
RRV2790
T ­ ZZP JULY 2003 Printed in Japan
PDP-S13-LR
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
PDP-S13-LR
SPEAKER SYSTEM
XIN/E
The woofer is attached to the baffle by 4 internal screws. To
detach it, first unfasten screws that attached to the baffle from
the back side of the cabinet. Then unfasten those screws. When
attaching it, face its terminal upward. When exchange the
woofer, attach the packing (SEB1256) to its terminal.
The tweeter is attached to the baffle by 2 internal screws. To
detach it, first unfasten screws that attached to the baffle from
the back side of the cabinet. Then unfasten those screws. When
attaching it, face its small terminal upward.
65S
This service manual is intended for qualified service technicians; it is not meant
for the casual do-it-yourselfer. Qualified technicians have the necessary test
equipment and tools, and have been trained to properly and safely repair complex
products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability
of the product and may void the warranty. If you are not qualified to perform the
repair of this product properly and safely, you should not risk trying to do so and
refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals
which are known to the state of California to cause cancer, birth defects or other
reproductive harm.
Health & Safety Code Section 25249.6 ­ Proposition 65
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2003
RRV2790
T ­ ZZP JULY 2003 Printed in Japan
PDP-S13-LR
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
PDP-S13-LR
SPEAKER SYSTEM
XIN/E
The woofer is attached to the baffle by 4 internal screws. To
detach it, first unfasten screws that attached to the baffle from
the back side of the cabinet. Then unfasten those screws. When
attaching it, face its terminal upward. When exchange the
woofer, attach the packing (SEB1256) to its terminal.
The tweeter is attached to the baffle by 2 internal screws. To
detach it, first unfasten screws that attached to the baffle from
the back side of the cabinet. Then unfasten those screws. When
attaching it, face its small terminal upward.
65S
This service manual is intended for qualified service technicians; it is not meant
for the casual do-it-yourselfer. Qualified technicians have the necessary test
equipment and tools, and have been trained to properly and safely repair complex
products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability
of the product and may void the warranty. If you are not qualified to perform the
repair of this product properly and safely, you should not risk trying to do so and
refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals
which are known to the state of California to cause cancer, birth defects or other
reproductive harm.
Health & Safety Code Section 25249.6 ­ Proposition 65
background image
2
1
23
4
12
3
4
C
D
F
A
B
E
PDP-S13-LR
Screw (for Tweeter)
APZ30P080FMC
Screw (for Fin-Lok)
BMZ50P060FZK
Screw (for Woofer,Input Terminal)
BPZ40P080FMC
Screw (for Baffle)
BPZ40P160FZK
Screw (for Coil)
BPZ40P350FMC
NSP
Accessory Set
SME3414
Speaker Wire
SDS1146
NSP
Screws Set
SEA1624
Screw
BMZ50P100FZB
NSP
Poly Bag S1
SHL1304
NSP
Rivets Set
SEA1628
Push Rivet
SBM1005
NSP
Poly Bag S1
SHL1304
NSP
Poly Bag S2
SHL1309
NSP
Accesory Set
SME3429
NSP
Holder Assy Set
SEA1631
NSP
Poly Bag S1
KHL1079
NSP
Holder Assy
SNX1159
Gasket
SEC1743
Gasket
SEC1744
Holder
SNK2700
Protector
SHB1122
NSP
Accesory Set
SME3416
NSP
Joint Plate Set
SEA1626
NSP
Poly Bag S2
SHL1309
Joint Plate Assy
SNX1157
Spacer
SEP1267
Joint Plate
SNA1418
NSP
Joint Plate Set
SEA1627
Poly Bag S2
SHL1291
Joint Plate Assy
SNX1158
Gasket
SEB1238
Gasket
SEB1249
Gasket
SEC1730
Joint Plate
SNA1419
Protector
SHB1123
Protector
SHB1124
NSP
Inst. Manual Set
SME3417
NSP
Poly Bag S2
SHL1309
Owner's Manual
SRD1258
Foam Pad (for Side)
SHA2390
Foam Pad (for Side)
SHA2391
Protector (for Partition)
SHB1125
Packing Case
SHG2496
NSP
Poly Bag S2
SHL1307
NSP
Label Serial
SRW1087
For Packing
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:
PARTS LIST
P.SW
P.SW has extreme positive resistance-temperature characteristics. (Less than 0.3W at
the normal temperature). If an abnormal current flows to P.SW due to an excessive
input or unusual signal, P.SW heats up and the resistance rapidly increases. With this
function, the speakers are protected from excessive input or unusual signal. The
resistance value increases even when using a soldering iron for repairing, so allow it to
cool before using.
Mark No.
Description
Part No.
Mark No.
Description
Part No.
Woofer
0.3A
I N
Red
Red
Black
Blue
White
White
Tweeter
1.2
µF/100V
P.SW
1.2mH
NSP
Baffle(R)
SNK2680
NSP
Baffle(L)
SNK2681
NSP
Cabinet(R)
SNK2692
NSP
Cabinet(L)
SNK2699
Network Assy
SWN1718
Input Terminal
KKX1015
NSP
Model Label(L)
SAN3259
NSP
Model Label(R)
SAN3260
Flanged Anchor Bolt
SBA1209
Fin-Lok M5
SBN1049
Serrated Flange Nut
SBN1052
NSP
Packing (for Baffle(Gate))
SEB1242
NSP
Packing (for Baffle(Woofer Boss))
SEB1244
NSP
Gasket (for Baffle)
SEB1250
NSP
Gasket (for Baffle(Tw))
SEB1251
NSP
Gasket (for Baffle(Wf))
SEB1252
NSP
Gasket (for Cabinet(Rib))
SEB1253
NSP
Gasket (for Cover)
SEB1254
NSP
Gasket (for Duct,Input Terminal)
SEB1255
NSP
Gasket (for Wf's Terminal)
SEB1256
NSP
Gasket (for Cabinet)
SEB1258
NSP
Gasket (for Cover,Duct)
SEC1740
NSP
Gasket (for Baffle(Wf))
SEC1741
NSP
Gasket (for Baffle(Wf))
SEC1742
NSP
Gasket (for Baffle~Cabinet(Long)) SEC1745
NSP
Gasket (for Baffle~Cabinet(Short)) SEC1746
Gasket (for Input Terminal)
SEC1724
NSP
Felt (for Cabinet (Rib))
SED1112
NSP
Felt (for Cabinet(Input Terminal))
SED1113
NSP
Acoustic Absorbent
(for Cabinet(Up,Down)) SMT1211
NSP
Acoustic Absorbent(for Cabinet(Center))
SMT1218
NSP
Acoustic Absorbent
(for Cabinet (Coil Back))
SMV2170
NSP
Cover
SNK2701
65 Label
SRW1080
NSP
Label Serial
SRW1083
Speaker(Woofer)
A101EC65-52F
Speaker(Tweeter)
FK26AP02-75F

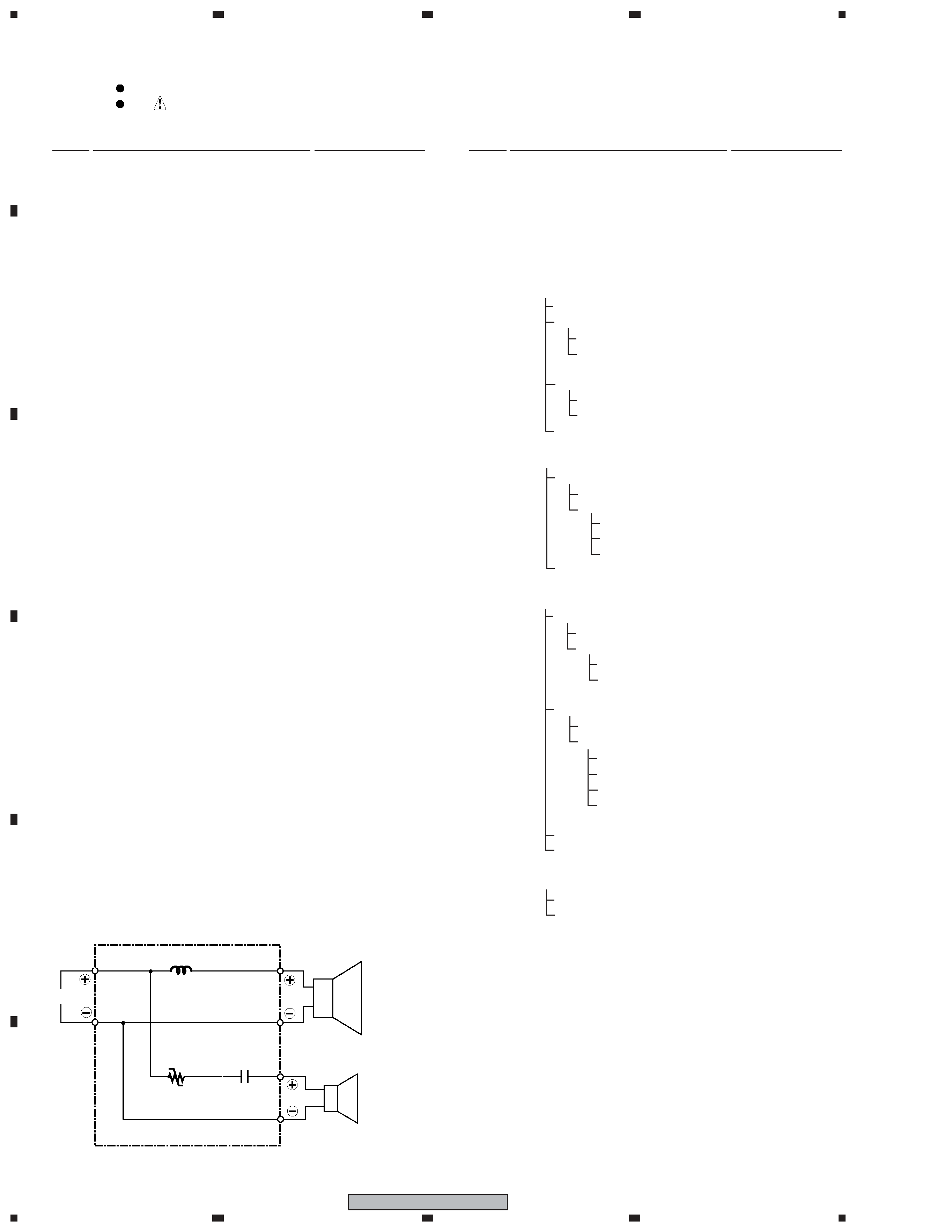

Network ASSY (SWN1718)
SCHEMATIC DIAGRAM
background image
3
1
23
4
1
2
3
4
C
D
F
A
B
E
PDP-S13-LR

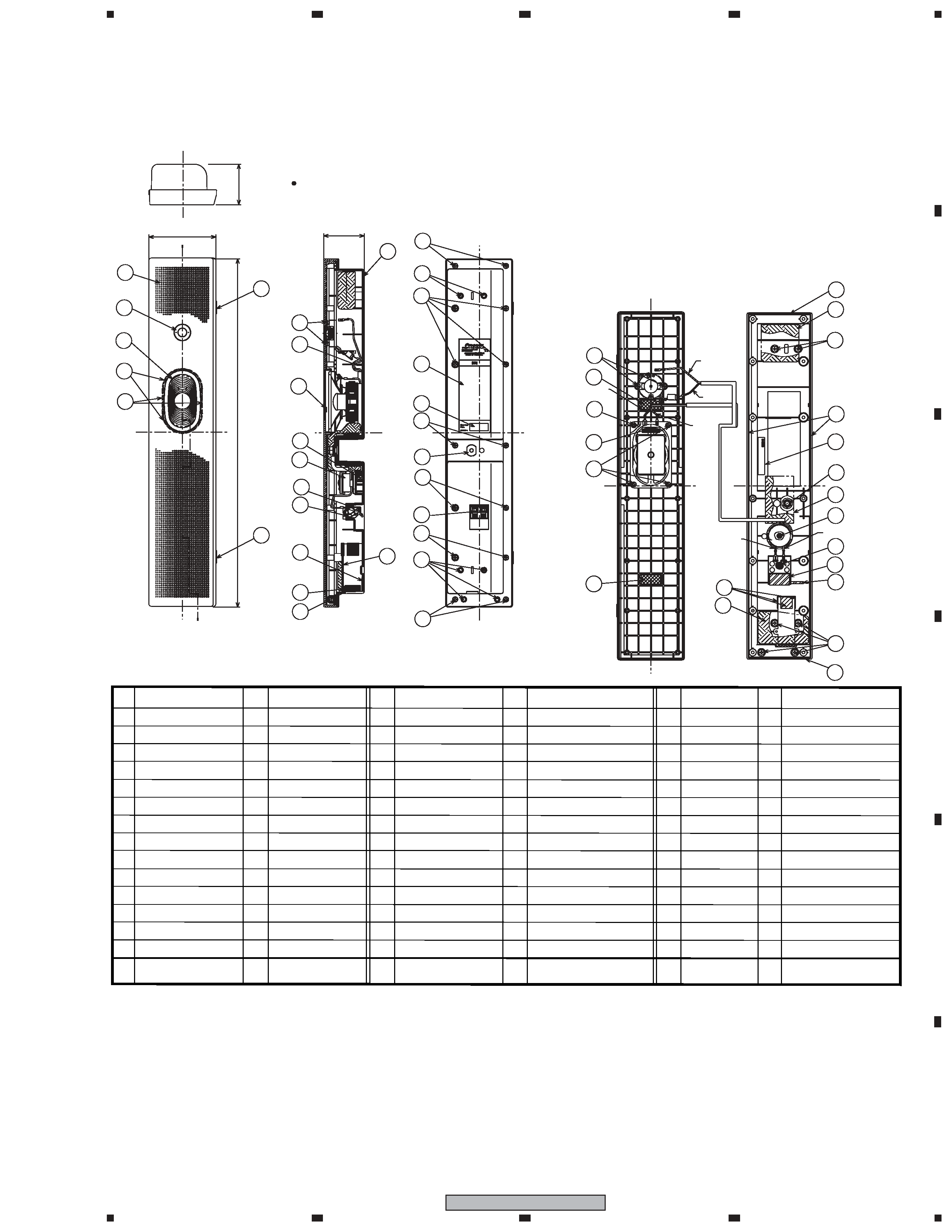

PRODUCT APPEARANCE
559
107.5
9
14
12
13
29
3
16
18
19
15
16
30
34
11
10
17
36
24
27
35
23
28
39
38
8
26
25
36
20
27
11
35
24
2
1
33
32
21
22
9
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
1
1
2
2
4
2
1
6
1
1
1
1
1
1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
39
38
37
36
35
34
33
32
31
1
1
1
2
1
1
2
1
2
2
3
1
1
1
3
1
1
14
5
6
2
1
1
1
Cabinet (L Back)
Cabinet (Center)
Cabinet (Up, Doun)
Cabinet (Input Terminal)
Cabinet (Rib)
Bf-Cab (Short)
Bf-Cab (Long)
Baffle (Wf)
Baffle (Wf)
Cover, Duct Side
Input Terminal (Back)
Cabinet (Duct Under)
Woofer Terminal
Duct, Input Terminal
Gasket
Gasket
Gasket
Gasket
Gasket
Packing
Packing
Serrated flange nut
Fin-Lok M5
Flanged Anchor Bolt
Model Label (L)
Input Terminal
Network Assy
Cabinet
Baffle (L)
65 Label
Screw
Screw
Screw
Screw
Screw
Speaker
Speaker
Label Serial
Cover
Cabinet (Rib)
Baffle (Wf)
Baffle (Tw)
Baffle
Baffle (Wf Boss)
Baffle (Gate)
Cover
Acoustic Absorbent
Acoustic Absorbent
Acoustic Absorbent
Felt
Felt
Gasket
Gasket
Gasket
Gasket
Gasket
Gasket
Gasket
Gasket
Gasket
No.
Part name
Remarks
Num.
No.
Part name
Remarks
Num.
No. Part name
Remarks
Num.
Nw (Coil)
Bf-Cab
Wf, Input Terminal
Fin-Lok
Tw
Model Label L, R
65
65
BLAK
RED
WHITE
RED
BLUE
WHITE
FOUR PLACES
FOUR PLACES
This product appearance shows Lch.
Lch is symmetrical to center line.
37
31
37
37
37
37
37
7
7
5
6
4
