background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2003
RRV2854
T ­ ZZP NOV. 2003 Printed in Japan
PDP-S19-LR
65S
This service manual is intended for qualified service technicians; it is not meant
for the casual do-it-yourselfer. Qualified technicians have the necessary test
equipment and tools, and have been trained to properly and safely repair complex
products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability
of the product and may void the warranty. If you are not qualified to perform the
repair of this product properly and safely, you should not risk trying to do so and
refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals
which are known to the state of California to cause cancer, birth defects or other
reproductive harm.
Health & Safety Code Section 25249.6 ­ Proposition 65
PDP-S19-LR
SPEAKER SYSTEM
XIN/E
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2003
RRV2854
T ­ ZZP NOV. 2003 Printed in Japan
PDP-S19-LR
65S
This service manual is intended for qualified service technicians; it is not meant
for the casual do-it-yourselfer. Qualified technicians have the necessary test
equipment and tools, and have been trained to properly and safely repair complex
products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability
of the product and may void the warranty. If you are not qualified to perform the
repair of this product properly and safely, you should not risk trying to do so and
refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals
which are known to the state of California to cause cancer, birth defects or other
reproductive harm.
Health & Safety Code Section 25249.6 ­ Proposition 65
PDP-S19-LR
SPEAKER SYSTEM
XIN/E
background image
2
1
23
4
12
3
4
C
D
F
A
B
E
PDP-S19-LR

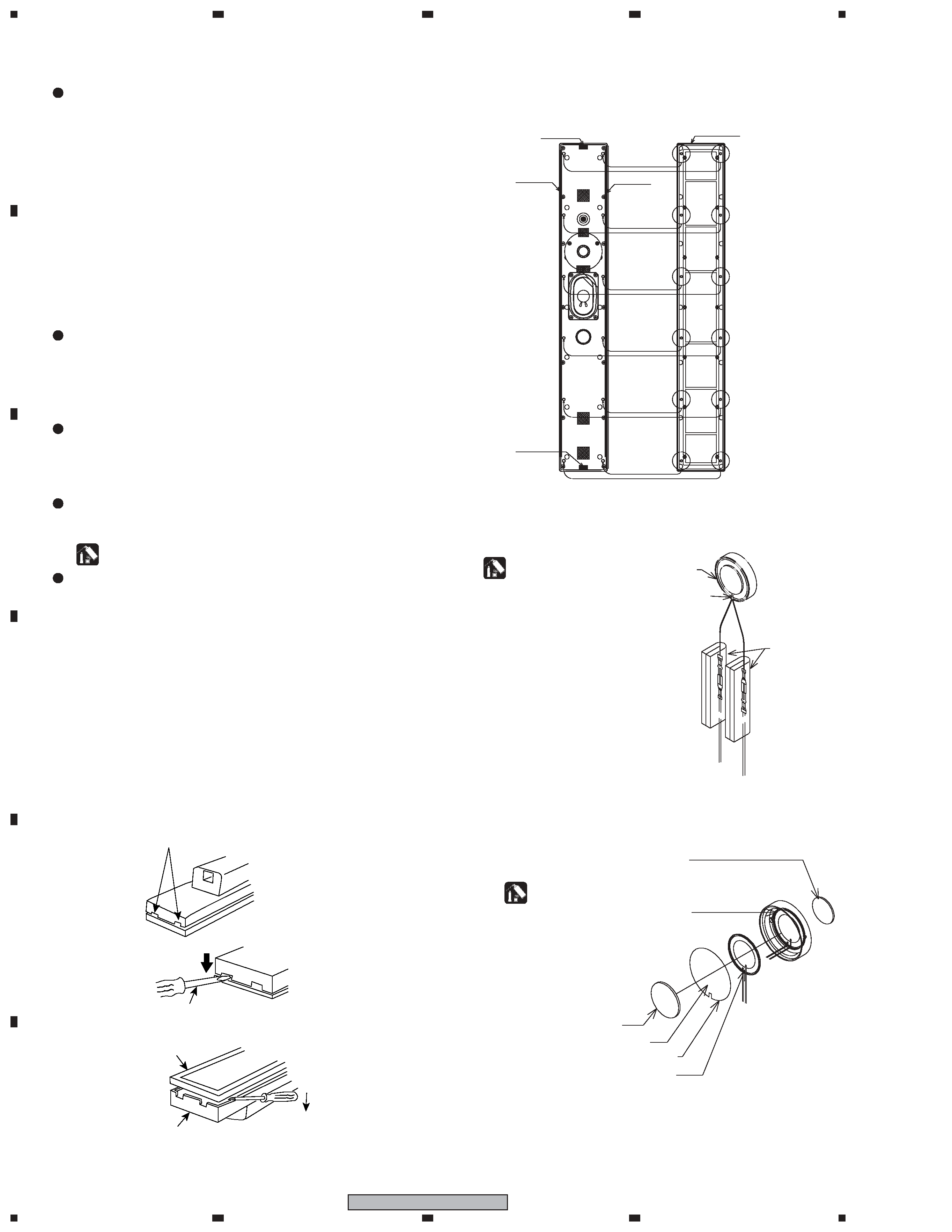

FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
The grille is attached to the baffle using double-sided self-adhe-
sive tape. To avoid damaging the grille, work with the speaker
on top of a blanket or similar, face up.
There are two slots in the lower part of the speaker. Insert a
screwdriver(-) into each slot and push down detach the lower
part.
Turn the speaker over and insert a screwdriver(-) between the
grille and the baffle. Taking care not to damage the baffle, push
down on the screwdriver(-) to prize the baffle and grille apart.
When reattaching the grille, use double-sided self-adhesive
tape in the locations shown in the diagram and press the grille
assy into place.
The grille is fixed using boss and double-sided self-adhesive
tape (The tape is in the locations indicated in the diagram be-
low). Do not use a dryer to heat the self-adhesive tape when
removing the grille.
The woofer is attached to the baffle by internal screws. To de-
tach it, unfasten those screws. When attaching it, face its termi-
nal downward.
The tweeter is attached to the baffle by external screws. To de-
tach it, unfasten those screws.
The Super Tweeter is fixed to the inside of the baffle. When
removing the Super Tweeter, first remove the screws that hold
the cabinet in place from the front of the baffle. Next, remove
the packing material (SEC1755) from around the Super
Tweeter cord and network assy connector, then detach the Su-
per Tweeter cord from the network assy. Detach by pressing the
Super Tweeter with a finger from the surface of the baffle.
When reattaching the Super Tweeter, fix it to the baffle using
adhesive (GYL-014). Next, attach the cover (SES1022), put-
ting adhesive (GYL-014) around the outside edge of the cover.
After connecting the Super Tweeter cord to the network assy,
put packing material (SEC1755) around the connector.
SUPER TWEETER
EXPLODED VIEWS
Double-sided self-adhesive tape
Packing (SEB1228)
Cover (SES1022)
Packing
(SEC1755)
Adhesive (GYL-014) around edge
connection completely
covered with adhesive
GRILLE
Slot
Screwdriver(-)
Baffle
Down
SEH1058
SMG1796
SEH1057
SEH1057
SEH1058
LOCATIONS TO FIX DOUBLE-SIDED
SELF-ADHESIVE TAPE
Grille
Gasket (SEB1281)
(Stick to the surface of the
Diaphragm Assy 20 (=Super Tweeter))
Adhesive (GYL-014) around edge
(after putting Diaphragm Assy 20 (=Super Tweeter)
into cabinet)
Diaphragm Assy 20 (SXE1099)
(=Super Tweeter)
background image
3
1
23
4
1
2
3
4
C
D
F
A
B
E
PDP-S19-LR
For Packing
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:
PARTS LIST
Mark No.
Description
Part No.
Mark No.
Description
Part No.
NSP
Baffle
SNK2713
NSP
Cabinet
SNK2715
Grille
SMG1796
NSP
Grille Cloth
SAS1556
NSP
Grille Frame
SMH1076
NSP
Cosmetic Frame
SNK2718
Network Ass'y
SWN1719
Input Terminal
KKX1015
NSP
Model Label (L)
SAN3301
NSP
Model Label (R)
SAN3302
Fin-Lok M5
SBN1049
Packing (for Cover )
SEB1228
NSP
Gasket (for Bfi:Wf-Tw )
SEB1250
NSP
Gasket (for Input-Side,DuctCover) SEB1255
NSP
Gasket (for Wf:Input)
SEB1256
NSP
Gasket (for Bfi:Tw)
SEB1258
NSP
Gasket (for Duct-O:Side)
SEB1266
NSP
Gasket (for Bfi:Wf-Boss)
SEB1271
NSP
Gasket (for Cab:Input)
SEB1273
NSP
Gasket (for Duct Cover Up)
SEB1275
NSP
Gasket (for Tw-Nw)
SEB1276
NSP
Gasket (for Cab:Up Down)
SEB1277
NSP
Gasket (for Duct-O:Up)
SEB1278
NSP
Gasket (for S.Tw)
SEB1281
Gasket (for Input-Rear)
SEC1724
NSP
Gasket (for Duct)
SEC1740
NSP
Gasket (for Bf-Cab(Short))
SEC1753
NSP
Gasket (for Wf:Gasket)
SEC1754
Gasket (for Nw assy-Stw)
SEC1755
NSP
Gasket (for Baffle-Cabinet(Long))
SEC1756
NSP
Gasket (for Bf:Mekakishi)
SEC1796
NSP
Gasket (for Bfo:Nw)
SEC1801
NSP
Felt (for Input-Side)
SED1113
NSP
Felt (for Duct-I:L R)
SED1114
NSP
Felt (for Duct-I:Up Down)
SED1115
Tape (for Bf-Gr Vert)
SEH1057
Tape (for Bf-Gr Horiz)
SEH1058
NSP
Damper (for Cab:Center)
SEP1285
NSP
Damper (for Bfo)
SEP1293
Cover (for Stw-Cover)
SES1022
NSP
Acoustic Absorbent (for Cab:Up)
SMT1211
NSP
Acoustic Absorbent (for Bfi:Wf*2)
SMT1212
NSP
Acoustic Absorbent(for Cab:Duct Side) SMT1219
NSP
Acoustic Absorbent(for Cab:Norimaki) SMT1229
NSP
Acoustic Absorbent(for Bfi:Up Down) SMT1230
NSP
Acoustic Absorbent(for Cab:Up Down) SMT1232
NSP
Acoustic Absorbent(for Cab(Choke Coil))SMV2170
NSP
Acoustic Absorbent(for Cab:Norimaki)SMV2183
NSP
Duct Cover
SNK2732
65 Label
SRW1080
NSP
Label Serial
SRW1083
Diaphragm Assy 20
SXE1099
NSP
Ceramic Tweeter
SCA1019
NSP
Terminal
SKF-102
NSP
Terminal
SKF1035
Speaker (Woofer)
A101EC65-52F
Speaker (Tweeter)
FADD55-51F
Screw (for Input Terminal)
BBZ35P140FMC
Screw (for Fin-lok M5)
BMZ50P060FZK
Screw (for TW3)
BPZ35P160FZK
Screw (for Bf:14 Wf:4)
BPZ40P140FZB
Screw (for Nw:Choke Coil)
BPZ40P350FMC
NSP
Accesory Set
SME3432
NSP
Holder Set
SEA1637
NSP
Poly Bag S1
SHL1304
Holder Assy
SNX1160
NSP
Gasket
SEC1743
NSP
Gasket
SEC1744
NSP
Holder
SNK2719
Protector
SHB1131
NSP
Accesory Set
SME3453
NSP
Holder Set
SEA1639
NSP
Poly Bag S1
SHL1304
Holder Assy
SNX1163
NSP
Gasket
SEC1743
NSP
Gasket
SEC1744
NSP
Spacer
SEP1294
NSP
Spacer
SEP1295
NSP
Holder
SNK2720
Protector
SHB1132
Protector
SHB1133
NSP
Accesory Set
SME3436
NSP
Polyethylene Bag S1
KHL1079
Speaker Wire
SDS1148
NSP
Screws Set
SEA1624
Screw
BMZ50P100FZK
NSP
Polyethylene Bag S0
KHL1081
NSP
Operating Instructions Set
SME3437
NSP
Polyethylene Bag S2
SHL1309
Operating Instructions
SRD1260
(English,French,German,Italian,Duch,Spanish,Simp-Chinese)
Protector (for Side Pad)
SHA2399
Protector (for Center)
SHB1135
Protector (for Center)
SHB1136
Packing Case
SHG2519
NSP
Packing Bag S2
SHL1363
NSP
Label Serial
SRW1087
background image
4
1
23
4
12
3
4
C
D
F
A
B
E
PDP-S19-LR

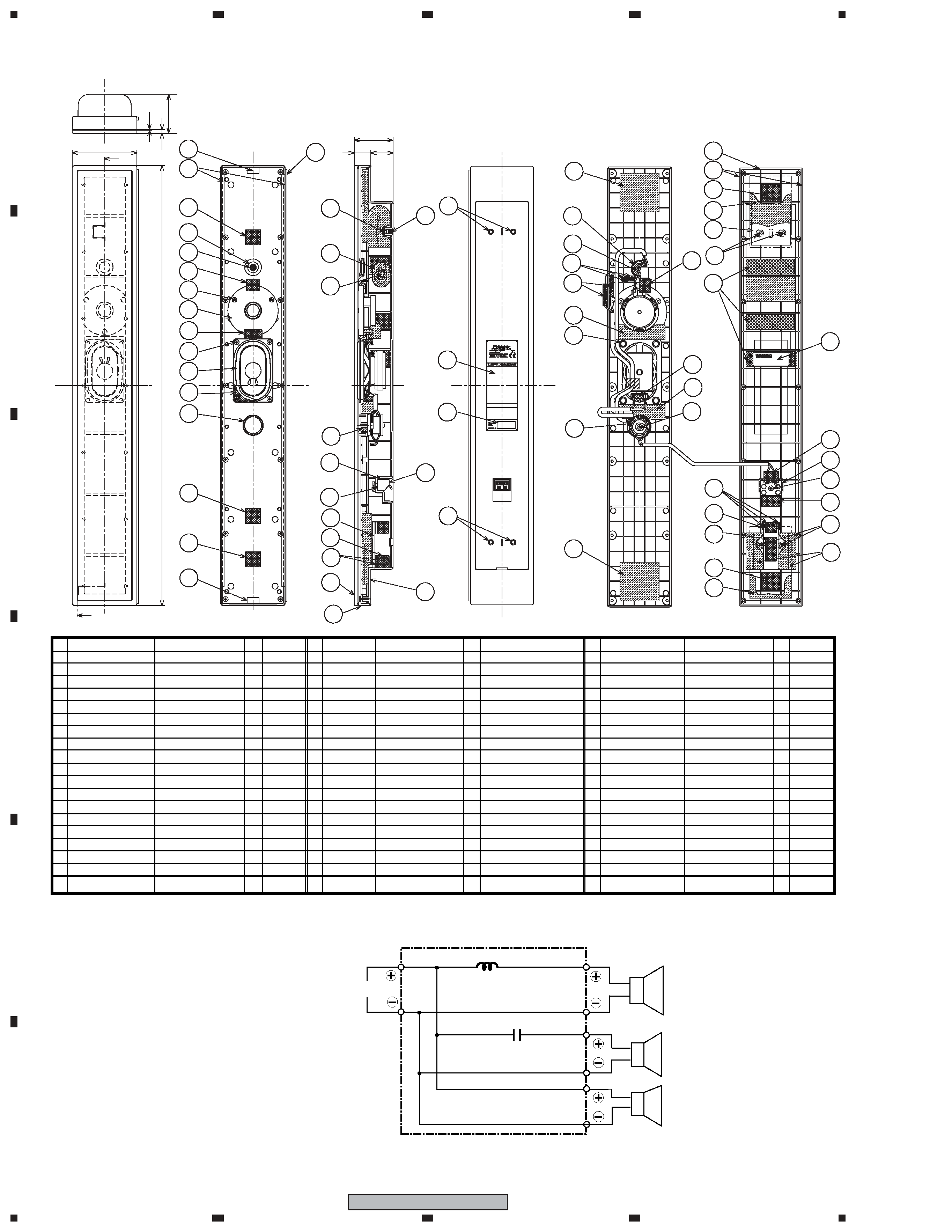

Network ASSY (SWN1719)
SCHEMATIC DIAGRAM
PRODUCT APPEARANCE
Tweeter
Super Tweeter
Woofer
I N
Red
Red
Red
Black
Black
3.3
µF/100V
C
L
1.4mH
Blue
White
White
65
28 37
737
108
65
1.2
6.1
1
2
3
5
6
7
8
9
10
11
14
15
26
26
29
36
30
27
26
28
16
17
18
19
20
21
22
23
24
25
12
13
4
and gasket(SEC1796) is symmetrical to center line.
Rch is same appearance without model lavel,
*This product appearance shows Lch.
SMV2170
SMV2183
SMT1229
BMZ50P060FZK
SEC1796
SEC1801
SEC1754
A101EC65-52F
BPZ40P140FZB
SEB1250
FADD55-51F
BPZ35P160FZK
SEB1258
SEB1281
SXE1099
SEP1293
SEH1057
SEH1058
Acoustic Absorbent
Acoustic Absorbent
Acoustic Absorbent
Screw
Gasket
Gasket
Gasket
Speaker
Screw
Gasket
Speaker
Screw
Gasket
Gasket
Diaphragm Assy 20
Damper
Tape
Tape
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
1
1
4
1
1
1
1
18
1
1
3
1
1
1
3
2
2
SMT1212
SEC1755
SEC1740
SEB1228
SES1022
SMT1230
SRW1083
SAN3301
SNK2715
KKX1015
SBN1049
SNK2713
SMG1796
SED1115
SED1114
SNK2732
SEC1724
SEB1255
Acoustic Absorbent
Gasket
Gasket
Packing
Cover
Acoustic Absorbent
Label Serial
Model Label(L)
Cabinet
Input Terminal
Fin-Lok M5
Baffle
Grille
Felt
Felt
Duct Cover
Gasket
Gasket
SMT1219
SED1113
BBZ35P140FMC
SEB1273
SEB1278
SRW1080
SEB1275
SEB1266
SEP1285
SMT1211
SMT1232
SEB1277
SEC1756
SEC1753
BPZ40P350FMC
SEB1256
SEB1276
SWN1719
SEB1271
Acoustic Absorbent
Felt
Screw
Gasket
Gasket
65 Label
Gasket
Gasket
Damper
Acoustic Absorbent
Acoustic Absorbent
Gasket
Gasket
Gasket
Screw
Gasket
Gasket
Network Assy
Gasket
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
2
2
5
1
1
2
1
1
1
1
4
1
1
2
2
1
1
1
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
2
1
1
1
1
1
1
1
3
1
2
2
1
1
1
1
1
1
4
SAN3302:Model Label(R)
No.
Part No.
Part Name
Num.
Remarks No.
Part No.
Part Name
Num.
Remarks
No.
Part No.
Part Name
Num.
Remarks
3
3
1
37
38
31
31
32
33
34
35
39
40
36
41
34
48
49
44
45
51
52
53
54
15
55
47
46
15
45
44
43
42
50

Reviews

There are no reviews of this manual yet.

Related Products

Cover page of PIONEER DEH-5/XU/UC Owner's Manual

This manual has 52 pages, file size: 0.73 MB. It's available in languages: French, English, Spanish.

Cover page of PIONEER DJM-600-S/WYXCN4 Service Manual

This manual has 74 pages, file size: 7.15 MB. It's available in languages: English.

Cover page of PIONEER RM-V2500NA Service Manual

This manual has 138 pages, file size: 27.05 MB. It's available in languages: English.

Cover page of PIONEER VSW-1/RYL5 Service Manual

This manual has 46 pages, file size: 3.95 MB. It's available in languages: English.

Cover page of PIONEER SXP930 Owner's Manual

This manual has 63 pages, file size: 2.7 MB. It's available in languages: English.
