ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2005
RRV3142
T-ZZK APR. 2005 Printed in Japan
PDP-S33-LR
SPEAKER SYSTEM
XIN/UC
65S
This service manual is intended for qualified service technicians; it is not meant for the
casual do-it-yourselfer. Qualified technicians have the necessary test equipment and
tools, and have been trained to properly and safely repair complex products such as
those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability
of the product and may void the warranty. If you are not qualified to perform the repair
of this product properly and safely, you should not risk trying to do so and refer the
repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals
which are known to the state of California to cause cancer, birth defects or other
reproductive harm.
Health & Safety Code Section 25249.6 ­ Proposition 65
PDP-S33-LR
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2005
RRV3142
T-ZZK APR. 2005 Printed in Japan
PDP-S33-LR
SPEAKER SYSTEM
XIN/UC
65S
This service manual is intended for qualified service technicians; it is not meant for the
casual do-it-yourselfer. Qualified technicians have the necessary test equipment and
tools, and have been trained to properly and safely repair complex products such as
those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability
of the product and may void the warranty. If you are not qualified to perform the repair
of this product properly and safely, you should not risk trying to do so and refer the
repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals
which are known to the state of California to cause cancer, birth defects or other
reproductive harm.
Health & Safety Code Section 25249.6 ­ Proposition 65
PDP-S33-LR
background image
2
1
23
4
12
3
4
C
D
F
A
B
E
PDP-S33-LR

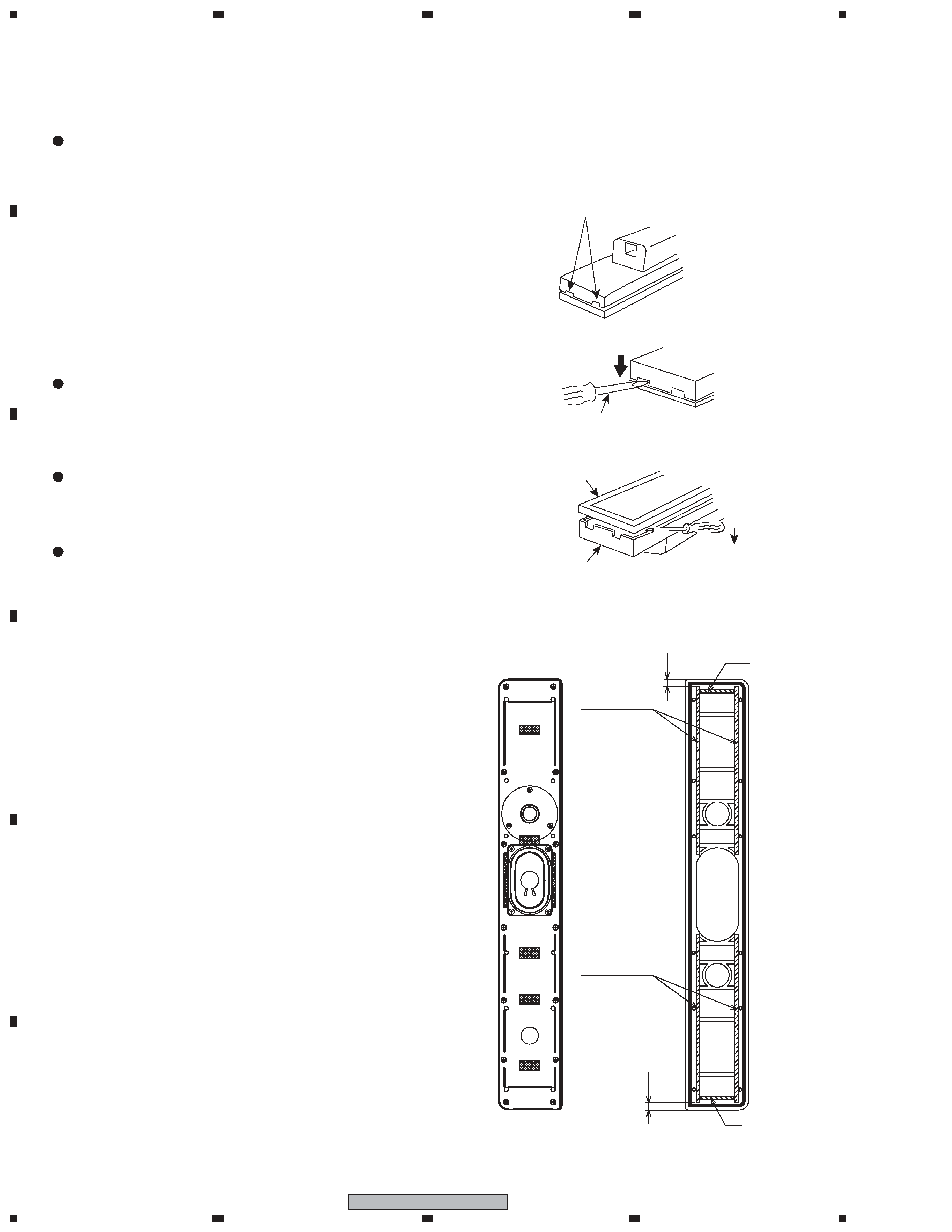

FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY
The grille is attached to the baffle using double-sided self-adhe-
sive tape. To avoid damaging the grille, work with the speaker
on top of a blanket or similar, face up.
There are two slots in the lower part of the speaker. Insert a
screwdriver(-) into each slot and push down detach the lower
part.
Turn the speaker over and insert a screwdriver(-) between the
grille and the baffle. Taking care not to damage the baffle, push
down on the screwdriver(-) to prize the baffle and grille apart.
When reattaching the grille, use double-sided self-adhesive
tape in the locations shown in the diagram and press the grille
assy into place.
The grille is fixed using boss and double-sided self-adhesive
tape(The tape is in the locations indicated in the diagram be-
low). Do not use a dryer to heat the self-adhesive tape when
removing the grille.
The woofer is attached to the baffle by external screws. To de-
tach it, unfasten those screws. When attaching it, face its termi-
nal downward.
The tweeter is attached to the baffle by external screws. To de-
tach it, unfasten those screws.
Slot
GRILLE
Screwdriver(-)
Grille
Baffle
Down
(11)
(11)
LOCATIONS TO FIX DOUBLE-SIDED
SELF-ADHESIVE TAPE
Tape
(SEH1074 x2)
Tape
(SEH1063)
Tape
(SEH1063)
Tape
(SEH1074 x2)
background image
3
1
23
4
1
2
3
4
C
D
F
A
B
E
PDP-S33-LR
For Packing
Mark No.
Description
Part No.
NSP
Accessories Set (Flush & Screw,Cord) SME3629
Protector
SHB1159
NSP
Accessories Set (Flush)
SME3626
Spacer
SHD1067
Accessory Case
SHF1086
Bracket A ASSY (R)
SNX1175
NSP
Polyethylene Bag S1
KHL1079
NSP
Label (R)
SAK1014
Gasket
SEC1861
Gasket A
SEC1935
NSP
Bracket A
SNA1447
NSP
Clear Tape 12mm
ZTA-400-12
Bracket A ASSY (L)
SNX1176
NSP
Polyethylene Bag S1
KHL1079
NSP
Label (L)
SAK1015
Gasket
SEC1861
Gasket A
SEC1935
NSP
Bracket A
SNA1447
NSP
Clear Tape 12mm
ZTA-400-12
Bracket B ASSY (R)
SNX1177
NSP
Polyethylene Bag S1
KHL1079
NSP
Label (R)
SAK1014
Gasket
SEC1861
Gasket B
SEC1936
NSP
Bracket B
SNA1448
NSP
Clear Tape 12mm
ZTA-400-12
Bracket B ASSY (L)
SNX1178
NSP
Polyethylene Bag S1
KHL1079
NSP
Label (L)
SAK1015
Gasket
SEC1861
Gasket B
SEC1936
NSP
Bracket B
SNA1448
NSP
Clear Tape 12mm
ZTA-400-12
NSP
Danpron Tape
ZTA-DANPRON-50CL
NSP
Accessory Set (Screw & Cord)
SME3525
NSP
Polyethylene Bag S1
KHL1079
NSP
Screws Set
SME3510
Screw
BMZ50P100FTB
NSP
Polyethylene Bag S0
KHL1081
NSP
MAX No.10-1M
ZMX-MAX10-1M
Speaker Wire Set
SME3526
Speaker Wire
SDS1166
NSP
Polyethylene Bag S0
KHL1081
NSP
MAX No.10-1M
ZMX-MAX10-1M
NSP
MAX No.10-1M
ZMX-MAX10-1M
NSP
Danpron Tape
ZTA-DANPRON-50CL
NSP
Clear Tape 12mm
ZTA-400-12
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:
PARTS LIST
Mark No.
Description
Part No.
NSP
Baffle L
SNK2860
NSP
Baffle R
SNK2861
NSP
Cabinet L
SNK2864
NSP
Cabinet R
SNK2865
Grille ASSY
SMG1847
NSP
Grille Cloth
SAS1571
NSP
Grille Frame
SMH1105
Network ASSY
SWN1736
Capacitor 2.7
SCE1029
NSP
Packing
SEB1232
NSP
Gasket
SEC1855
NSP
Gasket
SEC1856
NSP
Gasket
SEC1857
NSP
Gasket
SEC1860
NSP
Terminal
SFK1034
NSP
Terminal
SFK1035
Choke Coil 1.1
STH1260
NSP
Rosin Core Solderpbf
ZSA-5020-1R6
NSP
Red-Black Wire
ZWWAC3318-20
NSP
Red-White Wire
ZWWAC3318-29
NSP
Blue-White Wire
ZWWAC3318-69
Input Terminal
KKX1015
NSP
Model Label (L)
SAN3661
NSP
Model Label (R)
SAN3662
NSP
Insert Nut M5
SBN1056
NSP
Gasket (BF: WF-TW, Top, Bottom)
SEB1250
NSP
Gasket (Input-Side)
SEB1255
NSP
Gasket (WF: Input)
SEB1256
NSP
Gasket (TW: Input)
SEB1271
NSP
Gasket (CAB: Input)
SEB1273
Gasket (Input Terminal Back)
SEC1724
NSP
Gasket (WF: Gasket)
SEC1754
NSP
Gasket (CAB: Rib Long)
SEC1858
NSP
Gasket (CAB: Rib Short)
SEC1859
NSP
Gasket (BF: Side)
SEC1863
NSP
Gasket (CAB: Long Inside)
SEC1931
NSP
Gasket (CAB: Short Inside)
SEC1932
NSP
Gasket (BF: WF Side)
SEC1934
NSP
Felt (Duct: Inside)
SED1112
NSP
Felt (CAB: C Term)
SED1113
Tape (Grille: Short)
SEH1063
Tape (Grille: Long)
SEH1074
NSP
Paper Tube 26
SMR1380
NSP
Port Tube Ring 26
SMR1382
NSP
Acoustic Absorbent (Roll : Small)
SMT1240
NSP
Acoustic Absorbent (TW: Back)
SMT1245
NSP
Acoustic Absorbent (CAB: Roll)
SMT1246
NSP
Acoustic Absorbent (CAB: T B)
SMT1248
NSP
Acoustic Absorbent (CAB: B)
SMT1249
NSP
Label Serial (Model Label L,R)
SRW1083
Speaker
A101EC65-54F
Speaker
FADD55-52F
background image
4
1
23
4
12
3
4
C
D
F
A
B
E
PDP-S33-LR
Mark No.
Description
Part No.
Foam Pad
SHA2484
Protector
SHB1156
Protector
SHB1165
Packing Case
SHG2646
Polyethylene Bag S2
SHL1407
NSP
Label Serial
SRW1087
Screw (TW)
BPZ35P080FTB
Screw (Terminal)
BPZ35P140FTB
Screw (BF-CAB, WF)
BPZ40P100FTB
Screw (NW:L)
BPZ40P300FTB
Mark No.
Description
Part No.
NSP
Accessories Set (R) (Set Back (R) Set) SME3627
Accessory Case
SHF1092
Bracket A ASSY (R)
SNX1179
NSP
Polyethylene Bag S1
KHL1079
NSP
Label (R)
SAK1014
Gasket
SEC1861
Gasket A
SEC1935
NSP
Bracket A
SNA1449
NSP
Clear Tape 12mm
ZTA-400-12
Bracket B ASSY (R)
SNX1181
NSP
Polyethylene Bag S1
KHL1079
NSP
Label (R)
SAK1014
Gasket
SEC1861
Gasket B
SEC1936
NSP
Bracket B
SNA1450
NSP
Clear Tape 12mm
ZTA-400-12
NSP
Danpron Tape
ZTA-DANPRON-50CL
NSP
Accessories Set (L) (Set Back (L) Set) SME3628
Accessory Case
SHF1092
Bracket A ASSY (L)
SNX1180
NSP
Polyethylene Bag S1
KHL1079
NSP
Label (L)
SAK1015
Gasket
SEC1861
Gasket A
SEC1935
NSP
Bracket A
SNA1449
NSP
Clear Tape 12mm
ZTA-400-12
Bracket B ASSY (L)
SNX1182
NSP
Polyethylene Bag S1
KHL1079
NSP
Label (L)
SAK1015
Gasket
SEC1861
Gasket B
SEC1936
NSP
Bracket B
SNA1450
NSP
Clear Tape 12mm
ZTA-400-12
NSP
Danpron Tape
ZTA-DANPRON-50BR
NSP
Danpron Tape
ZTA-DANPRON-50CL
NSP
Inst. Manual Set
SME3625
NSP
Poly Bag S2
SHL1309
Owner's Manual
SRD1282
(English, Spanish, French)
NSP
Clear Tape 12mm
ZTA-400-12
SCHEMATIC DIAGRAM
Network ASSY (SWN1736)
I N
Red
Red
Black
Blue
White
White
2.7
µF/100V
C
L
1.1mH
Woofer
Tweeter
background image
5
1
23
4
1
2
3
4
C
D
F
A
B
E
PDP-S33-LR
PACKING
12
8
11
12
10
9
3
2
2
4
4
5
13
7
1
11
12
6
A Side
B Side
PACKING CASE
1
SHG2646
SEREAL BARCORD LABEL
2
SRW1087
ACCESSORIES SET
1
SME3629
1
ACCESSORIES SET (R)
SME3527
SPEAKER SYSTEM L,R
1set
2
PACKING BAG S2
SHL1407
ACCESSORIES SET (L)
1
SME3528
2
2
FOAM PAD
SHA2484
SHB1156
SHB1165
PROTECTOR
PROTECTOR
1
INST.MANUAL SET
1
SME3625
CLEAR TAPE 12mm
8cm
ZTA-400-12
DANPRON-TAPE CLEARNESS 50mm
160cm
ZTA-DANPRON-50CL
No.
Num.
Remarks
Part No.
Part Name
1
2
3
4
5
6
7
8
9
10
11
12
13
Set Back R
Flush & Screw, Cord
Set Back L
*Top side and bottom side of the packing case are " I " taped.
NOTE
*This specification shows imaginary,so the form disagrees with actual parts.
Gasket
PIONEER LOGO
Top

Reviews

There are no reviews of this manual yet.

Related Products

Cover page of PIONEER DEH-P4880MP/XF/BR Service Manual

This manual has 76 pages, file size: 4.77 MB. It's available in languages: English.

Cover page of PIONEER PDP-S47E Service Manual

This manual has 2 pages, file size: 0.51 MB. It's available in languages: English.

Cover page of PIONEER DV-525/RD/RB Service Manual

This manual has 84 pages, file size: 4.66 MB. It's available in languages: English.

Cover page of PIONEER PD-93 Owner's Manual

This manual has 122 pages, file size: 6.44 MB. It's available in languages: Portuguese, Swedish, French, English, Spanish, Dutch, German, Italian.

Cover page of PIONEER DEH-P5650MP-2 Service Manual

This manual has 2 pages, file size: 0.04 MB. It's available in languages: English.
