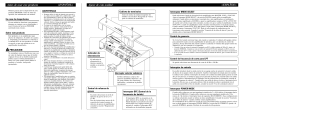

Setting the Unit

Thank you for purchasing this PIONEER

product. Before attempting operation, be

sure to read this manual.

In case of trouble

When the unit does not operate properly,

contact your dealer or the nearest autho-

rized PIONEER Service Station.

About This Product

This product is a class D amplifier for the

subwoofer. If both L (left) and R (right)

channels are connected to the RCA input

of this product, output is mixed because

this product is a mono amplifier.

CAUTION

Never replace the fuse with one of greater

value or rating than the original fuse. Use

of an improper fuse could result in over-

heating and smoke and could cause dam-

age to the product and injury including

burns.

WARNING

· Always use the special red battery and ground

wire [RD-223] and [RD-222], which are sold sep-

arately. Connect the battery wire directly to the

car battery positive terminal (+) and the ground

wire to the car body. There is the risk of a fuse

burning out if only one of these is connected.

· Do not touch the amplifier with wet hands.

Otherwise you may get an electric shock. Also, do

not touch the amplifier when it is wet.

· For traffic safety and to maintain safe driving

conditions, keep the volume low enough so that

you can still hear normal traffic sound.

· Check the connections of the power supply and

speakers if the fuse of the separately sold battery

wire or the amplifier fuse blows. Detect the cause

and solve the problem, then replace the fuse with

another one of the same size and rating.

· To prevent malfunction of the amplifier and

speakers, the protective circuit will cut the power

supply to the amplifier (sound will stop) when an

abnormal condition occurs. In such a case, switch

the power to the system OFF and check the

connection of the power supply and speakers.

Detect the cause and solve the problem.

· Contact the dealer if you cannot detect the cause.

· To prevent an electric shock or short-circuit

during connection and installation, be sure to

disconnect the negative () terminal of the battery

beforehand.

· Confirm that no parts are behind the panel when

drilling a hole for installation of the amplifier. Be

sure to protect all cables and important equipment

such as fuel lines, brake lines and the electrical

wiring from damage.

· DO NOT allow amplifier to come into contact

with liquids due to, for example, the location

where the amplifier is installed. Electrical shock

could result. Also, amplifier and speaker damage,

smoke, and overheating could result from contact

with liquids. In addition, the amplifier surface and

the surface of any attached speakers could become

hot to the touch and minor burns could result.

Before Using This Product

Published by Pioneer Corporation.

Publicado por Pioneer Corporation.

Printed in China

Impreso na China

<CRD4121-A/U> ES

CLASS D MONO AMPLIFIER

AMPLIFICADOR MONOFÓNICO DE

CLASE D

Owner's Manual

PRS-D1000M

Manual del Propietario

PIONEER CORPORATION

4-1, MEGURO 1-CHOME, MEGURO-KU, TOKYO 153-8654, JAPAN

PIONEER ELECTRONICS (USA) INC.

P.O. Box 1540, Long Beach, California 90801-1540, U.S.A.

TEL: (800) 421-1404

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium

TEL: (0) 3/570.05.11

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936

TEL: 65-6472-7555

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

178-184 Boundary Road, Braeside, Victoria 3195, Australia

TEL: (03) 9586-6300

PIONEER ELECTRONICS OF CANADA, INC.

300 Allstate Parkway, Markham, Ontario L3R OP2, Canada

TEL: 1-877-283-5901

PIONEER ELECTRONICS DE MEXICO, S.A. de C.V.

Blvd.Manuel Avila Camacho 138 10 piso

Col.Lomas de Chapultepec, Mexico, D.F. 11000

TEL: 55-9178-4270

Gain Control

If the sound level is too low, even when the volume of the car stereo used along with this

power amplifier is turned up, turn gain control clockwise. If the sound distorts when the vol-

ume is turned up, turn the gain control counter-clockwise.

· When using with an RCA equipped car stereo (standard output of 500 mV), set to the NORMAL

position. When using with an RCA equipped Pioneer car stereo with max. output of 4 V or more,

adjust level to match the car stereo output level.

· If you hear too much noise when using the speaker input terminals, turn the gain control

counter-clockwise.

Power Indicator

The power indicator

lights when the power

is switched on.

Terminal Cover

Before setting up the unit, unfasten the

screws with a 4 mm hexagonal wrench

and remove the terminal cover.

Bass Boost Control

You can select a bass boost level from

0, 6, 9 and 12 dB.

For instruction of connecting the bass

boost remote control to the amplifier,

see the "Connection Diagram" section.

BFC (Beat Frequency Control)

Switch

BFC switch is on the bottom of the

unit. If you hear a beat while listening

to an AM broadcast with your car

stereo, change the BFC switch using a

small standard tip screwdriver.

Input Switch

It is possible to input from a car stereo external output or a car stereo speaker output. Switch

the input switch before turning on the power. Since switching the input switch while the

power is on can cause a loud noise to be emitted from the speakers, the power is turned off

by a protection function. When using an external output, slide the switch to the left. For con-

nection instructions, see the "Connection Diagram" section. When using a speaker output,

slide the switch to the right. In this case, it is necessary to use the supplied speaker input

wire with RCA pin cord. For details, see the "Using the Speaker Input" section.

MODE SELECT Switch

You can select amplifier's sync mode from MASTER, SYNC and SYNC INV. Set the MODE SELECT

switch to the MASTER position when using one amplifier only. When using synchronously connecting

two or more of these amplifiers in combination, set the first amplifier to MASTER, and set the remain-

ing amplifiers to SYNC or SYNC INV according to the manner in which they are connected. The only

time the amplifier is switched to the SYNC INV mode is when amplifiers are synchronously connected

with the ex. bridge.

When switching to the SYNC INV mode, the seal over the MODE SELECT switch must be peeled off

and you can find SYNC INV switch. Peel off the seal after checking that connections are correct. See

the "Connecting the Speaker Wires" section for details on the MODE SELECT switch.

POWER MODE Switch

When using speakers with synthetic impeadance 2

to 8 , slide the switch to the right

(NORMAL). When using speakers with synthetic impeadance from 1

to less than 2 ,

slide the switch to the left (HI-CURRENT). These settings are only used when using a single

amplifier. See the "Connecting the Speaker Wires" section when combining the use of multi-

ple amplifiers.

If the speaker impedance exceeds 2

(4 when using ex. bridge), although the POWER

MODE switch be may set to the HI-CURRENT position, setting to the NORMAL position

makes it possible to enjoy high power sound.

Subsonic Select Switch

The subsonic filter cuts inaudi-

ble frequencies below 20 Hz to

eliminate unwanted vibrations

and minimize power loss.

Cut Off Frequency Control for LPF

You can select a cut off frequency from 40 Hz to 240 Hz.

Setting the Unit

Thank you for purchasing this PIONEER

product. Before attempting operation, be

sure to read this manual.

In case of trouble

When the unit does not operate properly,

contact your dealer or the nearest autho-

rized PIONEER Service Station.

About This Product

This product is a class D amplifier for the

subwoofer. If both L (left) and R (right)

channels are connected to the RCA input

of this product, output is mixed because

this product is a mono amplifier.

CAUTION

Never replace the fuse with one of greater

value or rating than the original fuse. Use

of an improper fuse could result in over-

heating and smoke and could cause dam-

age to the product and injury including

burns.

WARNING

· Always use the special red battery and ground

wire [RD-223] and [RD-222], which are sold sep-

arately. Connect the battery wire directly to the

car battery positive terminal (+) and the ground

wire to the car body. There is the risk of a fuse

burning out if only one of these is connected.

· Do not touch the amplifier with wet hands.

Otherwise you may get an electric shock. Also, do

not touch the amplifier when it is wet.

· For traffic safety and to maintain safe driving

conditions, keep the volume low enough so that

you can still hear normal traffic sound.

· Check the connections of the power supply and

speakers if the fuse of the separately sold battery

wire or the amplifier fuse blows. Detect the cause

and solve the problem, then replace the fuse with

another one of the same size and rating.

· To prevent malfunction of the amplifier and

speakers, the protective circuit will cut the power

supply to the amplifier (sound will stop) when an

abnormal condition occurs. In such a case, switch

the power to the system OFF and check the

connection of the power supply and speakers.

Detect the cause and solve the problem.

· Contact the dealer if you cannot detect the cause.

· To prevent an electric shock or short-circuit

during connection and installation, be sure to

disconnect the negative () terminal of the battery

beforehand.

· Confirm that no parts are behind the panel when

drilling a hole for installation of the amplifier. Be

sure to protect all cables and important equipment

such as fuel lines, brake lines and the electrical

wiring from damage.

· DO NOT allow amplifier to come into contact

with liquids due to, for example, the location

where the amplifier is installed. Electrical shock

could result. Also, amplifier and speaker damage,

smoke, and overheating could result from contact

with liquids. In addition, the amplifier surface and

the surface of any attached speakers could become

hot to the touch and minor burns could result.

Before Using This Product

Published by Pioneer Corporation.

Publicado por Pioneer Corporation.

Printed in China

Impreso na China

<CRD4121-A/U> ES

CLASS D MONO AMPLIFIER

AMPLIFICADOR MONOFÓNICO DE

CLASE D

Owner's Manual

PRS-D1000M

Manual del Propietario

PIONEER CORPORATION

4-1, MEGURO 1-CHOME, MEGURO-KU, TOKYO 153-8654, JAPAN

PIONEER ELECTRONICS (USA) INC.

P.O. Box 1540, Long Beach, California 90801-1540, U.S.A.

TEL: (800) 421-1404

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium

TEL: (0) 3/570.05.11

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936

TEL: 65-6472-7555

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

178-184 Boundary Road, Braeside, Victoria 3195, Australia

TEL: (03) 9586-6300

PIONEER ELECTRONICS OF CANADA, INC.

300 Allstate Parkway, Markham, Ontario L3R OP2, Canada

TEL: 1-877-283-5901

PIONEER ELECTRONICS DE MEXICO, S.A. de C.V.

Blvd.Manuel Avila Camacho 138 10 piso

Col.Lomas de Chapultepec, Mexico, D.F. 11000

TEL: 55-9178-4270

Gain Control

If the sound level is too low, even when the volume of the car stereo used along with this

power amplifier is turned up, turn gain control clockwise. If the sound distorts when the vol-

ume is turned up, turn the gain control counter-clockwise.

· When using with an RCA equipped car stereo (standard output of 500 mV), set to the NORMAL

position. When using with an RCA equipped Pioneer car stereo with max. output of 4 V or more,

adjust level to match the car stereo output level.

· If you hear too much noise when using the speaker input terminals, turn the gain control

counter-clockwise.

Power Indicator

The power indicator

lights when the power

is switched on.

Terminal Cover

Before setting up the unit, unfasten the

screws with a 4 mm hexagonal wrench

and remove the terminal cover.

Bass Boost Control

You can select a bass boost level from

0, 6, 9 and 12 dB.

For instruction of connecting the bass

boost remote control to the amplifier,

see the "Connection Diagram" section.

BFC (Beat Frequency Control)

Switch

BFC switch is on the bottom of the

unit. If you hear a beat while listening

to an AM broadcast with your car

stereo, change the BFC switch using a

small standard tip screwdriver.

Input Switch

It is possible to input from a car stereo external output or a car stereo speaker output. Switch

the input switch before turning on the power. Since switching the input switch while the

power is on can cause a loud noise to be emitted from the speakers, the power is turned off

by a protection function. When using an external output, slide the switch to the left. For con-

nection instructions, see the "Connection Diagram" section. When using a speaker output,

slide the switch to the right. In this case, it is necessary to use the supplied speaker input

wire with RCA pin cord. For details, see the "Using the Speaker Input" section.

MODE SELECT Switch

You can select amplifier's sync mode from MASTER, SYNC and SYNC INV. Set the MODE SELECT

switch to the MASTER position when using one amplifier only. When using synchronously connecting

two or more of these amplifiers in combination, set the first amplifier to MASTER, and set the remain-

ing amplifiers to SYNC or SYNC INV according to the manner in which they are connected. The only

time the amplifier is switched to the SYNC INV mode is when amplifiers are synchronously connected

with the ex. bridge.

When switching to the SYNC INV mode, the seal over the MODE SELECT switch must be peeled off

and you can find SYNC INV switch. Peel off the seal after checking that connections are correct. See

the "Connecting the Speaker Wires" section for details on the MODE SELECT switch.

POWER MODE Switch

When using speakers with synthetic impeadance 2

to 8 , slide the switch to the right

(NORMAL). When using speakers with synthetic impeadance from 1

to less than 2 ,

slide the switch to the left (HI-CURRENT). These settings are only used when using a single

amplifier. See the "Connecting the Speaker Wires" section when combining the use of multi-

ple amplifiers.

If the speaker impedance exceeds 2

(4 when using ex. bridge), although the POWER

MODE switch be may set to the HI-CURRENT position, setting to the NORMAL position

makes it possible to enjoy high power sound.

Subsonic Select Switch

The subsonic filter cuts inaudi-

ble frequencies below 20 Hz to

eliminate unwanted vibrations

and minimize power loss.

Cut Off Frequency Control for LPF

You can select a cut off frequency from 40 Hz to 240 Hz.

Connecting the Power Terminal

· Always use the special red battery and ground

wire ([RD-223] and [RD-222]), which are sold

separately. Connect the battery wire directly to the

car battery positive terminal (+) and the ground

wire to the car body. There is the risk of a fuse

burning out if only one of these is connected.

1. Pass the battery wire from the

engine compartment to the interior

of the vehicle.

· After making all other connections to the

amplifier, connect the battery wire terminal of

the amplifier to the positive (+) terminal of

the battery.

[RD-223]

[RD-222]

2. Twist the battery wire, ground wire

and system remote control wire.

3. Attach lugs to wire ends. Lugs not

supplied.

· Use pliers, etc., to crimp lugs to wires.

4. Connect the wires to the terminal.

· Fix the wires securely with the terminal

screws.

WARNING

Failure to securely fasten the battery wire to the ter-

minal using the terminal screws could cause the ter-

minal area to overheat and could result in damage

and injury including minor burns.

Twist

Battery wire

Ground wire

Lug

Connecting the Unit

CAUTION

· Disconnect the negative () terminal of the battery

to avoid the risk of short-circuit and damage to

the unit.

· Secure the wiring with cable clamps or adhesive

tape. To protect the wiring, wrap adhesive tape

around it where they lie against metal parts.

· Do not route wires where they will get hot, for

example where the heater will blow over them. If

the insulation heats up, it may become damaged,

resulting in a short-circuit through the vehicle

body.

· Make sure that wires will not interfere with mov-

ing parts of the vehicle, such as the gearshift,

handbrake or seat sliding mechanism.

· Do not shorten any wires. Otherwise the protec-

tion circuit may fail to work when it should.

· Never feed power to other equipment by cutting

the insulation of the power supply wire to tap

from the wire. The current capacity of the wire

will be exceeded, causing overheating.

· Never replace the fuse with one of greater value

or rating than the original fuse. Use of an improp-

er fuse could result in overheating and smoke and

could cause damage to the product and injury

including burns.

Connecting the Speaker Output

Terminals

1. Expose the end of the speaker wires

using nippers or a cutter by about

10 mm and twist.

2. Attach lugs to speaker wire ends.

Lugs not supplied.

· Use pliers, etc., to crimp lugs to wires.

3. Connect the speaker wires to the

speaker output terminals.

· Fix the speaker wires securely with the termi-

nal screws.

Using the Speaker Input

Connect the car stereo speaker output

wires to the amplifier using the supplied

speaker input wire with RCA pin cord.

· Slide the input switch to the right.

7 Connections when using the speaker

input

· As a result of connecting the car stereo speaker

output wire to the amplifier, the power of the

amplifier is turned on automatically when the car

stereo is turned on. It is not necessary to connect

the system remote control wire in this case.

· In the case the amplifier and head unit are con-

nected using a speaker input wire with RCA pin

cord, the amplifier power is only turned on when

one amplifier is being used. If two or more ampli-

fiers are synchronously connected in combination,

connect the head unit and all of the amplifiers

with the system remote control wire.

Note:

· Connect the system remote control wire when the

power of the amplifier is not to be turned on when

the car stereo is turned on.

10 mm

Twist

Speaker

output

terminal

Terminal screw

Speaker wire

Lug

Speaker wire

CAUTION:

To prevent damage and/or injury

· Do not ground the speaker wire directly or con-

nect a negative () lead wire for several speakers.

· This unit is for vehicles with a 12-volt battery and

negative grounding. Before installing it in a recre-

ational vehicle, truck or bus, check the battery

voltage.

· If the car stereo is kept on for a long time while

the engine is at rest or idling, the battery may go

dead. Turn the car stereo off when the engine is at

rest or idling.

· If the system remote control wire of the amplifier

is connected to the power terminal through the

ignition switch (12 V DC), the amplifier will

always be on when the ignition is on-- regardless

of whether the car stereo is on or off. Because of

this, the battery could go dead if the engine is at

rest or idling.

· DO NOT connect a subwoofer with a lower

impedance than specified in the "Connecting the

Unit" section. Amplifier damage, smoke, and

overheating could result from a non-specified con-

nection. The amplifier surface could also become

hot to the touch and minor burns could result.

· Connect either of three subwoofers to the amplifi-

er; 1: a subwoofer with a 420 W or larger nominal

input and an impedance 4

, 2: a subwoofer with

a 600 W or larger nominal input and an imped-

ance 2

or 3: a subwoofer with a 600 W or larg-

er nominal input and an impedance 1

. If the

nominal input and impedance are out of the above

ranges, the subwoofer may catch fire, emit smoke

or become damaged.

· Install and route the separately sold battery wire

as far away as possible from the speaker wires.

Install and route the separately sold battery wire,

ground wire, speaker wires and the amplifier as

far away as possible from the antenna, antenna

cable and tuner.

· Cords for this product and those for other prod-

ucts may be different colors even if they have the

same function. When connecting this product to

another product, refer to the supplied Installation

manuals of both products and connect cords that

have the same function.

Speaker

output

Car Stereo

Speaker input

wire with RCA

pin cord

To RCA

input jack of

this unit.

White:

Black:

Red:

Left +

Left

Right Right +

Fuse (30 A)

Engine

compart-

ment

Interior of

the vehicle

Drill a 14 mm

hole into the

vehicle body.

Insert the O-ring rubber

grommet into the vehicle

body.

Positive terminal

Fuse (30 A)

Engine

compart-

ment

Interior of

the vehicle

Drill an 8 mm

hole into the

vehicle body.

Insert the O-ring rubber

grommet into the vehicle

body.

Positive terminal

GND terminal

Power terminal

Battery wire

System remote

control terminal

System remote

control wire

Ground wire

Connection Diagram

· This diagram shows connections using external output. Slide the input switch to the left.

· In the case of connecting the external output from a car stereo to an RCA input, use the jack used for full-

range output. This is because the LPF of the amplifier cannot be turned OFF. If this jack cannot be used,

connect the subwoofer output jack to the RCA input.

· When you connect with speaker output, connections defers from the diagram. For details, see the "Using

the Speaker Input" section. In either case, you need to set the input switch. For details, see the "Setting the

Unit" section.

· Always use the special red battery and ground wire ([RD-223] and [RD-222]), which are sold separately.

Connect the battery wire directly to the car battery positive terminal (+) and the ground wire to the car

body. There is the risk of a fuse burning out if only one of these is connected.

Fuse (40 A)

Car stereo with

RCA output jacks

External Output

Connecting wire with RCA

pin plugs (sold separately).

RCA input jack

System remote control wire (sold separately)

Connect the male terminal of this wire to the system remote control terminal of the car

stereo (SYSTEM REMOTE CONTROL). The female terminal can be connected to the

auto-antenna relay control terminal. If the car stereo does not have a system remote control

terminal, connect the male terminal to the power terminal through the ignition switch.

Speaker output terminal

See the "Connecting the

Speaker Wires" section for

speaker connection instruc-

tions.

Bass Boost Remote

Control Wire

Bass Boost

Remote Control

6 m

Jack for the bass boost

remote control

Connect this jack and

the bass boost remote

control with the bass

boost remote control

wire.

SYNC OUTPUT/SYNC INPUT jack

See the "Connecting the Speaker Wires"

section for SYNC OUTPUT/SYNC

INPUT jack connection instructions.

Fuse (30 A)

× 3

Grommet

Special red battery wire

After making all other connections at the amplifier,

connect the battery wire terminal of the amplifier to

the positive (+) terminal of the battery.

Ground wire (black)

Connect to metal body or chassis.

[RD-223]

(sold separately)

[RD-222] (sold separately)

Connecting the Unit

Connecting the Speaker Wires

Connect the speaker leads and set MODE SELECT switch and POWER MODE switch to suit the configuration

according to the figures shown below and the next page.

· When synchronously connecting two or more amplifiers in combination, only use these amplifiers. Do not

mix these amplifiers with other amplifiers.

· When synchronously connecting two or more amplifiers in combination, set the gain control, subsonic select

switch, cut off frequency control for LPF and bass boost control on the amplifier that has been set to MAS-

TER with the MODE SELECT switch. These settings are inactive when set on an amplifier set to SYNC or

SYNC INV.

CAUTION

Do NOT install or use this amplifier by wiring speakers rated at 2

(or lower) in parallel to achieve a 1 (or

lower) bridged mode (Diagram B).

Amplifier damage, smoke, and overheating could result from improper bridging. The amplifier surface could

also become hot to the touch and minor burns could result.

To properly install or use a bridged mode and achieve a 2

load, wire two 4 speakers in parallel with Left +

and Right (Diagram A) or use a single 2

speaker.

If the synthetic impedance is from 2

to less than 4 , always make sure to set the POWER MODE switch to

the HI-CURRENT position.

In addition, refer to the speaker instruction manual for information on the correct connection procedure.

Single Amplifier

· Use speakers having an impedance from 1

to 8 .

· The setting of the POWER MODE switch varies according to the speaker impedance. See the "Setting the

Unit" section for details.

Diagram A - Proper

Bridged Mode

Speaker

Diagram B - Improper

Bridged Mode

Speaker

MODE SELECT switch must

be in MASTER position.

Connect to a car stereo.

For details, see the "Connection Diagram".

Two Amplifier (Ex. Bridge)

· Only use speakers having an impedance of 2

to 16 . In addition, in the case of connecting multiple

speakers with a bridge, check that the synthetic impedance is at least 2

· The setting of the POWER MODE switch varies according to the speaker impedance. Slide the POWER

MODE switch to the HI-CURRENT position if the impedance is from 2

to less than 4 , or slide it to the

NORMAL position if the impedance is from 4

to 16 . The same setting is used for both amplifiers.

· When switching to the SYNC INV mode, the seal over the MODE SELECT switch must be peeled off

and

you can find SYNC INV switch. Peel off the seal after checking that connections are correct.

Two Amplifier

· Use speakers having an impedance from 1

to 8 .

· The setting of the POWER MODE switch varies according to the speaker impedance. See the "Setting the

Unit" section for details. The same setting is used for both amplifiers.

MODE SELECT

switch must be in

SYNC INV position.

Connecting wire with RCA

pin plugs (sold separately).

Connecting

speaker wire

(sold separately).

MODE SELECT switch

must be in SYNC position.

to 8

MODE SELECT switch must

be in MASTER position.

Connect to a car stereo.

For details, see the

"Connection Diagram".

to 16

to 8

SYNC OUTPUT

MODE SELECT switch must

be in MASTER position.

Connect to a car stereo.

For details, see the

"Connection Diagram".

Connecting wire with RCA

pin plugs (sold separately).

SYNC INPUT

SYNC OUTPUT

SYNC INPUT

Four Amplifier (Ex. Bridge)

MODE SELECT switch

must be in MASTER position.

Connecting wire with RCA

pin plugs (sold separately).

MODE SELECT switch must

be in SYNC INV position.

Connect to a car stereo.

For details, see the

"Connection Diagram".

MODE SELECT switch must be

in SYNC INV position.

MODE SELECT switch must

be in SYNC INV position.

Connecting wire with RCA

pin plugs (sold separately).

Connecting wire with RCA

pin plugs (sold separately).

Connecting speaker

wire (sold separately).

Connecting speaker

wire (sold separately).

SYNC OUTPUT

SYNC INPUT

SYNC OUTPUT

SYNC INPUT

· Only use speakers having an impedance of 2

to 16 . In addition, in the case of connecting multiple

speakers with a bridge, check that the synthetic impedance is at least 2

· The setting of the POWER MODE switch varies according to the speaker impedance. Slide the POWER

MODE switch to the HI-CURRENT position if the impedance is from 2

to less than 4 , or slide it to the

NORMAL position if the impedance is from 4

to 16 . The same setting is used for four amplifiers.

· When switching to the SYNC INV mode, the seal over the MODE SELECT switch must be peeled off and

you can find SYNC INV switch. Peel off the seal after checking that connections are correct.

Four Amplifier

MODE SELECT switch

must be in MASTER position.

MODE SELECT switch

must be in SYNC position.

MODE SELECT switch

must be in SYNC position.

MODE SELECT switch

must be in SYNC position.

to 8

SYNC OUTPUT

SYNC

INPUT

SYNC

OUTPUT

SYNC INPUT

· Use speakers having an impedance from 1

to 8 .

· The setting of the POWER MODE switch varies according to the speaker impedance. See the "Setting the

Unit" section for details. The same setting is used for four amplifiers.

Connect to a car stereo.

For details, see the

"Connection Diagram".

Connecting wire with RCA

pin plugs (sold separately).

Connecting wire with RCA

pin plugs (sold separately).

Connecting wire with RCA

pin plugs (sold separately).

SYNC OUTPUT

SYNC INPUT

SYNC OUTPUT

SYNC INPUT

Specifications

Power source ........................................................................................................ 14.4 V DC (10.8 V to 15.1 V allowable)

Grounding system .......................................................................................................................................... Negative type

Current consumption ...................................................................................................... 39 A (at continuous power, 4

)

Average current drawn* ..........................................................................................................12 A (4

for one channel)

20 A (2

for one channel)

28 A (1

for one channel)

Fuse (external) ...................................................................................................................................................... 40 A

× 2

Dimensions .................................................................................................................... 304 (W)

× 56 (H) × 202 (D) mm

Weight .................................................................................................................... 3.0 kg (Leads for wiring not included)

Maximum power output .............................................................................. 800 W

× 1 (4 ) / 1 200 W × 1 (1 to 2 )

Continuous power (14.4 V) .................................... NORMAL mode: 4

, 20 Hz to 240 Hz, 1.0% THD, 400 W × 1

, 100 Hz, 1.0% THD, 600 W × 1

HI-CURRENT mode: 4

, 20 Hz to 240 Hz, 1.0% THD, 150 W × 1

, 100 Hz, 1.0% THD, 300 W × 1

, 100 Hz, 1.0% THD, 600 W × 1

Load impedance ...................................................................................................................... 4

(1 to 8 allowable)

Frequency response ........................................................................................................ 10 Hz to 240 Hz (+0 dB, 3 dB)

S/N ratio ........................................................................................................................................ 92 dB (IEC-A network)

Distortion .......................................................................................................................................... 0.5 % (10 W, 100 Hz)

Low pass filter ............................................................................................................ Cut off frequency: 40 Hz to 240 Hz

Cut off slope: 18 dB/oct

Subsonic filter (HPF) .............................................................................................................................. Frequency: 20 Hz

Slope: 18 dB

Bass boost ................................................................................................................................................ Frequency: 50 Hz

Level: 0 / 6 / 9 / 12 dB

Gain control .................................................................................................................................... RCA: 400 mV to 6.5 V

SP: 1,6 V to 26 V

Maximum input level / impedance .................................................................................................... RCA: 6.5 V / 22 k

SP: 26 V / 90 k

Note:

· Specifications and the design are subject to possible modification without notice

due to improvements.

*Average current drawn

· The average current drawn is nearly the maximum current drawn by this unit

when an audio signal is input. Use this value when working out total current

drawn by multiple power amplifiers.

Example of installation on the floor

mat or on the chassis

1. Place the amplifier where it is to be

installed. Insert the supplied tapping

screws (4

× 18 mm) into the screw

holes. Push on the screws with a

screwdriver so they make marks

where the installation holes are to be

located.

2. Drill 2.5 mm diameter holes at the

point marked, and install the ampli-

fier, either on the carpet or directly

to the chassis.

Replacing the terminal cover

1. Align the unit and terminal cover,

and insert the screw.

2. Tighten the screw with a 4 mm

hexagonal wrench.

CAUTION

· Do not install in:

--Places where it could injure the driver or pas-

sengers if the vehicle stops suddenly.

--Places where it may interfere with the driver,

such as on the floor in front of the driver's

seat.

· Make sure that wires are not caught in the sliding

mechanism of the seats, resulting in a short-cir-

cuit.

· Confirm that no parts are behind the panel when

drilling a hole for installation of the amplifier.

Protect all cables and important equipment such

as fuel lines, brake lines and electrical wiring

from damage.

· Install tapping screws in such a way that the screw

tip does not touch any wire. This is important to

prevent wires from being cut by vibration of the

car, which can result in fire.

· DO NOT allow amplifier to come into contact

with liquids due to, for example, the location

where the amplifier is installed. Electrical shock

could result. Also, amplifier and speaker damage,

smoke, and overheating could result from contact

with liquids. In addition, the amplifier surface and

the surface of any attached speakers could become

hot to the touch and minor burns could result.

· To ensure proper installation, use the supplied

parts in the manner specified. If any parts other

than the supplied ones are used, they may damage

internal parts of the amplifier, or they may

become loose causing the amplifier to shut down.

· Never replace the fuse with one of greater value

or rating than the original fuse. Use of an improp-

er fuse could result in overheating and smoke and

could cause damage to the product and injury

including burns.

CAUTION:

To prevent malfunction and/or injury

· To ensure proper heat dissipation of the amplifier,

be sure of the following during installation.

--Allow adequate space above the amplifier for

proper ventilation.

--Do not cover the amplifier with a floor mat or

carpet.

· DO NOT allow amplifier to come into contact

with liquids due to, for example, the location

where the amplifier is installed. Electrical shock

could result. Also, amplifier and speaker damage,

smoke, and overheating could result from contact

with liquids. In addition, the amplifier surface and

the surface of any attached speakers could become

hot to the touch and minor burns could result.

· Do not install the amplifier on unstable places

such as the spare tire board.

· The best location for installation differs with the

car model and installation location. Secure the

amplifier at a sufficiently rigid location.

· Make temporary connections first and check that

the amplifier and the system operate properly.

· After installing the amplifier, confirm that the

spare tire, jack and tools can be easily removed.

Installation

Drill a 2.5 mm diameter hole

Tapping-screws

× 18 mm)

Floor mat

or chassis

Screw

Terminal Cover

Ajuste de esta unidad

<ESPAÑOL>

Antes de usar este producto

<ESPAÑOL>

Muchas gracias por la adquisición de este

producto PIONEER. Antes de tratar de

operarlo, lea atentamente este manual.

En caso de desperfectos

Si esta unidad no funciona correctamente,

póngase en contacto con su distribuidor o

con el Centro de Servicio PIONEER

autorizado más cercano.

Sobre este producto

Este producto es un amplificador para

altavoz de subgraves. Si ambos los canales

L (izquierdo) y R (derecho) se conectan a

la entrada RCA de este producto, la salida

se mezcla ya que este producto es un

amplificador monofónico.

PRECAUCION

No reemplace nunca el fusible por uno con

un valor de régimen mayor que el fusible

original. El uso de un fusible inadecuado

podría causar el sobrecalantamiento o

humo, así como podría causar daños al

producto y lesiones, incluyendo

quemaduras.

ADVERTENCIA

· Siempre utilice el cable de batería rojo especial y

los cables de tierra ([RD-223] y [RD-222]), vendi-

dos separadamente. Conecte el cable de batería

directamente al terminal positivo de la batería del

vehículo (+) y el cable de tierra a la carrocería del

vehículo. Existe el riesgo de quemado del fusible

si se conecta solamente uno de ellos.

· No toque en el amplificador con las manos

mojadas. Caso contrario, usted puede llevar un

choque eléctrico. Igualmente, no toque en el

amplificador cuando esté mojado.

· Para seguridad del tráfico y para mantener condi-

ciones de conducción seguras, mantenga el volu-

men suficientemente bajo de manera que aun se

pueda escuchar el sonido del tráfico normal.

· Verifique las conexiones del suministro de energía

y altavoces para ver si el fusible del cable de

batería vendido separadamente o el fusible del

amplificador se queman. Detecte la causa y solu-

cione el problema, y reemplace el fusible con un

otro del mismo tamaño y régimen.

· Para evitar mal funcionamiento del amplificador y

altavoces, el circuito de protección cortará la ali-

mentación al amplificador (el sonido se detendrá)

cuando se produzca una situación anormal. En tal

caso, apague el sistema y verifique la conexión de

la alimentación y altavoces. Detecte la causa y

resuelva el problema.

· Contacte a su distribuidor si no puede detectar la

causa.

· Para evitar choques eléctricos o cortocircuitors

durante la conexión e instalación, asegúrese de

desconectar el terminal negativo () de la batería

antes de proceder.

· Confirme que ninguna parte quede detrás del

panel, cuando perfore un orificio para la insta-

lación del amplificador. Asegúrese de proteger

todos los cables y equipos importantes, tales como

líneas de combustibles, líneas de frenos y el

cableado eléctrico.

· NO permita que el amplificador entre en contacto

con líquidos debido a, por ejemplo, la localización

donde el amplificador esté instalado. Esto podría

causar una sacudida eléctrica. El contacto con

líquidos también podría causar daños y sobreca-

lentamiento al amplificador e altavoces. Además,

la superficie del amplificador y la superficie de

cualquier altavoz instalado también podrían pon-

erse muy calientes al tacto, pudiendo causar

pequeñas quemaduras.

Control de ganancia

Si el nivel del sonido está muy bajo, aún cuando se aumenta el volumen del equipo estéreo

para automóvil usado con este amplificador de potencia, gire a la derecha el control de

ganancia. Si hay distorsión del sonido cuando se aumenta el volumen del equipo estéreo de

automóvil, gire los controles a la izquierda.

· Cuando se usa un estéreo de automóvil equipado con RCA (salida estándar de 500 mV), ajuste a la

posición NORMAL. Cuando use con un estéreo de automóvil Pioneer equipado con RCA con una

salida máxima de 4 V o más, ajuste el nivel para adecuarse al nivel de salida del estéreo del automóvil.

· Si se oye ruido excesivo cuando se usan los terminales de entrada de altavoz, gire el control de nivel a

la izquierda.

Indicador de

alimentación

El indicador de

alimentación se

ilumina cuando la

unidad se encuentra

activada.

Cubierta de terminales

Antes de montar la unidad, desapriete los

tornillos con una llave hexagonal de 4 mm y

quite la cubierta de terminales.

Interruptor BFC (Control de la

frecuencia de batido)

El interruptor BFC se encuentra en la

parte inferior de la unidad. Si se oye un

batido durante la escucha de una trans-

misión AM con el equipo estéreo de

automóvil, cambie el interruptor BFC

utilizando un destornillador pequeño.

Interruptor de entrada

Es posible introducir desde la salida exterior de un equipo estéreo de automóvil o desde la salida

de altavoz de un equipo estéreo de automóvil. Cambie el interruptor de entrada antes de encender

la unidad. Como cambiar el interruptor de entrada con la unidad encendida puede generar un ruido

alto por los altavoces, la unidad se apaga por una función de protección. Cuando utilice una salida

exterior, deslice el interruptor hacia la izquierda. Para las instrucciones de instalación, consulte la

sección "Diagrama de conexión". Cuando utilice una salida de altavoz, deslice el interruptor hacia

la derecha. En este caso, es necesario utilizar el hilo de entrada de altavoz suministrado con el

cable con conector RCA. Para los detalles, consulte la sección "Uso de la entrada de altavoz".

Control de refuerzo de

graves

Se puede seleccionar un nivel de

refuerzo de graves de 0, 6, 9 y

12 dB.

Para las instrucciones acerca de la

conexión del control remoto de

refuerzo de graves al amplificador,

consulte la sección "Diagrama de

conexión".

Control de frecuencia de corte para LPF

Se puede seleccionar una frecuencia de corte de 40 Hz a 240 Hz.

Interruptor MODE SELECT

Puede seleccionar el modo de sincronización de amplificador entre MASTER, SYNC y SYNC INV.

Ajuste el interruptor MODE SELECT a la posición MASTER cuando utilice un amplificador

solamente. Cuando utilice en sincronismo, conectando dos o más amplificadores en combinación,

ajuste el primer amplificador a MASTER, y ajuste los amplificadores restantes a SYNC o SYNC INV

de acuerdo con la forma en que estén conectados. La única vez que se cambia el amplificador al modo

SYNC INV es cuando los amplificadores están conectados sincrónicamente con el puente externo.

Cuando cambie el modo SYNC INV, debe quitar el sello sobre el interruptor MODE SELECT y

podrá encontrar el interruptor SYNC INV. Quite el sello después de comprobar que las

conexiones estén correctas. Consulte la sección "Conexión de los hilos de altavoz" para los

detalles sobre el interruptor MODE SELECT.

Interruptor selector subsónico

El filtro subsónico corta las fre-

cuencias inaudibles inferiores a 20

Hz, para eliminar las vibraciones

indeseables y minimizar la pérdida

de potencia.

Interruptor POWER MODE

Cuando utilice altavoces con una impedancia sintética de 2 a 8

, deslice el interruptor hacia

la derecha (NORMAL). Cuando utilice altavoces con una impedancia sintética de 1

menos de 2

, deslice el interruptor hacia la izquierda (HI-CURRENT). Esas configuraciones

se utilizan solamente cuando se utiliza un único amplificador. Consulte la sección "Conexión

de los hilos de altavoz" cuando combine varios amplificadores.

Si la impedancia de los altavoces excede de 2

(4 cuando utilice el puente externo), mien-

tras se pueda ajustar el interruptor POWER MODE a la posición HI-CURRENT, ajustar a la

posición NORMAL permite el disfrute de un sonido de alta potencia.
