ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2000
SCREEN ATTACHMENT
ARP3064
T­ZZA FEB. 2000 Printed in Japan
RMA-V5012
RMA-V4012
WL
­­­­­­­­­­­­­­­
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
RMA-V5012
RM-V4012
Type
Power Requirement
Remarks
RMA-V5012 is an attachment used to connect Pioneer's Multi-projection Frame (RMF-V5011) to
the Projection Screen Kit (RM-V2550S2).
RMA-V4012 is an attachment used to connect Pioneer's Multi-projection Frame (RMF-V4011) to
the Projection Screen Kit (RMS-V4011C2).
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2000
SCREEN ATTACHMENT
ARP3064
T­ZZA FEB. 2000 Printed in Japan
RMA-V5012
RMA-V4012
WL
­­­­­­­­­­­­­­­
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
RMA-V5012
RM-V4012
Type
Power Requirement
Remarks
RMA-V5012 is an attachment used to connect Pioneer's Multi-projection Frame (RMF-V5011) to
the Projection Screen Kit (RM-V2550S2).
RMA-V4012 is an attachment used to connect Pioneer's Multi-projection Frame (RMF-V4011) to
the Projection Screen Kit (RMS-V4011C2).
background image
RMA-V5012, RMA-V4012
2
EXPLODED VIEWS AND PARTS LIST
PACKING
NOTES :
Parts marked by " NSP " are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to
mark on the product are used for disassembly.
For RMA-V4012/WL
For RMA-V5012/WL
1
3
4
5
6
14
7
8
10
9
15
11
13
2
12
2
12
SPECIFICATIONS
Total weight of the product (RMA-V5012) .......... 3.4 kg
Total weight of the product (RMA-V4012) .......... 3.2 kg
background image
RMA-V5012, RMA-V4012
3

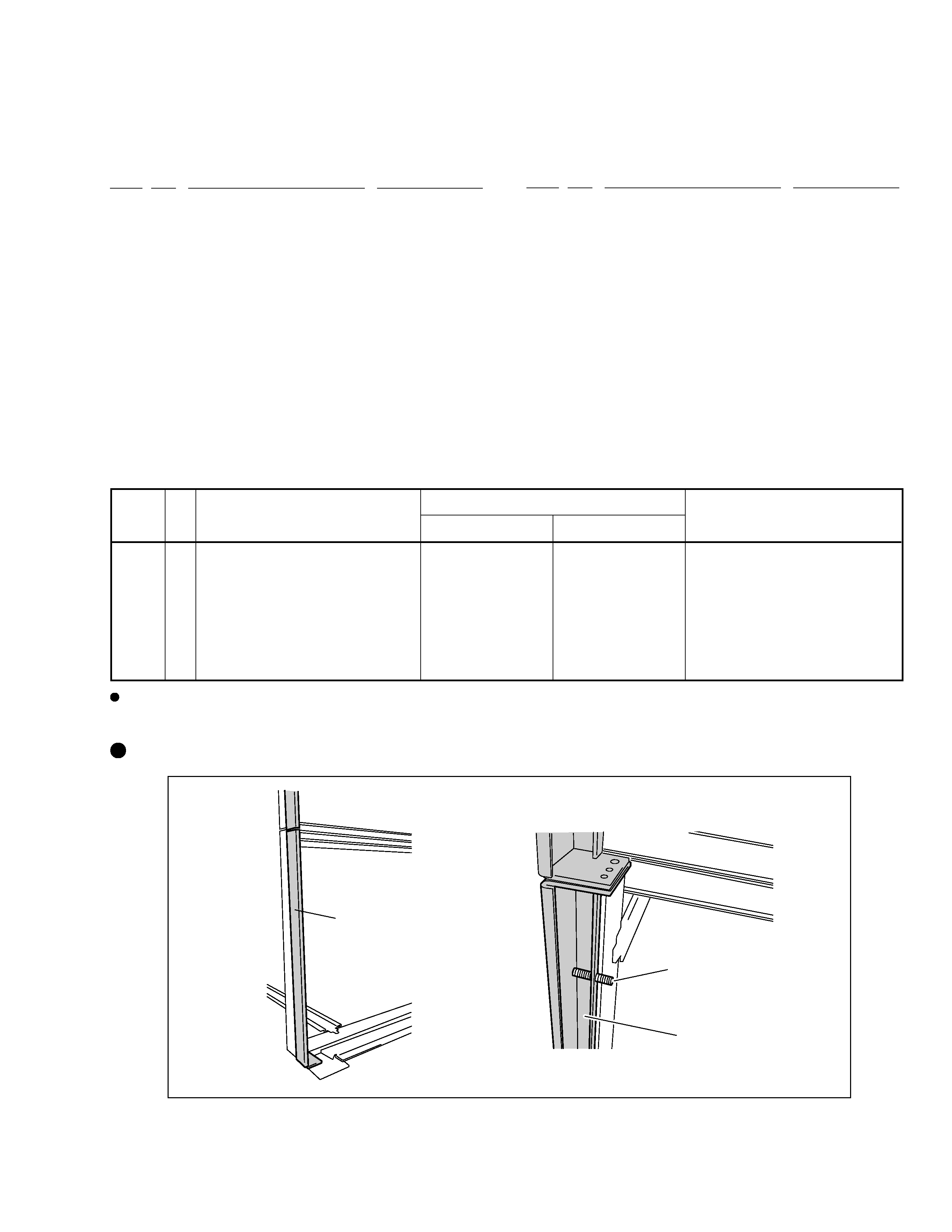

(1) PACKING PARTS LIST
1
Side Rail
See Contrast table (2)
2
Holder
See Contrast table (2)
3
Panel H (U)
See Contrast table (2)
4
Panel H (C)
See Contrast table (2)
5
Panel H (D)
See Contrast table (2)
6
Operating Instructions
ARD1036
(English/French/Dutch/
Italian/Spanish/Japanese)
7
Bolt (M8) (for Side Rail)
ABA1282
8
Screw [ for Panel H (U) ]
BYC40P100FZB
9
Screw [ for Panel H (C) ]
IBZ40P200FZK
10
Screw [ for Holder ]
PMB50P200FZB
Mark No.
Description
Part No.
(2) CONTRAST TABLE
Mark
RMA-V5012/WL
RMA-V4012/WL
1
Side Rail
ANB1848
ANB1850
Fig. 1
2
Holder
ANG2411
ANG2408
Fig. 2
3
Panel H (U)
AMM3080
AMM3083
Fig. 3
4
Panel H (C)
AMM3081
AMM3084
Fig. 4
5
Panel H (D)
AMM3082
AMM3085
Fig. 5
11
Carton
AHD3067
AHD3068
Part No.
Remarks
Symbol and Description
No.
RMA-V5012/WL and RMA-V4012/WL are constructed the same except for the following:
11
Carton
See Contrast table (2)
12
Protect Sheet
SHC­925
NSP
13
Vinyl Pouch
AHG­195
NSP
14
Manual Bag
AHG1083
NSP
15
Packing Sheet for A Frame
AHG1074
Mark No.
Description
Part No.
INSTALLED POSITION
Side Rail
(ANB1848: RMA-V5012)
(ANB1850: RMA-V4012)
The Fig. Nos in the remarks column correspond to the Fig. Nos on the " INSTALLATION POSITION".
Side Rail
Bolt (M8)
(ABA1282)
Fig. 1
Side Rail
background image
RMA-V5012, RMA-V4012
4
Side Rail
Panel H (U)
(AMM3080: RMA-V5012)
(AMM3083: RMA-V4012)
Screw (BYC40P100FZB)
Projection Screen Kit
Multi-projection Frame
Fig. 2
Holder
Fig. 3
Panel H (U)
Fig. 4
Panel H (C)
Fig. 5
Panel H (D)
Multi-projection Frame
(RMF-V4011)
Screw
(PMB50P200FZB)
Holder
(ANG2408: RMA-V4012)
Screw
(PMB50P200FZB)
Holder
(ANG2411: RMA-V5012)
Multi-projection Frame
(RMF-V5011)
For 50 inch
Holder
Holder
Panel H (D)
(AMM3082: RMA-V5012)
(AMM3085: RMA-V4012)
Side Rail
Side Rail
Multi-projection Frame
Panel H (C)
(AMM3081: RMA-V5012)
(AMM3084: RMA-V4012)
Side Rail
Multi-projection Frame
Side Rail
Side Rail
Side Rail
Panel H (C)
Panel H (C) and the Side Rail are tightened
with the screw together.
Screw
(IBZ40P200FZK)
For 40 inch
