background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2001
RRV2488
T ­ ZZR JULY 2001 Printed in Japan
CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS ........ 2
2. PCB CONNECTION DIAGRAM .......................... 10
3. SCHEMATIC DIAGRAM ..................................... 12
4. REMOTE CONTROL UNIT ................................. 32
Model No.
Order No.
Remarks
VSX-35TX/KUXJI/CA
RRV2351
¶ This service manual should be used together with the following manual(s):
AUDIO/VIDEO MULTI-CHANNEL RECEIVER
VSX-D859TXG
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type
Model
Power Requirement
VSX-D859TXG
NKXJI
AC 220V
Remarks
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2001
RRV2488
T ­ ZZR JULY 2001 Printed in Japan
CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS ........ 2
2. PCB CONNECTION DIAGRAM .......................... 10
3. SCHEMATIC DIAGRAM ..................................... 12
4. REMOTE CONTROL UNIT ................................. 32
Model No.
Order No.
Remarks
VSX-35TX/KUXJI/CA
RRV2351
¶ This service manual should be used together with the following manual(s):
AUDIO/VIDEO MULTI-CHANNEL RECEIVER
VSX-D859TXG
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type
Model
Power Requirement
VSX-D859TXG
NKXJI
AC 220V
Remarks
background image
VSX-D859TXG
2
1. CONTRAST OF MISCELLANEOUS PARTS
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to
mark on product are used for disassembly.
Reference Nos. indicate the pages and Nos. in the service manual for the base model.
NOTES:
When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).
561
473
R50
1R0
5621
560
47k
0.5
1
RD1/4PU
J
RD1/4PU
J
RN2H
K
RS1P
K
56 x 101
47 x 103
R50
1R0
561
473
5.62k
RN1/4PC
F
562 x 101
5621
7 CONTRAST OF TABLE
VSX-35TX/KUXJI/CA and VSX-D859TXG/NKXJI are constructed the same except for the following:
PCB ASSEMBLIES
P5- 1
FM/AM TUNER UNIT
AXQ7231
AXQ7228
NSP
MAIN ASSY
AWK7591
AWK7610
P5- 5
MAIN CONTROL ASSY
AWX7560
AWX7607
P5-12
DSP ASSY
AWX7561
AWX7595
NSP
COMPLEX ASSY
AWK7592
AWK7723
P5- 2
EX I/O(7.1CH I/O) ASSY
AWX7568
AWX7597
P5- 6
A- CONNECTION ASSY
AWX7566
AWX7584
P5-12
REGULATOR ASSY
AWX7562
AWX7806
P5-14
NSP
TRANS 1 ASSY
AWX7564
Not used
P5-15
PRIMARY ASSY
AWX7563
AWX7923
NSP
POWER ASSY
AWK7593
AWK7605
P5- 4
INPUT ASSY
AWX7573
AWX7600
P5-10
SP/PS ASSY
AWX7571
AWX7598
FAN DRIVER ASSY
Not used
AWX7599
No. 1
NSP
FRONT ASSY
AWK7594
AWK7609
P5- 7
COMPOSITE ASSY
AWX7581
AWX7621
P6- 3
V-AMP ASSY
AWX7578
AWX7723
P7- 1
DISPLAY ASSY
AWX7574
AWX7606
P- SW ASSY
Not used
AWX7593
No. 2
PACKING SECTION
P3- 3
Operating Instructions (English)
ARB7222
Not used
P3- 3
Operating Instructions(Korea)
Not used
ARC7374
P3- 4
Remote Control Unit
AXD7266
AXD7273
P3- 8
Packing Case
AHD7860
AHD8031
P3-11
NSP
Warranty Card
ARY7007
Not used
Spacer
Not used
AHB7052
No. 3
Caution Sheet SP
ARM7056
ARM7059
No. 4
EXTERIOR SECTION
P5-18
Power Transformer
ATS7284
ATS7287
P5-18
Fuse (FU4, FU5:)
REK1112
REK1025
( 2.5A )
( T2.0A )
P5-21
Fuse (FU1: )
VEK1029
AEK-107
( 10A )
( T5.0A )
Ref.
No.
Remarks
VSX-35TX
VSX-D859TXG
/KUXJI/CA
/NKXJI
Part No.
Mark
Symbol and Description
background image
VSX-D859TXG
3
EXTERIOR SECTION
P5-26
AC Cord Stopper
CM-22C
CM-22B
P5-27
AC Power Cord
VDG1075
VDG1086
P5-30
NSP
Under Base
ANA7113
ANA7102
P5-31
Rear Panel
ANC7910
ANC8038
P5-33
Bonnet
AZN7835
AZN7836
P5-35
Trans Shield
ANG7293
ANG7294
Bottom Plate
Not used
ANF7020
No. 5
Fan Motor
Not used
AXM7012
No. 6
Stabilizer
Not used
ANG7310
No. 7
Locking Card Spacer
Not used
AEC7160
No. 8
Speaker Sheet
AAK7944
AAK7945
No. 9
Cushion Circle 16B
AED7052
AED7052
No.10
NSP
KTL Label D859TXG
Not used
AAX7886
No.11
HEAT SINK SECTION
Themistor
Not used
AEX7004
No. 12
FRONT PANEL SECTION
P7-13
Door Stay
AAH7063
AAH7064
P7-14
Door
AMB7692
ANB7222
P7-15
Door Hinge L
AMR7291
AMR7292
P7-16
Door Hinge R
AMR7293
AMR7294
P7-17
Volume Knob (MASTER)
AAB7193
AAB7210
P7-18
Rotary Knob (INPUT SELECTOR)
AAB7226
AAB7227
P7-19
Digital Cap
AAD7576
AAD7580
P7-20
Volume Ring
AAK7623
AAH7016
P7-21
Window
AAK7769
AAK7732
P7-22
Door Sheet
AAK7783
AAK7777
P7-24
Cusion Circle
AED7044
AED7045
P7-25
Front Panel
AMB7691
ANB7229
P7-26
Panel Base
AMB7695
AMB7696
P7-30
Damper Assy
AXA7089
AXA7088
P7-31
Name Plate
PAM1776
PAN1377
POWER Button
Not used
AAD7491
No.13
FL Sheet
Not used
AAK7735
No.14
Spacer
Not used
AEB7213
No.15
Ref.
No.
Remarks
VSX-35TX
VSX-D859TXG
/KUXJI/CA
/NKXJI
Part No.
Mark
Symbol and Description
Notes :
÷The numbers in the remarks column correspond to the numbers on the " EXPLODED VIEWS ".
÷ For PCB ASSEMBLIES, Refer to "CONTRAST OF PCB ASSEMBLIES", "2. PCB CONNECTION DIAGRAM" and "3. SCHE-
MATIC DIAGRAM".

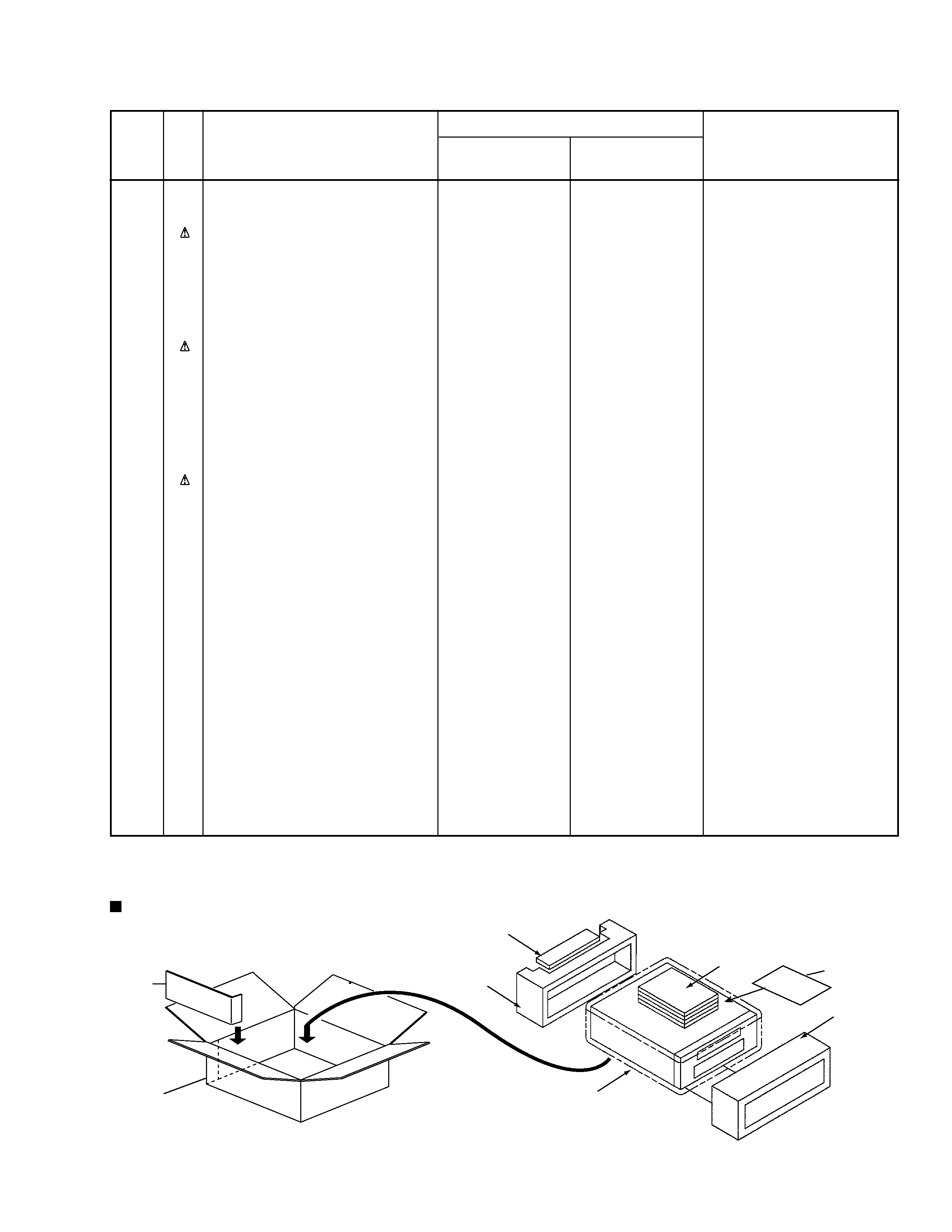

Packing Case
FRONT
FRONT
No.3
No.4
Front Pad
Rear Pad
Sheet
Remote Control Unit
Operating Instructions
÷ PACKING SECTIONS
EXPLODED VIEWS
background image
VSX-D859TXG
4
Nut
Q A
Panel Base
Heat Sink
Volume Ring
Window
Volume Knob
No.13
No.15
No.15
No.15
No.14
No.2
BPZ30P080FMC
BBZ30P080FZK
Heat Sink Angle F
Heat Sink
Angle R
No.12
BBZ30P080FZK
BBZ30P080FZK
BBZ30P080FZK
V-AMP Assy
I
Door Stay
SP/PS Assy
To Under Base
Trans Shield
Cord
Clamper
Under Base
No.5
No.11
No.9
No.10
No.6
No.8
No.1
No.7
Insulator
BBZ30P080FZK
BBZ30P080FZK
BBZ30P
080FZK
BBZ30P080FZK
BBZ30P080FZK
BBZ30P080FZK
AC Power Cord
Cord Stopper
Rear Panel
L
Z
Q
PRIMARY Assy
TRANS 2-1 ASSY
FUSE CARD
AAX2357
ABA7066
Power
Transformer
M
FUSE CARD
AAX7098
Fuse(Fu1:)
AEK-107
÷ FRONT PANEL and HEAT SINK SECTIONS
÷ EXTERIOR SECTION
background image
VSX-D859TXG
5
CONTRAST OF PCB ASSEMBLIES
FM/AM TUNER UNIT
AXQ7228 and AXQ7231 are constructed the same except for the following:
F
A
Mark
Symbol and Description
Part No.
Remarks
AXQ7231
AXQ7228
C216, C217
CKSRYB153K50
CKSRYB123K50
F203 (AM CERAMIC FILTER)
ATF7026
ATF1155
AWX7600 and AWX7573 are constructed the same except for the following :
INPUT ASSY
F
C
Mark
Symbol and Description
Part No.
Remarks
AWX7573
AWX7600
Q1001, Q1002
2SC2878
Not used
D1051
1SS133
Not used
C1051
CGCYX103M16
Not used
C1001- C10012
Not used
CCCSL221J50
R1013- R1016, R1051
RD1/4PU102J
Not used
R1017, R1018
RD1/4PU473J
Not used
CN1002 6P SOCKET
KP200TA6L
Not used
JA1004 2P PIN JACK
AKB7046
Not used
JA1051 MULI ROOM JACK
AKN7014
Not used
AWX7584 and AWX7566 are constructed the same except for the following :
A-CONNECTION ASSY
F
E
Mark
Symbol and Description
Part No.
Remarks
AWX7566
AWX7584
IC503
NJM4558MD
UPC4570G2
IC1551
M62429FP
Not used
D1551
UDZS5.1B
Not used
C1509, C1510
Not used
CCSQCH221J50
C1551­ C1553
CEAT100M50
Not used
C1554, C1555
CCSQCH101J50
Not used
C1556, C1557
CEAT1R0M50
Not used
R1551
RS3LMF391J
Not used
R1552, R1553
RS1/10S102J
Not used
R1554, R1555
RS1/10S103J
Not used
CN1552 9P SOCKET
AKP7068
Not used
CN1554 6P PLUG
KM200TA6
Not used
AWX7597 and AWX7568 are constructed the same except for the following :
7.1CH I/O ASSY
F
B
Mark
Symbol and Description
Part No.
Remarks
AWX7568
AWX7597
C1101­ C1124, C1161­ C1165
Not used
CCSQCH101J50
C1167, C1168
Not used
CCSQCH101J50
C1151­ C1158
Not used
CCSQCH331J50
C1166
Not used
CCSQCH471J50
