Cover page of PIONEER S-A5700/XE Service Manual

Service Manual for PIONEER S-A5700/XE, downloadable as a PDF file.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 3 pages
  • File size: 0.09 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 1999
RRV2219
T-ZZM OCT. 1999 Printed in Japan
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
This product is component of system.
Model No.
Service Manual
Remarks
RRV2188
RRV2219
Component
XR-A670
S-A5700
STEREO CD CASSETTE DECK RECIEVER
SPEAKER SYSTEM
This service manual
S-A5700
XE
SPEAKER SYSTEM
The cosmetic baffle is attached to the baffle by its bosses and
press-fitting. To detach it, pry it open by inserting a flat blade
screwdriver into the cosmetic baffle lower side. Be careful not
to damage the cosmetic baffle and cabinet in this case.
The woofer is attached to the baffle by 4 external screws. To
detach it, first remove the cosmetic baffle. Next unfasten those
screws. Then remove the woofer. When attaching it, face its
terminal downward.
The midrange is attached to the baffle by 2 external screws. To
detach it, first remove the cosmetic baffle. Next unfasten those
screws. Then remove the midrange. When attaching it, face its
terminal downward.
The tweeter is attached to the spacer by inserting. To detach it,
first remove the cosmetic baffle, the woofer and the mid-range.
Next disconnect the network assy. Then remove by pulling it
off the baffle. When attaching it, insert it in the baffle.
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 1999
RRV2219
T-ZZM OCT. 1999 Printed in Japan
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
This product is component of system.
Model No.
Service Manual
Remarks
RRV2188
RRV2219
Component
XR-A670
S-A5700
STEREO CD CASSETTE DECK RECIEVER
SPEAKER SYSTEM
This service manual
S-A5700
XE
SPEAKER SYSTEM
The cosmetic baffle is attached to the baffle by its bosses and
press-fitting. To detach it, pry it open by inserting a flat blade
screwdriver into the cosmetic baffle lower side. Be careful not
to damage the cosmetic baffle and cabinet in this case.
The woofer is attached to the baffle by 4 external screws. To
detach it, first remove the cosmetic baffle. Next unfasten those
screws. Then remove the woofer. When attaching it, face its
terminal downward.
The midrange is attached to the baffle by 2 external screws. To
detach it, first remove the cosmetic baffle. Next unfasten those
screws. Then remove the midrange. When attaching it, face its
terminal downward.
The tweeter is attached to the spacer by inserting. To detach it,
first remove the cosmetic baffle, the woofer and the mid-range.
Next disconnect the network assy. Then remove by pulling it
off the baffle. When attaching it, insert it in the baffle.

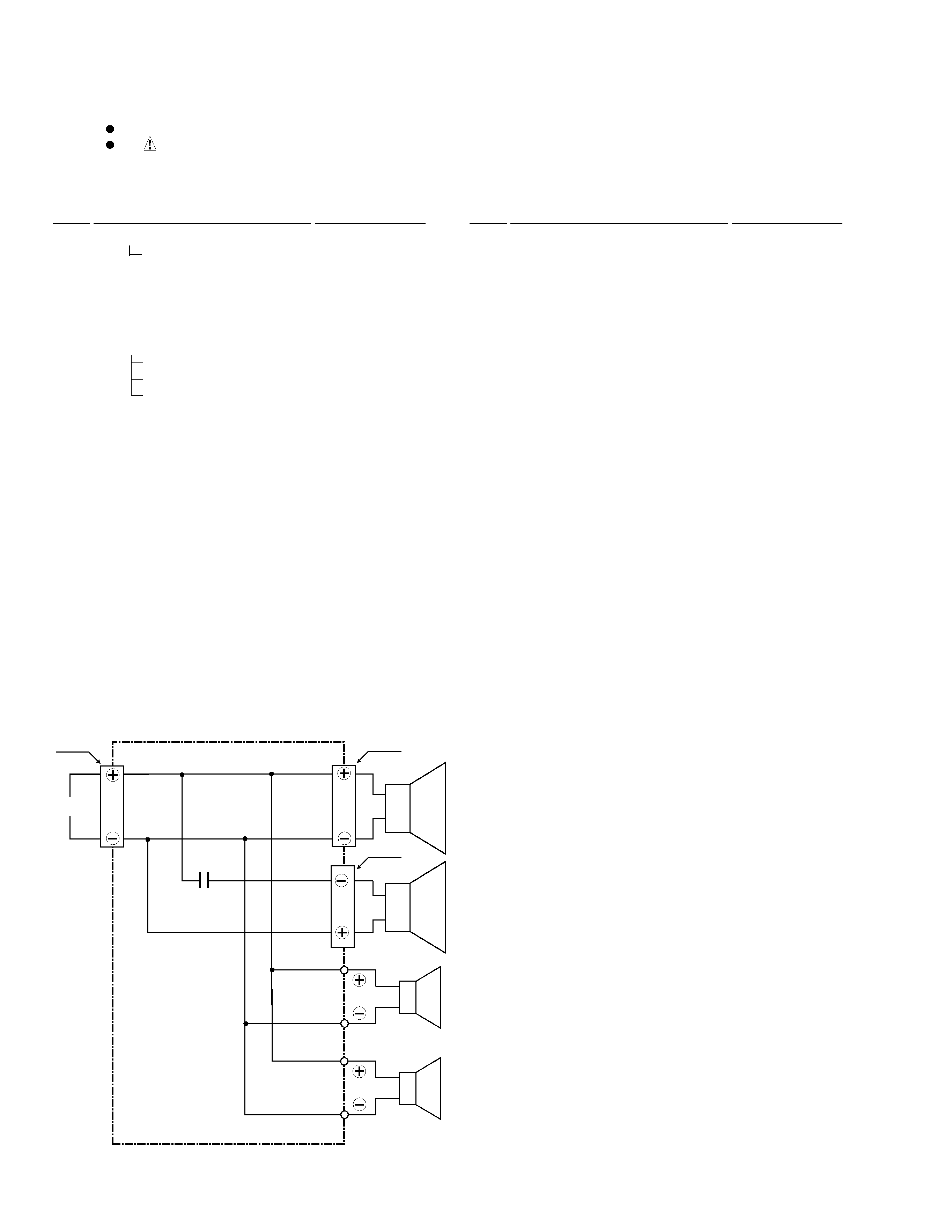

background image
2
S-A5700
Mark No.
Description
Part No.
Network ASSY (FRWN-159)
SCHEMATIC DIAGRAM
For Packing
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:
PARTS LIST
Mark No.
Description
Part No.
NSP
Cabinet
FRMM-198
NSP
Inner Baffle
FRNK-371
Network Assy
FRWN-159
NSP
Label Back
FRAN-304
Input Terminal
FRKX-013
NSP
Acoustic Absorbent
FRMV-027
Cosmetic Baffle Assy
FRXB-036
NSP
Punching Net
FRNC-022
NSP
Cosmetic Baffle
FRNK-372
NSP
Cosmetic Ring
FRNK-373
Speaker(Woofer)
B18LU83-53D
Speaker(Mid-Range)
FD66AP45-54D
Screw(for Woofer,Mid-Range)
BYC40P160FMC
Speaker Cord
FRDD-041
Non-Skid Pads
FREC-021
Top Protector
FRHA-181
Bottom Protector
FRHA-182
Protection Sheet
FRHC-049
Packing Case
FRHG-276
Woofer
Mid-Range
I N
Red
Green
White
Blue
White
Blue
White
Black
Tweeter
Tweeter
1.5
µF/63V
White
Blue
Green
Red
Black

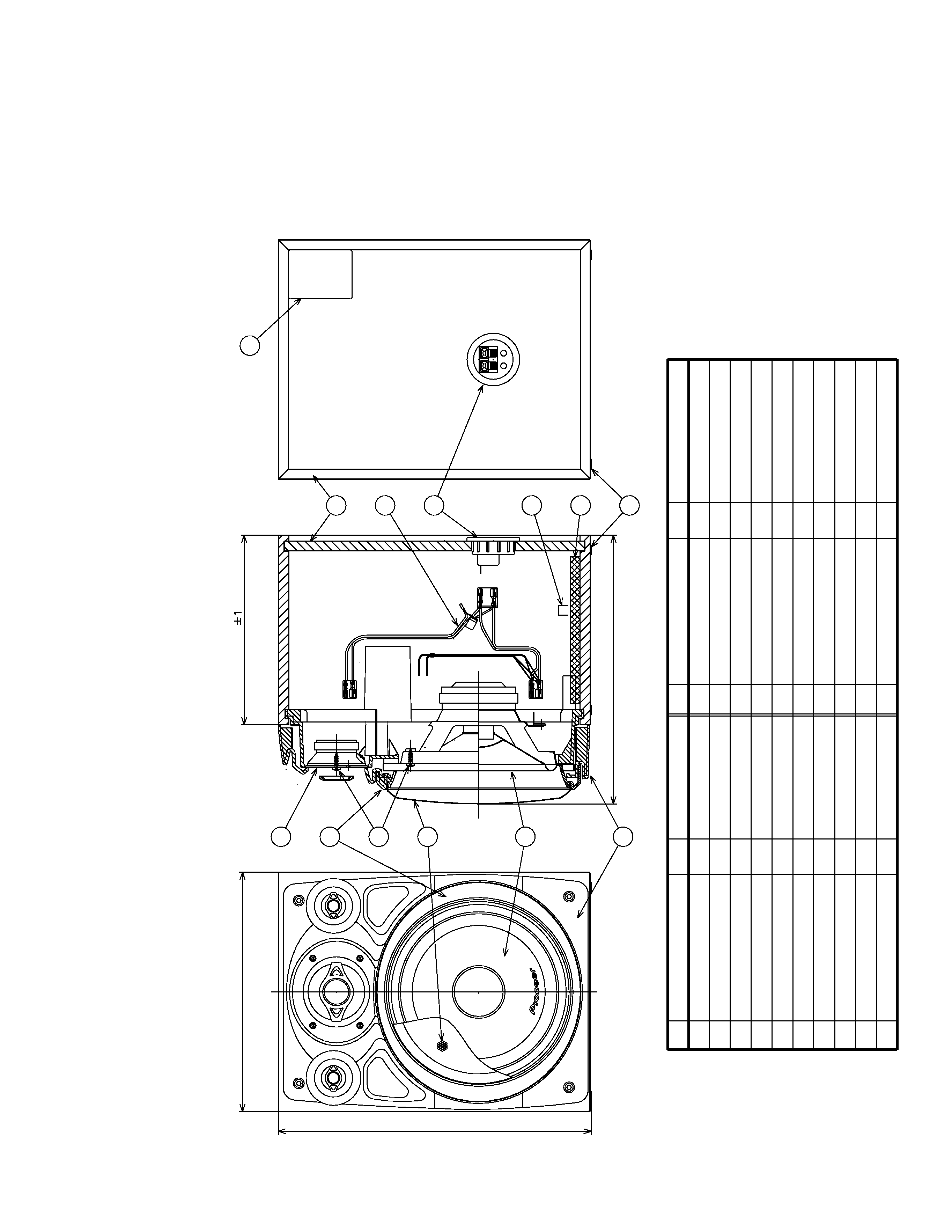

background image
3
S-A5700
PRODUCT APPEARANCE
8
9
10
1
Screw
6
Staple
2
11
12
Network
Assy
1
13
Input
Terminal
71
4
1
Non
Skid
Pad
Acoustic
Absorbent
Cosmetic
Ring
Label
Back
Cosmetic
Baffle
Cabinet
Speaker
Speaker
1
1
1
1
1
6
5
4
3
2
1
Part
name
Num.
No.
Remarks
Part
name
Num.
No.
Remarks
1
Punching
Net
Woofer
Mid-Range
245
320
194
11
5
4
2
1
6
(275)
13
12
10
9
3
8
7
to
Mid-Range
to
Tweeter
to
Woofer
to
Input
Terminal
4X16(Speaker)
