ORDER NO.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880
PIONEER ELECTRONIC CORPORATION 1998
RRV2018
T-ZZW SEPT. 1998 Printed in Japan
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
The cosmetic baffle assy is attached to the cabinet by 4 external
screws. To detach the cosmetic baffle assy, loosen these
screws. Then carefully disconnect the wires of the woofer,
mid-range and tweeter mounted on the cosmetic baffle assy. To
attach the cosmetic baffle assy, replace it on the cabinet cor-
rectly and secure with 4 screws.
The woofer is attached to the cosmetic baffle assy together with
the woofer ring assy by 4 internal screws. To detach the woofer
(woofer ring assy), loosen these screws. To attach the woofer
ring assy, fit the boss of the woofer ring to the hollow of the
cosmetic baffle assy. To attach the woofer, face its terminal up-
ward, and fit the boss of the cosmetic baffle to the hollow of the
flame. To attach the woofer ring assy and the woofer, replace it
on the cosmetic baffle assy correctly and secure with 4 screws.
SPEAKER SYSTEM
S-A880V
XJI/E
S-A880V XJI/NC
This product is component of system.
For the operating instructions, refer to the service manual RRV2008 for XR-A880.
The mid-range is attached to the cosmetic baffle by 3 internal
screws. To detach it, unfasten those screws. When attaching it,
face its terminal downward.
The tweeter is attached to the cosmetic baffle by 2 internal
screws. To detach it, unfasten those screws. When attaching it,
face its terminal downward.

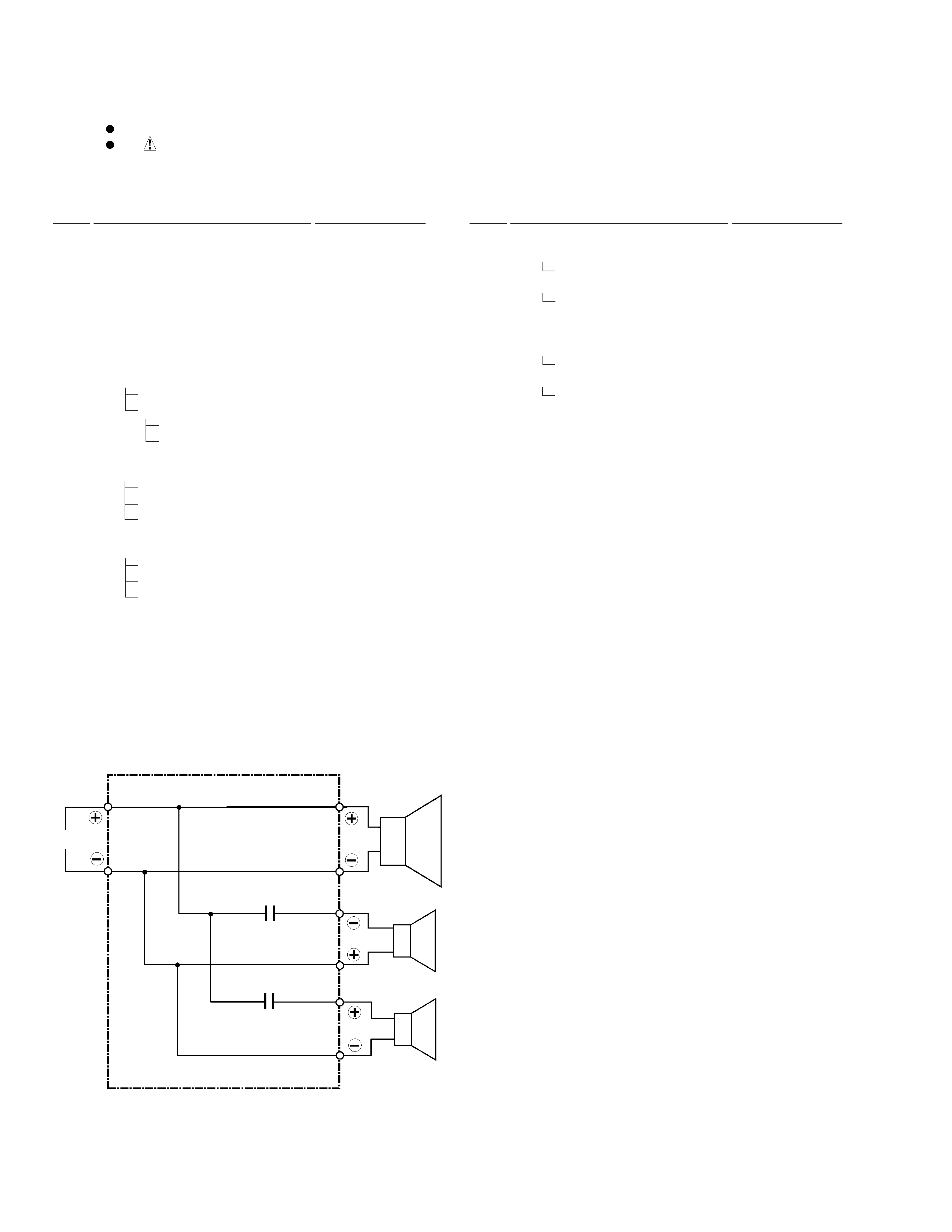

The network assy is connected to the input terminal. To detach
the network assy, disconnect the wire from the input terminal.
To attach the network assy connect the wire of the network
assy to the input terminal correctly.
