PIONEER S-C60/XCN5 Service Manual

Cover page of PIONEER S-C60/XCN5 Service Manual

Service Manual for PIONEER S-C60/XCN5, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 2 pages
  • File size: 0.04 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2006
RRV3441
T ­ ZZS SEPT. 2006 Printed in Japan
SPEAKER SYSTEM
1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS
S-C60
XCN5
· The grille is attached to the baffle by its bosses and press-
fitting. To detach it, pry it open by inserting a flat blade tool
between the grille and the cabinet. Be careful not to
damage the grille or the cabinet.
· Woofer units are attached together to the baffle by
8 external screws. To detach them, unfasten those screws.
· Tweeter is attached to the baffle by 3 external screws.
To detach it, unfasten those screws.
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2006
RRV3441
T ­ ZZS SEPT. 2006 Printed in Japan
SPEAKER SYSTEM
1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS
S-C60
XCN5
· The grille is attached to the baffle by its bosses and press-
fitting. To detach it, pry it open by inserting a flat blade tool
between the grille and the cabinet. Be careful not to
damage the grille or the cabinet.
· Woofer units are attached together to the baffle by
8 external screws. To detach them, unfasten those screws.
· Tweeter is attached to the baffle by 3 external screws.
To detach it, unfasten those screws.
background image
2
1
23
4
12
3
4
C
D
F
A
B
E
S-C60
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:
2. EXPLODED VIEWS AND PARTS LIST
Speaker (Tweeter)
FADD55-53F
Speaker (Woofer)
K77ER65-51L
Grille Assy
FRMG-220
Input Terminal (Red)
SKX6016
Input Terminal (Black)
SKX6017
Network Assy
SWN6018
Screw
BMZ50P100FTB
(to fasten the stand or security line to cabinet)
Screw
PMZ50P100FTB
(to fasten Hook to cabinet)
Screw
SBA1259
(to fasten WF & TW speakers to front panel)
Screw
SBA6013
(to fasten front panel to cabinet)
Screw
SYZ40H200FCR
(to fasten top plate or bottom plate to cabinet)
Washer
WC50FTB
(between security line and cabinet)
Top Protector
SHA6073
Bottom Protector
SHA6074
Packing Case
SHG6202
Stand
FRNH-035
Speaker Wire
SDS6030
Metal Hook
SNH6005
Owner's Manual (Chinese)
SRD6037

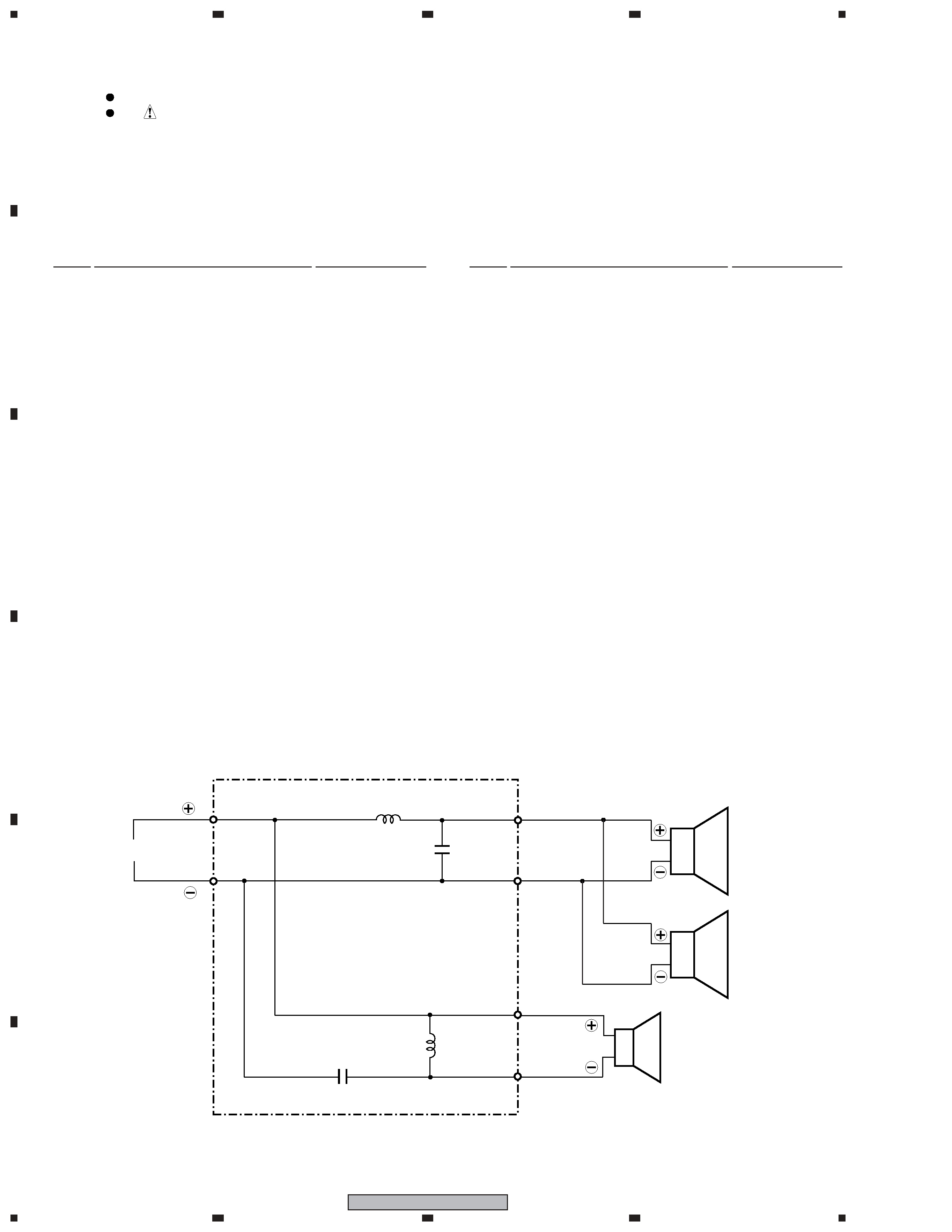

3. SCHEMATIC DIAGRAM
PACKING Parts List
There is no drawing
Mark No.
Description
Part No.
Mark No.
Description
Part No.
Woofer
INPUT
Black
Black
White
Black
White
Red
Network Assy (SWN6018)
0.82 mH
Tweeter
1.2
µF/250 V
3.9
µF/250 V
0.82 mH
Woofer
SPEAKER SYSTM Parts List
