background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2008
S-CX505-K
RRV3802
T-ZZR JULY 2008 Printerd in Japan
SPEAKER SYSTEM
S-CX505-K
/XTM/E
S-CX505-K /XTM/CN5
1.1 FRONT SPEAKER
The grille is attached to the cosmetic baffle by 4 catches. Detach
by pulling it toward you.
The cosmetic baffle is attached to the baffle by press fitting. To
detach it, pry it open by inserting a flat blade screwdriver into
lower side.
The woofer is attached to the baffle by 4 external screws. The
tweeter is attached to the cosmetic baffle by 2 internal screws.
To detach the speaker unit, first remove the cosmetic baffle.
Next unfasten those screws. Then remove the connecting cord.
When attaching the woofer, face its terminal foward the upward.
1.2 CENTER SPEAKER
The grille assy(center) is attached to the cabinet by 8 external
screws. To detach it, unfasten those screws.
The speaker unit is attached together with the grille assy to the
cabinet by 4 external screws. To detach it, first unfasten those
screws. Then remove the connecting cord.
1.3 SURROUND SPEAKER
The grille assy(surround) is attached to the cabinet by 4 external
screws. To detach it, unfasten those screws.
The speaker unit is attached together with the grille assy to the
cabinet by 4 external screws. To detach it, first unfasten those
screws. Then remove the connecting cord.
1.4 SUBWOOFER
The base cover is attached to the basc by press fitting. To detach
it, pry it open by inserting aflat blade screw driver into back side
slot.
The base is attached to the cabinet by 4 external screws. When
detatch it, first remove the base cover. Next unfasten those
screws. The speaker unit is attached to the cabinet board by 4
external screws. To detach it, unfasten those screws.
1. REASSEMBLEY AND DISASSEMBLY PRECAUTION
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2008
S-CX505-K
RRV3802
T-ZZR JULY 2008 Printerd in Japan
SPEAKER SYSTEM
S-CX505-K
/XTM/E
S-CX505-K /XTM/CN5
1.1 FRONT SPEAKER
The grille is attached to the cosmetic baffle by 4 catches. Detach
by pulling it toward you.
The cosmetic baffle is attached to the baffle by press fitting. To
detach it, pry it open by inserting a flat blade screwdriver into
lower side.
The woofer is attached to the baffle by 4 external screws. The
tweeter is attached to the cosmetic baffle by 2 internal screws.
To detach the speaker unit, first remove the cosmetic baffle.
Next unfasten those screws. Then remove the connecting cord.
When attaching the woofer, face its terminal foward the upward.
1.2 CENTER SPEAKER
The grille assy(center) is attached to the cabinet by 8 external
screws. To detach it, unfasten those screws.
The speaker unit is attached together with the grille assy to the
cabinet by 4 external screws. To detach it, first unfasten those
screws. Then remove the connecting cord.
1.3 SURROUND SPEAKER
The grille assy(surround) is attached to the cabinet by 4 external
screws. To detach it, unfasten those screws.
The speaker unit is attached together with the grille assy to the
cabinet by 4 external screws. To detach it, first unfasten those
screws. Then remove the connecting cord.
1.4 SUBWOOFER
The base cover is attached to the basc by press fitting. To detach
it, pry it open by inserting aflat blade screw driver into back side
slot.
The base is attached to the cabinet by 4 external screws. When
detatch it, first remove the base cover. Next unfasten those
screws. The speaker unit is attached to the cabinet board by 4
external screws. To detach it, unfasten those screws.
1. REASSEMBLEY AND DISASSEMBLY PRECAUTION
background image
2
S-CX505-K
12
3
4
C
D
F
A
B
E
1
23
4
2. EXPLODED VIEWS AND PARTS LIST
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:
2.1 PACKING
Accessory
background image
3
S-CX505-K
5
67
8
5
6
7
8
C
D
F
A
B
E
NSP 1
CS Assy (Front L)
- - - - - - - -
NSP 2
CS Assy (Front R)
- - - - - - - -
NSP 3
CS Assy (Surround L)
- - - - - - - -
NSP 4
CS Assy (Surround R )
- - - - - - - -
NSP 5
CS Assy (Center)
- - - - - - - -
NSP 6
CS Assy (Subwoofer)
- - - - - - - -
7
Polyethylene Bag (for Front SP)
439929331911
8
Polyethylene Bag (for Center SP)
439929331912
9
Polyethylene Bag (for Rear SP)
439929331913
10
Protection Sheet (for SW SP)
439929331915
11
Polyethylene Bag
439929331916
(for Accessories)
12
Protection Sheet (for Rear SP)
439929331922
13
Polyethylene Bag (for SW)
439929331925
14
Protection Sheet (for Front SP)
439929331930
15
Packing Case (XTM/E)
439929334264
15
Packing Case (XTM/CN5)
439929334267
16
Protector (Top)
439929364146
17
Protector (Bottom)
439929364147
18
Protector (Middle)
439929364148
19
Non Skid Pad (for Subwoofer)
439929484262
20
Non Skid Pad
439929484511
(Small/ for Center)
21
Non Skid Pad
439929484510
(Large/ for Front, Surround)
PACKING Parts List
Mark No.
Description
Part No.
2.2 CS Assy (FRONT L ,R)
Model Label
Absorbent
Back
Board
Baffle
Cabinet
(x 4)
(x 4)
(x 2)
6
1
Speaker (Tweeter)
FK26AP32-53F
2
Speaker (Woofer)
W10DC60-53C
3
Connecting Cord (L ch)
439929113237
3
Connecting Cord (R ch)
439929113242
4
Cosmetic Baffle
439929419284
5
Gasket (for Connecting Cord)
439929481122
6
Gasket (for TW Cord)
439929484028
7
Gasket (for Inner Baffle)
439929484287
8
Catch
439929484102
9
Screw (for Woofer)
439929498155
10
Screw (for Tweeter)
439929498156
11
Grille Assy
829929752654
CS Assy (FRONT L, R) Parts List
Mark No.
Description
Part No.
Mark No.
Description
Part No.
background image
4
S-CX505-K
12
3
4
C
D
F
A
B
E
1
23
4
2.3 CS Assy (CENTER)
2.4 CS Assy (SURROUND L, R)
Model Label
Absobent
Rear_cover
Cap
(x8)
5
Model Label
Rear Cover
Cap
Absobent
(x4)
1
Speaker
K77DC55-53C
2
Connecting Cord
439929113238
3
Screw
439929498157
4
Grille Assy
829929752659
1
Speaker
K77DC55-53C
2
Connecting Cord (L ch)
439929113239
2
Connecting Cord (R ch)
439929113243
3
Screw
439929498157
4
Grille Assy
829929752660
CS Assy (CENTER) Parts List
CS Assy (SURROUND L, R) Parts List
Mark No.
Description
Part No.
Mark No.
Description
Part No.
background image
5
S-CX505-K
5
67
8
5
6
7
8
C
D
F
A
B
E

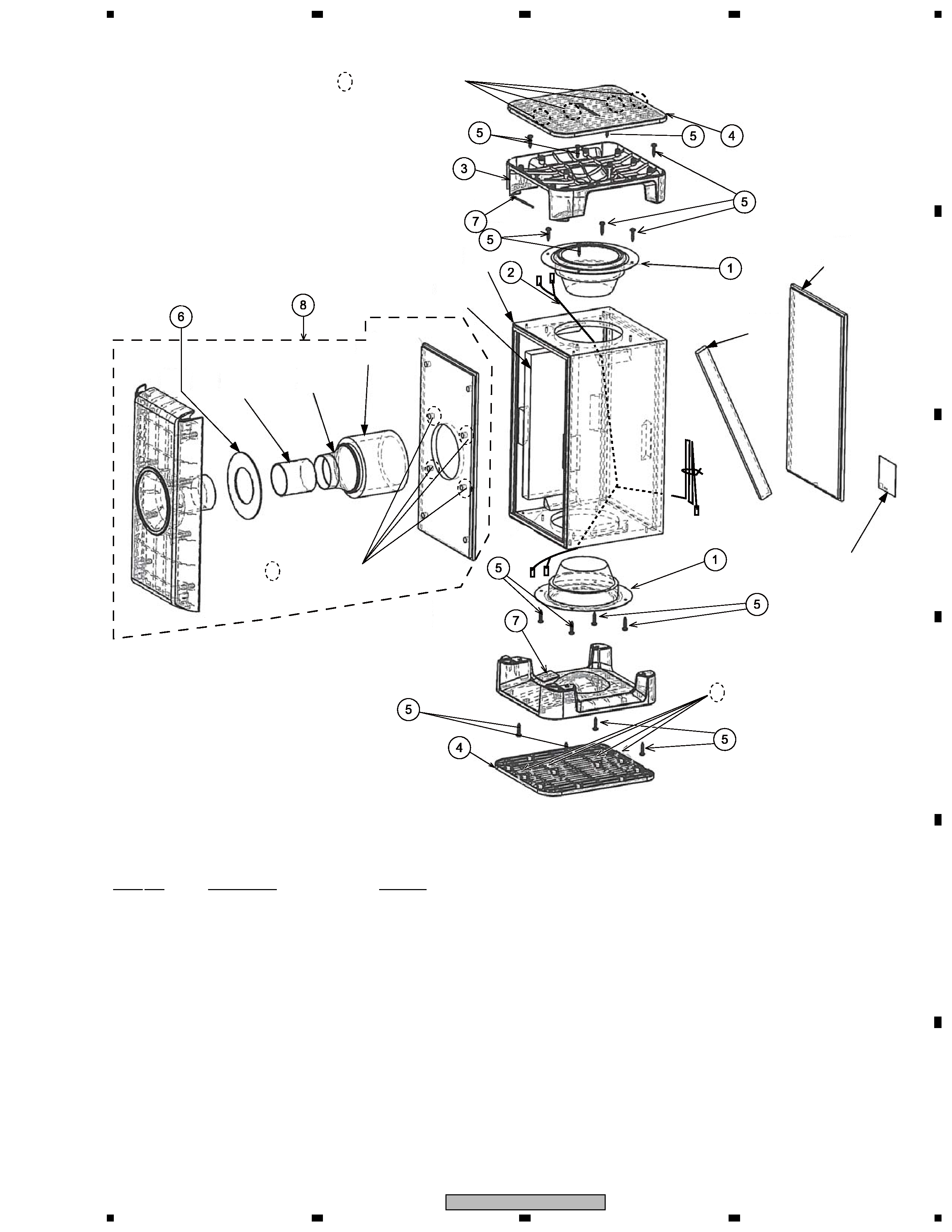

2.5 CS Assy (SUBWOOFER)
: Attached to the
applied with adhesive
: Attached to the
applied with adhesive
: Attached to the
applied with adhesive
10
Model Label
Absorbent
Absorbent
Cabinet
Baffle Board
Back Board
Board Support
Bass Pipe
Bass Pipe
(X16)
1
Speaker (Woofer)
B12LR80-51F
2
Connecting Cord
439929113240
3
Base
439929419065
4
Base Cover (Top / Bottom)
439929419286
5
Screw
439929453561
6
Gasket (for Connecting Cord)
439929481122
7
Felt (for Base)
439929484422
8
Cosmetic Baffle Assy
829929752691
CS Assy (SUBWOOFER) Parts List
Mark No.
Description
Part No.
