S-DV33
XJC/E
SPEAKER SYSTEM
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
Subwoofer
Center
Front / Surround
CS Assy ( Front / Surround Speaker )
The grille assy is attached to the cabinet by 4 screws . To detach
it, unfasten those screws.
The speaker unit, together with the grille assy, is attached to the
cabinet by 4 external screws.
To detach it, unfasten those screws.
To detach it, first remove cabinet. Then remove speaker unit.
When attaching it, face its terminal toward the input terminal.
CS Assy ( Center Speaker )
The grille assy is attached to the cabinet by 4 screws . To detach
it, unfasten those screws.
The speaker unit is attached to the grille assy by 4 internal
screws.
To detach it, unfasten those screws.
To detach it, first remove cabinet. Then remove speaker unit.
When attaching it, face its terminal toward the input terminal.
CS Assy ( Subwoofer )
The woofer, together with the Punching net, is atached to the
rear baffle by 4 external screws.To detach it, first remove those
screws . Then remove the punching net .When attaching it, face
its terminal downward .
The cosmetic duct is attached to the cabinet by its bosses ap-
plied with adhesive.To detach it, pry it open by inserting a flat
blade screwdriver into the cosmetic duct lower right, lower left
slot. To attach it, apply adhesive to the holes on the baffle. Then
press it to the baffle.
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2001
RRV2553
T-ZZB OCT. 2001 Printed in Japan
S-DV33
XJC/E
SPEAKER SYSTEM
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
Subwoofer
Center
Front / Surround
CS Assy ( Front / Surround Speaker )
The grille assy is attached to the cabinet by 4 screws . To detach
it, unfasten those screws.
The speaker unit, together with the grille assy, is attached to the
cabinet by 4 external screws.
To detach it, unfasten those screws.
To detach it, first remove cabinet. Then remove speaker unit.
When attaching it, face its terminal toward the input terminal.
CS Assy ( Center Speaker )
The grille assy is attached to the cabinet by 4 screws . To detach
it, unfasten those screws.
The speaker unit is attached to the grille assy by 4 internal
screws.
To detach it, unfasten those screws.
To detach it, first remove cabinet. Then remove speaker unit.
When attaching it, face its terminal toward the input terminal.
CS Assy ( Subwoofer )
The woofer, together with the Punching net, is atached to the
rear baffle by 4 external screws.To detach it, first remove those
screws . Then remove the punching net .When attaching it, face
its terminal downward .
The cosmetic duct is attached to the cabinet by its bosses ap-
plied with adhesive.To detach it, pry it open by inserting a flat
blade screwdriver into the cosmetic duct lower right, lower left
slot. To attach it, apply adhesive to the holes on the baffle. Then
press it to the baffle.
background image
2
S-DV33
Mark No.
Description
Part No.
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:
PARTS LIST
NSP
CS Assy (Sub WF)
SMW1694
NSP
CS Assy (FR)
SMW1692
NSP
CS Assy (Center SP)
SMW1693
For Packing
NSP
Wire set
SEA1562
Speaker Wire (White )
SDS1108
Speaker Wire (Red)
SDS1109
Speaker Wire (Blue)
SDS1110
Speaker Wire (Gray)
SDS1111
Speaker Wire (Green)
SDS1112
Speaker Wire (Purple)
SDS1113
Non Skid Pads
SEP1240
NSP
Polyethylene Bag
SHL1251
Top Protector
SHA2317
Middle Protector
SHA2318
Bottom Protector
SHA2319
Packing Case
SHG2391
Polyethylene Bag
SHL1252
Polyethylene Bag S4
SHL1239
NSP
Cabinet
SMM1947
NSP
Model Label
SAN3066
Cable
SDD1311
Non Skid Pad
SEC1473
Packing (
)
SEC1542
Input Terminal
SKX1060
NSP
Cosmetic Duct
SNK2550
NSP
Paper Tube 46
SMR1343
Punching Net
SNC1191
NSP
Acoustic Absorbent (
)
SMV1984
NSP
Port tube Ring 46
SNK2564
NSP
Caution Label
SRW1085
Speaker
T12LU82-52D
Screw (
)
BYC40P130FZB
NSP
Staple 80/8 BEA
ZMA-8008B
CS Assy (FR)
Mark No.
Description
Part No.
CS Assy (Center SP)
Mark No.
Description
Part No.
CS Assy (Sub WF)
Grille Assy
SMG1733
NSP
Badge 23
SAM1490
NSP
Grille Cloth
SAS1501
NSP
Baffle
SNK2552
NSP
Cabinet
SNK2551
NSP
Model Label
SAN3059
Speaker Wire
SDD1275
Packing
SEC1479
In-put Terminal
SKX1062
NSP
Acoustic Absorbent
SMV1995
NSP
Caution Label
SRW1085
Speaker
D87DU61-51D
Screw
(for SP)
BPZ40P060FZB
Screw
(for Grille Assy)
BPZ40P100FZB
Mark No.
Description
Part No.
Grille Assy
SMG1732
NSP
Badge 23
SAM1490
NSP
Grille Cloth
SAS1500
NSP
Baffle
SNK2549
NSP
Cabinet
SNK2548
NSP
Model Label (FL)
SAN3055
NSP
Model Label (FR)
SAN3056
NSP
Model Label (RL)
SAN3057
NSP
Model Label (RR)
SAN3058
Fung Nut M5
SBN1044
Speaker Wire
SDD1275
Packing
SEC1479
In-put Terminal
SKX1062
NSP
Acoustic Absorbent
SMV1995
NSP
Caution Label
SRW1085
Speaker
D87DU61-51D
Screw
BPZ40P100FZB
See "PRODUCT APPEARANE".
background image
3
S-DV33
PRODUCT APPEARANCE
Woofer
INPUT
Red
Black
CABLE
(SDD1311)
1
3
13
12
5
4
15
7
9
6
2
8
14
11
Caution
Label
1
15
Punching
Net
1
14
P
a
c
king
1
13
P
aper
T
ube
46
1
12
Non
Skid
P
a
d
4
11
80/8
BEA
3
10
Model
Label
1
9
Scre
w
4
8
P
o
rt
T
ube
Ring
46
1
7
Input
T
e
rminal
1
6
Acoustic
Absorbent
1
5
Cab
le
1
4
Cosmetic
Duct
1
3
Loud
Speak
er
1
2
Cabinet
P
a
rt
Name
Num.
No
.
1
1
¶ CS ASSY (Sub WF)
background image
4
S-DV33
P
a
rt
Name
Remar
ks
BPZ40P100FZB
11
1
1
1
1
1
1
4
1
2
1
2
3
4
5
6
7
8
9
10
11
Num.
2
4
5
9
11
8
7
6
10
1
3
110
(76.3)
155
Speaker
INPUT
Red
White
SPEAKER
WIRE
(SDD1275)
Cabinet
Loud
Speak
er
Gr
ille
Assy
Speak
er
Cab
le
Acoustic
Absorbent
Input
T
e
rminal
Scre
w
Model
Label
P
a
c
king
Fung
Nut
M5
Caution
Label

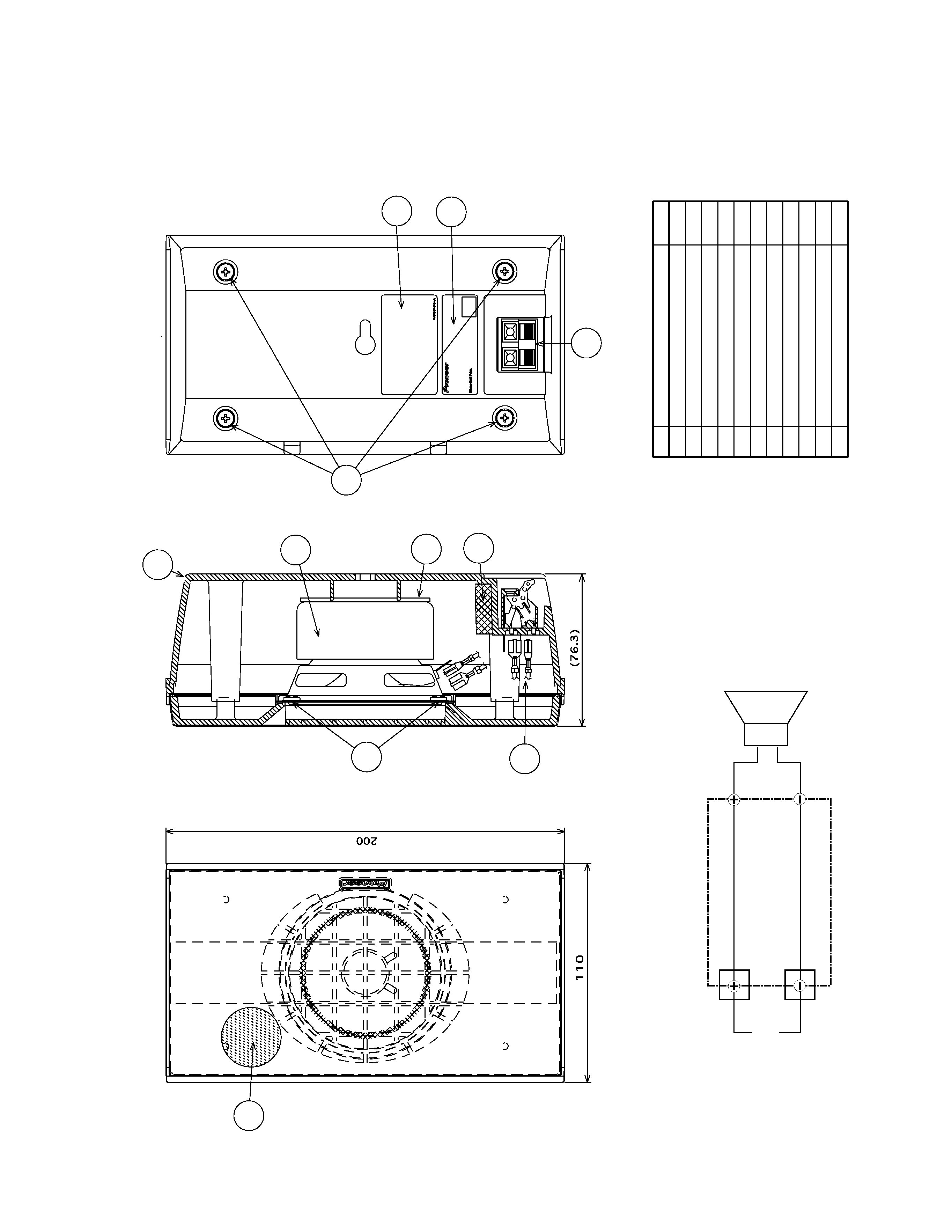

¶ CS ASSY (FR)
background image
5
S-DV33
Speaker
INPUT
Red
White
SPEAKER
WIRE
(SDD1275)
3
7
4
5
10
2
1
8
6
9
11
Cabinet
Loud
Speak
er
Gr
ille
Assy
Speak
er
Cab
le
Acoustic
Absorbent
Input
T
e
rminal
Scre
w
(f
or
SP)
Scre
w
(f
or
Gr
ille
Assy)
Model
Label
P
a
c
king
Caution
Label
1
1
1
1
1
1
4
4
1
1
1
11
10
9
8
7
6
5
4
3
2
P
a
rt
Name
Num.
No
.
1
¶ CS ASSY (Center SP)
