ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2005
RRV3206
T ­ ZZK JUNE 2005 Printed in Japan
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
CS Assy ( Subwoofer )
The grille assy is attached to the cabinet by press-fitting with
adhesive. To detach it, pry it open by inserting a flat blade
screwdriver into downside of it. To attach it, clean the press-
fitting part and apply a bit of adhesive . Then press it to the
baffle.
The woofer is attached to the baffle by 4 external screws.
When attaching it, face its terminal rightward.
CS Assy ( Front )
The grille assy is attached to the cabinet by 4 external screws.
To detach it, unfasten those screws.
The speaker unit, together with the grille assy, is attached to the
cabinet by 4 external screws.
To detach it, first unfasten those screws. Next remove the cabi-
net. Then remove the cable.
When attaching it, face its terminal downward.
CS Assy ( Center )
The grille assy is attached to the cabinet by 8 external screws.
To detach it ,unfasten those screws.
The speaker unit, together with the grille assy, is attached to the
cabinet by 4 external screws.
To detach it, first remove the grille assy. Next remove the cabi-
net. Then remove the cable.
When attaching it, face its terminal toward the input terminal.
SPEAKER SYSTEM
S-DV535
XJC/TA
Front
Sub Woofer
Center
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2005
RRV3206
T ­ ZZK JUNE 2005 Printed in Japan
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
CS Assy ( Subwoofer )
The grille assy is attached to the cabinet by press-fitting with
adhesive. To detach it, pry it open by inserting a flat blade
screwdriver into downside of it. To attach it, clean the press-
fitting part and apply a bit of adhesive . Then press it to the
baffle.
The woofer is attached to the baffle by 4 external screws.
When attaching it, face its terminal rightward.
CS Assy ( Front )
The grille assy is attached to the cabinet by 4 external screws.
To detach it, unfasten those screws.
The speaker unit, together with the grille assy, is attached to the
cabinet by 4 external screws.
To detach it, first unfasten those screws. Next remove the cabi-
net. Then remove the cable.
When attaching it, face its terminal downward.
CS Assy ( Center )
The grille assy is attached to the cabinet by 8 external screws.
To detach it ,unfasten those screws.
The speaker unit, together with the grille assy, is attached to the
cabinet by 4 external screws.
To detach it, first remove the grille assy. Next remove the cabi-
net. Then remove the cable.
When attaching it, face its terminal toward the input terminal.
SPEAKER SYSTEM
S-DV535
XJC/TA
Front
Sub Woofer
Center
background image
2
1
23
4
12
3
4
C
D
F
A
B
E
S-DV535
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:
PARTS LIST
3
11
8
7
6
2
1
9
5
4
10
12
For Packing
Mark No.
Description
Part No.
NSP
1
CS Assy (Front)
SMW1860
NSP
2
CS Assy (Center)
SMW1862
NSP
3
CS Assy (Subwoofer)
SMW1863
NSP
Model Label (FL)
SAN3618
NSP
Model Label (FR)
SAN3619
NSP
Model Label (C)
SAN3575
NSP
Model Label (SW)
SAN3576
NSP
4
Accessory Set
SEA1686
Speaker Wire (FL: White)
SDS1174
Speaker Wire (FR: Red)
SDS1175
Speaker Wire (C: Green)
SDS1178
Speaker Wire (SW: Purple)
SDS1179
NSP
Bracket Set
SEA1681
NSP
Screw Set
SEA1682
Screw
BMZ50P120FNC
Polyethylene Bag S0
SHL1314
Mounting Bracket
SNN1047
Polyethylene Bag S1
SHL1429
Non Skid Pad
SEP6002
Polyethylene Bag S1
SHL1251
5
Non Skid Pad
SEC1912
6
Top Protector
SHA2481
7
Middle Protector
SHA2482
8
Bottom Protector
SHA2483
9
Polyethylene Bag S1
SHL1419
10 Polyethylene Bag S2
SHL1420
11 Protection Sheet S5
SHC1810
12 Packing Case
SHG2663
background image
3
1
23
4
1
2
3
4
C
D
F
A
B
E
S-DV535
CS ASSY (Center)
NSP
Cabinet
SNK2851
Grille
SMG1840
NSP
Badge 28
SAM1506
NSP
Grille Cloth
SAS1591
NSP
Baffle
SNK2852
Connecting Cord
SDD1345
Packing
SEC1913
Input Terminal
SKX1096
NSP
Acoustic Absorbent (White)
SMT1293
NSP
Acoustic Absorbent (Black)
SMV2198
Speaker
K77DU55-51D
Screw (for Input Terminal)
BPZ35P080FNI
Screw (for Cabinet)
BPZ35P120FNI
CS ASSY (Subwoofer)
NSP
Cabinet
SMM2013
Grille
SMG1841
NSP
Grille Cloth
SAS1592
NSP
Grille Frame
SMH1103
NSP
Badge 37
SAM1507
Connecting Cord
SDD1346
Packing
SEC1627
Gasket
SEC6058
Input Terminal
SKX1060
NSP
Paper Tube 50
SMR1389
NSP
Acoustic Absorbent (White)
SMV2196
NSP
Acoustic Absorbent (Black)
SMV2197
Cosmetic Baffle
SNK2853
Speaker
A14LU75-54D
Screw (for Speaker)
BYC40P130FNI

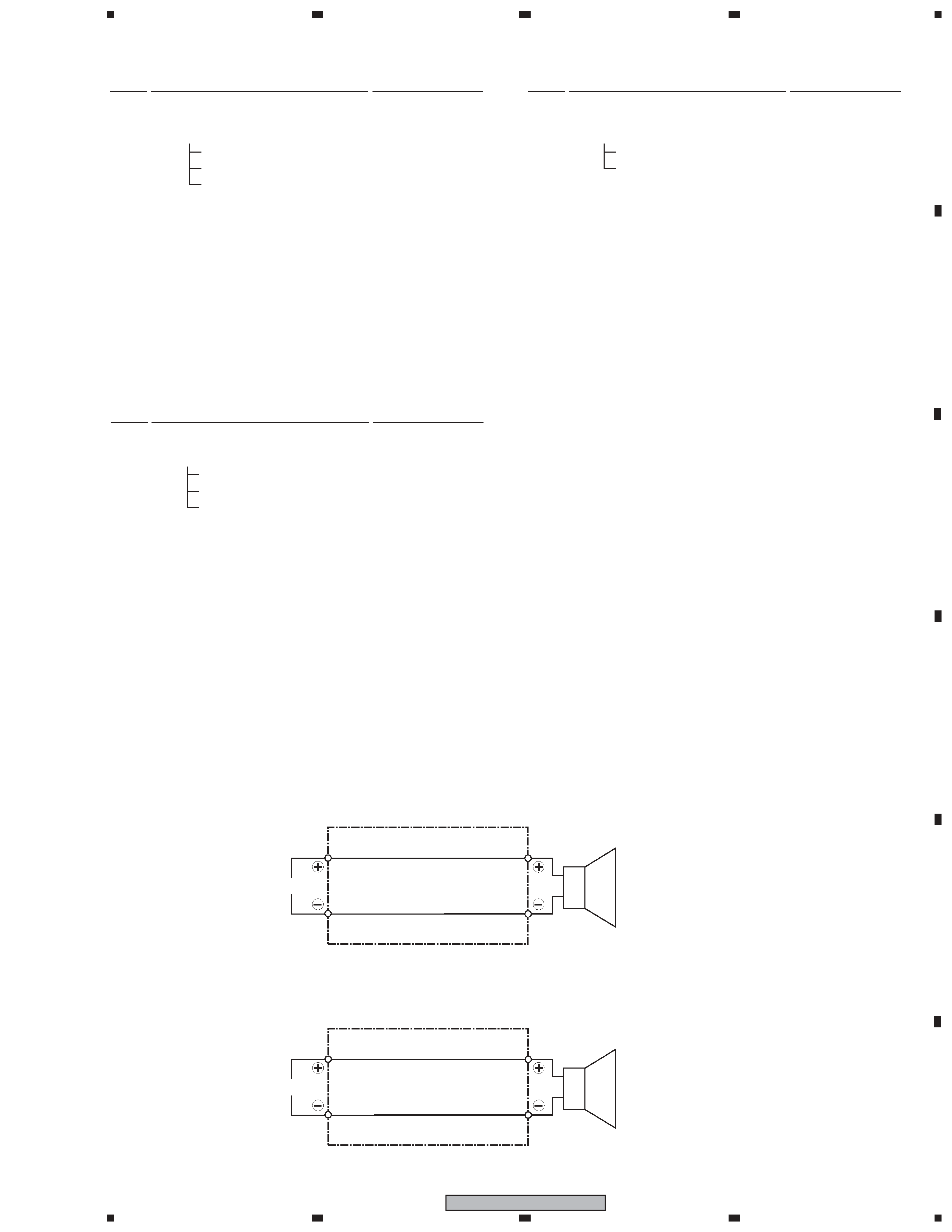

SCHEMATIC DIAGRAM
INPUT
Full-Range
White
Red
Connecting Cord (SDD1345)
1. CS ASSY (FRONT, CENTER)
2. CS ASSY (SUB WOOFER)
INPUT
Woofer
Black
Red
Connecting Cord (SDD1346)
CS ASSY (Front)
NSP
Cabinet
SNK2846
Grille
SMG1838
NSP
Badge 28
SAM1506
NSP
Grille Cloth
SAS1588
NSP
Baffle
SNK2847
Connecting Cord
SDD1345
Input Terminal
SKX1096
NSP
Acoustic Absorbent (White)
SMV2194
NSP
Acoustic Absorbent (Black)
SMV2198
Speaker
K77DU55-52D
Screw (for Input Terminal)
BPZ35P080FNI
Screw (for Cabinet)
BPZ35P120FNI
Mark No.
Description
Part No.
Mark No.
Description
Part No.
Mark No.
Description
Part No.
background image
4
1
23
4
12
3
4
C
D
F
A
B
E
S-DV535
PRODUCT APPEARANCE
CS ASSY (Front)
9
Num.
No.
Part
Name
Cabinet
1
1
2
1
1
1
Connecting
Cord
Input
Terminal
4
Speaker
1
1
1
Screw
(M3.5x8)
Grille
Acoustic
Absorbent
(Polyester
Fiber)
Acoustic
Absorbent
(Duffel
Felt)
Badge
28
1
Model
Label
Screw
(M3.5x12)
1
2
3
4
5
6
7
8
11
10
1
2
3
4
5
6
7
8
9
10
11
12
background image
5
1
23
4
1
2
3
4
C
D
F
A
B
E
S-DV535
CS ASSY (Center)
Num.
No.
Part
Name
Cabinet
1
2
2
8
1
1
Connecting
Cord
Input
Terminal
1
Speaker
1
1
1
Screw
(M3.5x8)
Acoustic
Absorbent
(Polyester
Fiber)
Acoustic
Absorbent
(Duffel
Felt)
Screw
(M3.5x12)
Grille
Badge
28
1
1
Model
Label
1
2
3
4
5
6
7
8
9
10
11
12
13
Packing
10
1
3
2
4
11
8
9
5
7
x8
x2
6
12
x2
