1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS
The grille is attached to the cabinet by catches. Detach by pull-
ing it toward you.
The woofer-tweeter coaxial speaker unit is attached to the
baffle by 6 external screws. To detach it, unfasten those screws.
When re-attaching it, face its terminal upper left.
SPEAKER SYSTEM
S-EU8BS-LR
XCN5
S-EU8BS-LR
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2007
RRV3544
T ­ ZZA JAN. 2007 Printed in Japan
1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS
The grille is attached to the cabinet by catches. Detach by pull-
ing it toward you.
The woofer-tweeter coaxial speaker unit is attached to the
baffle by 6 external screws. To detach it, unfasten those screws.
When re-attaching it, face its terminal upper left.
SPEAKER SYSTEM
S-EU8BS-LR
XCN5
S-EU8BS-LR
background image
2
1
23
4
12
3
4
C
D
F
A
B
E
S-EU8BS-LR

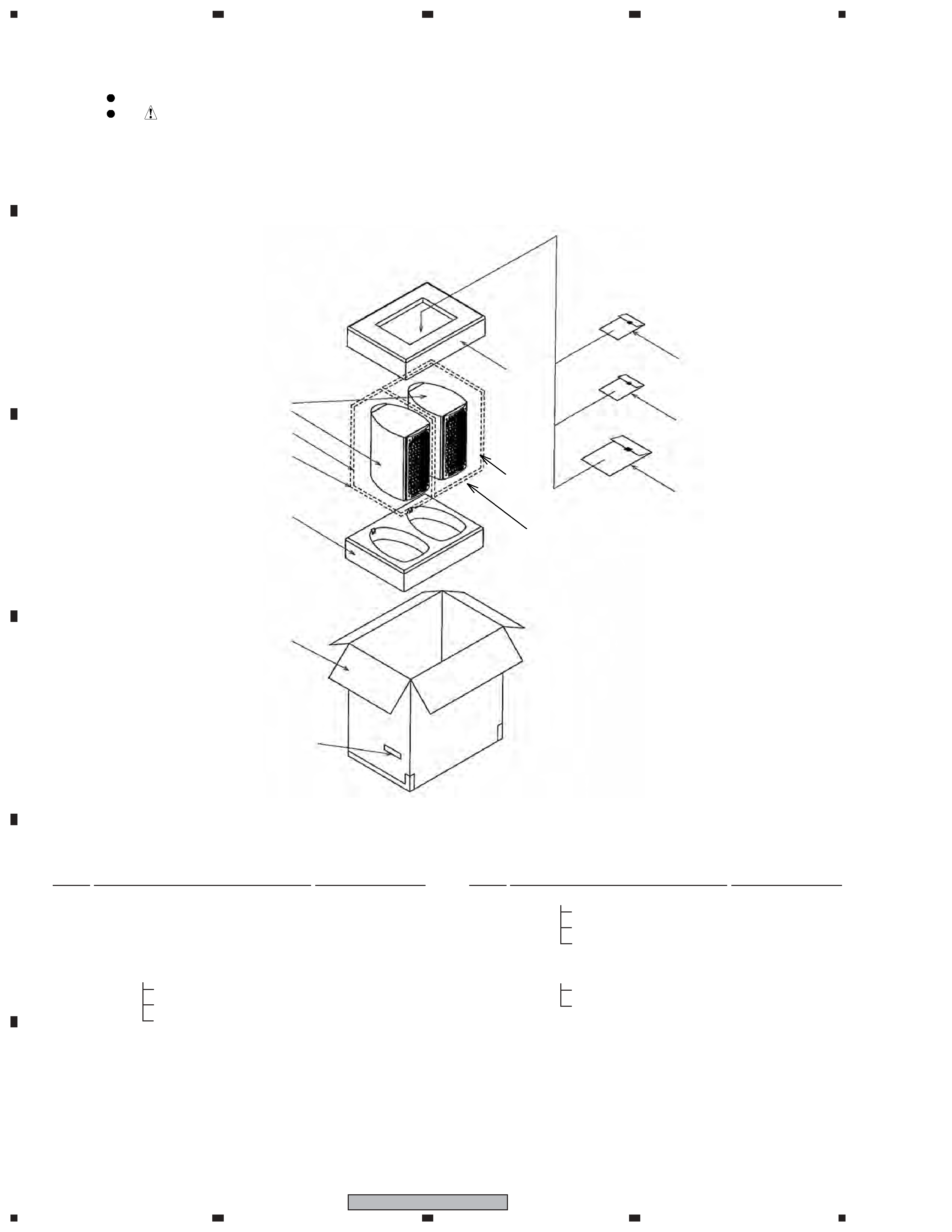

PACKING Parts List
1
Protector
SHA6041
2
Protection Sheet
SHC6012
3
Polyethylene Bag
SHL6073
4
Packing Case
SHG6244
NSP
5
Owner's Manual Set
· · · · · ·
Owner's Manual
SRD6072
Polyethylene Bag S2
SHL1295
ORANGE 10 MARK Manual SRD6077
2.1 PACKING
Speaker System
Serial No.
Label
1
7
6
5
4
1
3
2
2
3
NSP
6
Accessory Set
· · · · · ·
Spike
SBA6008
Spike Base
SBG6001
Polyethylene Bag S0
SHL1259
NSP
7
Accessory Set
· · · · · ·
Packing (Non Skid Pad)
FREC-064
Polyethylene Bag S0
SHL1259
Mark No.
Description
Part No.
Mark No.
Description
Part No.
2. EXPLODED VIEWS AND PARTS LIST
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:
background image
3
1
23
4
1
2
3
4
C
D
F
A
B
E
S-EU8BS-LR
Mark No.
Description
Part No.
SPEAKER SYSTEM Parts List
2.2 SPEAKER SYSTEM
Grille Assy
FRMG-214
Network
FRWN-179
Catch
MNNK001
Screw (for Speaker)
SBA6007
Screw (for Network)
SBA6015
Gasket (for Cord)
SEC1495
Input Terminal (Red)
SKX6008
Input Terminal (Black)
SKX6009
Speaker (Woofer / Tweeter)
W12FR80-52DX
There is no drawing.
3. SCHEMATIC DIAGRAM
NETWORK ASSY (FRWN-179)
0.82 mH
0.22 mH
INPUT
Black
Red
White
with Black Line
White
White
with Black Line
Red
White
Black
1.5
µF/250 V
6.8
µF/250 V
WOOFER
TWEETER
39
/10 W
( Connect the cable from speaker )
