1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS
The grilles are attached to the cabinet by catches. Detach by
pulling them toward you.
The base is attached to the cabinet by 7 external screws. To
detach it, unfasten those screws.
The networks are attached to the cabinet by 8 internal screws.
To detach them, first disconnect the cord to speakers. Next re-
move the base. Then unfasten those screws. When re-attaching
them, the network attached to the back side of the base is con-
nected to the terminal of High Pass Filter and the network at-
tached in the speaker system is connected to the terminal of
Low Pass Filter.
SPEAKER SYSTEM
S-EU8TB
XCN5
The super-tweeter is attached to the baffle by 4 external screws.
To detach it, unfasten those screws. When re-attaching it, face
its terminal downward.
The mid-tweeter coaxial unit is attached to the baffle by 4 ex-
ternal screws. To detach it, unfasten those screws. When re-
attaching it, face its terminal leftward.
The woofers are attached to the baffle by 6 external screws. To
detach them, unfasten those screws. When re-attaching them,
face its terminal lower right.
S-EU8TB
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2007
RRV3543
T ­ ZZA JAN. 2007 Printed in Japan
1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS
The grilles are attached to the cabinet by catches. Detach by
pulling them toward you.
The base is attached to the cabinet by 7 external screws. To
detach it, unfasten those screws.
The networks are attached to the cabinet by 8 internal screws.
To detach them, first disconnect the cord to speakers. Next re-
move the base. Then unfasten those screws. When re-attaching
them, the network attached to the back side of the base is con-
nected to the terminal of High Pass Filter and the network at-
tached in the speaker system is connected to the terminal of
Low Pass Filter.
SPEAKER SYSTEM
S-EU8TB
XCN5
The super-tweeter is attached to the baffle by 4 external screws.
To detach it, unfasten those screws. When re-attaching it, face
its terminal downward.
The mid-tweeter coaxial unit is attached to the baffle by 4 ex-
ternal screws. To detach it, unfasten those screws. When re-
attaching it, face its terminal leftward.
The woofers are attached to the baffle by 6 external screws. To
detach them, unfasten those screws. When re-attaching them,
face its terminal lower right.
S-EU8TB
background image
2
1
23
4
12
3
4
C
D
F
A
B
E
S-EU8TB
PACKING Parts List
Speaker
System
1
4 (1/2)
9
4 (2/2)
5
5
10
5
14
12
13
2 (2/2)
Serial No. Label
5
3 (2/2)
7
3 (1/2)
2 (1/2)
8

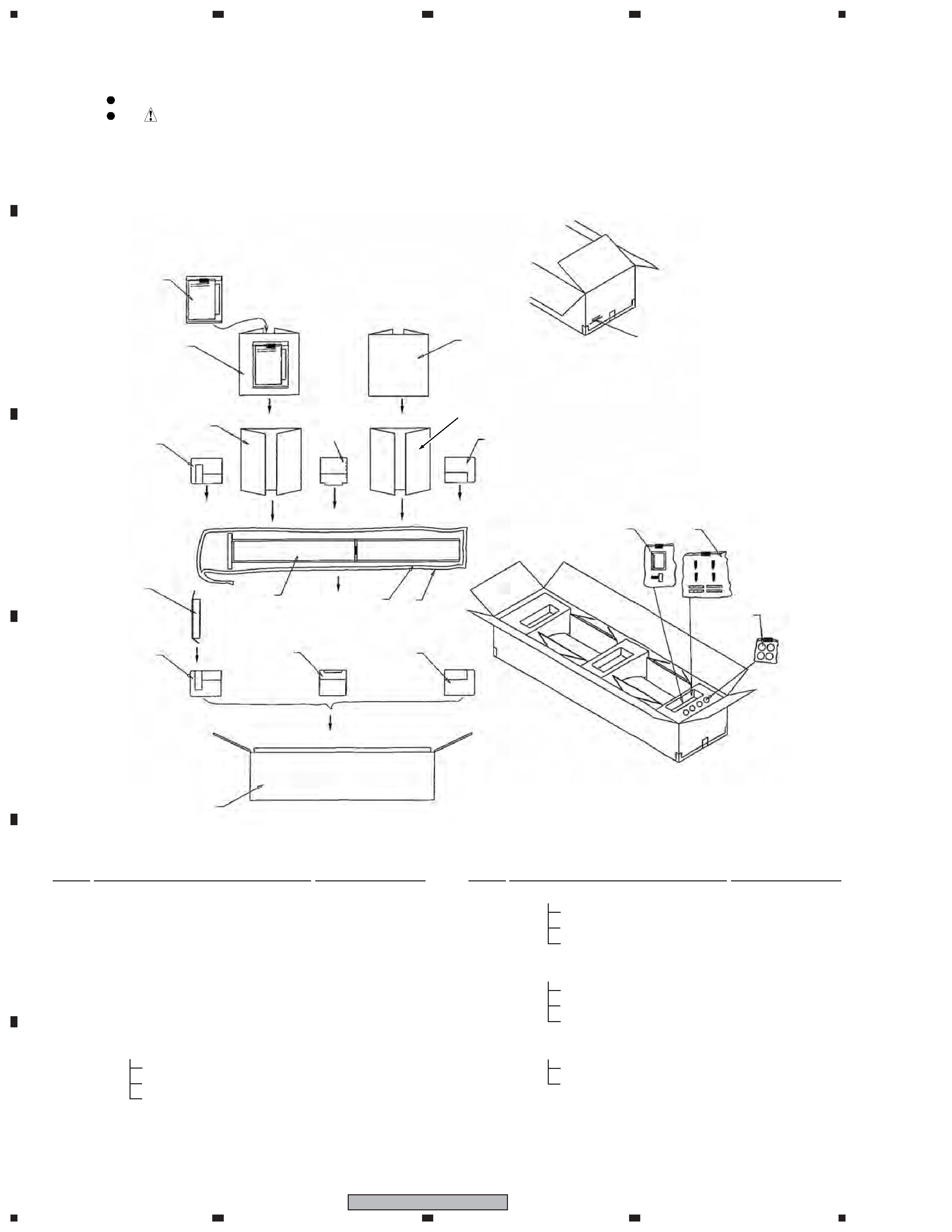

2.1 PACKING
NSP
12 Accessory Set
· · · · · ·
Spike
SBA6008
Spike Base
SBG6001
Polyethylene Bag S0
SHL1259
NSP
13 Accessory Set
· · · · · ·
Fastener
FRNH-028
Screw (for Fastener)
BMZ40P120FTB
Polyethylene Bag S0
SHL1341
NSP
14 Accessory Set
· · · · · ·
Packing (Non Skid Pad)
FREC-067
Polyethylene Bag S0
SHL1341
Mark No.
Description
Part No.
Mark No.
Description
Part No.
1
Packing Case
SHG6242
2
Top Protector
SHA6036
3
Middle Protector
SHA6037
4
Bottom Protector
SHA6038
5
Spacer (for Side 4 Places)
SHB6002
7
Protection Sheet
SHC6011
8
Polyethylene Bag
SHL6071
9
Spacer (for Base)
SHB6003
NSP
10 Owner's Manual Set
· · · · · ·
Owner's Manual
SRD6071
Polyethylene Bag S2
SHL1295
Green e-mark Manual
SRD6076
2. EXPLODED VIEWS AND PARTS LIST
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:
background image
3
1
23
4
1
2
3
4
C
D
F
A
B
E
S-EU8TB
Mark No.
Description
Part No.
SPEAKER SYSTEM Parts List
2.2 SPEAKER SYSTEM
There is no drawing.
Woofer
INPUT
Black LF
Red
LF
LF Network (FRWN-175)
3.3 mH
Mid
Tweeter
Super-Tweeter
1.8 mH
150
µF/100 WV
120
µF/100 WV
22 mH
6.8
/10 W
Woofer
INPUT
Black HF
Red
HF
HF Network (FRWN-176)
39
/10 W
4.7
µF/250 V
22
µF/250 V
39
µF/250 V
1.5 mH
2 mH
0.27 mH
1.5
µF/250 V
0.27
µF/250 V
1
µF/250 V
0.017 mH
White
with Black Line
White
with Black Line
White
with Black Line
White
White
with Black Line
Red
White
White
White
Black
( Connect the cable from speaker )
Screw (for Metal Leg)
BYC50P200FTB
Speaker Cord
FRDD-059
Packing (for Base)
FREC-056
Grille Ass'y (with Badge)
FRMG-211
Grille Ass'y (no Badge)
FRMG-212
Metal Leg
FRNH-022
Network Assy (LF)
FRWN-175
Network Assy (HF)
FRWN-176
Catch
MNNK001
Screw (for Base)
SBA1199
Screw (for Mid/Tw, Wf)
SBA6007
Screw (for Super-Tw)
SBA6014
Screw (for Network)
SBA6015
Gasket (for Cord)
SEC1495
Input Terminal (Red)
SKX6008
Input Terminal (Black)
SKX6009
Bolt (for Center Flange)
SMZ50H500FTB
Speaker (Woofer)
W12LR80-51L
Speaker (Mid / Tw)
W13FR80-52FX
Speaker (for Super-Tw)
ART-60F
Mark No.
Description
Part No.
3. SCHEMATIC DIAGRAM
