PIONEER S-F80-W/SXTW/EW5 Service Manual

Cover page of PIONEER S-F80-W/SXTW/EW5 Service Manual

Service Manual for PIONEER S-F80-W/SXTW/EW5, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 2 pages
  • File size: 0.36 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2005
SPEAKER SYSTEM
PRT-137
PFS-SDC DEC. 2005 Printed in Belgium
S-F80-W
XDCN
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
The grille is attached to the cabinet by catches. Detach it by
pulling it toward you.
Woofer - tweeter coaxial speaker units are attached together to the
baffle by 6 external screws. To detach them, unfasten those
screws.
Even though the suffix is different between /XDCN and /SXTW/EW5,
both models are completely same product.
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2005
SPEAKER SYSTEM
PRT-137
PFS-SDC DEC. 2005 Printed in Belgium
S-F80-W
XDCN
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
The grille is attached to the cabinet by catches. Detach it by
pulling it toward you.
Woofer - tweeter coaxial speaker units are attached together to the
baffle by 6 external screws. To detach them, unfasten those
screws.
Even though the suffix is different between /XDCN and /SXTW/EW5,
both models are completely same product.

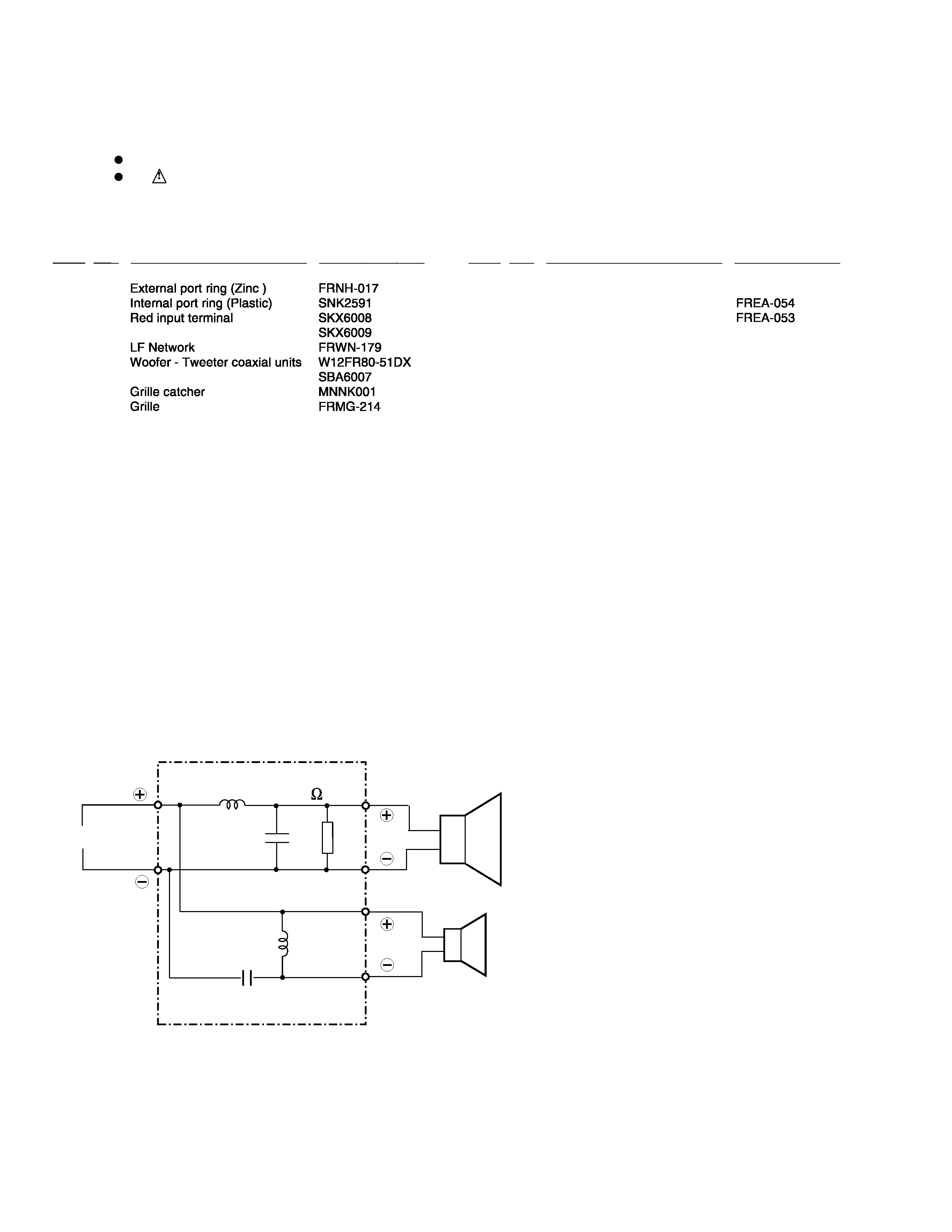

background image
S-F80-W
2
NOTES :
Parts marked by
" NSP " are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Mark No. Description
Part No.
PARTS LIST
Mark No. Description
Part No.
SCHEMATIC DIAGRAM
Accessories
Woofer
1.5 F/250V
Tweeter
INPUT
Black
Red
Black
White
Black
White
NETWORK ASSY (FRWN-179)
0.82 mH
0.22 mH
39 /10W
Black input terminal
Hex screw M4 x 25 mm
8 Foam cushions
8 Spikes + bases
Instruction Manual
FRRD-210
6.8 F/250V
