BEFORE USE
·
Thank you for buying this Pioneer product.
·
Please read through this operating guide before using your
speaker system to optimize performance.
FRONT / CENTER / SURROUND SPEAKERS
FRONT / CENTER / SURROUND SPEAKERS
·
In order to prevent damage to the speaker system resulting
from input overload, please observe the following precau-
tions:
·
Do not supply signal to the speaker system in excess of the
maximum permissible input.
·
When connecting or disconnecting cables, be sure amplifier
power is OFF.
·
Do not use excessive amplifier volume if using a tone control
to emphasize high or low frequencies.
INSTALLATION PRECAUTIONS
·
Do not install these units near a stove or other heating
appliance, or put them in a place exposed to the sun. Such
locations may cause the cabinet to change color and the
speaker system to break down.
CAUTION:
Pioneer will not be responsible for any accidents or damage
that may result from improper installation.
·
·
·
·
·
SUBWOOFER
·
Do not place anything on top of the cabinet.
·
Do not spill liquid on the cabinet.
·
Place the subwoofer at least 8 inches from any wall or curtain
in order to avoid heat build-up.

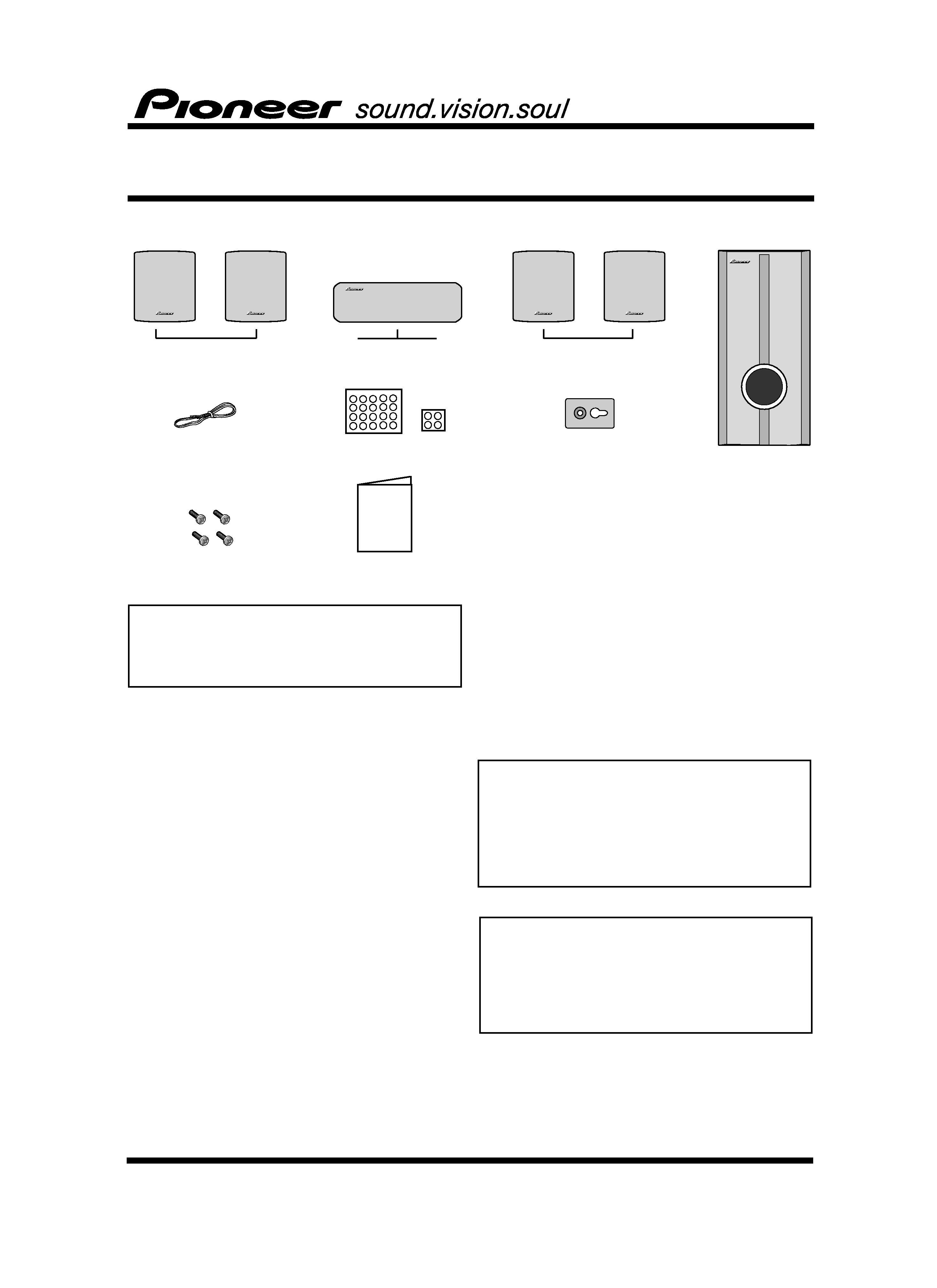

WHAT'S IN THE BOX
SUBWOOFER
OPERATING GUIDE
S-FCRW2500
SPEAKER SYSTEM
The front, center and surround speakers supplied with
this system are magnetically shielded. However,
placing them extremely close to a television may result
in color distortion on the screen. If this happens, move
the speakers a little further away and switch off the
television for 15-30 minutes.
The subwoofer is not magnetically shielded and so
should not be placed near a TV or monitor. Magnetic
storage media (such as floppy discs and tape or video
cassettes) should also not be kept close to the subwoofer.
The serial number for this equipment is located on the rear of
the subwoofer. Please write this serial number on the warranty
page and keep it in a secure area for future reference.
·
· Front speakers x 2
· Center speaker x 1
· Surround speakers x 2
· Speaker cord
· Non-skid pads
· Operating guide
IMPORTANT:
Do not connect any of the supplied speakers to any
other amplifier. This may result in malfunction or fire.
Do not fix the subwoofer and center speaker to the wall or
ceiling; they could cause injury if they fell.
· Brackets x 4
· Screws x 4
WARNING:
Handling the cord on this product or cords associated with
accessories sold with the product will expose you to lead, a
chemical known to the State of California and other
governmental entities to cause cancer and birth defects
or other reproductive harm.
WASH HANDS AFTER HANDLING.
SRD1283A.pm5
04.12.28, 1:43 PM
1
background image
1
www.pioneerelectronics.com
BEFORE USE
·
Thank you for buying this Pioneer product.
·
Please read through this operating guide before using your
speaker system to optimize performance.
FRONT / CENTER / SURROUND SPEAKERS
FRONT / CENTER / SURROUND SPEAKERS
·
In order to prevent damage to the speaker system resulting
from input overload, please observe the following precau-
tions:
·
Do not supply signal to the speaker system in excess of the
maximum permissible input.
·
When connecting or disconnecting cables, be sure amplifier
power is OFF.
·
Do not use excessive amplifier volume if using a tone control
to emphasize high or low frequencies.
INSTALLATION PRECAUTIONS
·
Do not install these units near a stove or other heating
appliance, or put them in a place exposed to the sun. Such
locations may cause the cabinet to change color and the
speaker system to break down.
CAUTION:
Pioneer will not be responsible for any accidents or damage
that may result from improper installation.
·
·
·
·
·
SUBWOOFER
·
Do not place anything on top of the cabinet.
·
Do not spill liquid on the cabinet.
·
Place the subwoofer at least 8 inches from any wall or curtain
in order to avoid heat build-up.
WHAT'S IN THE BOX
SUBWOOFER
OPERATING GUIDE
S-FCRW2500
SPEAKER SYSTEM
The front, center and surround speakers supplied with
this system are magnetically shielded. However,
placing them extremely close to a television may result
in color distortion on the screen. If this happens, move
the speakers a little further away and switch off the
television for 15-30 minutes.
The subwoofer is not magnetically shielded and so
should not be placed near a TV or monitor. Magnetic
storage media (such as floppy discs and tape or video
cassettes) should also not be kept close to the subwoofer.
The serial number for this equipment is located on the rear of
the subwoofer. Please write this serial number on the warranty
page and keep it in a secure area for future reference.
·
· Front speakers x 2
· Center speaker x 1
· Surround speakers x 2
· Speaker cord
· Non-skid pads
· Operating guide
IMPORTANT:
Do not connect any of the supplied speakers to any
other amplifier. This may result in malfunction or fire.
Do not fix the subwoofer and center speaker to the wall or
ceiling; they could cause injury if they fell.
· Brackets x 4
· Screws x 4
WARNING:
Handling the cord on this product or cords associated with
accessories sold with the product will expose you to lead, a
chemical known to the State of California and other
governmental entities to cause cancer and birth defects
or other reproductive harm.
WASH HANDS AFTER HANDLING.
SRD1283A.pm5
04.12.28, 1:43 PM
1
background image
2
www.pioneerelectronics.com
Twist and pull off the protective shields on
each wire.
Connect to the speaker terminals on the rear
of the receiver.
Match the colored wire with the color-coded label (above
the tabs), then insert the colored wire into the red (+) tab
and the other wire with the black (­) tab.
CONNECTING YOUR SYSTEM
IMPORTANT:
Make sure all equipment is turned off before making any
connections.
FRONT / CENTER / SURROUND / SUBWOOFER
SPEAKERS
Correct wiring of your loudspeakers is essential for achieving
the best sound quality. Be careful to ensure proper polarity of
connection.
CENTER SPEAKER
SURROUND SPEAKERS
For best results the loudspeakers should be positioned at or
above ear level. Depending upon your room layout and
preferences, the left and right rear speakers should be
positioned on the side walls just the rear of the listening
position, or on the walls. Place the rear center speaker directly
behind the listening position for best performance.
SUBWOOFER
Sound spreads in all directions in the very low frequency range.
Human hearing cannot easily detect the source of very low
frequencies. Be sure to provide a space of at least 8 inches
(20cm) between the rear of the subwoofer and the nearest wall.
PLACEMENT AND FINE TUNING
FRONT SPEAKERS
For best results the loudspeaker should be positioned near ear
level and the loudspeakers separated a distance approximately
equal to the listening distance. Angling the loudspeakers inward
towards the listener will improve the image stability for non-central
listeners. Close proximity to a side or rear wall will enhance the
midbass performance, although too close (particularly a corner
location) and the bass may be unnaturally high and image
performance may be degraded.
The loudspeaker should be positioned below the TV. For best
results align the front of the loudspeaker with the front of the
TV. If the loudspeaker is placed under the TV and very close to
the floor, then tilting upwards may be beneficial.
CENTER SPEAKER ONLY
Green Colored
marker
red (+)
black (­)
Connect the speaker cords to the input terminals at the rear
of center speaker.
Match the colored wire with the color-coded label (above
the tabs), then insert the colored wire into the red (+) tab
and the other wire with the black (­) tab.
SRD1283A.pm5
04.12.28, 1:43 PM
2
background image
3
www.pioneerelectronics.com
Front left
Surround
left
Listening position
Center
Subwoofer
Front right
Surround
right
Standard surround setup
This is a standard multichannel surround soundspeaker setup
for optimal 5.1 channel home theatre sound.
If you have connected to the SX-315 and the above speaker
placement isn't possible, you can select the FRONT
SURROUND MODE on the receiver with the following speaker
placement: Place the surround speakers to the side of the front
speakers and turn them towards the closest wall (right or left).
NON-SKID PADS
If the front, center and surround speakers are placed on a hard
surface, such as wood or tile place four non-skid pads (small)
on the bottom flat surface of the speakers.
If the subwoofer is placed on a hard floor, such as wood or tile,
place four non-skid pads (large) on the bottom surface of the
subwoofer.
CABINET MAINTENANCE
Use a polishing cloth or dry cloth to wipe off dust and dirt.
When the cabinet is very dirty, clean with a soft cloth dipped in
some neutral cleanser diluted five or six times with water, and
then wipe again with a dry cloth. Do not use furniture wax or
cleaners.
Never use thinners, benzine, insecticide sprays and other
chemicals on or near the cabinets, since these will corrode
the surfaces.
CAUTION:
The front speakers are equipped with a protection device to
protect the transducers from extreme conditions. Under
these conditions the protection device will activate and stop
the speaker from producing sound. If this happens turn the
volume down to resume normal speaker output.
SRD1283A.pm5
04.12.28, 1:43 PM
3
background image
4
www.pioneerelectronics.com
TROUBLESHOOTING
Enclosure
Closed-box bookshelf type
(magnetically shielded)
System
7.7 cm 1-way system
Speakers
7.7 cm cone type
Nominal impedance
6
Frequency range
85 Hz to 20 kHz
Dimensions
105 (W) x 115 (H) x 114 (D) mm
4 1/8 (W) x 4 1/2 (H) x 4 1/2 (D) in.
Weight
FRONT SPEAKER
0.6 kg/ 1 lb. 5 oz
SURROUND SPEAKER
0.66 kg/ 1 lb. 7 oz
Enclosure
Closed-box bookshelf type
(magnetically shielded)
System
7.7 cm 1-way system
Speakers
7.7 cm cone type
Nominal impedance
6
Frequency range
75 Hz to 20 kHz
Dimensions
270 (W) x 90 (H) x 100 (D) mm
10 5/8 (W) x 3 9/16 (H) x 3 15/16 (D) in.
Weight
0.8 kg/ 1 lb. 12 oz
Enclosure
Bass-reflex floor type
System
16 cm 1-way system
Speaker
16 cm cone type
Nominal impedance
6
Frequency range
30 Hz to 2.5 kHz
Dimensions
190 (W) x 360 (H) x 317 (D) mm
7 1/2 (W) x 14 3/16 (H) x 12 1/2 (D) in.
Weight
4.2 kg/ 9 lb. 4 oz
SPECIFICATIONS
FRONT / SURROUND SPEAKERS
CENTER SPEAKER
........................................
.......................................................
.........................................................
.............................................................
.............................................
..............................
........................................
..............................
.........................................
.......................................................
.........................................................
..............................................................
..............................................
................................
.............................................................
.............................................................
........................................................
..................................................
..............................................................
..............................................
..............................
.................................................................
SUBWOOFER
Note: Specifications and design subject to possible modification
without notice due to improvements.
SYMPTOM
PROBABLE CAUSE
REMEDY
1. No sound
· Bad speaker wire or connection
· Receiver is off
· Volume control is at zero
· Connect correctly or replace wire
· Turn on receiver
· Slowly turn up volume
2. Sound is distorted
· Extreme signal condition
· Turn down the amplifier's output level
(volume, bass control, bass boost) to
lower the level.
· T
urn the volume down to resume normal
speaker output.
· Extreme signal condition for extended
period of time
3. Front speak ers stop producing
sound suddenly
Published by Pioneer Corporation.
Copyright © 2005 Pioneer Corporation.
All rights reserved.
SRD1283A.pm5
04.12.28, 1:43 PM
4
background image
5
www.pioneerelectronics.com
Selecting fine audio equipment such as the unit you've just
purchased is only the start of your musical enjoyment. Now it's
time to consider how you can maximize the fun and excitement
your equipment offers. This manufacturer and the Electronic
Industries Association's Consumer Electronics Group want you
to get the most out of your equipment by playing it at a safe level.
One that lets the sound come through loud and clear without
annoying blaring or distortion-and, most importantly, without
affecting your sensitive hearing.
Sound can be deceiving. Over time your hearing "comfort
level" adapts to higher volumes of sound. So what sounds
"normal" can actually be loud and harmful to your hearing. Guard
against this by setting your equipment at a safe level BEFORE
your hearing adapts.
To establish a safe level:
· Start your volume control at a low setting.
· Slowly increase the sound until you can hear it comfortably
andclearly, and without distortion.
Once you have established a comfortable sound level:
· Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing
damage or loss in the future. After all, we want you listening for
a lifetime.
We Want You Listening ForA Lifetime
Used wisely, your new sound equipment will provide a lifetime
of fun and enjoyment. Since hearing damage from loud noise is
often undetectable until it is too late, this manufacturer and the
Electronic Industries Association's Consumer Electronics Group
recommend you avoid prolonged exposure to excessive noise.
This list of sound levels is included for your protection.
Information courtesy of the Deafness Research Foundation.
90
Subway, motorcycle, truck traffic, lawn mower
100
Garbage truck, chain saw, pneumatic drill
120
Rock band concert in front of speakers, thunderclap
140
Gunshot blast, jet plane
180
Rocket launching pad
THE FOLLOWING NOISES CAN BE DANGEROUS
UNDER CONSTANT EXPOSURE
30
Quiet library, soft whispers
40
Living room, refrigerator, bedroom away from traffic
50
Light traffic, normal conversation, quiet office
60
Air conditioner at 20 feet, sewing machine
70
Vacuum cleaner, hair dryer, noisy restaurant
80
Average city traffic, garbage disposals, alarm clock
at two feet.
Decibel
Level
Example
SRD1283A.pm5
04.12.28, 1:43 PM
5

Reviews

There are no reviews of this manual yet.

Related Products

Cover page of PIONEER DEH-1900MP/XS/UC Owner's Manual

This manual has 52 pages, file size: 0.77 MB. It's available in languages: French, English, Spanish.

Cover page of PIONEER DEH-P460MP/XIN/UC Owner's Manual

This manual has 140 pages, file size: 2.12 MB. It's available in languages: French, English, Spanish.

Cover page of PIONEER S-DV151/XJC/E Service Manual

This manual has 7 pages, file size: 0.4 MB. It's available in languages: English.

Cover page of PIONEER XRP460F Service Manual

This manual has 111 pages, file size: 16.49 MB. It's available in languages: English.

Cover page of PIONEER VSX-LX60/HYXJ5 Service Manual

This manual has 268 pages, file size: 27.14 MB. It's available in languages: English.
