background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2007
Front
Subwoofer
Surround
Center
S-FCRW2900-S
RRV3590
SPEAKER SYSTEM
S-FCRW2900-S
XJC/E
1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS
1.1 FRONT/SURROUND SPEAKER
The grille is attached to the cabinet by 6 external screws. To
detach it, unfasten those screws.
The speaker unit, together with the grille, is attached to the
cabinet by 4 external screws. To detach it, first unfasten those
screws. Next remove the cabinet. Then removethe cable. When
attaching it, face its terminal downward.
1.2 CENTER SPEAKER
The grille assy is attached to the cabinet by 8 external screws.
To detach it, unfasten those screws.
The speaker unit, together with the grille assy, is attached to the
cabinet by 4 external screws. To detach it, first remove the
grille assy. Next remove the cabinet. Then removethe cable.
When attaching it, face its terminal toward the input terminal.
1.3 SUBWOOFER
The speaker unit is attached to the back board by 4 external
screws. To detach it, unfasten those screws. When attaching it,
face its terminal downward.
The cosmetic baffle assy is attached to the baffle board by
press-fitting. To detach it, pry it open by inserting a flat blade
screwdriver into lower slot.
T-ZZR MAY 2007 Printed in Japan
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2007
Front
Subwoofer
Surround
Center
S-FCRW2900-S
RRV3590
SPEAKER SYSTEM
S-FCRW2900-S
XJC/E
1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS
1.1 FRONT/SURROUND SPEAKER
The grille is attached to the cabinet by 6 external screws. To
detach it, unfasten those screws.
The speaker unit, together with the grille, is attached to the
cabinet by 4 external screws. To detach it, first unfasten those
screws. Next remove the cabinet. Then removethe cable. When
attaching it, face its terminal downward.
1.2 CENTER SPEAKER
The grille assy is attached to the cabinet by 8 external screws.
To detach it, unfasten those screws.
The speaker unit, together with the grille assy, is attached to the
cabinet by 4 external screws. To detach it, first remove the
grille assy. Next remove the cabinet. Then removethe cable.
When attaching it, face its terminal toward the input terminal.
1.3 SUBWOOFER
The speaker unit is attached to the back board by 4 external
screws. To detach it, unfasten those screws. When attaching it,
face its terminal downward.
The cosmetic baffle assy is attached to the baffle board by
press-fitting. To detach it, pry it open by inserting a flat blade
screwdriver into lower slot.
T-ZZR MAY 2007 Printed in Japan
background image
S-FCRW2900-S
2
12
3
4
12
3
4
C
D
F
A
B
E
2. EXPLODED VIEWS AND PARTS LIST

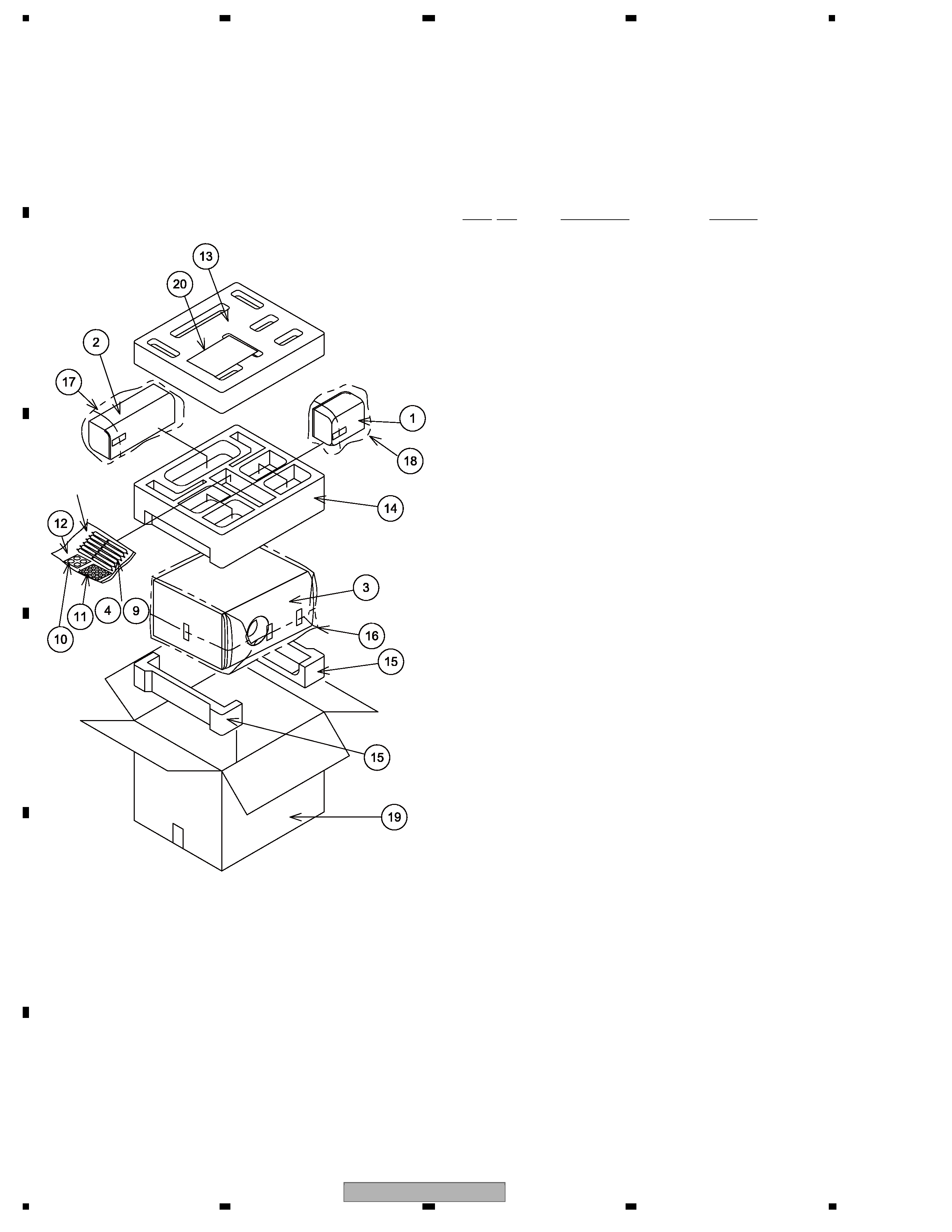

2.1 PACKING
PACKING Parts List
NOTES : · Parts marked by " NSP " are generally unavailable because they are not in our Master Spare Parts List.
· The
> mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
3
8
10
(x 4)
11
7 -(2/2)
7 -(1/2)
1
(x 4)
6
Accessories
Set
9
12
5
2
to
Mark No.
Description
Part No.
NSP 1
Front / Surround Speaker
SMW6245
NSP 2
Center Speaker
SMW6246
NSP 3
Subwoofer
SMW6208
4
Speaker Cable (FL: White)
SDS6037
5
Speaker Cable (FR: Red)
SDS6038
6
Speaker Cable (SL: Blue)
SDS6039
7
Speaker Cable (SR: Gray)
SDS6040
8
Speaker Cable (C: Green)
SDS1173
9
Speaker Cable (SW: Purple)
SDS6041
10
Non Skid Pads
SEC2070
(large/ for Subwoofer)
11
Non Skid Pads
SEP1240
(small/ for Front, Surround, Center)
12
Polyethylene Bag S2
SHL1251
13
Protector
SHA2532
14
Middle Protector
SHA2533
15
Bottom Protector
SHA2534
16
Protection Sheet
SHC1821
17
Polyethylene Bag S2
SHL1417
18
Polyethylene Bag S2
SHL1420
19
Packing Case
SHG6280
20
Operating Guide
SRD6085
background image
S-FCRW2900-S
3
5
678
56
7
8
C
D
F
A
B
E

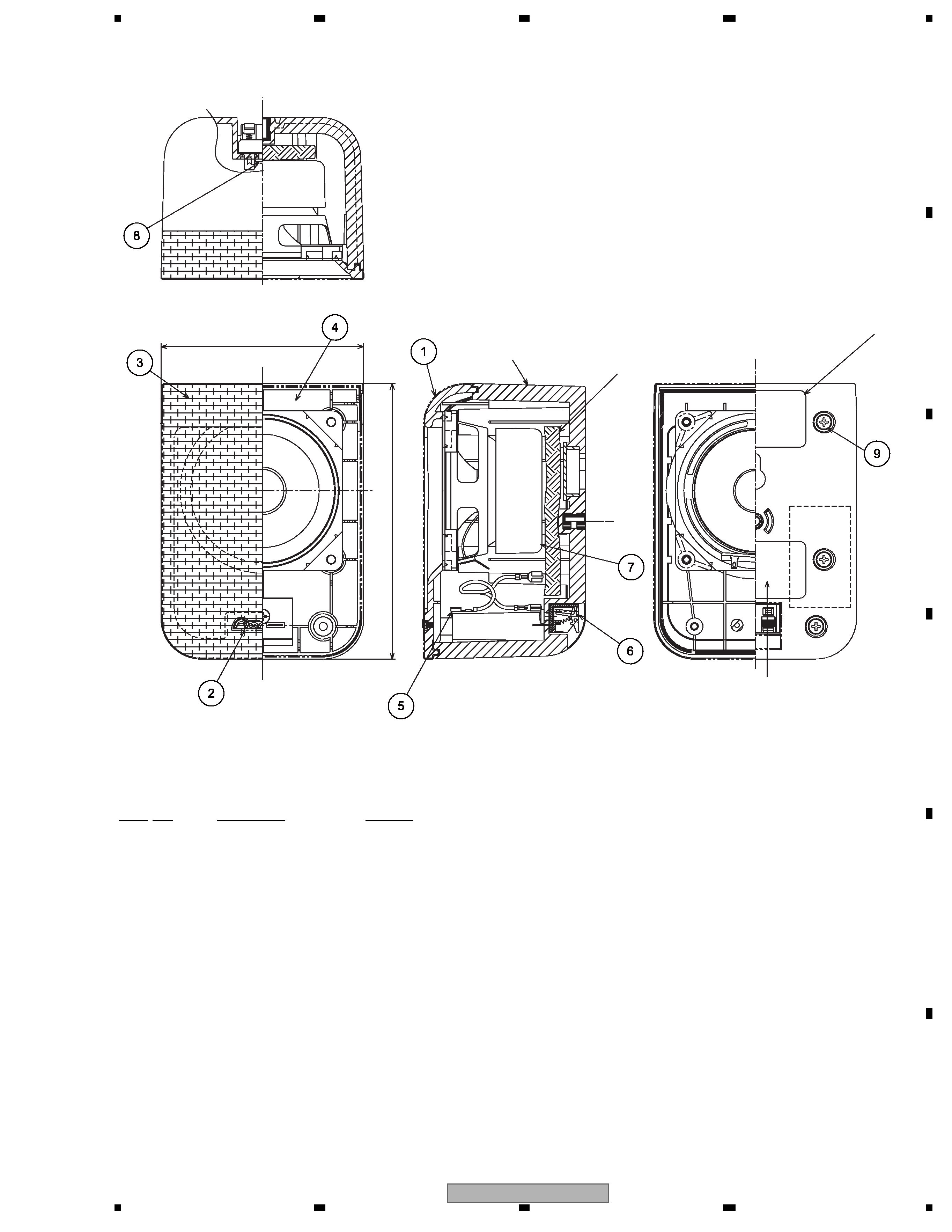

2.2 SPEAKER SYSTEM (FRONT / SURROUND)
SPEAKER SYSTEM(FRONT/SURROUND) Parts List
Caution Label
Acoustic
Absorbent
Model Label
9
10
(x 6)
5
5
4
4
8
8
2
Cabinet
136
100
Mark No.
Description
Part No.
1
1..Grille
SMG1867
NSP 2
2..Badge28
SAM1506
NSP 3
2..Grille Cloth
SAS1606
NSP 4
2..Baffle
SNK2924
5
Connecting Cord
SDD1345
6
Input Terminal
SKX6034
7
Speaker
K77DC55-52F
8
Screw (for Input Terminal)
BPZ35P080FTC
9
Screw (for Cabinet)
BPZ35P120FTB
background image
S-FCRW2900-S
4
12
3
4
12
3
4
C
D
F
A
B
E

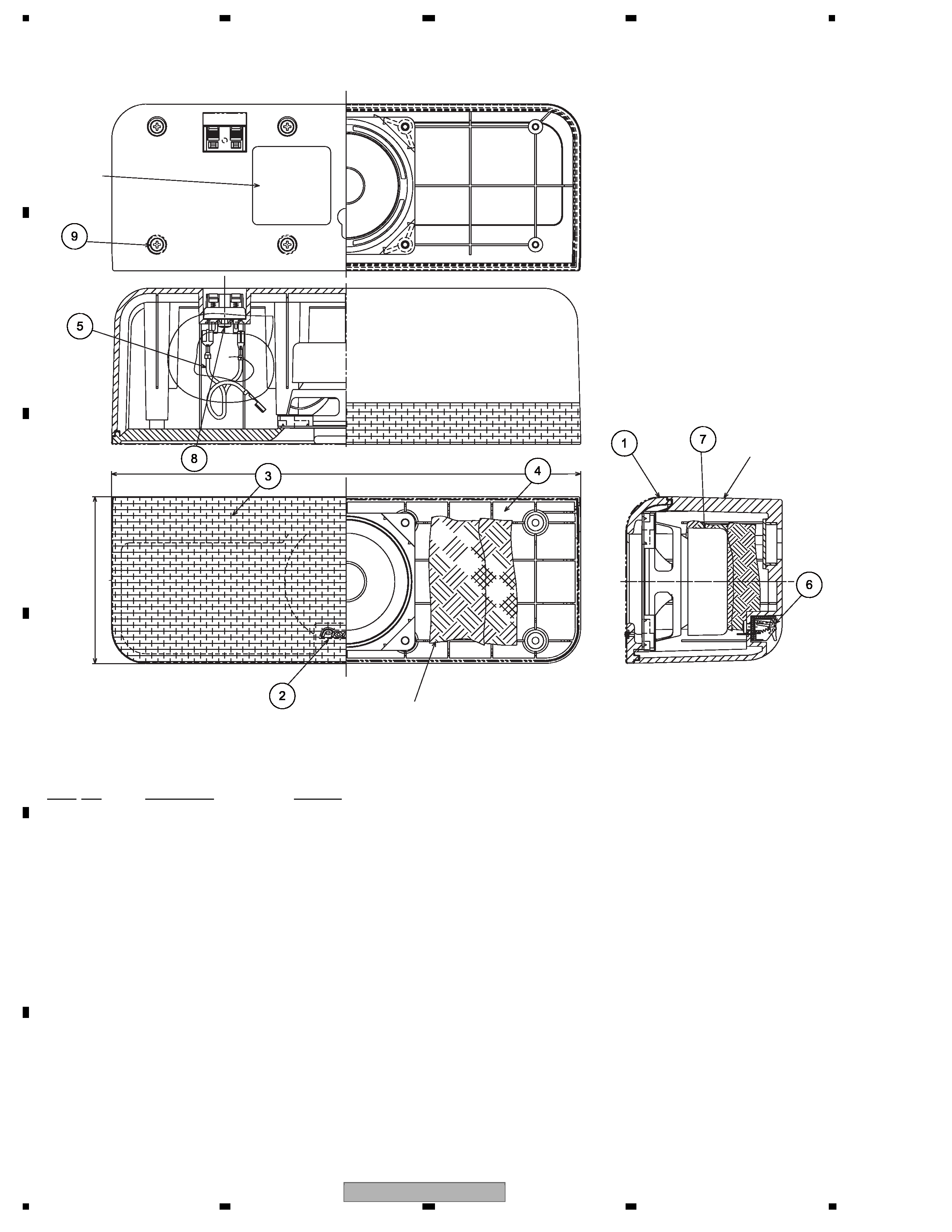

2.3 SPEAKER SYSTEM (CENTER)
SPEAKER SYSTEM (CENTER) Parts List
>PS<
Acoustic Absorbent
(x 2)
Model
Label
10
(x 8)
9
4
270
96
5
5
5
5
8
2
Cabinet
Mark No.
Description
Part No.
1
1..Grille
SMG1868
NSP 2
2..Badge28
SAM1506
NSP 3
2..Grille Cloth
SAS1607
NSP 4
2..Baffle
SNK2926
5
Connecting Cord
SDD1345
6
Input Terminal
SKX6034
7
Speaker
K77DC55-52F
8
Screw (for Input Terminal)
BPZ35P080FTC
9
Screw (for Cabinet)
BPZ35P120FTB
background image
S-FCRW2900-S
5
5
678
56
7
8
C
D
F
A
B
E

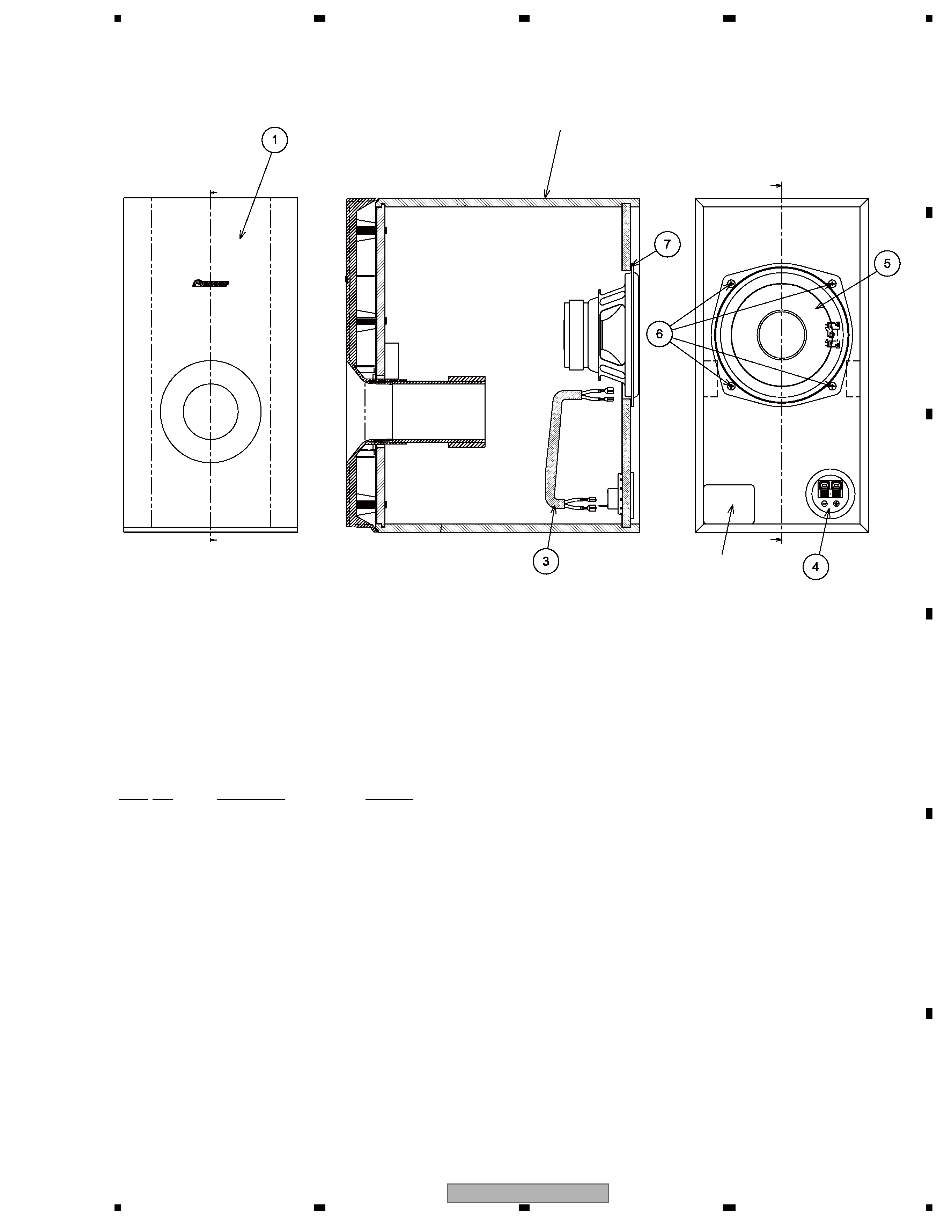

2.4 SPEAKER SYSTEM (SUBWOOFER)
SPEAKER SYSTEM (SUBWOOFER) Parts List
12
11
Cabinet
2
8
9
Model Label
10
Mark No.
Description
Part No.
1
Cosmetic BF. Assy
SXB6006
2
. . . .
3
Connecting Cord
SDD6017
4
Input Terminal
SKX1060
5
Speaker
A14LU75-52F
6
Screw (for Speaker)
BYC40P130FTB
7
Gasket
SEC6058
