The speaker is assembled by external screws from the back side.
To disassemble unfasten those screw and pull the back off.
·
The woofer is attached to the baffle by screws. To detach them,
unfasten those screws. When attaching, face its terminal
sideways.
·
The tweeter is attached to the baffle by adhesive. To detach it, use
heat gun to soften adhesive. When attaching, ensure adhesive
bead covers full perimeter.
HOW TO REASSEMBLE AND
DISASSEMBLE
This service manual is intended for qualified service technicians; it is
not meant for the casual do-it- your selfer. Qualified technicians have
the necessary test equipment and tools, and have been trained to
properly and safely repair complex products such as those covered by
this manual.
Improperly performed repairs can adversely affect the safety and
reliability of the product and may void the warranty. If you are not
qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service
technician.

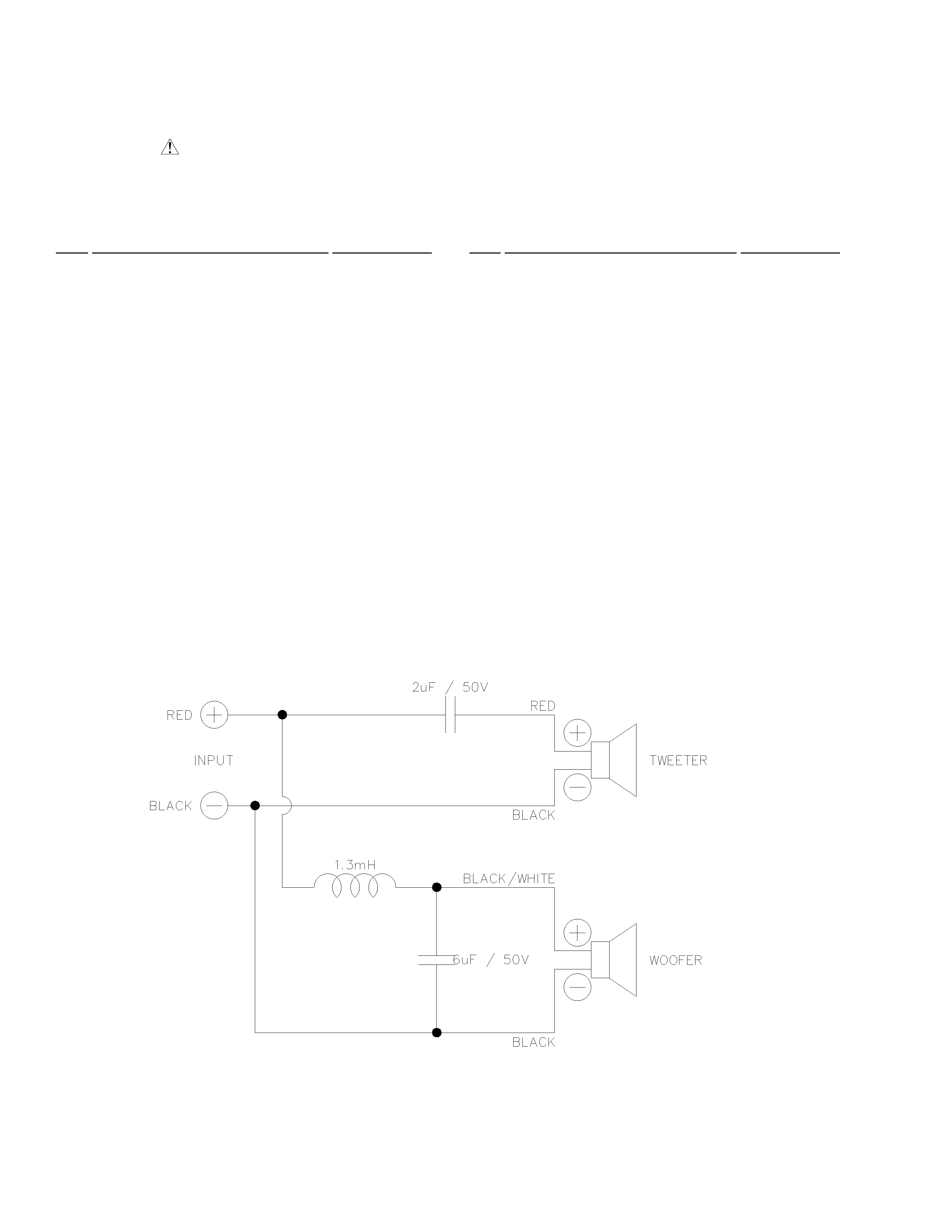

SPEAKER SYSTEM
S-H052S-K
Service
Manual
