background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2007
S-H615V
RRV3672
SPEAKER SYSTEM
S-H615V
XCN5
1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS
1.1 GRILLE
· The grille is attached to the baffle by its bosses and pressfitting.
To detach it, pry it open by inserting a flat blade tool between
the grille and the cabinet. Be careful not to damage the grille or
the cabinet.
1.2 WOOFER
· Woofer units are attached together to the baffle board by 8
external screws. To detach them,unfasten those screws.
1.3 TWEETER
· Tweeter is attached to the baffle board by 3 external screws.
To detach it, unfasten those screws.
1.4 NETWORK ASSY
· The networks are attached to the baffle board by 4 internal
screws. To detach them,unfasten those screws.
T-ZZR OCT. 2007 Printed in Japan
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2007
S-H615V
RRV3672
SPEAKER SYSTEM
S-H615V
XCN5
1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS
1.1 GRILLE
· The grille is attached to the baffle by its bosses and pressfitting.
To detach it, pry it open by inserting a flat blade tool between
the grille and the cabinet. Be careful not to damage the grille or
the cabinet.
1.2 WOOFER
· Woofer units are attached together to the baffle board by 8
external screws. To detach them,unfasten those screws.
1.3 TWEETER
· Tweeter is attached to the baffle board by 3 external screws.
To detach it, unfasten those screws.
1.4 NETWORK ASSY
· The networks are attached to the baffle board by 4 internal
screws. To detach them,unfasten those screws.
T-ZZR OCT. 2007 Printed in Japan
background image
S-H615V
2
12
3
4
12
3
4
C
D
F
A
B
E
2. EXPLODED VIEWS AND PARTS LIST

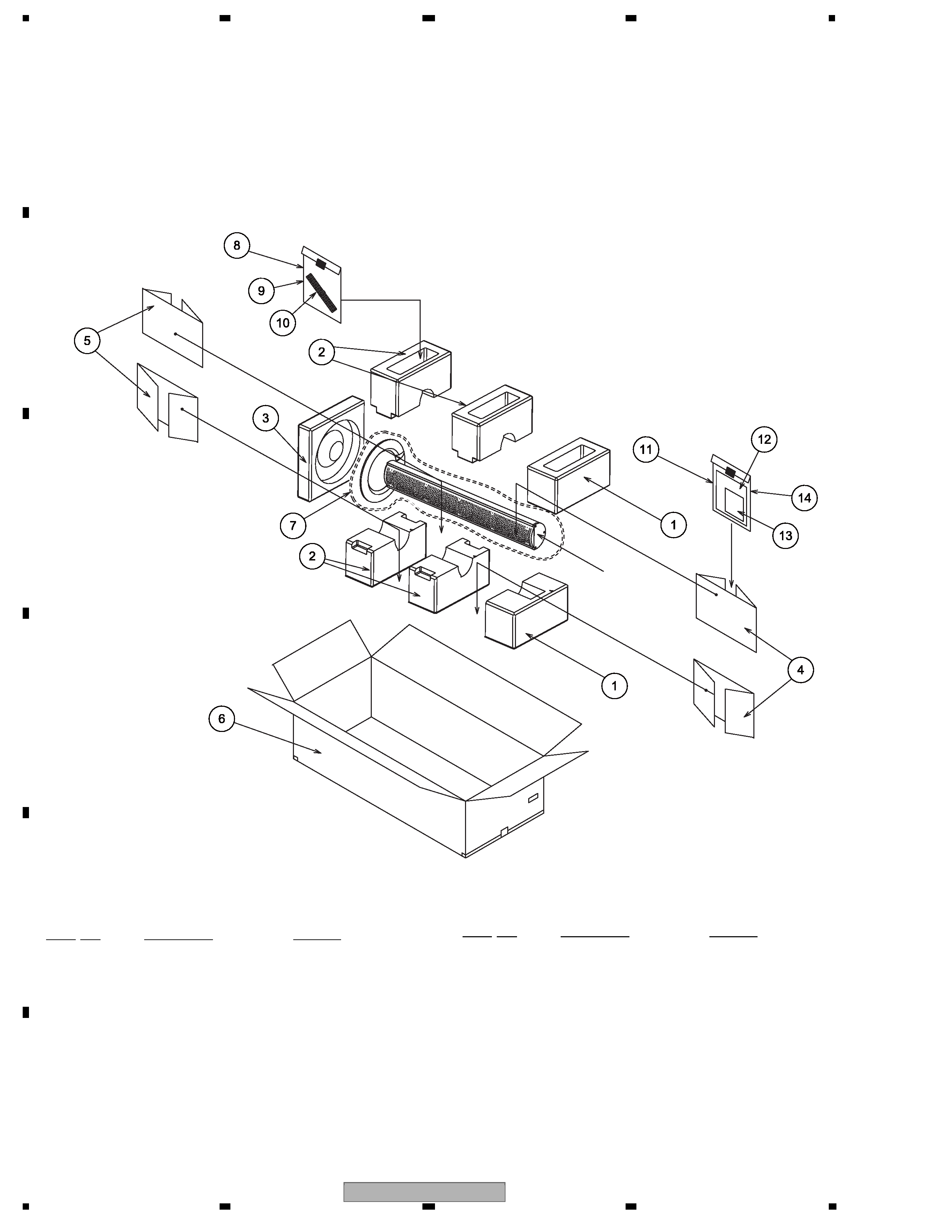

2.1 PACKING
PACKING Parts List
NOTES :
· Parts marked by " NSP " are generally unavailable because they are not in our Master Spare Parts List.
· The
> mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
SPEAKER
SYSTEM
Mark No.
Description
Part No.
1
Top Protector
SHA6068
2
Middle Protector
SHA6069
3
Bottom Protector
SHA6077
4
Protector
SHB6061
5
Protector
SHB6067
6
Packing Case
SHG6317
7
Polyethylene Bag
SHL6080
NSP 8
1..Speaker Wire Assy
SME3350
9
2..Polyethylene Bag
SHL1252
10
2..Speaker Wire
SDS1106
NSP 11
1..Operating Instructions Assy
SME6120
12
2..Operating Instructions
SRD6091
(Simp-Chinese)
NSP 13
2..Warranty Card
SRY6061
14
2..Polyethylene Bag
SHL1295
Mark No.
Description
Part No.
background image
S-H615V
3
56
7
8
56
7
8
C
D
F
A
B
E

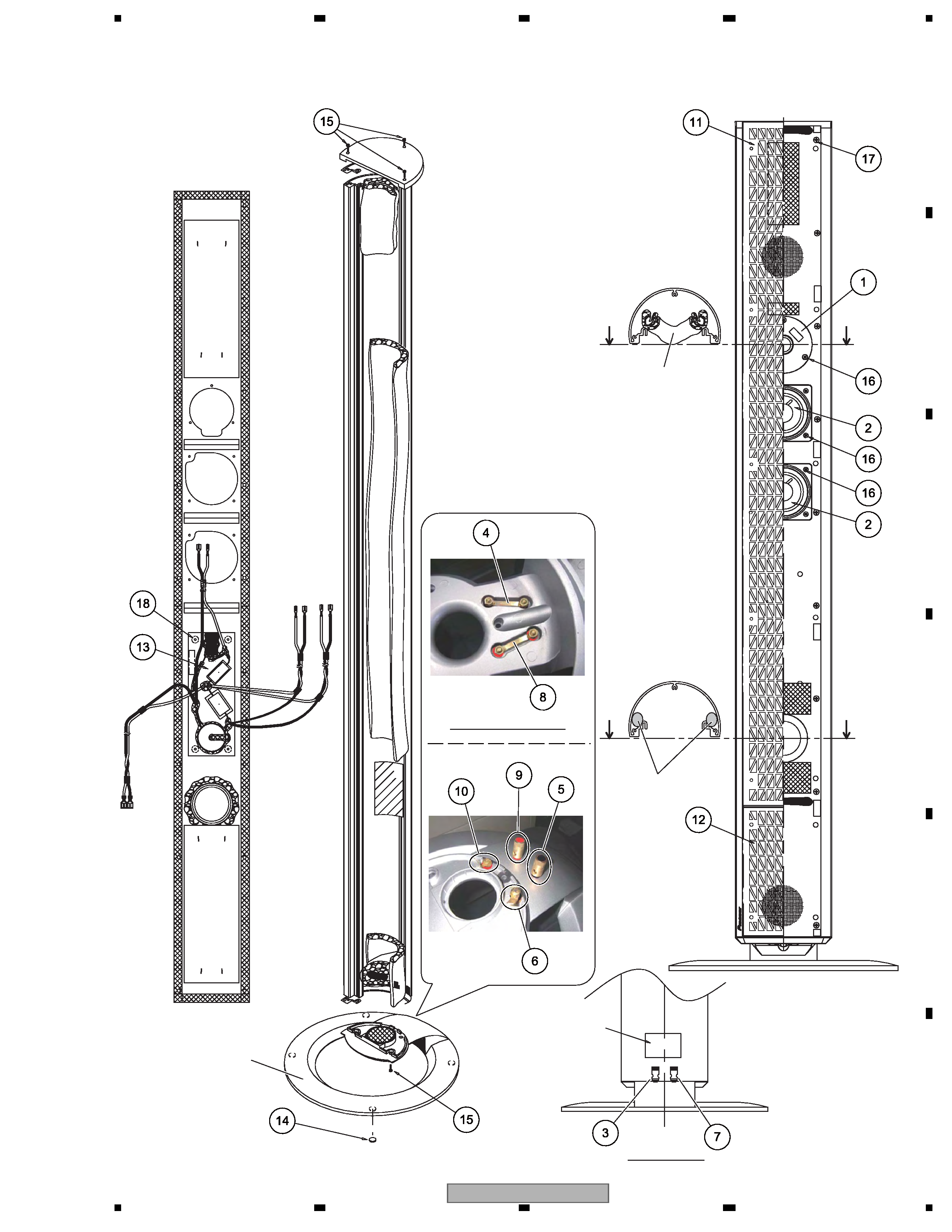

2.2 SPEAKER SYSTEM
Acoustic Absorbent
x1, (White)
Acoustic Absorbent
x2, (White)
Base
Base Bottom Side
Back Side
Model Label
x4
x4
x3
x4
x4
x3
x18
background image
S-H615V
4
12
3
4
12
3
4
C
D
F
A
B
E
SPEAKER SYSTEM Parts List

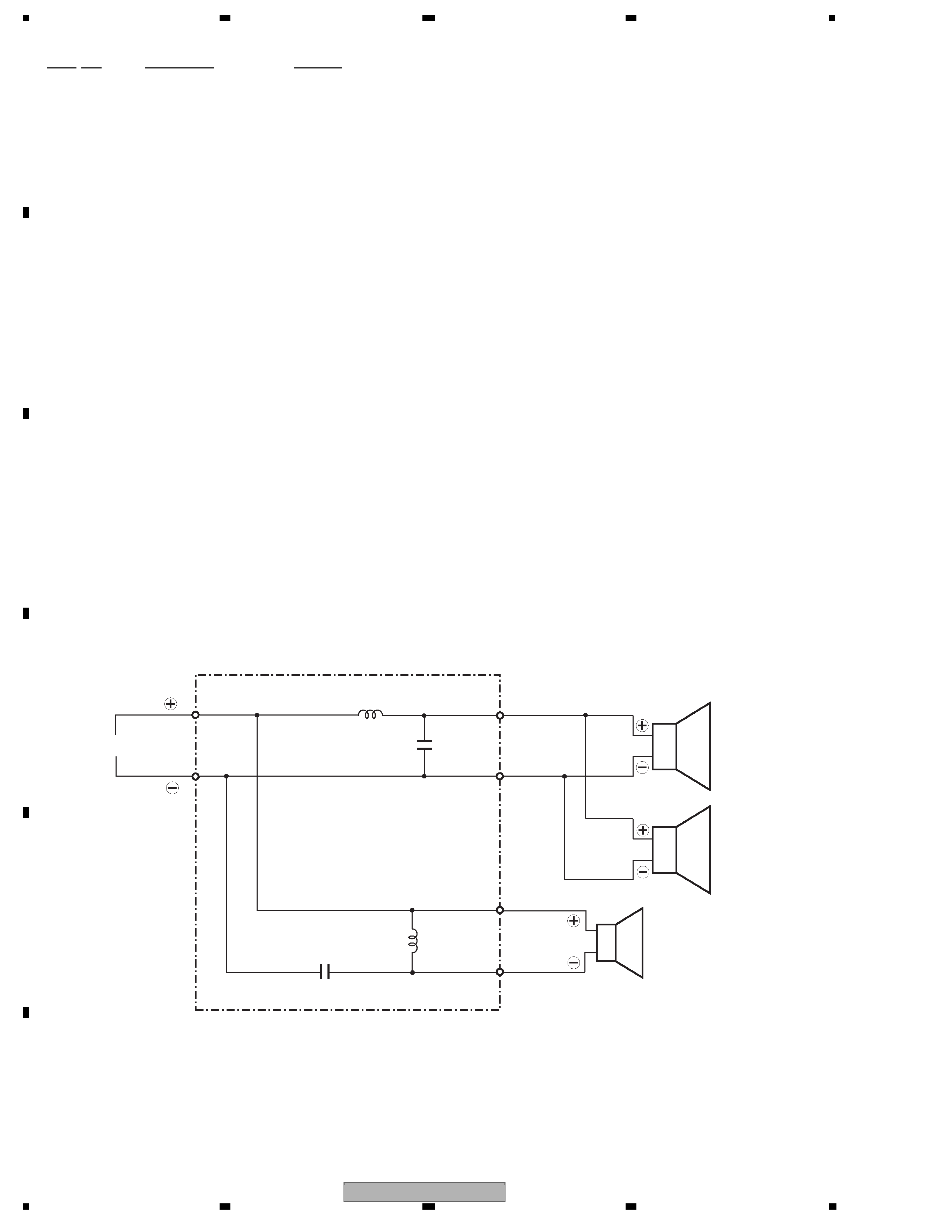

3. SCHEMATIC DIAGRAM
3.1 NETWORK ASSY
Mark No.
Description
Part No.
1
Speaker(Tweeter)
FADD55-53F
2
Speaker(Woofer)
K77ER65-52L
NSP 3
1..Input Terminal (Black)
FRMG-223
4
2..Short Bar
SLH6009
5
2..Input Terminal
SKX6019
(Black, for Base)
6
2..Input Terminal
SKX6021
(Black, for Cabinet)
NSP 7
1..Input Terminal (Red)
FRMG-224
8
2..Short Bar
SLH6009
9
2..Input Terminal
SKX6018
(Red, for Base)
10
2..Input Terminal
SKX6020
(Red, for Cabinet)
11
Grille Assy (Large)
FRMG-219
12
Grille Assy (Small)
FRMG-221
13
Network Assy
SWN6027
14
Non Skid Pad
SEB1257
15
Screw
SYZ40H200FCR
16
Screw
SBA1259
17
Screw
SBA6013
18
Screw
BYC40P200FTB
Woofer
INPUT
Black
Black
White
Black
White
Red
Network Assy (SWN6027)
1.0 mH
Tweeter
5.6 uF/250 V
3.3 uF/250 V
0.82 mH
Woofer
