background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2005
SPEAKER SYSTEM
PRT-133
PFS-SDC DEC. 2005 Printed in Belgium
S-H810V-W
XDCN
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
The grilles are attached to the cabinet by catches. Detach
them by pulling them toward you.
Woofers, Medium-Tweeter coaxial units and Super-Tweeter
are attached to the cabinet by 20 external screws. To
detach them, unfasten those screws.
The centre cosmetic flange is attached to the cabinet by 1
internal screw. To detach it, unfasten this screw.
The base is attached to the cabinet by 7 external screws.
To detach it, unfasten those screws.
The networks are attached to the cabinet by 8 internal
screws. To detach them, unfasten those screws.
Even though the suffix is different between /XDCN and /SXTW/EW5,
both models are completely same product.
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2005
SPEAKER SYSTEM
PRT-133
PFS-SDC DEC. 2005 Printed in Belgium
S-H810V-W
XDCN
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
The grilles are attached to the cabinet by catches. Detach
them by pulling them toward you.
Woofers, Medium-Tweeter coaxial units and Super-Tweeter
are attached to the cabinet by 20 external screws. To
detach them, unfasten those screws.
The centre cosmetic flange is attached to the cabinet by 1
internal screw. To detach it, unfasten this screw.
The base is attached to the cabinet by 7 external screws.
To detach it, unfasten those screws.
The networks are attached to the cabinet by 8 internal
screws. To detach them, unfasten those screws.
Even though the suffix is different between /XDCN and /SXTW/EW5,
both models are completely same product.

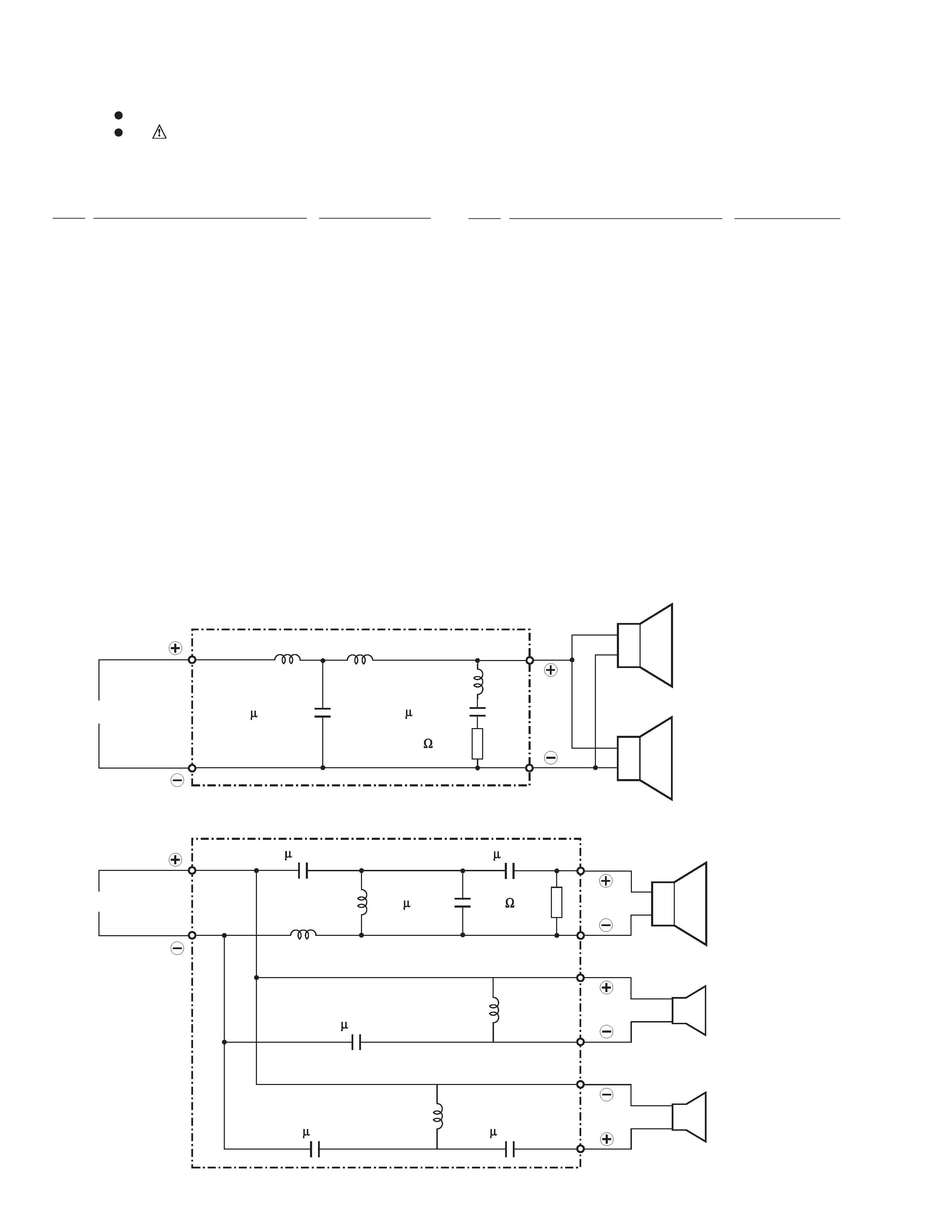

background image
S-H810V-W
2
NOTES :
Parts marked by
"NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
PARTS LIST
4 Foam cushions
4 Spikes + bases
Metal ring + screw
Instruction Manual
FREA-050
FREA-048
FREA-051
FRRD-208
Mark No. Description
Part No.
Mark No. Description
Part No.
Accessories
SCHEMATIC DIAGRAM
Centre flange
External port ring (zinc)
Internal port ring (plastic)
Red input terminal
Black input terminal
LF Network
HF Network
Wooden base
Screw for base, M6 x 50 mm
Metal leg
Metal foot
Super-Tweeter
Medium-Tweeter coaxial units
Woofer
Hex screw M4 x 25 mm
Hex screw M4 x 20 mm
Grille catcher
Grille with badge
Grille without badge
FRNH-016
FRNH-017
SNK2591
SKX6008
SKX6009
FRWN-175
FRWN-176
SMS6025
SBA1199
FRNH-021
FRNH-022
ART-60F
W13FR80-51FX
W12LR82-51L
SBA6007
SBA6014
MNNK001
FRMG-211
FRMG-212
Woofer
INPUT
Black LF
Red
LF
LF Network (FRWN-175)
3.3 mH
Medium
Tweeter
Super-Tweeter
1.8 mH
150 F/100WV
120 F/100WV
22 mH
6.8 /10W
Woofer
INPUT
Black HF
Red HF
HF Network (FRWN-176)
39 /10W
4.7 F/250V
22 F/250V
39 F/250V
1.5 mH
2 mH
0.27 mH
1.5 F/250V
0.27 F/250V
1 F/250V
0.017 mH
