ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2008
S-IW891
RRV3856
T-ZZR SEP. 2008 Printerd in Japan
IN-WALL SPEAKER
S-IW891
/XTW/UC
S-IW691 /XTW/UC
This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely,
you should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
This product contains certain electrical parts contain chemicals which are known to the State of California to cause cancer,
birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2008
S-IW891
RRV3856
T-ZZR SEP. 2008 Printerd in Japan
IN-WALL SPEAKER
S-IW891
/XTW/UC
S-IW691 /XTW/UC
This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely,
you should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
This product contains certain electrical parts contain chemicals which are known to the State of California to cause cancer,
birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65
background image
2
S-IW891
12
3
4
C
D
F
A
B
E
1
23
4
1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS
· The grille is inserted into the baffle. To detach it, insert a grille
removal tool into each of the 4 corner holes of the grille net and
push up carefully.
· The Speaker frame is attached to the wall by 6 external screws.
To detach it, unfasten those screws.
· The LPF network is attached to the speaker frame by 2 external
screws. To detach it, first disconnect the cord to speaker.
Next remove the baffle. Then unfasten those screws.
· The HPF network is attached to the CST chamber inside of
speaker frame by 3 screws.
To detach it, first detach CST and disconnect the cord to speaker
& LPF network.
· The CST speaker is attached to the baffle by 4 external screws.
To detach it, unfasten those screws. When reattaching it, face
Mid terminal (bigger) rightward.
· The woofers are attached to the baffle by 6 external screws.
To detach them, unfasten those screws. When re-attaching them,
face its terminal lower right.

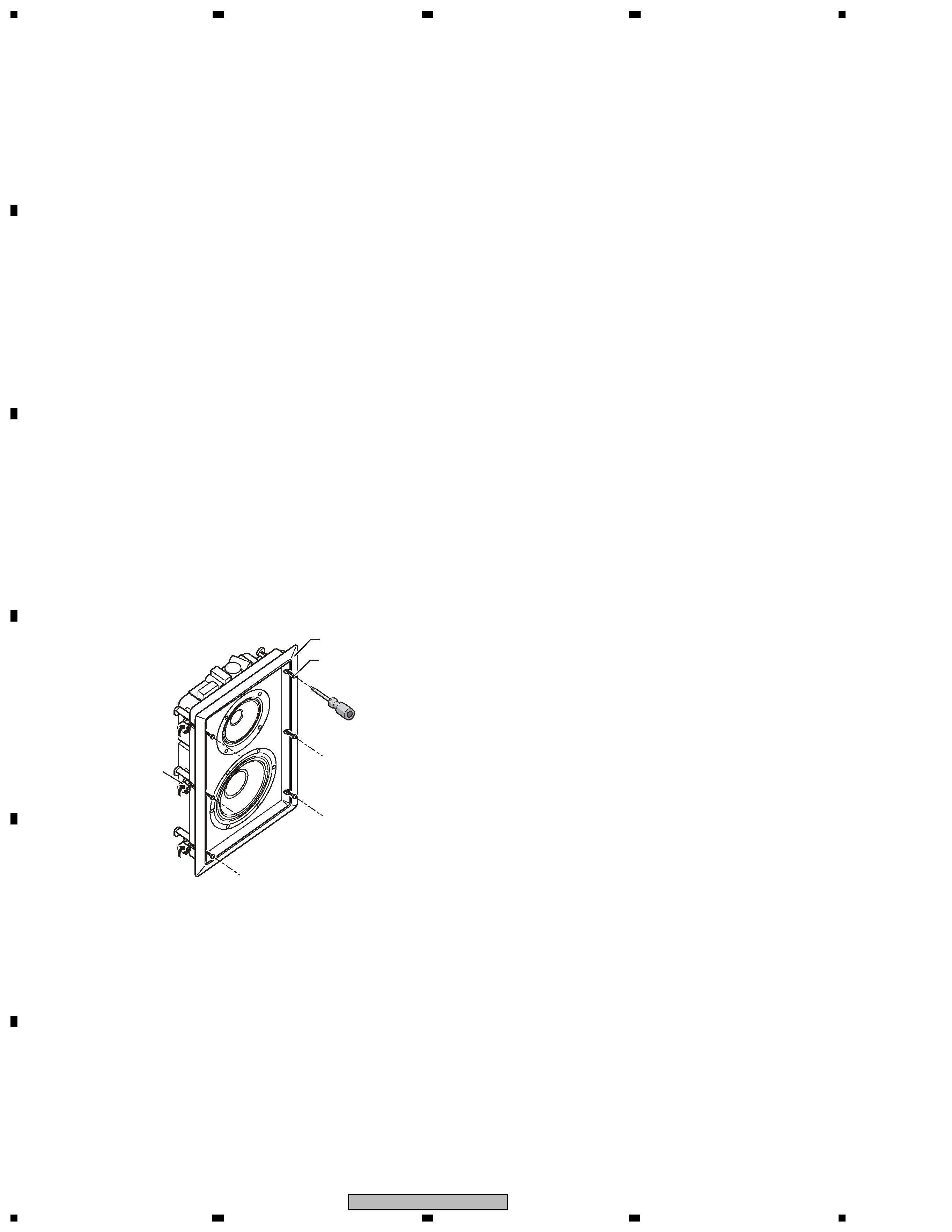

· Attach the speaker frame to the wall /ceiling, and
tighten the screws lightly (temporary attachment).
At this point the rotating clamp will rotate so that the rotating
clamp and frame are clamped on to the wall/ceiling.
Gently try pulling the speaker forward and check that all of the
rotating clamps have rotated outwards and are lightly clamping
to the wall/ceiling.
· Tighten the screws firmly using no more than the
maximum torque specified.
Allowable maximum torque: 1.0 N.m
Screw
Speaker frame
Rotating clamp
background image
3
S-IW891
5
67
8
5
6
7
8
C
D
F
A
B
E
2. EXPLODED VIEWS AND PARTS LIST
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:
2.1 PACKING
1
Top Protector
SHA2615
2
Bottom Protector
SHA2616
3
Carton Spacer
SHB1188
4
Packing Case
(for S-IW891)
SHG2836
(for S-IW691)
SHG2822
5
Polyethylene Bag SX
SHL1479
NSP 6
Label Serial
SRW1112
7
Protection Sheet
SHB1199
NSP 8
1..Accessories Set
SME3856
(for Adhesive Tape)
9
2..Adhesive Tape
SEH1134
10
2..Polyethylene Bag
SHL1246
NSP 11
1..Accessories Set
SME3858
(for Removal Tool)
12
2..Polyethylene Bag
SHL1246
13
2..Grille Removal Tool
SLH1096
14
Install Template
SRK1036
15
Washer
WC40FTB
NSP 16
1..Accessories Set (for Manual)
SME3892
17
2..Polyethylene Bag S2
SHL1295
18
2..Operating Instruction
SRD1385
(English, French)
NSP 19
2..Warranty Card
SRY1048
20
Paint Mask
SHC1870
21
Polyethylene Bag S7 (for Grille)
SHL1393
PACKING Parts List
Mark No.
Description
Part No.
There is no drawing
background image
4
S-IW891
12
3
4
C
D
F
A
B
E
1
23
4
2.2 CS ASSY
NSP 1
Baffle
(for S-IW891)
SMS1489
(for S-IW691)
SMS1487
NSP 2
Fastener (LPF NW) (for LPF)
SNA1516
NSP 3
Frame
SNK3038
4
Install Nail
SNK3039
NSP 5
Nail Stopper
SNK3040
NSP 6
Switch Cover
SNK3041
7
1..Grille Ass'y
SMG1912
NSP 8
2..Scrim
SER1367
NSP 9
2..Punching Net
SNC1213
10
Level Control Assy
SWL1003
11
Network Assy (LPF)
(for S-IW891)
SWN1809
(for S-IW691)
SWN1801
12
Network Assy (HPF)
(for S-IW891)
SWN1810
(for S-IW691)
SWN1802
13
Gasket (for CST)
FREC-105
NSP 14
Model Label
(for S-IW891)
SAN4064
(for S-IW691)
SAN4065
NSP 15
Packing (Baffle-Frame)
SEC2210
NSP 16
Packing (Baffle-Frame)
SEC2214
NSP 17
Packing (Baffle-Frame)
SEC2221
NSP 18
Gasket (for SW Cover)
SEC2225
NSP 19
Gasket (for Fastener)
SEC2227
20
Gasket (for LPF)
SEC2237
21
Packing
SEC2256
22
Packing (for LPF)
SEC2257
23
Packing (for LPF)
SEC2258
NSP 24
Felt
SED1204
NSP 25
Adhesive Tape (for MDF Bar)
SEH1139
26
Cushion
SEP1382
27
Back Cover (WF)
(for S-IW891)
SHC1881
(for S-IW691)
SHC1880
NSP 28
MDF Bar
SLX1178
NSP 29
Acoustic Absorbent
SMT1387
NSP 30
Acoustic Absorbent
SMV2261
NSP 31
Acoustic Absorbent
SMV2263
NSP 32
Acoustic Absorbent
SMV2264
NSP 33
Label Serial
SRW1117
34
Speaker (WF)
(for S-IW891)
B18IU60-53D
(for S-IW691)
W16FU90-52D
35
Speaker (CST)
W13NR40-52DX
36
Screw
BKC40P160FTC
37
Screw
BPZ40P060FTC
38
Screw (for Fastener-Chamber)
BPZ40P100FTB
39
Nut (for LPF)
NB40FTB
NSP 40
Screw (for Install)
SBA1293
41
Eye Bolt M6
SBA1308
42
Screw (for LPF-Fastener)
SBA1309
43
Hexagon Socket Screw
SBA6074
(for WF & CST)
NSP 44
Fung Nut M6
SBN1075
45
Washer (for LPF)
WS40FTB
CS Assy Parts List
Mark No.
Description
Part No.
Mark No.
Description
Part No.
There is no drawing
background image
5
S-IW891
5
67
8
5
6
7
8
C
D
F
A
B
E
3. SCHEMATIC DIAGRAM
POLY
SWITCH
120 F/100 WV
270 F/100 WV
INPUT
Network Assy (SWN1809)
3.4 mH
0.82 mH
20 mH
WOOFER
OUT
HPF
OUT
C1
C2
L1
L2
L3
P.SW:
P.SW has extreme positive resistance-temperature characteristics.
If an abnormal current flows to P.SW due to an excessive input or
unusual signal, P.SW heats up and the resistance rapidly increases.
With this function, the speakers are protected from excessive input
or unusual signal. The resistance value increases even when using
a soldering iron for repairing, so allow it to cool before using.
