PIONEER S-STP501/XTW/E Service Manual

Cover page of PIONEER S-STP501/XTW/E Service Manual

Service Manual for PIONEER S-STP501/XTW/E, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 6 pages
  • File size: 0.46 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2007
Center
Front
Surround
S-STP501
RRV3589
SPEAKER SYSTEM
S-STP501
XTW/E
1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS
T-ZZR MAY 2007 Printed in Japan
1.1 FRONT SPEAKER
The grille assy is attached to the cabinet by 6 external screws.
To detach it, unfasten those screws.
The speaker unit, together with the grille, is attached to the
cabinet by 4 external screws.
To detach it, first unfasten those screws. Next remove the cabi-
net. Then remove the cable.
When attaching it, face its terminal downward.
1.3 CENTER SPEAKER
The grille assy is attached to the cabinet by 8 external screws.
To detach it, unfasten those screws.
The speaker unit, together with the grille, is attached to the
cabinet by 4 external screws.
To detach it, first unfasten those screws. Next remove the cabi-
net. Then remove the cable.
1.2 SURROUND SPEAKER
The grille is attached to the cabinet by 6 external screws. To
detach it, unfasten those screws.
The speaker unit, together with the grille, is attached to the
cabinet by 4 external screws. To detach it, first unfasten those
screws. Next remove the cabinet. Then removethe cable. When
attaching it, face its terminal downward.
When attaching it, face its terminal toward the input terminal.
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2007
Center
Front
Surround
S-STP501
RRV3589
SPEAKER SYSTEM
S-STP501
XTW/E
1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS
T-ZZR MAY 2007 Printed in Japan
1.1 FRONT SPEAKER
The grille assy is attached to the cabinet by 6 external screws.
To detach it, unfasten those screws.
The speaker unit, together with the grille, is attached to the
cabinet by 4 external screws.
To detach it, first unfasten those screws. Next remove the cabi-
net. Then remove the cable.
When attaching it, face its terminal downward.
1.3 CENTER SPEAKER
The grille assy is attached to the cabinet by 8 external screws.
To detach it, unfasten those screws.
The speaker unit, together with the grille, is attached to the
cabinet by 4 external screws.
To detach it, first unfasten those screws. Next remove the cabi-
net. Then remove the cable.
1.2 SURROUND SPEAKER
The grille is attached to the cabinet by 6 external screws. To
detach it, unfasten those screws.
The speaker unit, together with the grille, is attached to the
cabinet by 4 external screws. To detach it, first unfasten those
screws. Next remove the cabinet. Then removethe cable. When
attaching it, face its terminal downward.
When attaching it, face its terminal toward the input terminal.
background image
S-STP501
2
12
3
4
12
3
4
C
D
F
A
B
E
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
PACKING Parts List
NOTES : · Parts marked by " NSP " are generally unavailable because they are not in our Master Spare Parts List.
· The
> mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
8
3
7
9
1
2
6
Mark No.
Description
Part No.
NSP 1
CS ASSY (Front Speaker)
SMW6248
NSP 1
CS ASSY (Surround Speaker) SMW6248
NSP 2
CS ASSY (Center Speaker)
SMW6249
4
Speaker Cable
SDS1173
5
Speaker Cable
SDS6037
6
Speaker Cable
SDS6038
7
Speaker Cable
SDS6039
8
Speaker Cable
SDS6040
9
Non Skid Pad
SEP1240
10
Polyethylene Bag S2
SHL1251
11
Polyethylene Bag S2
SHL1417
12
Polyethylene Bag S2
SHL1420
13
Operating Instructions
SRB6086
14
Protector
SHA2532
15
Packing Case
SHG6303
Mark No.
Description
Part No.
background image
S-STP501
3
5
678
56
7
8
C
D
F
A
B
E
2.2 SPEAKER SYSTEM (FRONT, SURROUND)
SPEAKER SYSTEM(FRONT,SURROUND) Parts List
Model Label
Caution Label
Absorbent
Plastic
Cap
Packing
Cabinet
4
3
5
2
(x 4)
1
6
Mark No.
Description
Part No.
1
1..Grille
SMG1867
NSP 2
2..Badge28
SAM1506
NSP 3
2..Grille Cloth
SAS1606
NSP 4
2..Baffle
SNK2924
5
Speaker
K77DU55-54D
6
Connecting Cord
SDD1345
7
Input Terminal
SKX6034
8
Screw (for Input Terminal)
BPZ35P080FTC
9
Screw (for Cabinet)
BPZ35P120FTB
background image
S-STP501
4
12
3
4
12
3
4
C
D
F
A
B
E

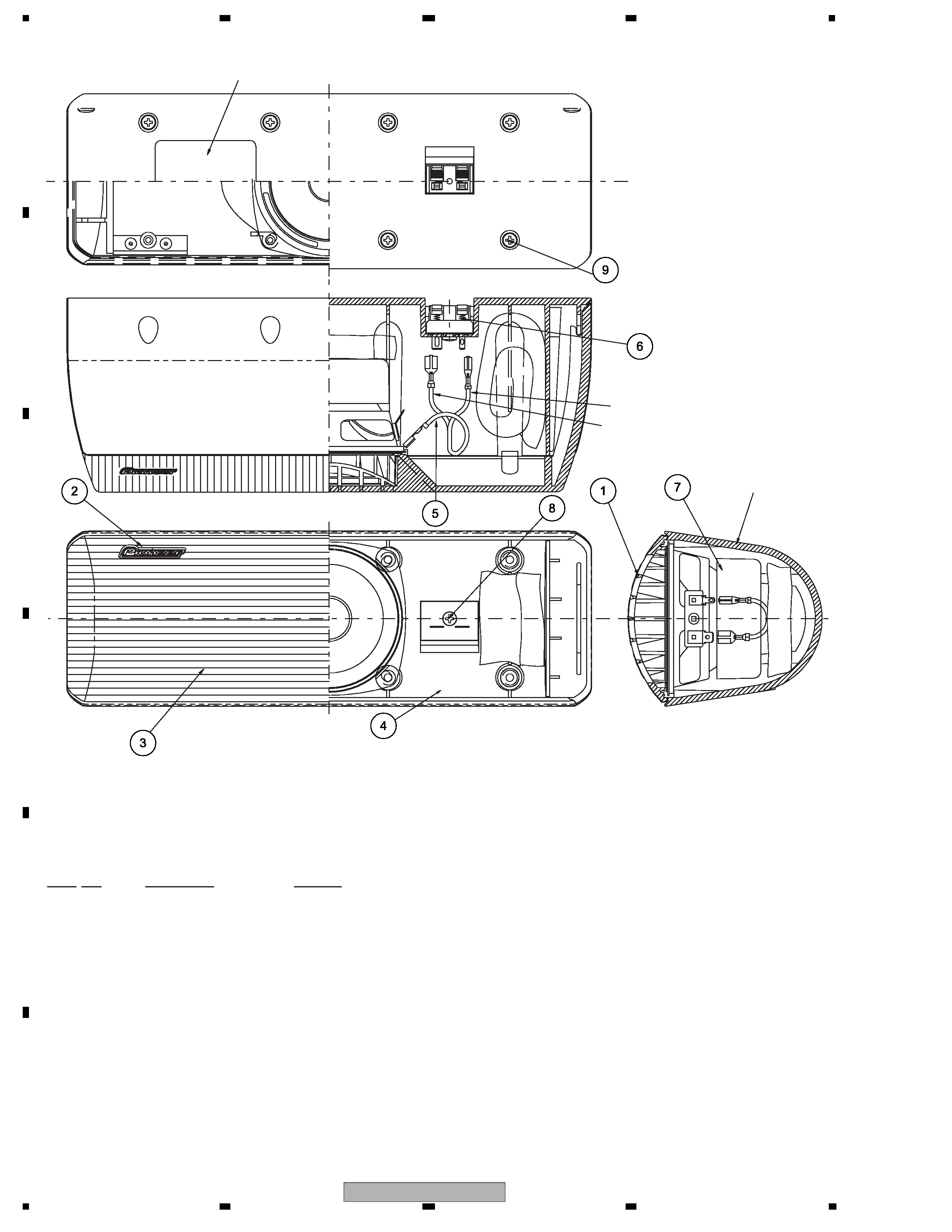

2.3 SPEAKER SYSTEM (CENTER)
SPEAKER SYSTEM(CENTER) Parts List
Cabinet
9
2
6
Model Label
11
(x8)
4
10
White
Red
Mark No.
Description
Part No.
1
1..Grille
SMG1868
NSP 2
2..Badge28
SAM1506
NSP 3
2..Grille Cloth
SAS1607
NSP 4
2..Baffle
SNK2926
5
Connecting Cord
SDD1345
6
Input Terminal
SKX6034
7
Speaker
K77DU55-54D
8
Screw (for Input Terminal)
BPZ35P080FTC
9
Screw (for Cabinet)
BPZ35P120FTB
background image
S-STP501
5
5
678
56
7
8
C
D
F
A
B
E
3. SCHEMATIC DIAGRAM
3.1 NETWORK ASSY
Connecting Cord (SDD1345)
INPUT
Speaker
White
Red
