ORDER NO.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880
PIONEER ELECTRONIC CORPORATION 1998
RRV2021
T-ZZW SEPT. 1998 Printed in Japan
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
SPEAKER SYSTEM
S-VS55V
XJI/E
S-VS55V XJI/NC
This product is component of system.
For the operating instructions, refer to the service manual RRV2035 for XR-VS55.
The cosmetic baffle assy is attached to the cabinet by 4 external
screws. To detach the cosmetic baffle assy, loosen these
screws. Then carefully disconnect the wires of the woofer and
mid-range mounted on the cosmetic baffle assy. To attach the
cosmetic baffle assy, replace it on the cabinet correctly and se-
cure with 4 screws.
The woofer is attached to the cosmetic baffle assy together with
the woofer ring assy by 4 internal screws. To detach the woofer
(woofer ring assy), loosen these screws. To attach the woofer
ring assy, fit the boss of the woofer ring to the hole of the cos-
metic baffle assy. To attach the woofer, face its terminal down-
ward, and fit the portion of the notch and hole of the frame to
the bank and hole of the cosmetic baffle assy. To attach the
woofer ring assy and woofer, replace it on the cosmetic baffle
assy correctly and secure with 4 screws.
The mid-range is attached to the cosmetic baffle assy by 2 in-
ternal screws. To detach the mid-range, loosen these screws.
Then carefully disconnect the wires of the tweeter mounted on
the cosmetic baffle assy by adhesion. To attach the mid-range,
replace it on the cosmetic baffle assy correctly and secure with
2 screws.
The network assy is attached to the back board of the cabinet
by press-fitting. To detach the network assy, strike the cord-
stopper of the network assy with a hammer from inside of the
cabinet. To attach the network assy, replace it on the back
board of the cabinet correctly by press-fitting.
When exchange the tweeter, do it with the cosmetic baffle
assy.
background image
ORDER NO.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880
PIONEER ELECTRONIC CORPORATION 1998
RRV2021
T-ZZW SEPT. 1998 Printed in Japan
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
SPEAKER SYSTEM
S-VS55V
XJI/E
S-VS55V XJI/NC
This product is component of system.
For the operating instructions, refer to the service manual RRV2035 for XR-VS55.
The cosmetic baffle assy is attached to the cabinet by 4 external
screws. To detach the cosmetic baffle assy, loosen these
screws. Then carefully disconnect the wires of the woofer and
mid-range mounted on the cosmetic baffle assy. To attach the
cosmetic baffle assy, replace it on the cabinet correctly and se-
cure with 4 screws.
The woofer is attached to the cosmetic baffle assy together with
the woofer ring assy by 4 internal screws. To detach the woofer
(woofer ring assy), loosen these screws. To attach the woofer
ring assy, fit the boss of the woofer ring to the hole of the cos-
metic baffle assy. To attach the woofer, face its terminal down-
ward, and fit the portion of the notch and hole of the frame to
the bank and hole of the cosmetic baffle assy. To attach the
woofer ring assy and woofer, replace it on the cosmetic baffle
assy correctly and secure with 4 screws.
The mid-range is attached to the cosmetic baffle assy by 2 in-
ternal screws. To detach the mid-range, loosen these screws.
Then carefully disconnect the wires of the tweeter mounted on
the cosmetic baffle assy by adhesion. To attach the mid-range,
replace it on the cosmetic baffle assy correctly and secure with
2 screws.
The network assy is attached to the back board of the cabinet
by press-fitting. To detach the network assy, strike the cord-
stopper of the network assy with a hammer from inside of the
cabinet. To attach the network assy, replace it on the back
board of the cabinet correctly by press-fitting.
When exchange the tweeter, do it with the cosmetic baffle
assy.
background image
2
NSP
Cabinet (L)
SMM1807
NSP
Cabinet (R)
SMM1840
Network ASSY
SWN1577
Gasket (for width)
SEC1359
Gasket (for height)
SEC1375
Non Skid Pad
SEC1374
NSP
Acoustic Absorbent
SMV1886
Cosmetic Baffle ASSY (L)
SXB1329
NSP
Duct
SNK2304
Cosmetic Baffle (L)
SNK2315
Diaphragm ASSY 20
SXE1080
NSP
Ceramic Tweeter
SCA1011
Gasket
SEC1387
NSP
Terminal (Red)
SKF1034
NSP
Terminal (Black)
SKF1035
NSP
Diaphragm
SVA1024
Cosmetic Baffle ASSY (R)
SXB1330
NSP
Duct
SNK2304
Cosmetic Baffle (R)
SNK2316
Diaphragm ASSY 20
SXE1080
NSP
Ceramic Tweeter
SCA1011
Gasket
SEC1387
NSP
Terminal (Red)
SKF1034
NSP
Terminal (Black)
SKF1035
NSP
Diaphragm
SVA1024
Mark No.
Description
Part No.
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:

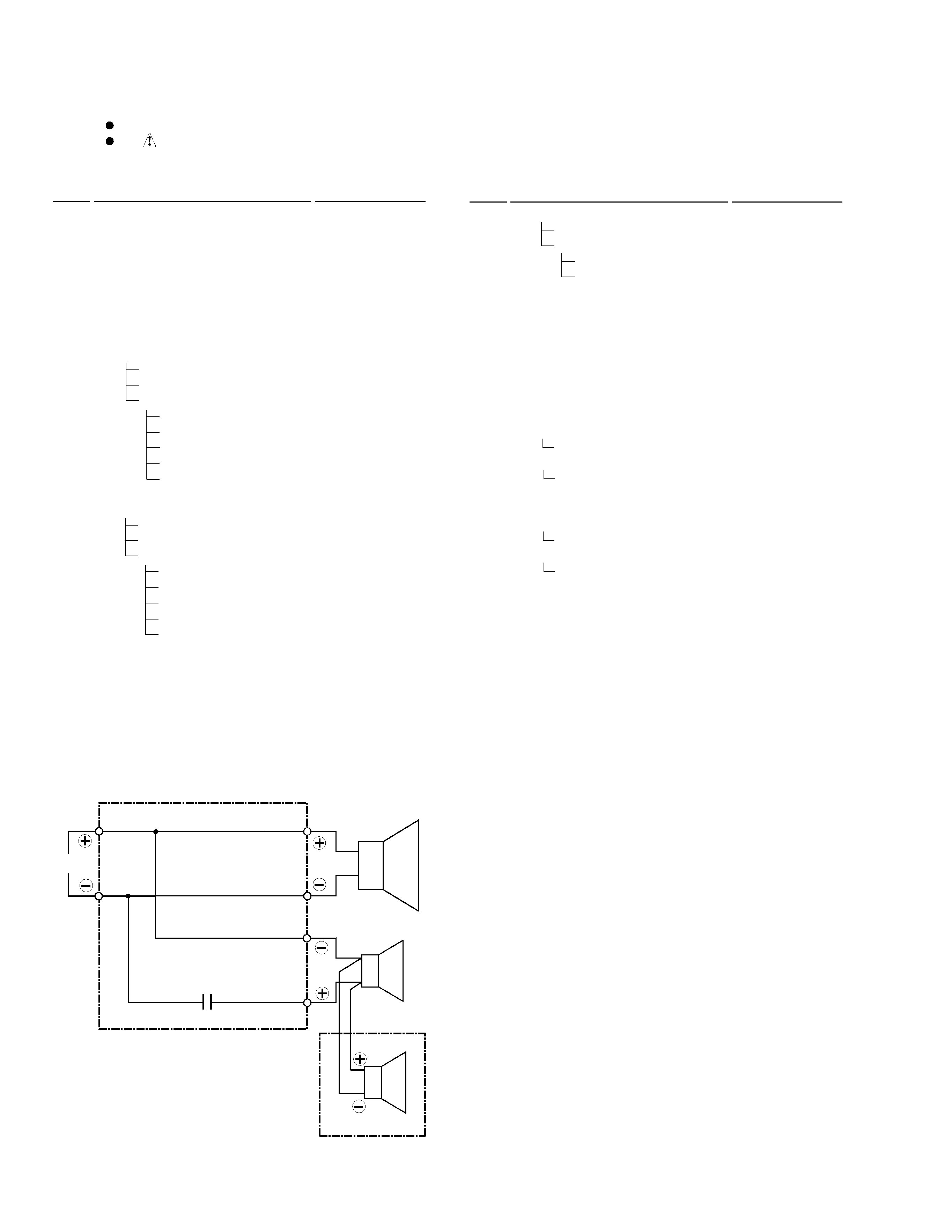

PARTS LIST
Mark No.
Description
Part No.
S-VS55V
SCHEMATIC DIAGRAM
For Packing
Network ASSY (SWN1577)
Woofer
2.2
µF
Midrange
I N
Tweeter
Diaphragm ASSY 20
(In Cosmetic Baffle ASSY)
Red
White
Black
Black
Black
Red
Red
Red
Woofer Ring ASSY
SXB1338
NSP
Woofer Ring
SNK2313
NSP
Cosmetic Ring ASSY
SXB1337
NSP
Punching Net
SNC1160
NSP
Cosmetic Ring
SNK2327
Speaker (Woofer)
A16LU83-52D
Speaker (Mid-range)
D66AP45-53D
Tapping Screw (for Cosmetic Baffle) SBA1161
Screw (for Tweeter)
BPZ30P100FMC
Screw (for Woofer and
BPZ40P160FMC
Woofer Ring ASSY)
( XJI/E Type )
NSP
Stamped Model Label (L)
SME2778
NSP
Model Label (L)
SAN2582
NSP
Stamped Model Label (R)
SME2779
NSP
Model Label (R)
SAN2583
( XJI/NC Type )
NSP
Stamped Model Label (L)
SME2848
NSP
Model Label (L)
SAN2601
NSP
Stamped Model Label (R)
SME2849
NSP
Model Label (R)
SAN2602
Top Protector
SHA2112
Bottom Protector
SHA2113
Protection Sheet S3
SHC1731
NSP
Polyethylene Bag S5
SHL1212
Packing Case ( XJI/E Type)
SHG2104
Packing Case ( XJI/NC Type)
SHG2149
