PIONEER S-VS70LV/XJI/NC Service Manual

Cover page of PIONEER S-VS70LV/XJI/NC Service Manual

Service Manual for PIONEER S-VS70LV/XJI/NC, downloadable as a PDF file.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 3 pages
  • File size: 0.42 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2001
RRV2538
T-ZZB SEPT. 2001 Printed in Japan
S-VS70LV
XJI/E
S-VS70LV XJI/NC
SPEAKER SYSTEM
This product is component of system.
System
Service Manual
Remarks
RRV2364
RRV2538
Component
X-VS70LV
XR-VS70SW
XR-VS70
S-VS70LV
STEREOCD/VCDCASSETTEDECKRECIEVER
SPEAKER SYSTEM
This service manual
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
The cosmetic baffle assy is attached to the cabinet by 4 external
hexagon socket screws. To detach the cosmetic baffle assy,
loosen these screws by the hexagon screw driver. Then care-
fully disconnect the wires of the woofer and mid-range
mounted on the cosmetic baffle assy. To attach the cosmetic
baffle assy, replace it on the cabinet correctly and secure with 4
screws.
The woofer is attached to the cosmetic baffle assy by 4 internal
screws. To detach it, unfasten these screws. When attaching it,
face its terminal downward.
The mid-range is attached to the cosmetic baffle assy by 2 in-
ternal screws. To detach the mid-range, loosen these screws.
Then carefully disconnect the wires of the tweeter mounted on
the cosmetic baffle assy by adhesion. To attach the mid-range,
replace it on the cosmetic baffle assy correctly and secure with
2 screws.
When exchange the tweeter, do it with the cosmetic baffle
assy.
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2001
RRV2538
T-ZZB SEPT. 2001 Printed in Japan
S-VS70LV
XJI/E
S-VS70LV XJI/NC
SPEAKER SYSTEM
This product is component of system.
System
Service Manual
Remarks
RRV2364
RRV2538
Component
X-VS70LV
XR-VS70SW
XR-VS70
S-VS70LV
STEREOCD/VCDCASSETTEDECKRECIEVER
SPEAKER SYSTEM
This service manual
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
The cosmetic baffle assy is attached to the cabinet by 4 external
hexagon socket screws. To detach the cosmetic baffle assy,
loosen these screws by the hexagon screw driver. Then care-
fully disconnect the wires of the woofer and mid-range
mounted on the cosmetic baffle assy. To attach the cosmetic
baffle assy, replace it on the cabinet correctly and secure with 4
screws.
The woofer is attached to the cosmetic baffle assy by 4 internal
screws. To detach it, unfasten these screws. When attaching it,
face its terminal downward.
The mid-range is attached to the cosmetic baffle assy by 2 in-
ternal screws. To detach the mid-range, loosen these screws.
Then carefully disconnect the wires of the tweeter mounted on
the cosmetic baffle assy by adhesion. To attach the mid-range,
replace it on the cosmetic baffle assy correctly and secure with
2 screws.
When exchange the tweeter, do it with the cosmetic baffle
assy.
background image
2
S-VS70LV
Mark No.
Description
Part No.
Network ASSY (SWN1617)
SCHEMATIC DIAGRAM
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:
PARTS LIST
Mark No.
Description
Part No.
NSP
Cabinet (L)
SMM1957
NSP
Cabinet (R)
SMM1958
Network ASSY
SWN1617
Gasket (for Baffle wide)
SEC1436
Gasket (for Baffle height)
SEC1437
Cosmetic Baffle ASSY (L)
SXB1382
NSP
Punching Net
SNC1175
NSP
Cosmetic Baffle (L)
SNK2408
Diaphragm ASSY 20
SXE1092
NSP
Ceramic Tweeter
SCA1017
NSP
Terminal (Red)
SKF1034
NSP
Terminal (Black)
SKF1035
Cosmetic Baffle ASSY (R)
SXB1383
NSP
Punching Net
SNC1175
NSP
Cosmetic Baffle (R)
SNK2409
Diaphragm ASSY 20
SXE1092
NSP
Ceramic Tweeter
SCA1017
NSP
Terminal (Red)
SKF1034
NSP
Terminal (Black)
SKF1035
Speaker (Woofer)
A14LU83-55D
Speaker (Mid-range)
E52AP39-60D
Screw (for Mid-range)
BPZ40P080FMC
Screw (for Woofer)
BPZ40P100FMC
Tapping Screw (for Cosmetic Baffle) SBA1162
( for XJI/E Type )
NSP
Stamped Model Label (L)
SME3246
NSP
Model Label (L)
SAN3029
NSP
Stamped Model Label (R)
SME3247
NSP
Model Label (R)
SAN3030
( for XJI/NC Type )
NSP
Stamped Model Label (L)
SME3248
NSP
Model Label (L)
SAN3031
NSP
Stamped Model Label (R)
SME3249
NSP
Model Label (R)
SAN3032
For Packing
Top Protector
SHA2198
Bottom Protector
SHA2199
Packing Case (XJI/E Type)
SHG2387
Packing Case (XJI/NC Type)
SHG2388
NSP
Polyethylene Bag S5
SHL1212
Woofer
2.2
µF
Midrange
I N
Tweeter
Diaphragm ASSY 20
(In Cosmetic Baffle ASSY)
Red
White
Black
Black
Black
Red
Red
Red
background image
3
S-VS70LV

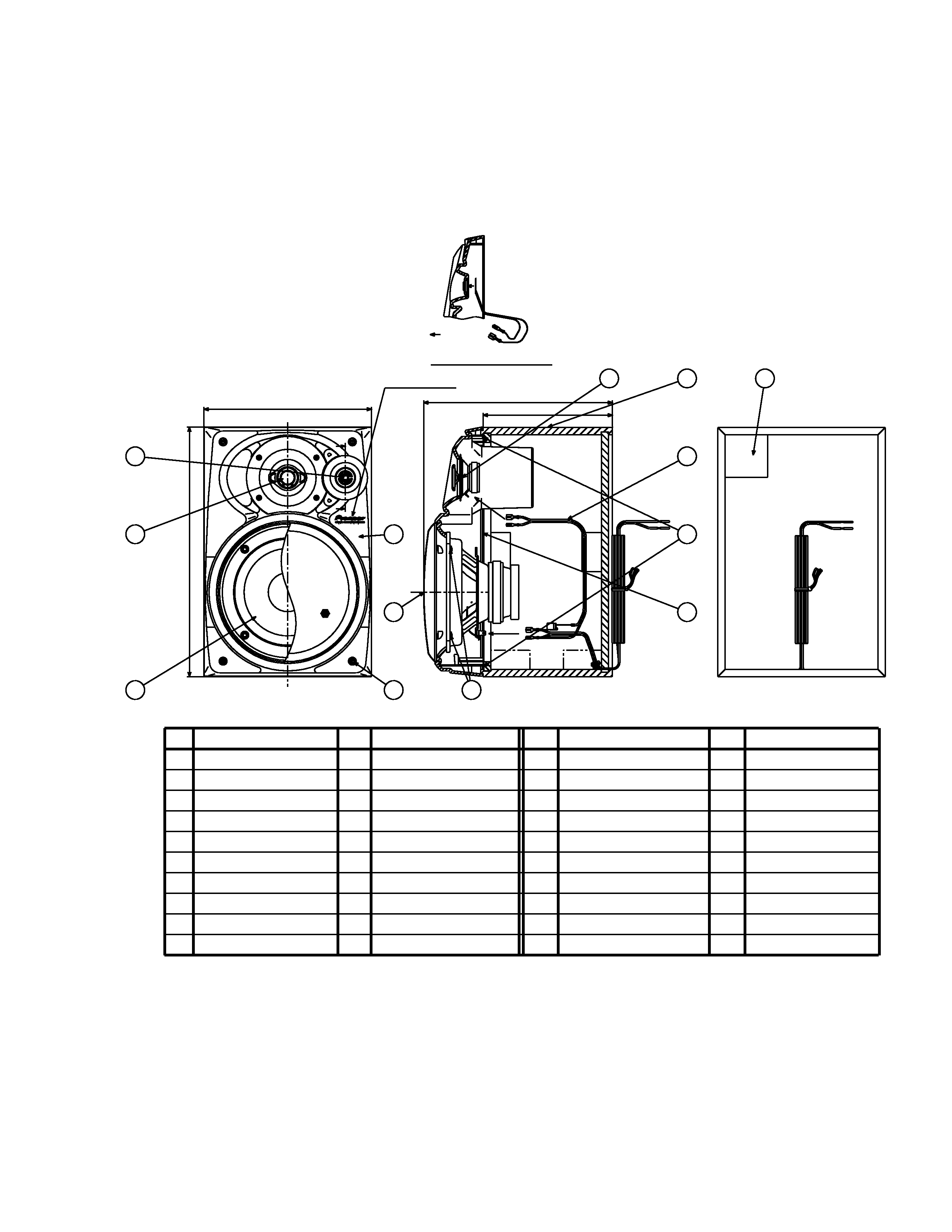

PRODUCT APPEARANCE
320.5
Silk printing
215
A'
A
13
12
10
9
8
7
6
5
4
3
2
1
Vertical
Horizontal
13
2
1
M4x55(Hexagon socket)
1
M4x10(Wf)
Network assy
Cabinet (R)
Speaker
Gasket
Gasket
Model label (R)
Woofer(A14)
Tweeter (PIEZO)
MID (E52)
Speaker
Speaker
Part name
Remarks
No.
Num.
Part name
Remarks
No.
Num.
Cosmetic baffle (R)
Punching net
Screw
1
2
3
4
5
6
1
1
4
1
1
2
M4x8(Mid)
Screw
1
4
1
7
11
Screw
2
10
12
8
9
11
166
(242)
TO MID
SECTION A-A'(S:1/1)
