background image
S-VSL6C
SPEAKER SYSTEM
OPERATING GUIDE
SISTEMA DE ALTAVOCES
GUÍA DE OPERACIÓN
Thank you for buying this Pioneer product. Please read
through these operating instructions so you will know how to
operate your model properly. After you have finished reading
the instructions, put them away in a safe place for future
reference.
Before you start
· The nominal impedance of this speaker system is 6
ohms. Connect the speaker system to an amplifier with a
load impedance ranging from 4 to 16 ohms (a model with
"4 ­ 16
" displayed on the speaker output terminals).
In order to prevent damage to the speaker system resulting
from input overload, please observe the following precau-
tions:
· Do not supply power to the speaker system in excess of
the maximum permissible input.
· When connecting or disconnecting anything in your AV
system, make sure the amplifier is switched off.
· When using a graphic equalizer to emphasize loud
sounds in the high-frequency range, do not use excessive
amplifier volume.
· Do not try to force a low-powered amplifier to produce
loud volumes of sound (the amplifier's harmonic
distortion will be increased, and you may damage the
speaker).
Caution: installation
· Do not place the speakers on an unstable surface. It
could present a hazard if it falls, as well as damaging the
equipment.
· Switch off and unplug your AV equipment and consult
the instructions when connecting up components. Make
sure you use the correct connecting cables.
· The speaker system grill cannot be removed. Do not try to
forcibly remove it since doing so may damage the grille.
Caution: in use
· Don't use the speakers to output distorted sound for long
periods of times. This can result in a fire hazard.
· Do not sit or stand on the speakers or let children play on
the speakers.
· Do not put large or heavy objects on top of the speakers.
background image
S-VSL6C
SPEAKER SYSTEM
OPERATING GUIDE
SISTEMA DE ALTAVOCES
GUÍA DE OPERACIÓN
Thank you for buying this Pioneer product. Please read
through these operating instructions so you will know how to
operate your model properly. After you have finished reading
the instructions, put them away in a safe place for future
reference.
Before you start
· The nominal impedance of this speaker system is 6
ohms. Connect the speaker system to an amplifier with a
load impedance ranging from 4 to 16 ohms (a model with
"4 ­ 16
" displayed on the speaker output terminals).
In order to prevent damage to the speaker system resulting
from input overload, please observe the following precau-
tions:
· Do not supply power to the speaker system in excess of
the maximum permissible input.
· When connecting or disconnecting anything in your AV
system, make sure the amplifier is switched off.
· When using a graphic equalizer to emphasize loud
sounds in the high-frequency range, do not use excessive
amplifier volume.
· Do not try to force a low-powered amplifier to produce
loud volumes of sound (the amplifier's harmonic
distortion will be increased, and you may damage the
speaker).
Caution: installation
· Do not place the speakers on an unstable surface. It
could present a hazard if it falls, as well as damaging the
equipment.
· Switch off and unplug your AV equipment and consult
the instructions when connecting up components. Make
sure you use the correct connecting cables.
· The speaker system grill cannot be removed. Do not try to
forcibly remove it since doing so may damage the grille.
Caution: in use
· Don't use the speakers to output distorted sound for long
periods of times. This can result in a fire hazard.
· Do not sit or stand on the speakers or let children play on
the speakers.
· Do not put large or heavy objects on top of the speakers.
background image

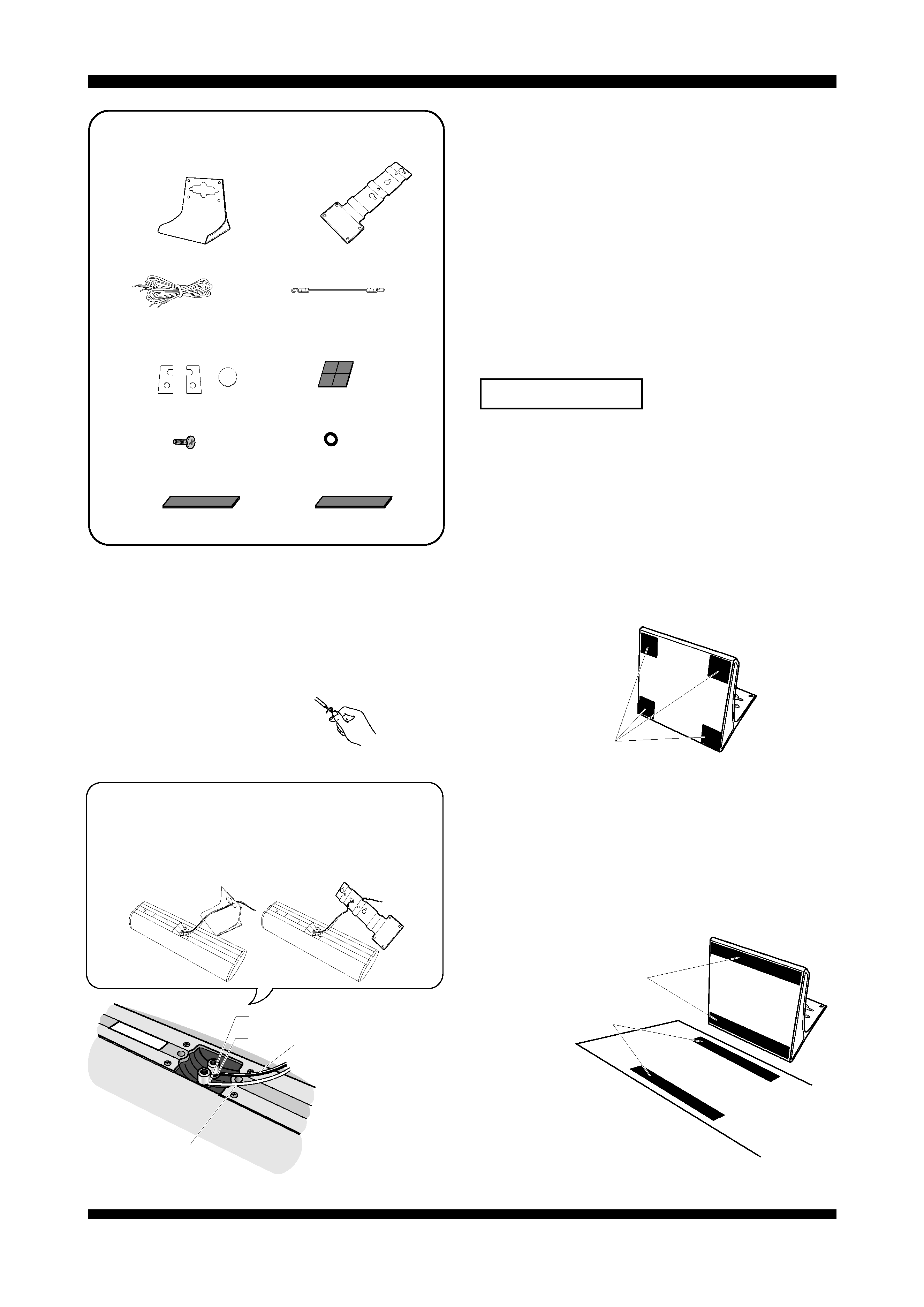

2
En
Confirm your Accessories
· Speaker stand
· Speaker wire
· Mounting
fixture
· Safety wire
· Speaker stand
mounting pads (3 types)
· Anti-slip pads
· Screws (7)
· Washers (2)
· Self-adhering fastener
(hook strip) x2
· Self-adhering fastener
(loop strip) x2
· Operating Instructions
Connecting Speakers to Amplifier
1Disconnect the power cord to the amplifier.
2Use the provided accessory speaker wire to connect the
input terminals on the rear panel of the speakers to the
amplifier's speaker output terminals.
Connect the
ª terminal to the wire with the white line;
connect the
· terminal to the solid-color wire.
1. Remove insulation at end of wire
and twist ends of wire strands.
2. Loosen the terminal screw and
insert the twisted wire into the
hole, then tighten the terminal screw securely.
When using the supplied speaker stand in a horizontal
installation, pass the speaker wire through the speaker stand
before connecting. When mounting vertically, pass the wires
through the mounting fixture before connecting.
<Horizontal Installation>
<Vertical Installation>
Black
·
Red
ª
Stereo wire with white
line; to amplifier's
speaker output
ª
terminal
Solid color wire; to
amplifier's
· speaker
output terminal.
I The speaker system's input terminals can also be
connected using a banana plug (only with
horizontal installation)
· After connecting the wires to their speaker system
terminals, pull gently on the wires and confirm that the
leads are fastened securely to their terminals. Insecure
connections will result in broken sound and noise.
· Do not allow bare wire ends to protrude excessively from
the terminals. If bare wires from the two leads touch each
other, excessive load will be placed on the amplifier, leading
to possible damage or malfunction.
· Be sure to connect the + and ­ leads to their correct
terminals. If the poles at one end of the wires are
connected mistakenly (+ to ­, ­ to +), proper stereo effect
will not be produced.
Rack Installation
Preparation
When mounting the speakers on a rack, use the supplied
accessory anti-slip pad or self-adhering fastener strips. The
anti-slip pads may not be fully effective on some surfaces; if
any danger of tipping or falling exists, do not attempt to
mount the speakers in that position.
· Using anti-slip pads
Peel off the protective paper backing from the four anti-slip
pads and apply to the four bottom corners of the speaker
stand.
Anti-slip pads
· Using self-adhering fastener
1. Peel off the protective paper backing from the two loop
strips and apply to the bottom surface of the speaker
stand.
2. Peel off the protective paper backing from the two hook
strips and apply to the surface of the installation surface
in alignment with the two loop strips on the speaker
stand.
Self-adhering fastener
(loop strip)
Self-adhering fastener
(hook strip)
Installation
surface
background image
3
En
Espa
ñ
ol
English
Assembly
Assembling the speaker stands requires use of a medium
Phillips screwdriver.
Connect speaker wires before assembly
Installation example 1 (Horizontal installation)
1. Affix mounting pads
2. Use two supplied screws to fasten the speaker stand to the
speaker
Installation example 2 (Vertical installation)
1. Affix mounting pad
2. Use 4 supplied screws to attach the accessory mounting
fixture to the speaker stand (Fig. a)
3. Use 2 supplied screws to attach the mounting fixture and
speaker stand to the speaker (Fig. b)
Pads
Pad
(Fig. a)
Pay special attention to choosing a safe installation
location when mounting the speaker vertically,
since it may tend to tip over.
(Fig. b)
Wall Mounting
· This speaker system is supplied with a mounting fixture for
wall mounting. When using the speaker system in a wall
installation, take full precautions to prevent the speaker
from falling.
· Check the wall location thoroughly to ascertain its ability to
support the weight of the speaker system.
· If you are unable to determine the structural strength of the
wall, consult a building professional before attempting to
install the speaker system on a wall.
· No screws or bolts are provided for use in a wall
installation. Supply your own threaded fasteners in
accordance with the wall or pillar's material structure and
strength.
· Install only on a vertically plumb surface. Installation at an
angle may result in dangerous loosening of the fixture,
causing a fall.
1. First decide on whether you will install the speakers
vertically or horizontally. Use commercially available
threaded fasteners (screws or bolts) to attach the accessory
mounting fixtures to the wall.
When installing the speakers horizontally, use two screws
installed at the two locations shown (left and right); when
using a vertical installation, place one screw in the center
as shown.
Wall hanging screws
(buy commercially)
Horizontal installation
Vertical installation
2. Loosen the screws slightly to allow the mounting fixture to
be removed.
3. Attach the speaker wire to the speaker.
4. Use one provided accessory screw and one washer to
attach the accessory safety wire to the speaker as shown.
5. Use two provided accessory screws to attach the speaker to
the mounting fixture.
6. Use a commercially available screw or bolt and one of the
provided accessory washers to connect the loose end of the
safety wire to the wall.
7. Align the speaker with the screws installed in step 1, and
fasten to the wall.
Installation Example 1 (Horizontal installation)
Safety wire
Commercially
purchased screw
Washers
Accessory screws
background image
4
En
Remark
· This speaker system is magnetically shielded. However,
depending on the installation location, color distortion may
occur if the speaker system is installed extremely close to the
screen off a television set. If this happens, turn off the
television, then turn it on again after 15 to 30 minutes. If the
problem persists, place the speaker system away from the
television set.
Frequency response and harmonic
distortion
100
80
60
100
1 k
50 kHz
40
20
0
10
10 k
0
°
22.5
°
45
°
Published by Pioneer Corporation.
Copyright © 2003 Pioneer Corporation.
All rights reserved.
Specifications
Type ........................................ Fully enclosed (acoustic suspension)
bookshelf speakers with magnetic-shielded design
Speaker composition ........................................................ 2-way type
Woofer ................................................................... 8.3 cm cone x 2
Tweeter .................................................................. 2 cm dome type
Nominal impedance ...................................................................... 8
Frequency response ..................................................... 90­40,000 Hz
Output level ............................................................... 86 dB / W (1 m)
Permissible input
Maximum power ................................................................... 130 W
Crossover frequency .............................................................. 4.0 kHz
External dimensions
Speaker only
Horizontal mount ........................ 350 (W) x 102 (H) x 80 (D) mm
With speaker stand
Horizontal mount ...................... 350 (W) x 126 (H) x 101 (D) mm
Vertical mount ........................... 102 (W) x 385 (H) x 103 (D) mm
Weight ............................................................................ 2.2 kg (each)
Accessories
Speaker stand .................................................................................... 1
Mounting fixtures .............................................................................. 1
Speaker wire (7.0 m) ......................................................................... 1
Safety wire .......................................................................................... 1
Anti-slip pads ............................................................................ 1 (set)
Speaker stand pads (3 types) ........................................................... 1
Screws ................................................................................................ 7
Washers .............................................................................................. 2
Self-adhering fastener (hook strip) ................................................. 2
Self-adhering fastener (loop strip) .................................................. 2
Operating Instructions ...................................................................... 1
· Appearance and specifications subject to change without
notice.
Quick Tip
A speaker system's sound characteristics will change
depending on the environment and conditions under
which the system is. A speaker system can be used
without problem immediately after purchase, but its
design performance characteristics will be best
demonstrated after breaking them in by playing music
for several dozen hours.
Installation Example 2 (Vertical installation)
Commercially
purchsed screw
Safety wire
Washers
Accessory screws
background image
5
Sp
Español
English
El triángulo equilátero con el símbolo de un relámpago
en su interior tiene por objeto alertar al usuario de la
presencia de "voltaje peligroso" sin aislar en el interior
del producto, el cual podría alcanzar la suficiente
magnitud como para constituir un riesgo de descarga
eléctrica para las personas.
PRECAUCIÓN:
PARA EVITAR EL RIESGO DE DESCARGA ELÉCTRICA,
NO RETIRAR LA TAPA (NI LA CUBIERTA POSTERIOR).
EL INTERIOR NO CONTIENE PIEZAS UTILIZABLES POR
EL USUARIO. TODA REPARACIÓN DEBERÁ SER
EFECTUADA POR PERSONAL TÉCNICO CUALIFICADO.
El triángulo equilátero con un signo de admiración en su
interior tiene por objeto alertar al usuario de la existencia
de importantes instrucciones de funcionamiento y
mantenimiento (asistencia) en el manual que acompaña
al aparato.
Le agradecemos la compra de este producto Pioneer. Lea con
atención este manual de instrucciones para aprender cómo
utilizar adecuadamente este modelo. una vez que haya leído
las instrucciones, guárdelas en un lugar seguro para poderlas
consultar en el futuro.
Antes de comenzar
· La impedancia nominal de este sistema de altavoces es
de 6 ohmios. Conecte el sistema de altavoces a un
amplificador que tenga una carga de impedancia de 4 a
16 ohmios (es decir, un modelo en el que observe "4 -16
" en los terminales de salida del altavoz).
Para evitar daños al sistema de altavoces que podrían
resultar de una sobrecarga en la entrada, le rogamos que
siga estas precauciones:
· No sobrealimente el sistema de altavoces más allá de la
capacidad máxima permisible.
· Al conectar o desconectar cualquier dispositivo de su AV,
asegúrese de que el amplificador está apagado.
· Al usar un ecualizador gráfico para enfatizar los sonidos
altos en la gama de frecuencias alta, no use un volumen
excesivo en el amplificador.
· No intente forzar un amplificador de baja potencia para
que produzca volúmenes altos de sonido (la distorsión
armónica del amplificador se incrementará y puede
dañar el altavoz).
Precaución: Instalación
· No coloque el altavoz sobre una superficie inestable.
Podría ser peligroso en caso de que cayera y podría
dañarse el equipo.
· Apague y desconecte su equipo AV y consulte las
instrucciones cuando conecte los componentes.
Asegúrese de que está utilizando los cables de conexión
correctos.
· La rejilla del sistema de altavoces no es extraíble. No
trate de extraer a la fuerza la rejilla porque podría
dañarla.
Precaución: en uso
· No use el altavoz para reproducir sonidos distorsionados
durante largos períodos de tiempo.Esto podría
representar un peligro de incendio.
· No se siente ni se ponga de pie, ni permita que los niños
jueguen con el altavoz.
· No coloque objetos grandes ni pesados encima del
altavoz.

Reviews

There are no reviews of this manual yet.

Related Products

Cover page of PIONEER CDXM50EW Service Manual

This manual has 81 pages, file size: 5.28 MB. It's available in languages: English.

Cover page of PIONEER SH-D505 Service Manual

This manual has 76 pages, file size: 5.3 MB. It's available in languages: English.

Cover page of PIONEER SE-E03-2-X1/XCNEW5 Owner's Manual

This manual has 4 pages, file size: 2.49 MB. It's available in languages: Portuguese, Swedish, Spanish, Dutch, German, Chinese Simplified, Italian.

Cover page of PIONEER PDP436PU Service Manual

This manual has 95 pages, file size: 2.72 MB. It's available in languages: English.

Cover page of PIONEER PRS-D4100F/XU/ES Service Manual

This manual has 35 pages, file size: 3.61 MB. It's available in languages: English.
