PIONEER VSX-D710S-G Service Manual

Cover page of PIONEER VSX-D710S-G Service Manual

Service Manual for PIONEER VSX-D710S-G, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 9 pages
  • File size: 0.26 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2001
RRV2447
T ­ ZZK APR. 2001 Printed in Japan
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model No.
Order No.
Remarks
VSX-D710S/MYXJIEW
RRV2432
¶ This service manual should be used together with the following manual(s):
AUDIO/VIDEO MULTI-CHANNEL RECEIVER
VSX-D710S
VSX-D710S-G
CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS ........ 2
2. SCHEMATIC DIAGRAM ....................................... 6
3. PCB CONNECTION DIAGRAM ............................ 9
Type
Model
Power Requirement
The voltage can be converted by
VSX-D710S
VSX-D710S-G
the following method.
SDPWXJI
­
AC110V/120-127V/220V/240V
With the voltage selector
BXJI
­
AC110V/120-127V/220V/240V
With the voltage selector
HLXJI
­
AC220-230V
AC240V,
:Alter the wiring of the Power-supply block at the primary winding of Power-transformer referring to the "Line Voltage Selection" described
in this Manual.
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2001
RRV2447
T ­ ZZK APR. 2001 Printed in Japan
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model No.
Order No.
Remarks
VSX-D710S/MYXJIEW
RRV2432
¶ This service manual should be used together with the following manual(s):
AUDIO/VIDEO MULTI-CHANNEL RECEIVER
VSX-D710S
VSX-D710S-G
CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS ........ 2
2. SCHEMATIC DIAGRAM ....................................... 6
3. PCB CONNECTION DIAGRAM ............................ 9
Type
Model
Power Requirement
The voltage can be converted by
VSX-D710S
VSX-D710S-G
the following method.
SDPWXJI
­
AC110V/120-127V/220V/240V
With the voltage selector
BXJI
­
AC110V/120-127V/220V/240V
With the voltage selector
HLXJI
­
AC220-230V
AC240V,
:Alter the wiring of the Power-supply block at the primary winding of Power-transformer referring to the "Line Voltage Selection" described
in this Manual.
background image
VSX-D710S, VSX-D710S-G
2
1. CONTRAST OF MISCELLANEOUS PARTS
CONTRAST TABLE
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to
mark on product are used for disassembly.
Reference Nos. indicate the pages and Nos. in the service manual for the base model.
NOTES:
When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).
561
473
R50
1R0
5621
560
47k
0.5
1
RD1/4PU
J
RD1/4PU
J
RN2H
K
RS1P
K
56 x 101
47 x 103
R50
1R0
561
473
5.62k
RN1/4PC
F
562 x 101
5621
VSX-D710S/SDPWXJI, VSX-D710S-G/BXJI, HLXJI and VSX-D710S/MYXJIEW are constructed the same except for
the following :
Part No.
Ref. No. Mark
Symbol and Description
VSX-D710S VSX-D710S VSX-D710S-G VSX-D710S-G
Remarks
/MYXJIEW
/SDPWXJI
/BXJI
/HLXJI
PCB ASSEMBLIES
P5- 1
D.D & INPUT ASSY
XWX3027
XWX3026
XWX3026
XWX3026
NSP
AMP&PS ASSY
XWK3020
XWK3021
XWK3021
XWK3020
P5- 2
AMP&PRIMARY ASSY
XWZ3377
XWZ3378
XWZ3378
XWZ3377
P5-12
NSP
TRANS 1ASSY
XWZ3390
Not used
Not used
XWZ3390
VOLTAGE SELECT SW ASSY
Not used
XWZ3393
XWZ3393
Not used
No. 1
NSP
COMPLEX ASSY
XWK3006
XWK3007
XWK3007
XWK3008
P6- 1
FRONT ASSY
XWZ3341
XWZ3342
XWZ3342
XWZ3343
PACKING SECTION
P3- 1
FM Wire Antenna
ADH7005
ADH7004
ADH7004
ADH7004
P3- 2
NSP
Warranty Card
ARY7022
Not used
Not used
Not used
P3- 5
Operating Instructions (English)
XRB3005
Not used
Not used
Not used
P3- 6
Operating Instructions (German)
XRC3031
Not used
Not used
Not used
P3- 7
Remote Control Unit
XXD3029
XXD3028
XXD3028
XXD3028
P3-13
Packing Case
XHD3151
XHD3156
XHD3158
XHD3157
P3-14
Operating Instructions
XRC3032
Not used
Not used
Not used
(Dutch/Spanish/Portuguese)
P3-15
Operating Instructions
XRC3033
Not used
Not used
Not used
(French/Italian/Swedish)
Operating Instructions
Not used
XRE3038
XRE3038
XRE3038
(English/Chinese/Spanish)
Caution 220V Label
Not used
ARR1003
ARR1003
Not used
AC Plug Adapter
Not used
Not used
AKX7011
Not used
Accessories
EXTERIOR SECTION
P5-11
FM/AM TUNER Unit
AXX7048
AXX7047
AXX7047
AXX7047
P5-15
Power Transformer (AC220-230V)
XTS3046
Not used
Not used
XTS3046
P5-15
Power Transformer
Not used
XTS3048
XTS3048
Not used
(AC110V/120-127V/220V/240V)
P5-16
Fuse (FU1 : T2.5A/250V)
REK1026
Not used
Not used
REK1026
P5-16
Fuse (FU1 : T6.3A/250V)
Not used
REK1030
REK1030
Not used
P5-19
Strain Relief/Cord Bush
CM-22B
AEC7317
AEC7317
CM-22B
P5-20
AC Power Cord
VDG1077
XDG3010
XDG3010
VDG1077
P5-37
Insulator (Front side)
PNW2766
Not used
PNW2766
PNW2766
P5-37
Insulator/Foot Assy (Rear side)
PNW2766
REC1263
REC1263
REC1263
background image
VSX-D710S, VSX-D710S-G
3
FRONT PANEL
5
5
Rear Panel
AMP&PRIMARY
ASSY
3
2
Screw BBZ30P080FMC
1
4
Part No.
Ref. No. Mark
Symbol and Description
VSX-D710S VSX-D710S VSX-D710S-G VSX-D710S-G
Remarks
/MYXJIEW
/SDPWXJI
/BXJI
/HLXJI
P5-39
Rear Panel
XNC3072
XNC3085
XNC3085
XNC3086
P5-40
Bonnet Case
XZN3112
XZN3111
XZN3114
XZN3114
Screw (Both sides of Bonnet Case)
FBT40P080FZKFBT40P080FZKFBT40P080FNI FBT40P080FNI
Fuse (FU2, FU3 : T2.5A/250V)
Not used
REK1026
REK1026
Not used
No. 2
NSP
Fuse Card
Not used
XAX3218
XAX3218
Not used
No. 3
Voltage Selector
Not used
AKX-507
AKX-507
Not used
No. 4
Rubber Sheet
Not used
AEB1111
Not used
Not used
No. 5
FRONT PANEL SECTION
P6- 9
Name Plate
PAM1776
PAM1776
PAM1779
PAM1779
P6-11
Select Knob
XAB3008
XAB3008
XAB3009
XAB3009
P6-12
Volume Knob
XAB3011
XAB3011
XAB3012
XAB3012
P6-13
Power Button
XAD3062
XAD3062
XAD3063
XAD3063
P6-14
Power Button M
AAD7442
AAD7442
AAD7491
AAD7491
P6-15
Jog Button
XAD3065
XAD3065
XAD3066
XAD3066
P6-16
Door Button
XAD3070
XAD3070
XAD3071
XAD3071
P6-17
RDS Button
XAD3072
Not used
Not used
Not used
P6-18
Display Panel
XAK3171
XAK3172
XAK3186
XAK3186
P6-19
Button Cover
XAK3178
XAK3178
XAK3179
XAK3179
P6-20
Cushion
XED3001
XED3001
XED3002
XED3002
P6-21
Front Panel
XMB3036
XMB3039
XMB3040
XMB3040
P6-26
NSP
Door Assy
XXG3068
XXG3068
XXG3075
XXG3075
P6-27
Door
XAK3173
XAK3173
XAK3174
XAK3174
P6-28
Door Cover
XAK3175
XAK3175
XAK3176
XAK3176
P6-29
Screw
XBA3001
XBA3001
XBA3002
XBA3002
Notes :
÷The numbers in the remarks column correspond to the numbers on the " EXPLODED VIEWS ".
÷ For PCB ASSEMBLIES, Refer to "CONTRAST OF PCB ASSEMBLIES", "PCB PARTS LIST", "2. SCHEMATIC DIAGRAM"
and "3. PCB CONNECTION DIAGRAM".

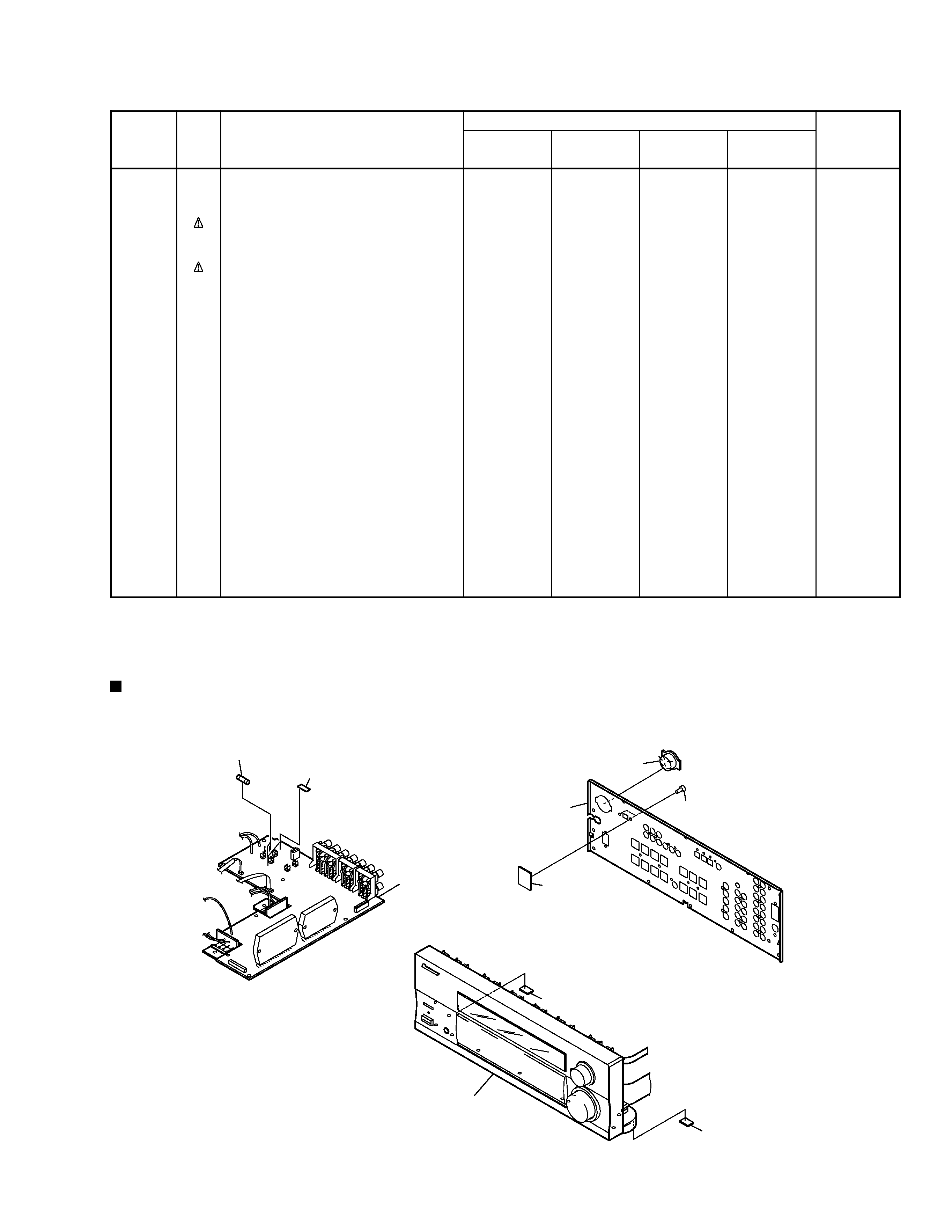

EXPLODED VIEWS
÷ EXTERIOR SECTION
background image
VSX-D710S, VSX-D710S-G
4
CONTRAST OF PCB ASSEMBLIES
F
A
F
B
D.D & INPUT ASSY
XWX3026 and XWX3027 are constructed the same except for the following :
Mark
Symbol and Description
Part No.
Remarks
XWX3027
XWX3026
Q102
2SC2412K
Not used
Q103
Not used
DTA143EK
Q104
Not used
DTC124EK
L111, L112
QTL1013
Not used
C158
CKSRYB103K50
Not used
C211, C212
CCSRCH220J50
Not used
R119
RS1/16S0R0J
Not used
R149
RS1/16S101J
Not used
R150
RS1/16S221J
Not used
R151
RS1/16S472J
Not used
R215, R216
Not used
RS1/10S0R0J
AMP&PRIMARY ASSY
XWZ3378 and XWZ3377 are constructed the same except for the following :
Mark
Symbol and Description
Part No.
Remarks
XWZ3377
XWZ3378
T51
STANDBY TRANSFORMER
ATT7037
ATT7038
C613, C614, C637, C663, C664
CCCSL101J50
Not used
C701, C702
(4700
µF/63V)
ACH7134
Not used
C701, C702
(4700
µF/71V)
Not used
ACH7137
C757­C759, C765­C768
CQMBA472J50
Not used
C769, C770
CKPUYB102K50
Not used
R703, R704
RD1/4PU683J
RD1/4PU623J
R707, R708
RD1/4PU154J
RD1/4PU184J
H53­H56
FUSE CLIP
Not used
AKR7001
J11
JUMPER WIRED
Not used
DB215NB0
J12
JUMPER WIRED
Not used
DB815NB0
J13
JUMPER WIRED
Not used
DB015NB0
background image
VSX-D710S, VSX-D710S-G
5
FRONT ASSY
XWZ3342, XWZ3343 and XWZ3341 are constructed the same except for the following :
Mark
Symbol and Description
Part No.
Remarks
XWZ3341
XWZ3342
XWZ3343
IC481
BU1923F
Not used
Not used
Q481
2SA1037K
Not used
Not used
Q482
DTC143EK
Not used
Not used
Q483
2SC3326
Not used
Not used
L481
LFEA2R2J
Not used
Not used
S466­S468
ASG1051
Not used
Not used
C481, C482
CKSQYB102K50
Not used
Not used
C483
CEAT101M10
Not used
Not used
C484
CEAT2R2M50
Not used
Not used
C485
CKSQYB472K50
Not used
Not used
C486
CEATR10M50
Not used
Not used
C488
CCSRCH561J50
Not used
Not used
C489, C490
CCSRCH270J50
Not used
Not used
R429
RS1/16S332J
RS1/16S751J
RS1/16S182J
R481
RS1/16S473J
Not used
Not used
R482
RS1/16S222J
Not used
Not used
R483
RS1/16S333J
Not used
Not used
R484
RS1/16S104J
Not used
Not used
R485­R487
RS1/16S102J
Not used
Not used
R1501, R1502
Not used
RS1/16S0R0J
RS1/16S0R0J
X481 CRYSTAL RESONATOR (4.332MHz)
ASS7004
Not used
Not used
F
K
PCB PARTS LIST
Mark No.
Description
Part No.
VOLTAGE SELECT SW ASSY
SWITCHES
S51
VOLTAGE SELECTOR
AKX1033
F
R

Reviews

There are no reviews of this manual yet.

Related Products

Cover page of PIONEER KEH-P4750/XIN/ES Service Manual

This manual has 50 pages, file size: 3.31 MB. It's available in languages: English.

Cover page of PIONEER A51 Service Manual

This manual has 24 pages, file size: 6.2 MB. It's available in languages: English.

Cover page of PIONEER GM-3100T/UC Owner's Manual

This manual has 8 pages, file size: 0.68 MB. It's available in languages: French, English.

Cover page of PIONEER A-307R/SDXJ Service Manual

This manual has 33 pages, file size: 2.13 MB. It's available in languages: English.

Cover page of PIONEER DEH-P9050 Service Manual

This manual has 89 pages, file size: 7.71 MB. It's available in languages: English.
