ORDER NO.

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

PIONEER ELECTRONIC CORPORATION 1998

RRV2061

T ZZW NOV. 1998 Printed in Japan

CONTENTS

1. CONTRAST OF MISCELLANEOUS PARTS ........ 2

2. SCHEMATIC DIAGRAM ....................................... 5

¶ Refer to the service manual RRV1780 for VSX-D736S/HLXJI.

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model

VSX-D737S

Type

Power Requirement

Remarks

LBXJI

AUDIO/VIDEO STEREO RECEIVER

VSX-D737S

AC110V

ORDER NO.

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

PIONEER ELECTRONIC CORPORATION 1998

RRV2061

T ZZW NOV. 1998 Printed in Japan

CONTENTS

1. CONTRAST OF MISCELLANEOUS PARTS ........ 2

2. SCHEMATIC DIAGRAM ....................................... 5

¶ Refer to the service manual RRV1780 for VSX-D736S/HLXJI.

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model

VSX-D737S

Type

Power Requirement

Remarks

LBXJI

AUDIO/VIDEO STEREO RECEIVER

VSX-D737S

AC110V

VSX-D737S

ASSEMBLIES

NSP

COMPLEX Assy

AWK7361

AWK7489

P6- 7

NSP

PRIMARY Assy

AWZ8630

AWX7254

P6-12

DOLBY DIGITAL ASSY

AWX7041

AWX7045

PACKING SECTION

P3-1

NSP

Alkaline Dry Cell Battery (LR6, AA)

AEX1007

VEM1012

P3-3

Operating Instructions (English)

ARB7099

Not used

P3-4

Sub Instruction Manual

ARH7015

ARH7040

(Remote Control Unit) (English)

P3-7

Sub Instruction Manual (AC-3) (English)

ARH7016

ARH7041

P3-8

Operating Instructions (Chinese)

ARC7145

Not used

Operating Instructions (English/ Chinese)

Not used

ARE7187

P3-9

Remote Control Unit (CU-VSX116)

AXD7106

Not used

P3-9

Remote Control Unit (CU-VSX142)

Not used

AXD7190

P3-12

Packing Case

AHD7404

AHD7655

Matching Adapter

Not used

AKX7008

P6-18

AC Power Cord

PDG1058

ADG7005

Polyethylene Bag

Not used

Z21-038

(for Operating Instructions and Antenna)

EXTERIOR SECTION

P6-15

Power Transformer (AC240V)

ATS7170

Not used

P6-15

Power Transformer (AC110V)

Not used

ATS7226

P6-17

Fuse (FU1:T3.15A)

AEK1059

Not used

Fuse (FU1:T5.0A)

Not used

REK1029

1. CONTRAST OF MISCELLANEOUS PARTS

Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.

The

mark found on some component parts indicates the importance of the safety factor of the part.

Therefore, when replacing, be sure to use parts of identical designation.

Screws adjacent to

mark on product are used for disassembly.

Reference Nos. indicate the pages and Nos. in the service manual for the base model.

NOTES:

When ordering resistors, first convert resistance values into code form as shown in the following examples.

Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,

and K=10%).

Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).

561

473

R50

1R0

5621

560

47k

0.5

RD1/4PU

RN2H

RS1P

56 x 101

47 x 103

R50

1R0

561

473

5.62k

RN1/4PC

562 x 101

5621

CONTRAST TABLE

VSX-D737S/LBXJI and VSX-D736S/HLXJI are constructed the same except for the following :

Part No.

VSX-D736S

/HLXJI

Ref. No.

Symbol and Description

Remarks

Mark

VSX-D737S

/LBXJI

VSX-D737S

Notes:

÷ For ASSEMBLIES, refer to "CONTRAST OF PCB ASSEMBLIES" and "2. SCHEMATIC DIAGRAM".

P6-21

Leg Assy

AMR2633

PNW2766

P6-23

Rear Panel

ANC7535

ANC7729

P6-24

Bonnet Case

ANE7154

ANE7205

P6-35

Cord Stopper

CM-22B

CM-22

P6-38

Round Knob L

AAB7124

AAB7107

P6-39

Round Knob S

AAB7120

AAB7171

P6-40

Jog Knob

AAB7121

AAB7175

P6-41

Power Button

AAD7373

AAD7480

P6-64

Top Cover

AME1086

AME7371

FRONT PANEL SECTION

P7-9

Door Hinge L

AMR7171

AMR7213

P7-10

Door Hinge R

AMR7172

AMR7214

P7-15

FL Panel

AAK7365

AAK7296

P7-16

FL Filter

AAK7294

AAK7297

P7-17

PVC Panel

AAK7357

AAK7576

P7-18

Panel Base

AMB7428

AMB7520

P7-19

Front Panel

ANB7085

ANB7148

P7-20

Door Panel

ANB7088

ANB7074

P7-21

Sub Panel

ANB7089

ANB7078

P7-27

Cushion

AED7017

AED7016

P7-28

Name Plate

AAM7004

PAN1377

NSP

Getter

Not used

AAX7676

Barrier (for MECHA SW ASSY)

Not used

AEC7168

NSP

White Label

ARW7033

Not used

NSP

Fuse Card

AAX7493

AAX7098

NSP

Label

AAX7436

Not used

NSP

Pop Label

AAX7473

Not used

Screw (for Panel Base and Front Panel)

BBZ30P080FZK

BBZ30P080FCC

Screw (for Bonnet)

BBZ30P080FZK

BBZ30P080FNI

Part No.

VSX-D736S

/HLXJI

Ref. No.

Symbol and Description

Remarks

Mark

VSX-D737S

/LBXJI

VSX-D307

Part No.

IC9301

MB86342A

MB86342C

AWX7045 and AWX7041 are constructed the same except for the following :

DOLBY DIGITAL ASSY

AWX7041

Mark

Symbol and Description

Remarks

AWX7045

CONTRAST OF REMOTE CONTROL UNIT

Part No.

P80-2

Name Plate

AZA7241

AZA7305

P80-3

Rubber Sheet (A)

AZA7236

AZA7267

P80-4

Rubber Sheet (B)

AZA7243

AZA7298

P80-9

Remo-con Case (A)

AZN7672

AZN7739

P80-10

Remo-con Case (B)

AZN7326

AZN7707

P80-11

Battery Cover

AZN7327

AZN7708

P80-12

Main Key (FF)

AZN7666

AZN7693

P80-13

Main Key (STOP)

AZN7329

AZN7694

P80-14

Main Key (REV)

AZN7665

AZN7695

P80-15

Main Key (PAUSE)

AZN7331

AZN7696

P80-16

Main Key (PLAY)

AZN7664

AZN7697

AXD7190 and AXD7106 are constructed the same except for the following :

AXD7106

Mark

Symbol and Description

Remarks

AXD7190

Part No.

C57

Not used

ACG7020

D54, D55

1SS252

1SS254

L51

ATF-151

Not used

L52

Not used

ATF1006

T51

ATT7019

ATT1193

CONTRAST OF PCB ASSEMBLIES

AWX7254 and AWZ8630 are constructed the same except for the following :

PRIMARY ASSY

AWZ8630

Mark

Symbol and Description

Remarks

AWX7254

VSX-D307

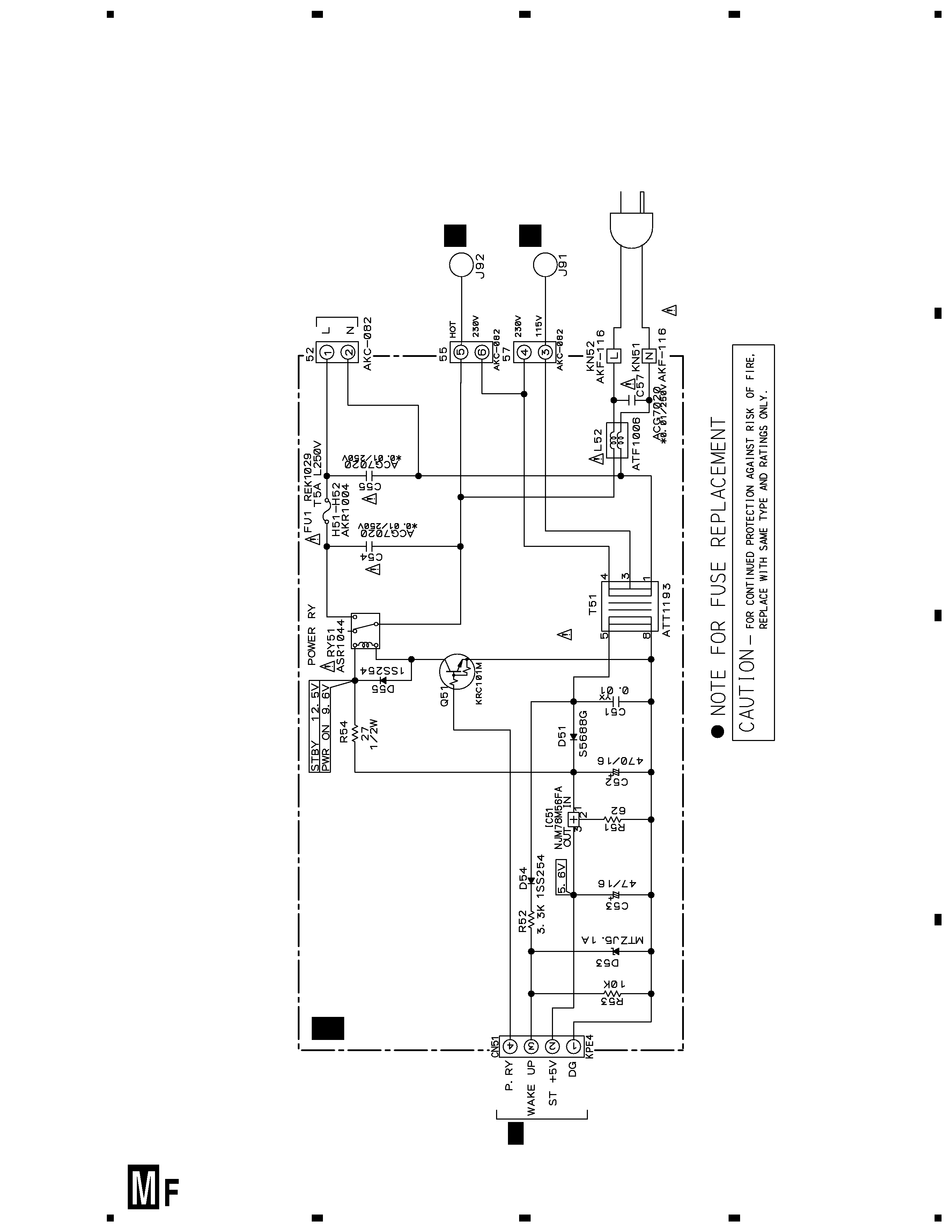

2. SCHEMATIC DIAGRAM

Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST"

2.1 PRIMARY ASSY (AWX7254)

POWER

CORD

ADG7005 AC110V

POWER

TRANSFORMER

214

C 2/3

POWER

TRANSFORMER

LIVE

NEUTRAL

PRIMARY

ASSY

(AWX7254)

N J91

N J92
