ORDER NO.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880
PIONEER ELECTRONIC CORPORATION 1998
RRV1997
STEREO CD RECEIVER
XC-L5
1. SAFETY INFORMATION ...................................... 2
2. EXPLODED VIEWS AND PARTS LIST ................ 3
3. SCHEMATIC DIAGRAM ..................................... 12
4. PCB CONNECTION DIAGRAM .......................... 24
5. PCB PARTS LIST ............................................... 35
6. ADJUSTMENT .................................................... 40
CONTENTS
7. GENERAL INFORMATION ................................ 43
7.1 PARTS ......................................................... 43
7.1.1 IC ......................................................... 43
7.1.2 DISPLAY .............................................. 49
7.2 DISASSEMBLY ........................................... 51
7.3 BLOCK DIAGRAM ........................................ 53
8. PANEL FACILITIES AND SPECIFICATIONS .... 54
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type
Model
XC-L5
MYXK
NVXK
AC220 ­ 230V
AC230V
Power Requirement
Remarks
T ­ IZK AUG. 1998 Printed in Japan
AUX
STANDBY/ON
PHONES
7
06
¢
4
¡·+
­·
1
'
VOLUME
UP
DOWN
D
R·D·S
background image
ORDER NO.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880
PIONEER ELECTRONIC CORPORATION 1998
RRV1997
STEREO CD RECEIVER
XC-L5
1. SAFETY INFORMATION ...................................... 2
2. EXPLODED VIEWS AND PARTS LIST ................ 3
3. SCHEMATIC DIAGRAM ..................................... 12
4. PCB CONNECTION DIAGRAM .......................... 24
5. PCB PARTS LIST ............................................... 35
6. ADJUSTMENT .................................................... 40
CONTENTS
7. GENERAL INFORMATION ................................ 43
7.1 PARTS ......................................................... 43
7.1.1 IC ......................................................... 43
7.1.2 DISPLAY .............................................. 49
7.2 DISASSEMBLY ........................................... 51
7.3 BLOCK DIAGRAM ........................................ 53
8. PANEL FACILITIES AND SPECIFICATIONS .... 54
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type
Model
XC-L5
MYXK
NVXK
AC220 ­ 230V
AC230V
Power Requirement
Remarks
T ­ IZK AUG. 1998 Printed in Japan
AUX
STANDBY/ON
PHONES
7
06
¢
4
¡·+
­·
1
'
VOLUME
UP
DOWN
D
R·D·S
background image
2
XC-L5
WARNING!
Lithium batteries. Danger of explo-
sion. Replacement must be done by
qualified personnel and only by fol-
lowing the instructions given in the
service manual.
This warning is stated on the product or
in the operating instructions. When replac-
ing the lithium batteries, follow the note
below.
Dispose of the used battery promptly.
Keep away from children. Do not disas-
semble and do not dispose of in fire.
The battery used in this device may present
a fire or chemical hazard if mistreated. Do
not recharge,
disassemble,
heat above
100
°C or incinerate. Replace only with the
same Part Number. Use of another battery
may present a risk of fire or explosion.
Note: The lithium battery installation po-
sition is shown in the exploded views.
ADVARSEL!
Lithiumbatteri
- Eksplosionsfare ved
fejlagtig håndtering. Udskiftning må kun
ske med batteri af samme fabrikat og
type. Levér det brugte batteri tilbage til
leverandøren.
Denne advarsel or angivet på produktet
eller i brugsvejledningen. Ved udskiftning
af lithium batterierne følges nedenstående
anveisning.
Batterierne må kun udskiftes med batteri-
er af samme type og mærke.
1. SAFETY INFORMATION
LITHIUM BATTERY NOTICE

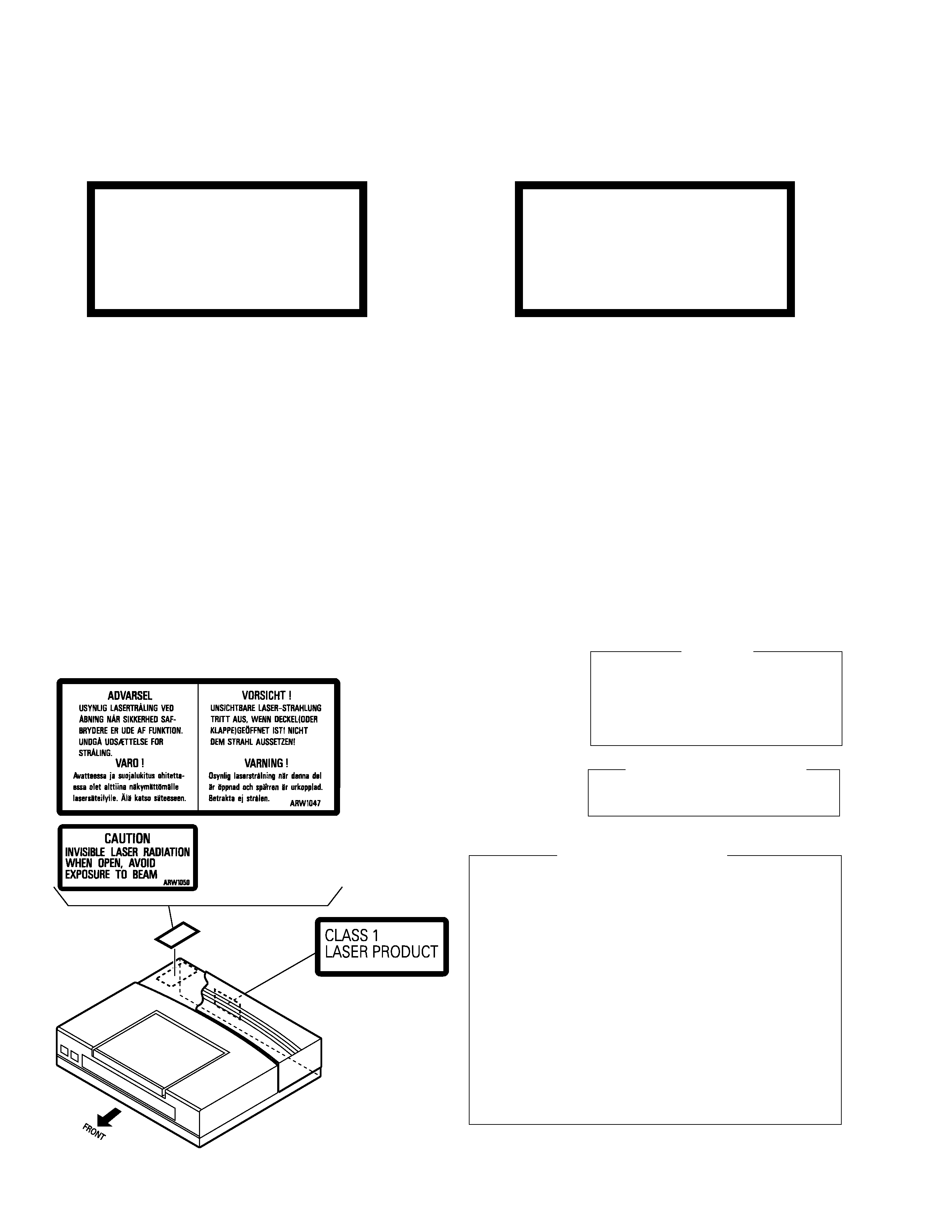

LABEL CHECK
NVXK type
Printed on the Rear Panel
MYXK type
IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUTED PERSON.
LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER: 5 mw
WAVELENGTH: 780 ­ 785 nm
1. Laser Interlock Mechanism
The loading position detect switch (in CD mechanism
assembly) is set to "CLMP ON(CD CLOSE)" (ON:low
level,OFF:high level) position, the system control
IC(IC5501) get the "CLMP" signal, and hand the laser
"LDON" signal to IC1101.
Then a laser diode can be lighted except when the level of
signal CLMP is low.
The interlock also does not function in the test mode
.
Laser diode oscillation will continue, if pin 1 of CXA1821M
(IC1101) on the CDMAIN UNIT is connected to GND, or
pin 19 is connected to low level (ON), or else the terminals
of Q1101 are shorted to each other (fault condition).
2. When the cover is opened, close viewing of the objective
lens with the naked eye will cause exposure to a Class 1
laser beam.
: Refer to page 41.
Additional Laser Caution
background image
3
XC-L5
Mark No.
Symbol and Description
Part No.
Remarks
MYXK type
NVXK type
2
Power Cord
ADG7010
Not used
5
Operating Instructions (English/French/German/Italian)
ARE7171
Not used
6
Operating Instructions (Dutch/Swedish/Spanish/Portuguese)
ARE7172
Not used
18
Packing Case
AHD7619
AHD7620
20
Operating Instructions (English)
Not used
ARB7153
21
Sub Packing
Not used
AHD7618
22
Power Cord
Not used
ADG7009
23
Fuse (T5A)
Not used
AEK7001
7
23
NVXK only
22
17
9
2
MYXK only
3
13
14
18
15(1/2)
15(2/2)
4
12
Litium Battery
1
10
11
20
13
5
8
6
19
16(2/2)
16(1/2)
21
NVXK only
MYXK only

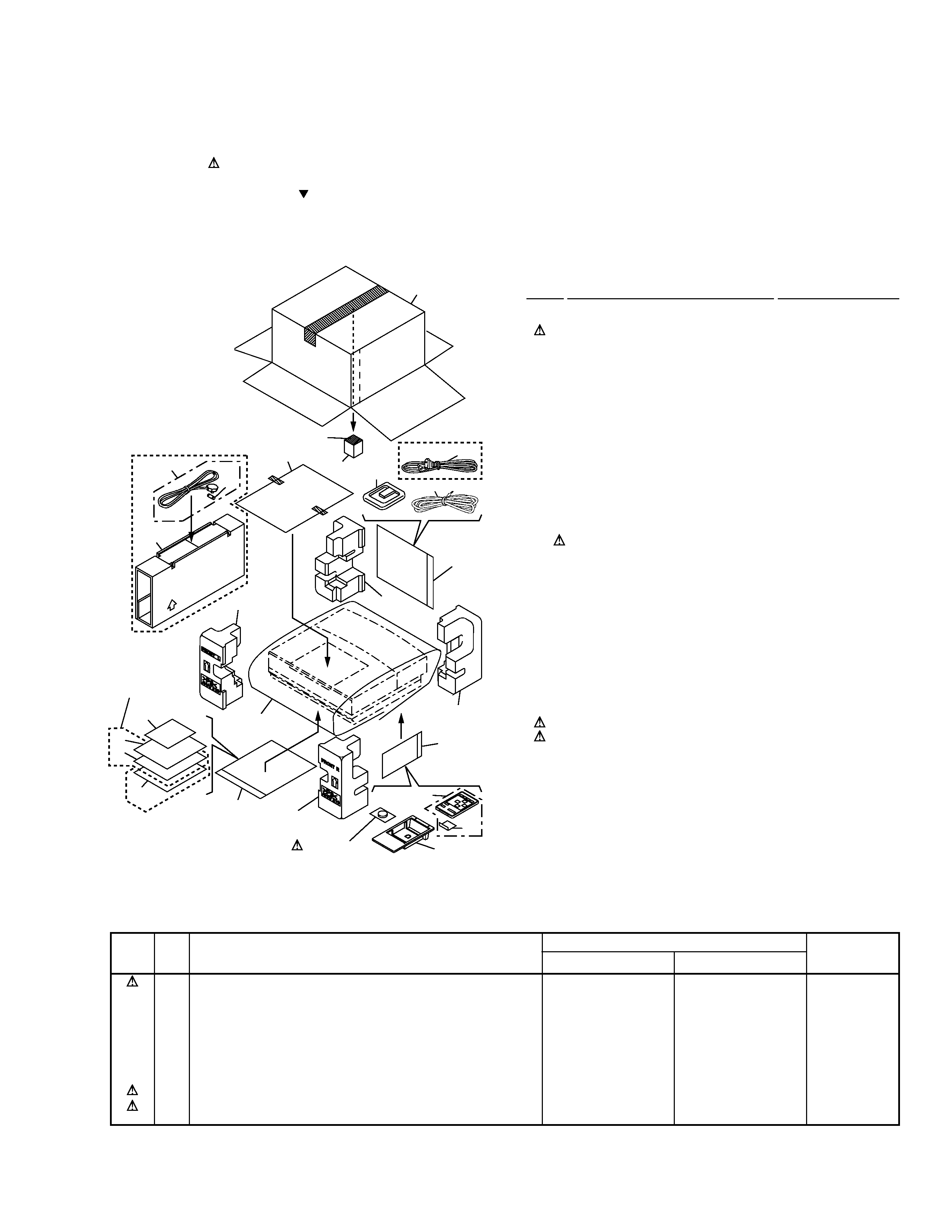

2.1 PACKING
(1) PACKING PARTS LIST
Mark No.
Description
Part No.
2. EXPLODED VIEWS AND PARTS LIST
NOTES:
· Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
· The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
· Screws adjacent to mark on the product are used for disassembly.
1
Remote Control Unit Holder
AAH7013
2
Power Cord
See Contrast table (2)
3
FM Antenna
ADH7005
NSP
4
Vinyl Bag
AHG7031
5
Operating Instructions
See Contrast table (2)
(English/French/German/Italian)
6
Operating Instructions
See Contrast table (2)
(Dutch/Swedish/Spanish/Portuguese)
NSP
7
Demo Caution
ARR7016
NSP
8
Warranty Card (E-J)
ARY7022
9
AM Loop Antenna
ATB7007
10
Remote Control Unit
AXD7170
(CU-XC005)
11
Battery Case
AZE7116
NSP
12
Lithium Battery (CR2025)
VEM1009
13
Polyethylene Bag
Z21-038
NSP
14
Technibond431
AEH7006
15
Pad F
AHA7219
16
Pad R
AHA7220
17
S Pad
AHA7230
18
Packing Case
See Contrast table (2)
19
Seat
Z23-007
20
Operating Instructions
See Contrast table (2)
(English)
21
Sub Packing
See Contrast table (2)
22
Power Cord
See Contrast table (2)
23
Fuse (T5A)
See Contrast table (2)
(2) CONTRAST TABLE
MYXK and NVXK type are constructed the same except for the following :
background image
4
XC-L5
A
B
A
B
17
29
7
39
34
30
39
42
40
40
13
18
39
32
39
39
21
22
10
15
14
38
38
38
27
35
35
35
35
4
41
25
35
35
39
39
33
31
35
35
8
6
23
23
5
9
26
38
38
37
36
2
24
35
35
1
35
43
20
12
3
11
19
16
28
Refer to
"2.6 CD MECHA ASSY".
Refer to
"2.3 TOP PANEL ASSY".

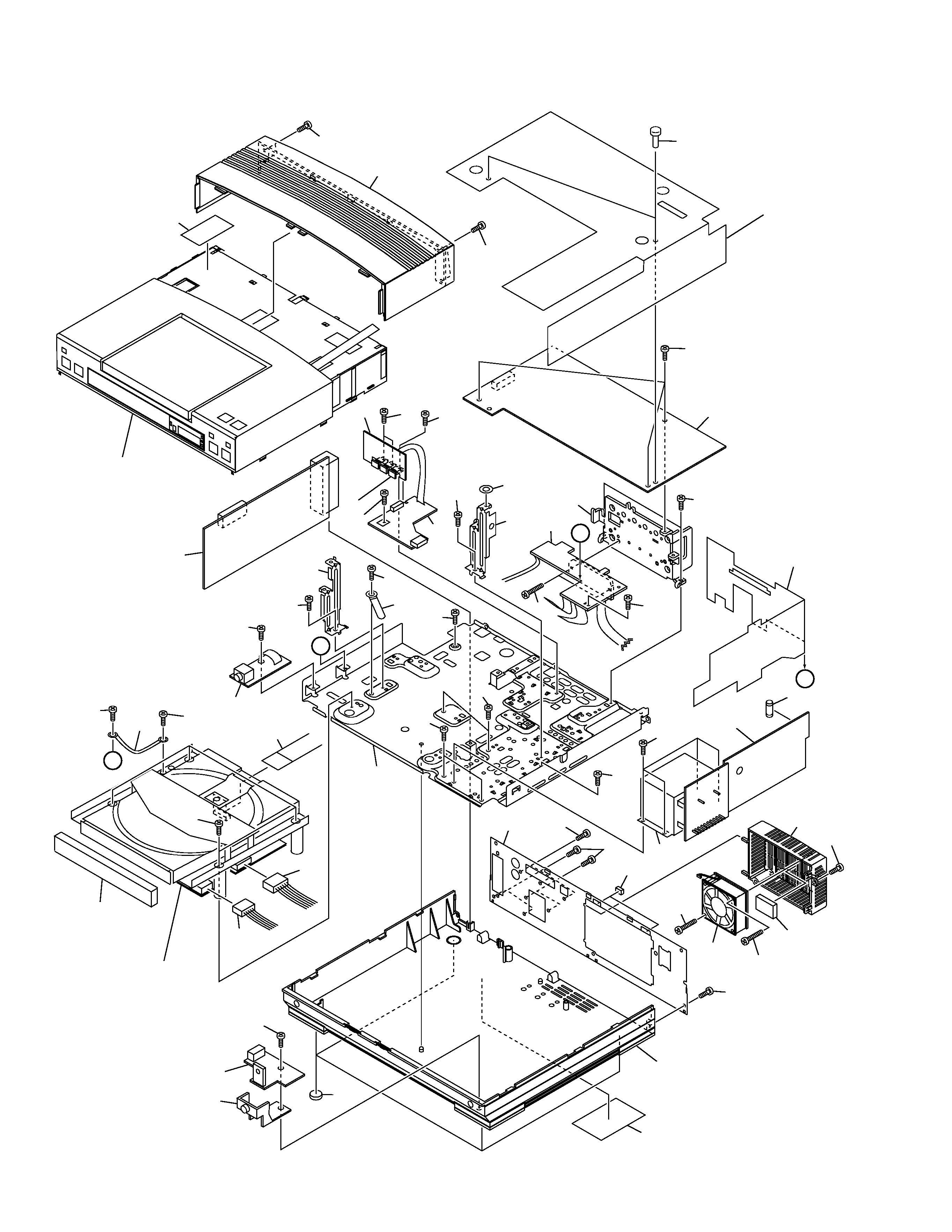

2.2 EXTERIOR
background image
5
XC-L5
(1) EXTERIOR PARTS LIST
Mark No.
Description
Part No.
Mark No.
Description
Part No.
1
CD MAIN UNIT
AWU7090
2
CD AMP UNIT
AWU7091
3
CD TRANS UNIT
AWU7092
4
CD HP UNIT
AWU7093
5
CD REG UNIT
AWU7121
6
CD RECTIFY UNIT
AWU7128
7
CD REM UNIT
AWU7130
8
CD POWER UNIT
AWU7153
9
FM/AM TUNER MODULE
AXQ7077
10
16P F·F·C/30V
ADD7096
11
Fuse FU1 (T800mA)
AEK1053
12
Power Transformer (T1)
ATS7218
13
DC Fan Motor
AXM7003
14
Connector CN 5P
AKP7040
15
Connector CN 6P
AKP7041
16
CD MECHA Assy
KSL-2130CCM
17
Leg
AEB7090
18
F Cushion
AEB7127
19
Center Barrier
AEC7140
20
Top Barrier
AEC7154
21
Rear Panel
See Contrast table (2)
NSP
22
Bottom Plate
ANF7010
23
Angle
ANG7189
NSP
24
Heat Sink
ANH7088
NSP
25
Cord With Plug J
DE005VF0
NSP
26
Spacer
PNM1135
27
Cord Clamper
RNH-184
28
Tray Panel CD
AAN7184
29
Lens
AAX7639
30
Bottom Base
AMA7005
31
Bonnet
AMA7007
32
Rear Case
AMR7207
NSP
33
Caution Label
See Contrast table (2)
34
Name Label
ARW7043
35
Screw
BBZ30P060FMC
36
Screw
BBZ30P140FMC
37
Screw
BBZ40P060FMC
38
Screw
BPZ30P060FZK
39
Screw
BPZ30P100FZK
40
Screw
BPZ30P300FMC
41
Screw
PDZ30P060FMC
42
Cushion Rubber
AEB7068
43
Rivet
VEC1178
(2) CONTRAST TABLE
MYXK and NVXK type are constructed the same except for the following :
Mark No.
Symbol and Description
Part No.
Remarks
MYXK type
NVXK type
21
Rear Panel
ANC7672
ANC7673
NSP
33
Caution Label
ARW1047
ARW1050

Reviews

There are no reviews of this manual yet.

Related Products

Cover page of PIONEER DV-363-S/KCXU Owner's Manual

This manual has 68 pages, file size: 2.1 MB. It's available in languages: French, English.

Cover page of PIONEER DRM-3000/TUCYV/WL Service Manual

This manual has 163 pages, file size: 9.93 MB. It's available in languages: English.

Cover page of PIONEER AVX7000UC/EW/ES Service Manual

This manual has 38 pages, file size: 2.73 MB. It's available in languages: English.

Cover page of PIONEER DV-343/KUXQ Service Manual

This manual has 69 pages, file size: 4.24 MB. It's available in languages: English.

Cover page of PIONEER SD-P4003 Service Manual

This manual has 105 pages, file size: 22.61 MB. It's available in languages: English.
