PIONEER XC-Z9/KUCXJ Service Manual

PIONEER XC-Z9/KUCXJ Service Manual
0 Rating(s)
Read reviews

Service Manual for PIONEER XC-Z9/KUCXJ, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

Immediate download after payment.
Delivered as a PDF file.
The manual has 115 pages
File size: 10.78 MB
Available language versions: English
Different language versions may vary sligthly in file size and page count.

We guarantee that...

our manuals are complete,
the manual includes circuit diagrams,
our manuals are checked with antivirus,
We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

ORDER NO.

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

PIONEER CORPORATION 2007

TIMER

DISPLAY OFF

STANDBY/ON

USB

SOUND RETRIEVER

PHONES

F. AUDIO IN

VOLUME

XC-Z9

RRV3660

SUPER AUDIO CD RECEIVER

XC-Z9

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model

Type

Power Requirement

Remarks

XC-Z9

KUCXJ

AC 120 V

For details, refer to "Important Check Points for good servicing".

T-BZV SEPT. 2007 printed in Japan

ORDER NO.

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

PIONEER CORPORATION 2007

TIMER

DISPLAY OFF

STANDBY/ON

USB

SOUND RETRIEVER

PHONES

F. AUDIO IN

VOLUME

XC-Z9

RRV3660

SUPER AUDIO CD RECEIVER

XC-Z9

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model

Type

Power Requirement

Remarks

XC-Z9

KUCXJ

AC 120 V

For details, refer to "Important Check Points for good servicing".

T-BZV SEPT. 2007 printed in Japan

XC-Z9

234

SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual

do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been

trained to properly and safely repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may

void the warranty. If you are not qualified to perform the repair of this product properly and safely, you

should not risk trying to do so and refer the repair to a qualified service technician.

WARNING

This product contains lead in solder and cer tain electrical par ts contain chemicals which are known to the state of California to

cause cancer, bir th defects or other reproductive harm.

Health & Safety Code Section 25249.6 Ð Proposition 65

NOTICE

(FOR CANADIAN MODEL ONLY)

Fuse symbols

(fast operating fuse)

and/or

(slow operating fuse) on PCB indicate that replacement

parts must be of identical designation.

REMARQUE

(POUR MODÈLE CANADIEN SEULEMENT)

Les symboles de fusible

(fusible de type rapide)

et/ou

(fusible de type lent) sur CCI indiquent que

les pièces de remplacement doivent avoir la même désignation.

ANY MEASUREMENTS NOT WITHIN THE

LIMITS OUTLINED ABOVE ARE INDICATIVE

OF A POTENTIAL SHOCK HAZARD AND

MUST BE CORRECTED BEFORE RETURN-

ING THE APPLIANCE TO THE CUSTOMER.

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the appliance

have special safety related character istics. These are

often not evident

from visual

inspection nor the

protection afforded by them necessarily can be obtained

by using replacement components rated for voltage,

wattage, etc. Replacement par ts which have these

special safety character istics are identified in this

Service Manual.

Electr ical components having such features are

identified by marking with a

on the schematics and

on the parts list in this Service Manual.

The use of a substitute replacement component which

does not have the same safety characteristics as the

PIONEER recommended replacement one, shown in the

parts list in this Service Manual, may create shock, fire,

or other hazards.

Product Safety is continuously under review and new

instructions are issued from time to time. For the latest

infor mation, always consult the current PIONEER

Ser vice Manual. A subscription to, or

additional copies

of, PIONEER Ser vice Manual may be obtained at a

nominal charge from PIONEER.

(FOR USA MODEL ONLY)

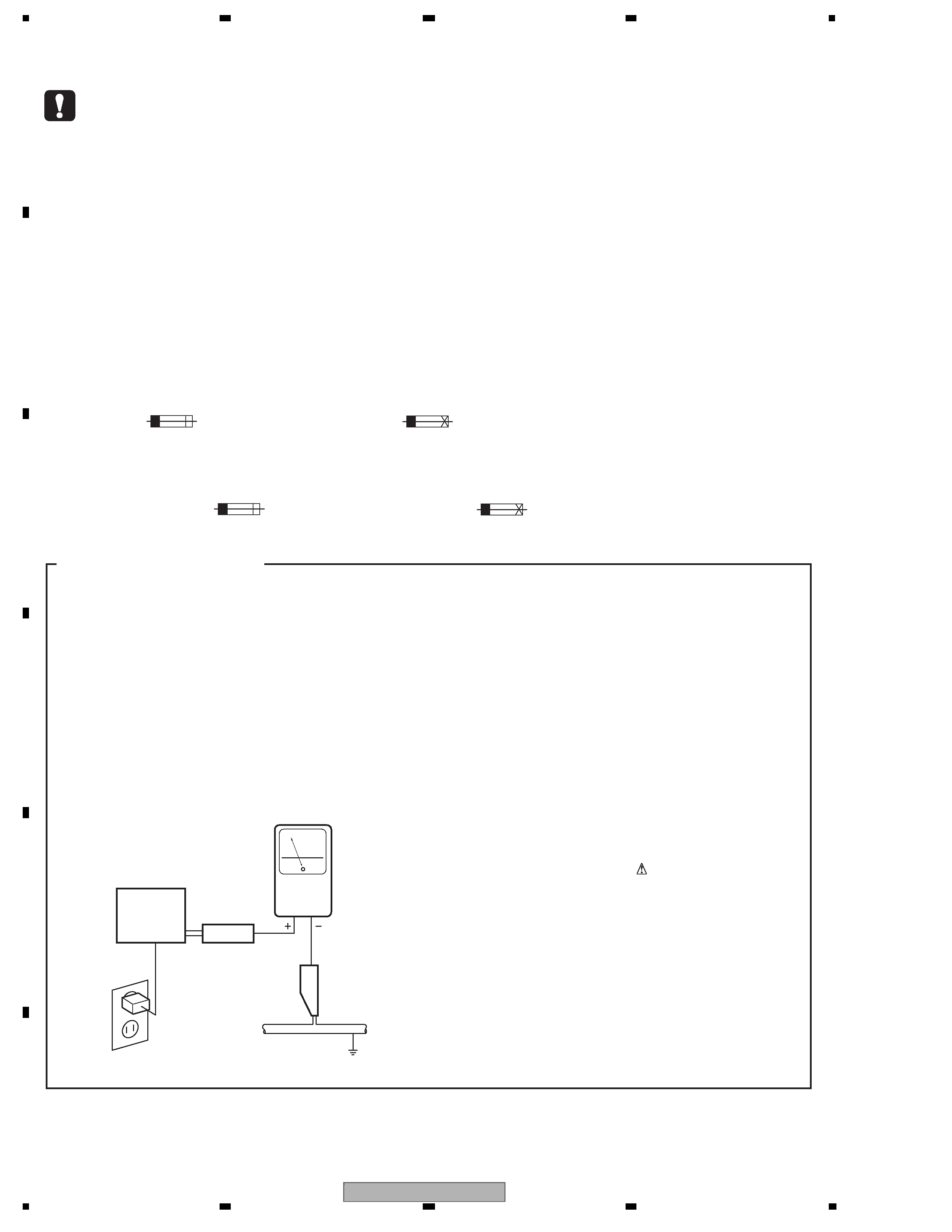

1. SAFETY PRECAUTIONS

The following check should be perfor med for the

continued protection of the customer and ser vice

technician.

LEAKAGE CURRENT CHECK

Measure leakage current to a known ear th ground

(water pipe, conduit, etc.) by connecting a leakage

current tester such as Simpson Model 229-2 or

equivalent between the ear th ground and all exposed

metal par ts of the appliance (input/output ter minals,

screwheads, metal overlays, control shaft, etc.). Plug

the AC line cord of the appliance directly into a 120V

AC 60 Hz outlet and turn the AC power switch on. Any

current measured must not exceed 0.5 mA.

Device

under

test

Leakage

current

tester

Earth

ground

Reading should

not be above

0.5 mA

Also test with

plug reversed

(Using AC adapter

plug as required)

Test all

exposed metal

surfaces

AC Leakage Test

XC-Z9

WARNING !

THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1

BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR

CLASS 1.

A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS.

LASER DIODE CHARACTERISTICS

FOR CD :

MAXIMUM OUTPUT POWER : 7 mW Continuous

WAVELENGTH : 780 nm

FOR SACD :MAXIMUM OUTPUT POWER : 5 mW Continuous

WAVELENGTH : 650 nm

Additional Laser Caution

1. Laser Interlock Mechanism

· Loading switch (S101 on the LOAB Assy) is used for interlock

mechanism of the laser.

When this switch turned ON in SW2 (CLOSE) side (OPEN signal is

0V and CLOSE signal is 3.5V), a laser becomes the status which can

completely oscillation.

Furthermore, the laser completely oscillates in the disc judgment and

disc playback.

When player is power ON state and laser diode is not completely

oscillating, 780nm laser diode is always oscillating by half power.

· Laser diode is driving with Q307 (650nm LD) and Q308 (780nm LD)

on the DVDM Assy.

Therefore, when short-circuit between the emitter and collector of these

transistors or the base voltage is supplied for transistors turn on, the

laser oscillates. (failure mode)

· In the test mode * , there is the mode that the laser oscillates except

for the disc judgment and playback. LD ON mode in the test mode

oscillates with the laser forcibly.

The interlock mechanism mentioned above becomes invalid in this

mode.

2. When the cover is open, close viewing through the objective lens with

the naked eye will cause exposure to the laser beam.

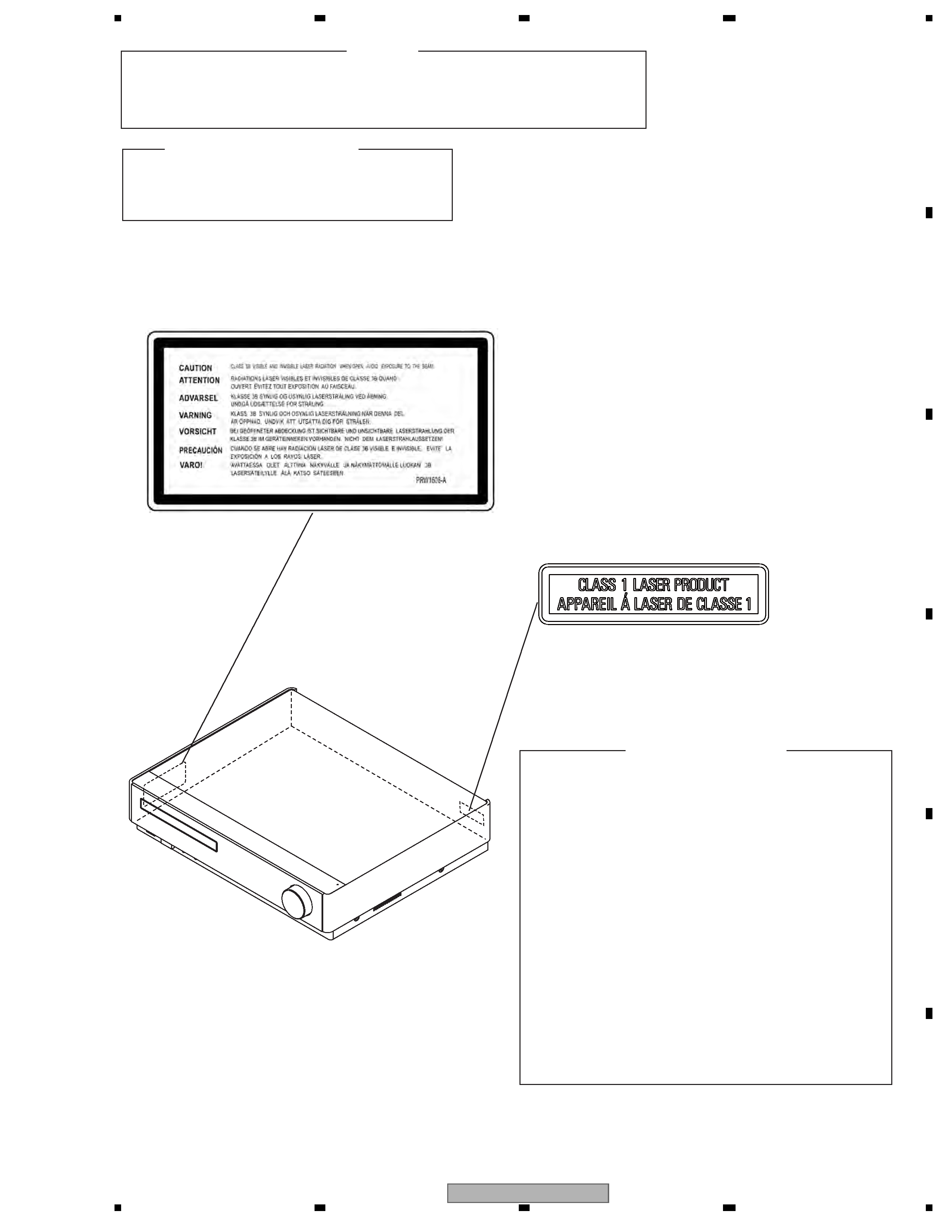

LABEL CHECK

(Printed on the Rear Panel )

* : Refer to page 50.

PRW1608

XC-Z9

234

Important Check Points for Good Servicing

In this manual, procedures that must be performed during repairs are marked with the below symbol.

Please be sure to confirm and follow these procedures.

1. Product safety

Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by

following the safety instructions described in this manual.

1 Use specified parts for repair.

Use genuine parts. Be sure to use important parts for safety.

2 Do not perform modifications without proper instructions.

Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as

radio/TV interference and foreign noise.

3 Make sure the soldering of repaired locations is properly performed.

When you solder while repairing, please be sure that there are no cold solder and other debris.

Soldering should be finished with the proper quantity. (Refer to the example)

4 Make sure the screws are tightly fastened.

Please be sure that all screws are fastened, and that there are no loose screws.

5 Make sure each connectors are correctly inserted.

Please be sure that all connectors are inserted, and that there are no imperfect insertion.

6 Make sure the wiring cables are set to their original state.

Please replace the wiring and cables to the original state after repairs.

In addition, be sure that there are no pinched wires, etc.

7 Make sure screws and soldering scraps do not remain inside the product.

Please check that neither solder debris nor screws remain inside the product.

8 There should be no semi-broken wires, scratches, melting, etc.on the coating of the power cord.

Damaged power cords may lead to fire accidents, so please be sure that there are no damages.

If you find a damaged power cord, please exchange it with a suitable one.

9 There should be no spark traces or similar marks on the power plug.

When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure

connections and suitable usage. Please exchange the power cord if necessary.

a Safe environment should be secured during servicing.

When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries.

Please pay attention to your surroundings and repair safely.

2. Adjustments

To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification.

Adjustments should be performed in accordance with the procedures/instructions described in this manual.

4. Cleaning

For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper

cleaning should be performed to restore their performances.

3. Lubricants, Glues, and Replacement parts

Use grease and adhesives that are equal to the specified substance.

Make sure the proper amount is applied.

5. Shipping mode and Shipping screws

To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be

installed before shipment. Please be sure to follow this method especially if it is specified in this manual.

XC-Z9

CONTENTS

SAFETY INFORMATION .....................................................................................................................................2

1. SERVICE PRECAUTIONS................................................................................................................................7

1.1 NOTES ON SOLDERING ...........................................................................................................................7

1.2 NOTES ON BTL DRIVE .............................................................................................................................7

2. SPECIFICATIONS.............................................................................................................................................8

2.1 ACCESSORIES ..........................................................................................................................................8

2.2 SPECIFICATIONS ......................................................................................................................................8

2.3 DISC CONTENT FORMAT .........................................................................................................................9

2.4 PANEL FACILITIES...................................................................................................................................10

3. BASIC ITEMS FOR SERVICING ....................................................................................................................14

3.1 CHECK POINTS AFTER SERVICING .....................................................................................................14

3.2 PCB LOCATIONS .....................................................................................................................................15

3.3 JIGS LIST (INCLUDE GREASE) ..............................................................................................................16

4. BLOCK DIAGRAM ..........................................................................................................................................18

4.1 LOAB ASSY and OVERALL WIRING DIAGRAM .....................................................................................18

4.2 OVERALL BLOCK DIAGRAM ..................................................................................................................20

5. DIAGNOSIS ....................................................................................................................................................22

5.1 METHOD FOR DIAGNOSING DEGRADATION OF THE LDS ON THE PICKUP ASSY .........................22

5.2 TROUBLESHOOTING OF THE SACD.....................................................................................................23

5.3 TROUBLESHOOTING OF THE NETWORK ASSY..................................................................................25

5.3.1 DIAGNOSIS OF THE NETWORK BLOCK.........................................................................................25

5.3.2 TROUBLESHOOTING THE NETWORK BLOCK...............................................................................27

5.3.3 NETWORK MODULE BLOCK DIAGRAM..........................................................................................30

5.4 XM RADIO INFORMATION ......................................................................................................................31

5.5 SIRIUS BLOCK TROUBLESHOOTING....................................................................................................32

5.6 CIRCUIT DESCRIPTION OF DIGITAL AMP. SECTION...........................................................................33

5.7 SPECIFICATIONS FOR THE PROTECTION CIRCUITS FOR THE DIGITAL AMPLIFIER......................34

6. SERVICE MODE.............................................................................................................................................35

6.1 SERVICE TEST MODE ............................................................................................................................35

7. DISASSEMBLY ...............................................................................................................................................39

8. EACH SETTING AND ADJUSTMENT ............................................................................................................48

8.1 ADJUSTMENT..........................................................................................................................................48

8.1.1 ADJUSTMENT ITEMS AND LOCATION............................................................................................48

8.1.2 JIGS AND MEASURING INSTRUMENTS .........................................................................................48

8.1.3 NECESSARY ADJUSTMENT POINTS..............................................................................................49

8.1.4 TEST MODE ......................................................................................................................................50

8.1.5 MECHANISM ADJUSTMENT ............................................................................................................51

9. EXPLODED VIEWS AND PARTS LIST ..........................................................................................................54

9.1 PACKING SECTION .................................................................................................................................54

9.2 EXTERIOR SECTION ..............................................................................................................................56

9.3 FRONT PANEL SECTION ........................................................................................................................58

9.4 05 LOADER ASSY ...................................................................................................................................60

9.5 Traverse Mechanism Assy-S ....................................................................................................................62

10. SCHEMATIC DIAGRAM................................................................................................................................64

10.1 DVDM ASSY (1/2) ..................................................................................................................................64

10.2 DVDM ASSY (2/2) ..................................................................................................................................66

10.3 MAIN ASSY (1/3)....................................................................................................................................68

10.4 MAIN ASSY (2/3)....................................................................................................................................70

10.5 MAIN ASSY (3/3)....................................................................................................................................72

10.6 AMP ASSY .............................................................................................................................................74

10.7 NETWORK ASSY...................................................................................................................................76

10.8 CONNECTOR ASSY ..............................................................................................................................78

10.9 FRONT ASSY.........................................................................................................................................80

10.10 DISPLAY ASSY ....................................................................................................................................82

10.11 KEY ASSY ............................................................................................................................................84

10.12 LED ASSY ............................................................................................................................................85

10.13 XM/SIRIUS ASSY.................................................................................................................................86

10.14 POWER SUPPLY UNIT ........................................................................................................................88

10.15 WAVEFORMS.......................................................................................................................................90

11. PCB CONNECTION DIAGRAM ....................................................................................................................91

11.1 LOAB ASSY............................................................................................................................................91

11.2 DVDM ASSY...........................................................................................................................................92

11.3 MAIN ASSY ............................................................................................................................................94

11.4 AMP ASSY .............................................................................................................................................96

11.5 NETWORK ASSY...................................................................................................................................98
