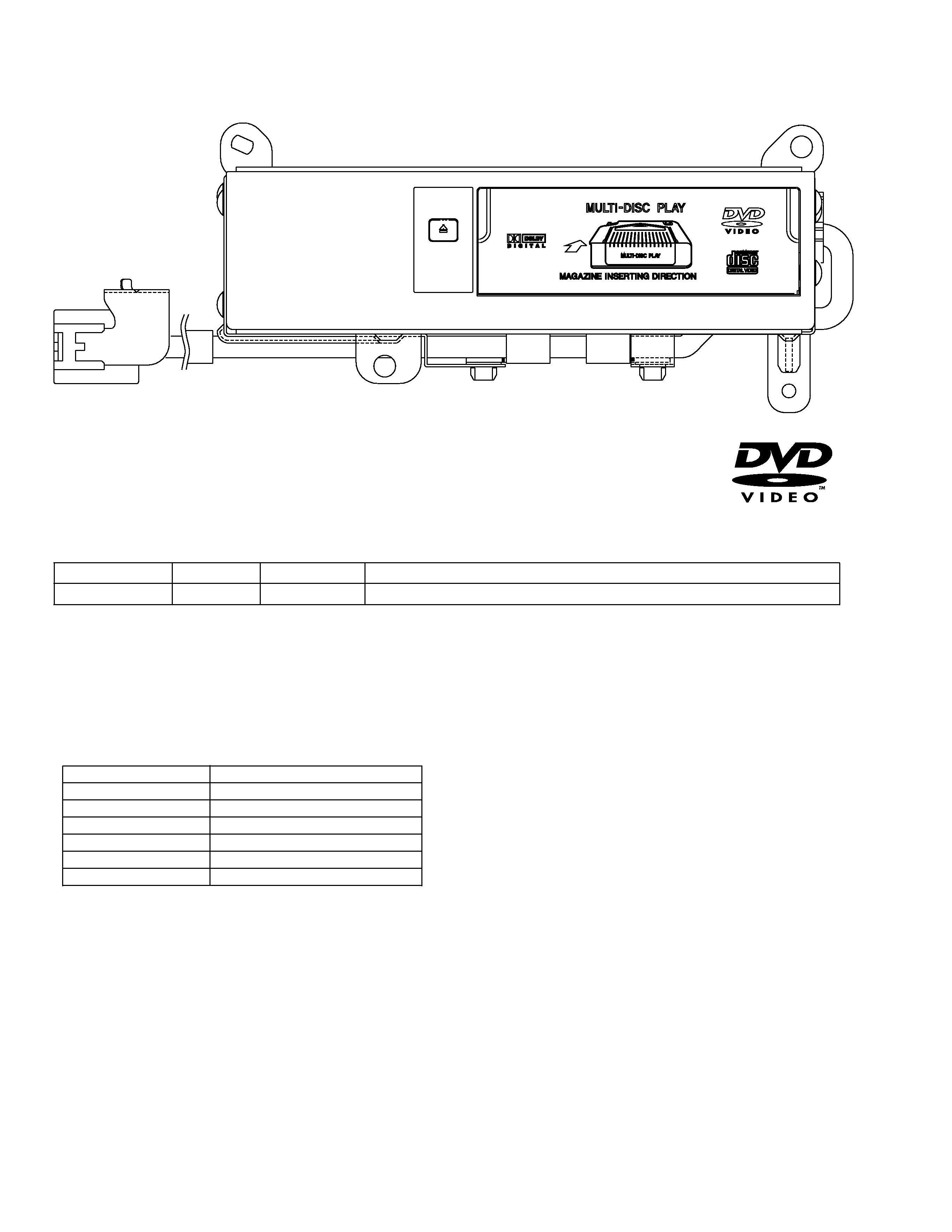

ORDER NO.
CRT2537
PUB. NO.
CRT2537
LAND CRUISER
DVD/CD COMPATIBLE
Manufactured for TOYOTA
by PIONEER CORPORATION
VEHICLE
DESTINATION
PRODUCED AFTER
TOYOTA PART No.
ID No.
PIONEER MODEL No.
LEXUS LX470
U.S.A., CANADA
August 2000
86275-60010
XDV-M8106ZT/UC
LAND CRUISER
86275-60010
XDV-M8106ZT-91/UC
Service
Manual
CHANGER
AUDIO SYSTEM
LX470
background image
ORDER NO.
CRT2537
PUB. NO.
CRT2537
LAND CRUISER
DVD/CD COMPATIBLE
Manufactured for TOYOTA
by PIONEER CORPORATION
VEHICLE
DESTINATION
PRODUCED AFTER
TOYOTA PART No.
ID No.
PIONEER MODEL No.
LEXUS LX470
U.S.A., CANADA
August 2000
86275-60010
XDV-M8106ZT/UC
LAND CRUISER
86275-60010
XDV-M8106ZT-91/UC
Service
Manual
CHANGER
AUDIO SYSTEM
LX470
background image
2
XDV-M8106ZT,M8106ZT-91
- DVD Player Service Precautions
1.
Never adjust the LD VR in the pickup unit to
protect the pickup from electrical damages.
2. For pickup unit(CGY2020) handling, please refer
to"Disassembly"(see page 88).
During replacement, handling precautions shall be
taken to prevent an electrostatic discharge(set the
short switch of the pickup unit to the SHORT side).
3. During disassembly, be sure to turn the power off
since an internal IC might be destroyed when a
connector is plugged or unplugged.
4. Please adjusting the skew after changing the pickup
unit(see page 63).
- This service manual should be used together with the following manual(s):
Model No.
Order No.
Mech. Module Remarks
CX-692
CRT2533
MM-1
DVD/CD Mech. Unit:Circuit Description, Mech.Description, Disassembly
- Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby
Laboratories. Confidential unpublished works. © 1992-1997 Dolby Laboratories. All rights reserved.
- Manufactured under license from Digital Theater Systems, Inc.
- XDV-M8106ZT/UC and XDV-M8106ZT-91/UC have adopted AVC-LAN.
- The supplementary models are identical with the original ones except for the following items.
Description
Part No.
Cover
CEG1026
Carton
CHG3080
Contain Box(1/2)
CHD3080
Protector
CHP2333
Protector
CHP2334
Air Cap
CEG1288(Non Spare Part)
background image
3
XDV-M8106ZT,M8106ZT-91
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so
and refer the repair to a qualified service technician.
CONTENTS
1. SAFETY INFORMATION ............................................3
2. EXPLODED VIEWS AND PARTS LIST.......................4
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM...10
4. PCB CONNECTION DIAGRAM ................................34
5. ELECTRICAL PARTS LIST ........................................48
6. ADJUSTMENT..........................................................58
7. GENERAL INFORMATION .......................................69
7.1 DIAGNOSIS ........................................................69
7.1.1 TEST MODE ..............................................69
7.1.2 DISASSEMBLY .........................................87
7.1.3 CONNECTOR FUNCTION DESCRIPTION89
7.2 IC ........................................................................90
7.3 EXPLANATION .................................................113
7.3.1 OPERATIONAL FLOW CHART...............113
7.3.2 SYSTEM BLOCK DIAGRAM...................114
8. OPERATIONS AND SPECIFICATIONS ..................115
background image
XDV-M8106ZT,M8106ZT-91

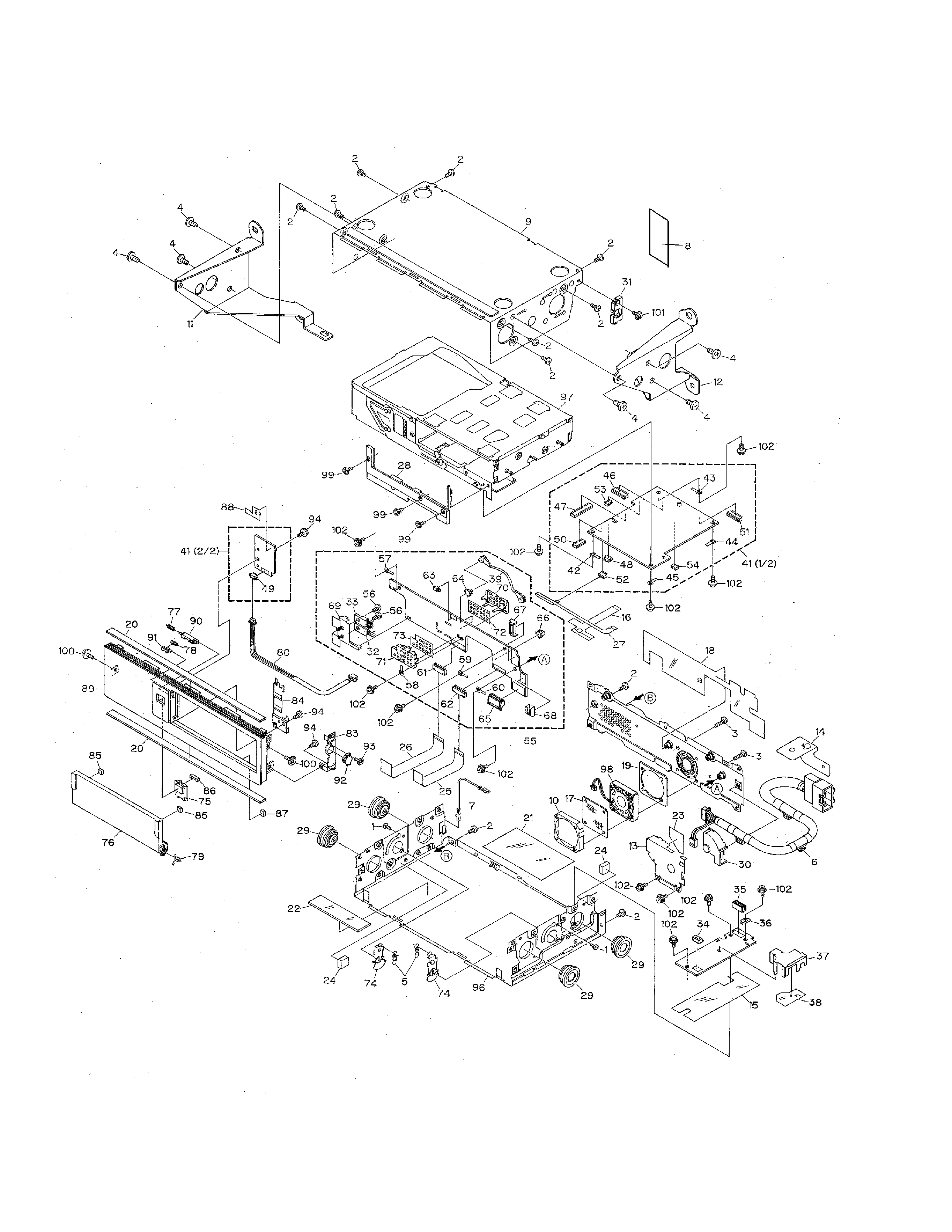

2.1 EXTERIOR
4
2. EXPLODED VIEWS AND PARTS LIST
background image
5
XDV-M8106ZT,M8106ZT-91
1 Screw
BMZ20P040FMC
2 Screw
BSZ30P055FMC
3 Screw(M3x12)
CBA1514
4 Screw(M5x6)
CBA1517
5 Spring
CBH2335
6 Cord Assy
CDE6299
7 Connector
CDE6302
8 Tape
CNM7094
9 Upper Case
CNB2496
10 Holder
CNC8612
11 Bracket
CNC8831
12 Bracket
CNC8832
13 Shield
CNC9089
14 Bracket
CNC9122
15 Insulator
CNM6337
16 Insulator
CNM6405
17 Filter
CNM6600
18 Insulator
CNM6735
19 Cushion
CNM6736
20 Cushion
CNM6743
*
21 Insulator
CNM7090
*
22 Insulator
CNM6906
23 Insulator
CNM6985
24 Cushion
CNM7037
25 PCB
CNP5534
26 PCB
CNP5535
27 PCB
CNP5604
28 Panel
CNS6473
29 Damper
CNV5833
30 Holder
CNV6181
31 Holder
CNV6245
32 IC(IC3821)
BA00AST
33 Transistor(Q3811)
2SB942A
34 Plug(CN2903)
CKS1051
35 Connector(CN2901)
CKS3563
36 Holder
CNC2218
37 Shield
CNC8898
38 Insulator
CNM6836
39 Cord
CDE6446
40 ·····
41 Main Unit
CWM7156
42 Terminal(CN1603)
CKF1064
43 Terminal(CN1604)
CKF1064
44 Terminal(CN1605)
CKF1064
45 Terminal(CN1607)
CKF1064
46 Connector(CN1601)
CKS1953
47 Connector(CN101)
CKS1964
48 Connector(CN312)
CKS2191
49 Connector(CN2000)
CKS2193
50 Connector(CN302)
CKS3480
51 Connector(CN1600)
CKS3749
52 Connector(CN310)
CKS3767
53 Connector(CN301)
CKS4358
54 Connector(CN1000)
CKS4374
55 Extension Unit
CWM7397
56 Screw
BMZ26P050FMC
57 Terminal(CN3812)
CKF1064
58 Terminal(CN3811)
CKF1064
59 Terminal(CN3813)
CKF1064
60 Terminal(CN3810)
CKF1064
61 Connector(CN3951)
CKS1953
62 Connector(CN3961)
CKS3749
63 Connector(CN3891)
CKS2191
64 Connector(CN3301)
CKS2619
65 Plug(CN3802)
CKS3535
66 Connector(CN3302)
CKS2619
67 Connector(CN3801)
CKS4320
68 Connector(CN3803)
CKS4356
69 Holder
CNC8400
70 Shield
CNC8899
71 Shield
CNC8900
72 Insulator
CNM6834
73 Insulator
CNM6835
74 Arm Unit
CXA8606
75 Button
CAC6152
76 Door
CAT2224
77 Spring
CBH2336
78 Spring
CBH2337
79 Spring
CBH2363
80 Connector
CDE6022
- EXTERIOR SECTION PARTS LIST
Mark No. Description
Part No.
Mark No. Description
Part No.
NOTE:
- Parts marked by "*" are generally unavailable because they are not in our Master Spare Parts List.
- Screws adjacent to
mark on the product are used for disassembly.
