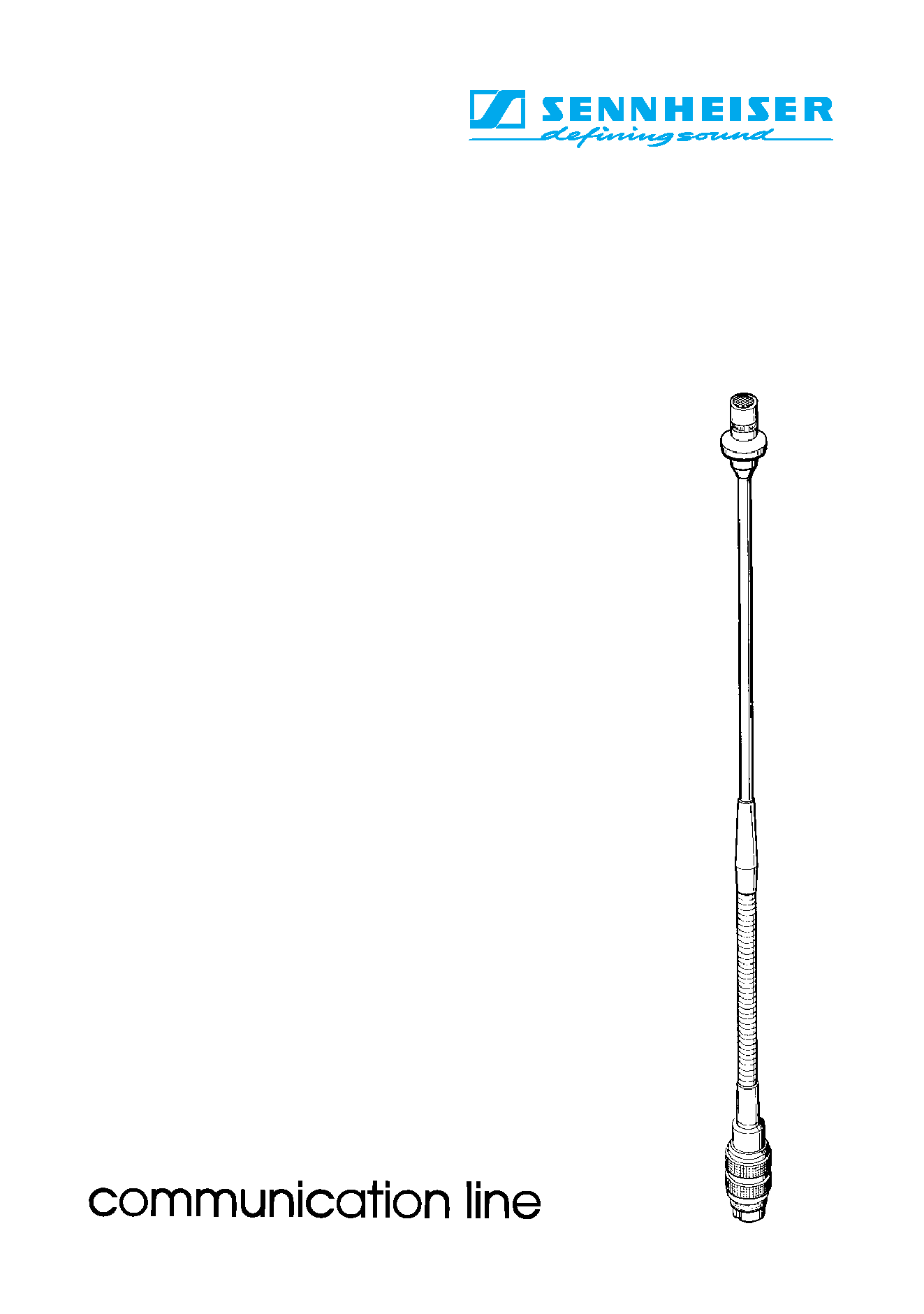

COM 1424
BEDIENUNGSANLEITUNG
INSTRUCTIONS FOR USE
NOTICES D'EMPLOI
ISTRUZIONI PER L'USO
INSTRUCCIONES PARA EL USO
background image
COM 1424
BEDIENUNGSANLEITUNG
INSTRUCTIONS FOR USE
NOTICES D'EMPLOI
ISTRUZIONI PER L'USO
INSTRUCCIONES PARA EL USO
background image
COM 1424 KONDENSATORMIKROFON
Die Mikrofone der Baureihe COM 1420 - ..25 sind dauerpolarisierte Kondensator-
mikrofone mit nierenförmiger Richtcharakteristik für die Anwendungsbereiche
Konferenz, Beschallung und Studiotechnik. Das Mikrofon COM 1424 ist mit einem
Leuchtring zur Anzeige der Betriebsbereitschaft ausgestattet.
MERKMALE
· Hohe Klangqualität durch Back-Elektret-Kondensatortechnik
· Anzeige für die Betriebsbereitschaft, Leuchtring
· Einfache Stromversorgung aus Gleichspannungsquelle 4-15 V
· Reflexarmes, mattschwarzes Gehäuse
· Pop-Schutz im Lieferumfang
TECHNISCHE DATEN
Übertragungsbereich
40 - 20 000 Hz
Akustische Arbeitsweise
Druckgradientenempfänger
Richtcharakteristik
Niere
Feldleerlauf-Übertragungsfaktor
8 mV/Pa
± 2,5 dB (= 62 dB) bei 1 kHz
Elektrische Impedanz
ca. 1 k
Minimale Abschlußimpedanz
ca 4,7 k
Störspannungsabstand nach
DlN 45 405 / CCIR 468-2
ca. 58 dB
Stecker:
8-pol nach DIN 45326 ohne Stifte 4 und 5
Stromversorgung
+4V bis +15V Stift 8 (DIN 45594)
0 V
Stift 2
NF:
Stift 1 unsymmetrisch
Masse:
am Gehäuse
Leuchtring:
Glühlampe
28 V, 40 mA
Stifte 6 und 7
Gewicht
ca. 110 g
Abmessungen
380 mm x 21 ø mm
Lieferumfang
1 Mikrofon
1 Pop-Schutz MZW 1420
Änderungen und Irrtum vorbehalten.
background image
COM 1424 CONDENSER MICROPHONE
The microphones of the COM family (COM 1420 - 1425) are permanently polarized
condenser microphones with cardioid pick-up patterns. They are suitable for
conference, PA and studio applications. The COM 1424 features a luminous ring
that serves to indicate active speaker stations.
FEATURES
·
Excellent sound quality thanks to back electret condenser microphone
·
Luminous ring to indicate active speaker stations
·
Power supply: 4 - 15 V d.c.
·
Nonreflective, matt black housing
·
Delivery includes one pop shield
TECHNICAL DATA
Frequency response
40 - 20,000 Hz
Acoustic principle
pressure gradient transducer
Pick-up pattern
cardioid
Sensitivity (free field, no load)
8 mV/Pa
± 2.5 dB (= 62 dB) for 1 kHz
Electrical impedance
approx. 1 k
Min. terminating impedance
approx. 4.7 k
S/N ratio
as per DIN 45 405 /CCIR 468-2
approx. 58 dB
Plug
8-pin as per DIN 45 326,
without pin 4 and 5
Power supply
+ 4 V to + 15 V
pin 8 (DIN 45 594)
0 V
pin 2
AF
pin 1, unbalanced
ground
housing
Luminous ring
lamp 28 V, 40 mA
pin 6 and 7
Weight
approx. 110 g
Dimensions
380 mm x 21 ø mm
Delivery includes
1 microphone
1 pop shield
Subject to alterations. Errors and omissions excepted.
background image
MICROPHONE À CONDENSATEUR COM 1424
Les microphones de la série COM (COM 1424 - 1425) sont des microphones
électrostatiques à polarisation permanente. Ces microphones haut de gamme ont
une directivité cardioide prononcée. Ils sont idéals pour toutes applications dans les
centres de communication et de conférences, dans les hôtels et banques, dans les
organismes publics, dans les écoles, et dans les studios. Le cercle luminescent du
COM 1424 signale clairement le poste en fonctionnement.
CARACTÉRISTIQUES
·
Son de haute qualité grâce à la technique back electrèt
·
Cercle luminescent qui signale clairement le poste en fonctionnement
·
Alimentation 4 à 15 V courant continu
·
Surface noire mate
·
Livraison avec protection anti-pop
CARACTÉRISTIQUES TECHNIQUES
Bande passante
40 - 20.000 Hz
Principe acoustique
capteur à gradient de pression
Directivité
cardioide
Sensibilité
8 mV/Pa
± 2,5 dB (= 62 dB) à 1 kHz
Impédance électrique
environ 1 k
Impédance terminale
environ 4,7 k
Rapport signal/bruit
selon DIN 45 405/CCIR 468-2
environ 58 dB
Fiche
8 pôles selon DIN 45 326, sans pôles 4 et 5
Alimentation
+ 4 V à + 15 V
pôle 8 (DIN 45 594)
0 V
pôle 2
BF
pôle 1, asymétrique
masse
boîtier
Cercle luminescent
lampe 28 V, 40 mA pôles 6 et 7
Poids
environ 110 g
Dimensions
380 mm x 21 ø mm
Livraison
1 microphone
1 protection anti-pop
Sous réserve de modification ou perfectionnement technique. Sauf erreur ou omission.
background image
MICROFONO A CONDENSATORE COM 1424
I microfoni della serie COM 1420 - ..25 sono microfoni a condensatore a polarizzazione
continua con caratteristica di direttività a cardioide per i campi di applicazione:
conferenza, trasmissione sonora e tecnica di studio. Il microfono COM 1424 è
equipaggiato con un diodo luminoso per l'indicazione della disponibilità all'esercizio.
CARATTERISTICHE
·
Elevata qualità del suono grazie alla tecnica a condensatori Back-Elektret
·
Visualizzazione della disponibilità all'esercizio, anello luminoso
·
Alimentazione semplice della corrente da sorgente di tensione continua 4-15 V
·
Carcassa antiriflesso, opaca
·
Protezione antischiocco compresa nella fornitura
DATI TECNICI
Banda di trasmissione
40 - 20000 Hz
Funzionamento acustico
ricevitore a gradiente di pressione
Caratteristica di direttività
cardioide
Sensibilità in campo libero
8 mV/Pa
± 2,5 dB (=62 dB) con 1 kHz
Impedenza elettrica
ca 1 k
Impedenza terminale minima
ca 4,7 k
Rapporto segnale/disturbo
secondo DIN 45 405/CCIR 468-2
ca. 58 dB
Spina:
a 8 poli secondo DIN 45326 senza spinotti 4 e 5
Alimentazione corrente
da +4V a +15V
spinotto 8 (DIN 45594)
0 V
spinotto 2
BF:
spinotto 1 asimmetrico
Massa:
sulla carcassa
Anello luminoso:
lampadina 28 V, 40 mA, spinotti 6 e 7
Peso
ca. 110 g
Dimensioni
380 mm x 21 ø mm
Volume fornitura:
1 microfono
1 protezione Antischiocco MZW1420
Con riserva di modifiche e di errori.
