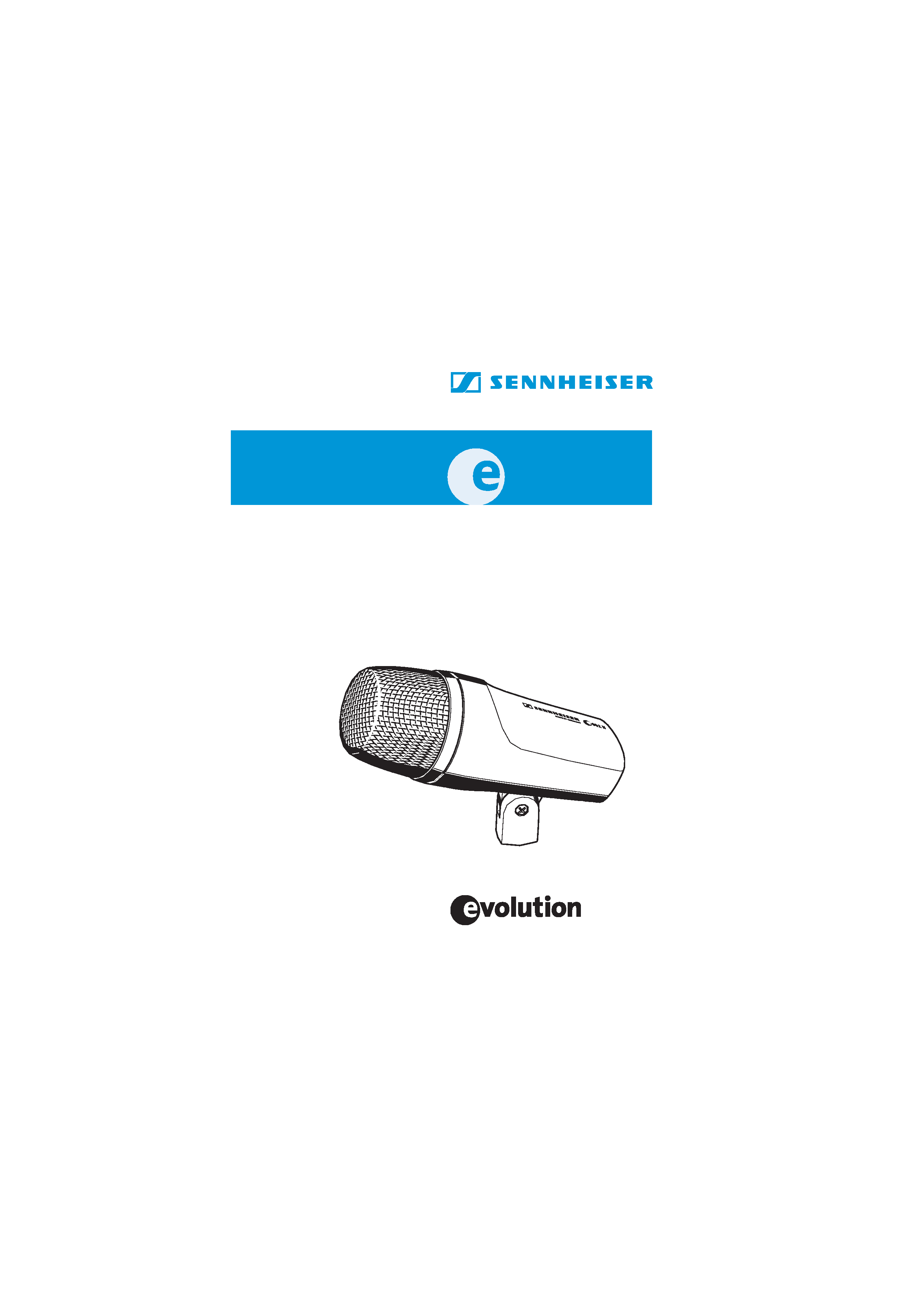

Cover page of SENNHEISER E602-II Owner's Manual

Owner's Manual for SENNHEISER E602-II, downloadable as a PDF file.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 10 pages
  • File size: 0.36 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
602-II
Bedienungsanleitung
Instructions for use
Notice d`emploi
Istruzioni per l`uso
Instrucciones para el uso
Gebruiksaanwijzing
TitelSeite_Sp6.fm Seite 1 Donnerstag, 30. März 2006 1:58 13
background image
602-II
Bedienungsanleitung
Instructions for use
Notice d`emploi
Istruzioni per l`uso
Instrucciones para el uso
Gebruiksaanwijzing
TitelSeite_Sp6.fm Seite 1 Donnerstag, 30. März 2006 1:58 13
background image
3
602-II
The cardioid
602-II is a dynamic microphone especially
suitable for use with kick drums, bass guitar cabs, tubas
and other low frequency instruments.
Its lightweight high-performance voice coil construction
delivers fast transient signals. The low frequency
extension and mid band attenuation produce an ultra-
smooth pre-shaped signal. The microphone is ideal for
direct use on the most problematic bass signal sources.
Features
Rugged, lightweight aluminium body for stable
positioning on long microphone boom arms
Lightweight high-performance voice coil construction
for fast transient response
Low frequency extension
Ideal for direct use on the most problematic bass signal
sources
Frequency-independent directivity provides effective
rejection of incidental rear noise
Humbucking coil
Integral stand mount
e 602 II_US.fm Seite 3 Donnerstag, 30. März 2006 1:50 13
background image
4
Delivery includes
602-II microphone
Pouch
Instructions for use
Warranty Certificate
Removing the sound inlet basket
e 602 II_US.fm Seite 4 Donnerstag, 30. März 2006 1:50 13
background image
5
Positioning the microphone
Kick drums
In order to prevent interference due to crosstalk between
adjacent sound sources, try to position the microphone so
that the interfering sound source is located in the angle
area of the highest cancellation of the microphone
(approx. 180°; see polar diagram).
Position
Resulting sound
Commentary
Much attack,
little resonance,
dry
Position the microphone
at a distance of a few
centimeters from the
batter head.
Less attack,
much resonance,
smooth,
voluminous
Position the microphone
at the level of the
resonant head.
Less attack
Position the microphone
in the middle between
the batter head and the
re-sonant head. For less
attack in all three
positions,
turn the microphone
away from where the
beater strikes.
e 602 II_US.fm Seite 5 Donnerstag, 30. März 2006 1:50 13
background image
6
Polar diagram
Frequency response curve
0°
5
10
15
20
25
dB
30°
60°
90°
30°
60°
90°
120°
150°
180°
150°
120°
2000 Hz
4000 Hz
8000 Hz
16000 Hz
125 Hz
250 Hz
500 Hz
1000 Hz
0
- 50
- 60
- 70
- 80
- 90
20
50
100
200
500
1000 2000
5000 10000 20000 Hz
0°, 1 m
0°, 5 cm
- 40
dBv
e 602 II_US.fm Seite 6 Donnerstag, 30. März 2006 1:50 13
