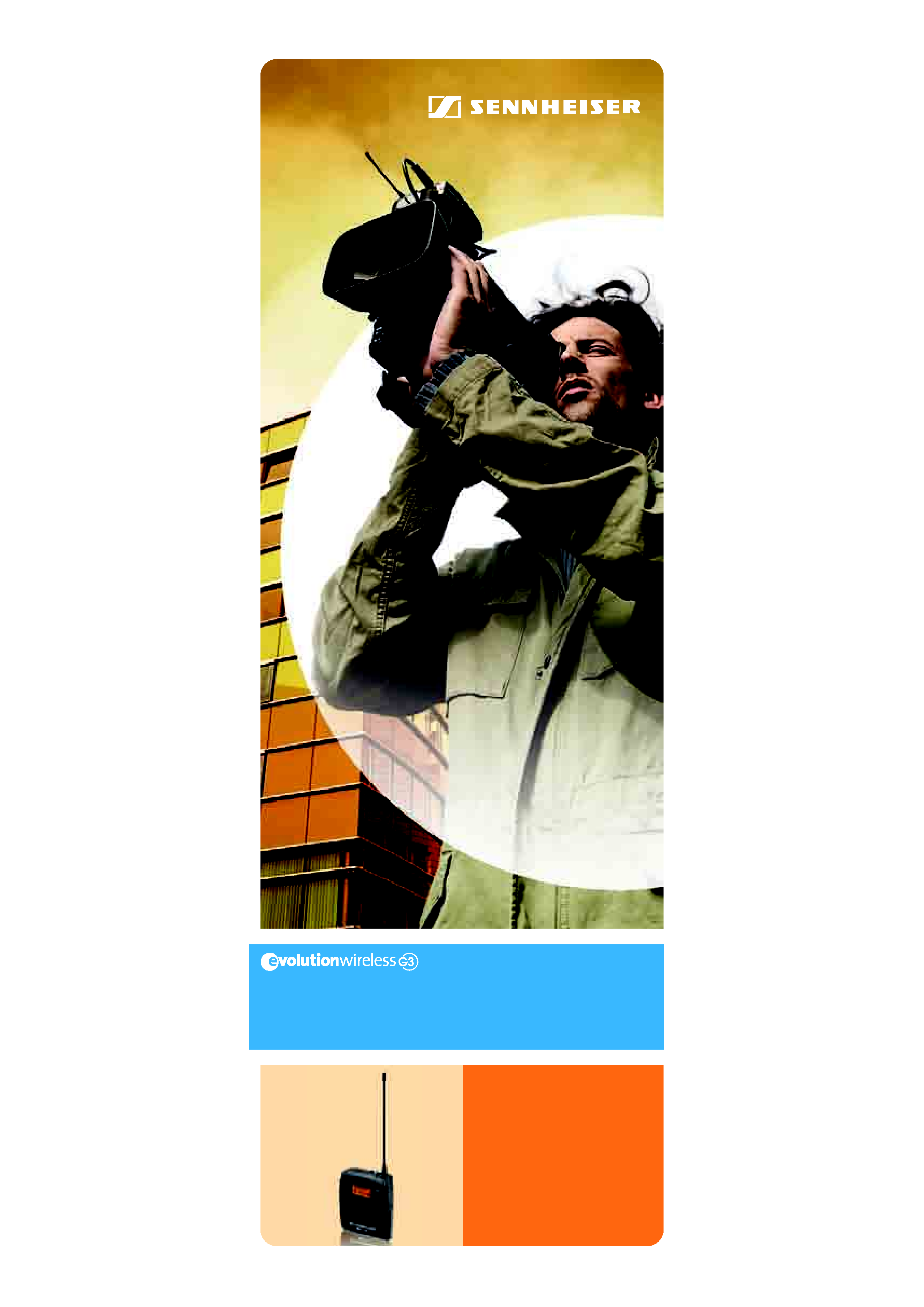

Cover page of SENNHEISER EK 100 G3 Owner's Manual

Owner's Manual for SENNHEISER EK 100 G3, downloadable as a PDF file.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 28 pages
  • File size: 4.91 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
Instrucciones de uso
Manual de instruções
Instruction manual
Notice d'emploi
Instruction manual
Istruzioni per l'uso
Gebruiksaanwijzing
EK 100
C
M
Y
CM
MY
CY
CMY
K
background image
Instrucciones de uso
Manual de instruções
Instruction manual
Notice d'emploi
Instruction manual
Istruzioni per l'uso
Gebruiksaanwijzing
EK 100
C
M
Y
CM
MY
CY
CMY
K
background image
1
Contents
Important safety instructions .......................................................................... 2
The EK 100 G3 diversity receiver ..................................................................... 3
The frequency bank system .......................................................................... 3
Areas of application ........................................................................................ 4
Delivery includes .................................................................................................. 4
Product overview ................................................................................................. 5
Overview of the EK 100 G3 diversity receiver ............................................ 5
Overview of the displays ................................................................................ 6
Putting the diversity receiver into operation ............................................... 7
Inserting the batteries/accupack ................................................................. 7
Charging the accupack .................................................................................... 7
Mounting the diversity receiver to a camera ............................................ 7
Using the diversity receiver .............................................................................. 9
Switching the diversity receiver on/off ..................................................... 9
Deactivating the lock mode temporarily ................................................. 10
Selecting a standard display ..................................................................... 10
Using the operating menu ............................................................................. 11
The buttons .................................................................................................... 11
Overview of the operating menu ............................................................... 11
Working with the operating menu ............................................................ 12
Adjusting settings via the operating menu .............................................. 14
The main menu "Menu" .............................................................................. 14
The extended menu "Advanced Menu" ................................................... 16
Synchronizing a transmitter with the diversity receiver ........................ 19
Cleaning the diversity receiver ..................................................................... 21
Recommendations and tips ........................................................................... 21
If a problem occurs ... ....................................................................................... 22
Accessories ......................................................................................................... 23
Specifications .................................................................................................... 23
Manufacturer Declarations ............................................................................. 24
Index .................................................................................................................... 26
For further information, visit the EK 100 G3 product page on
our website at www.sennheiser.com.
background image
2
Important safety instructions
Important safety instructions
· Read this instruction manual.
· Keep this instruction manual. Always include this instruction manual
when passing the product on to third parties.
· Heed all warnings and follow all instructions in this instruction manual.
· Use only a cloth for cleaning the product.
· Do not place the product near any heat sources such as radiators, stoves,
or other devices (including amplifiers) that produce heat.
· Only use attachments/accessories specified by Sennheiser.
· Refer all servicing to qualified service personnel.
Servicing is required if the product has been damaged in any way, liquid
has been spilled, objects have fallen inside, the product has been
exposed to rain or moisture, does not operate properly or has been
dropped.
· WARNING: To reduce the risk of short circuits, do not use the product
near water and do not expose it to rain or moisture.
Replacement parts
When replacement parts are required, be sure the service technician
uses replacement parts specified by Sennheiser or those having the same
characteristics as the original part. Unauthorized substitutions may result
in fire, electric shock, or other hazards.
Intended use
Intended use of the EK 100 G3 diversity receiver includes:
· having read these instructions especially the chapter "Important safety
instructions",
· using the product within the operating conditions and limitations
described in this instruction manual.
"Improper use" means using the product other than as described in this
instruction manual, or under operating conditions which differ from those
described herein.
background image
3
The EK 100 G3 diversity receiver
The EK 100 G3 diversity receiver
This diversity receiver is part of the evolution wireless series generation 3
(ew G3). With this series, Sennheiser offers high-quality state-of-the-art
RF transmission systems with a high level of operational reliability and
ease of use. Transmitters and receivers permit wireless transmission with
studio-quality sound.
Features of the evolution wireless 100 G3 series:
· Optimized PLL synthesizer and microprocessor technology
· HDX noise reduction system
· Adaptive diversity technology
· Switching bandwidth of 42 MHz
· Scan function (Easy Setup) for scanning the frequency banks for unused
channels
Adaptive diversity
This diversity receiver uses the ground connection of the line cable as its
second antenna to provide improved reception.
The frequency bank system
The diversity receiver is available in 6 UHF frequency ranges with
1,680 receiving frequencies per frequency range:
Each frequency range (A­E, G) offers 21 frequency banks with up to
12 channels each:
Each of the channels in the frequency banks "1" to "20" has been factory-
preset to a fixed receiving frequency (frequency preset). The factory-
preset frequencies within one frequency bank are intermodulation-free.
These frequencies cannot be changed.
For an overview of the frequency presets, please refer to the supplied
frequency information sheet. Updated versions of the frequency informa-
tion sheet can be downloaded from the EK 100 G3 product page on our
website at www.sennheiser.com.
The frequency bank "U" allows you to freely select and store receiving
frequencies. It might be that these receiving frequencies are not intermod-
ulation-free (see page 19).
516 ­ 558
566 ­ 608
626 ­ 668
734 ­ 776
780 ­ 822
823 ­ 865
Range A:
Range G:
Range B:
Range C:
Range D:
Range E:
Frequency bank 1 ... 20
Frequency bank U
Channel 12 ­ frequency preset
Channel 1 ­ frequency preset
Channel 2 ­ frequency preset
Channel 12 ­ freely selectable frequency
Channel 1 ­ freely selectable frequency
Channel 2 ­ freely selectable frequency
background image
4
Delivery includes
Areas of application
The receiver can be combined with the following transmitters:
These transmitters are available in the same UHF frequency ranges and
are equipped with the same frequency bank system with factory-preset
frequencies. An advantage of the factory-preset frequencies is that
· a transmission system is ready for immediate use after switch-on,
· several transmission systems can be operated simultaneously on the
preset frequencies without causing intermodulation interference.
Delivery includes
The packaging contains the following items:
1 EK 100 G3 diversity receiver
2 AA size batteries, 1.5 V
1 CA 2 camera adapter
1 CL 100 line cable
1 CL 1 line cable
1 instruction manual
1 frequency information sheet
Bodypack
transmitter
Radio microphone
Plug-on
transmitter
SK 100
SKM 100
SKP 100
