SENNHEISER MKE 1 Owner's Manual

Cover page of SENNHEISER MKE 1 Owner's Manual

Owner's Manual for SENNHEISER MKE 1, downloadable as a PDF file.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 16 pages
  • File size: 0.57 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
Deutsch
English
Français
Italiano
Español
Neder-
lands
MKE 1
Instructions for use
background image
Deutsch
English
Français
Italiano
Español
Neder-
lands
MKE 1
Instructions for use
background image
background image
1
Contents
MKE 1 ............................................................................ 2
Features ............................................................................ 2
Delivery includes ............................................................. 2
Treble boost...................................................................... 3
Make-up protection ........................................................ 3
Attachment of the microphone.................................... 4
Attachment to the body ................................................ 4
Attachment to clothing.................................................. 4
Wind protection............................................................... 7
Free-field frequency response curve ........................... 7
Specifications ............................................................... 8
Accessories and spare parts ................................... 10
Manufacturer Declarations ..................................... 11
background image
2
MKE 1
The MKE 1 is a high-quality, sub-miniature, sweat-
resistant clip-on condenser microphone. It features
excellent sound quality and rugged design. The
frequency response curve has been optimized for
stage, studio and reporting applications (ENG). The
MKE 1 is fitted with a very thin (only 1 mm) yet
extremely rugged cable, making this microphone an
ideal partner for all live sound applications.
Features
Sub-miniature microphone
High maximum sound pressure level
Wide frequency response with adaptable treble
response
Thin (only 1 mm), flexible and rugged cable, low
in handling noise
Very insensitive to the penetration of sweat due
to a special protective "umbrella" diaphragm
Delivery includes
1 MKE 1 microphone
1 MZC 1-1 frequency response cap, small
1 MZC 1-2 frequency response cap, large
3 make-up protectors
1 instruction manual
background image
3

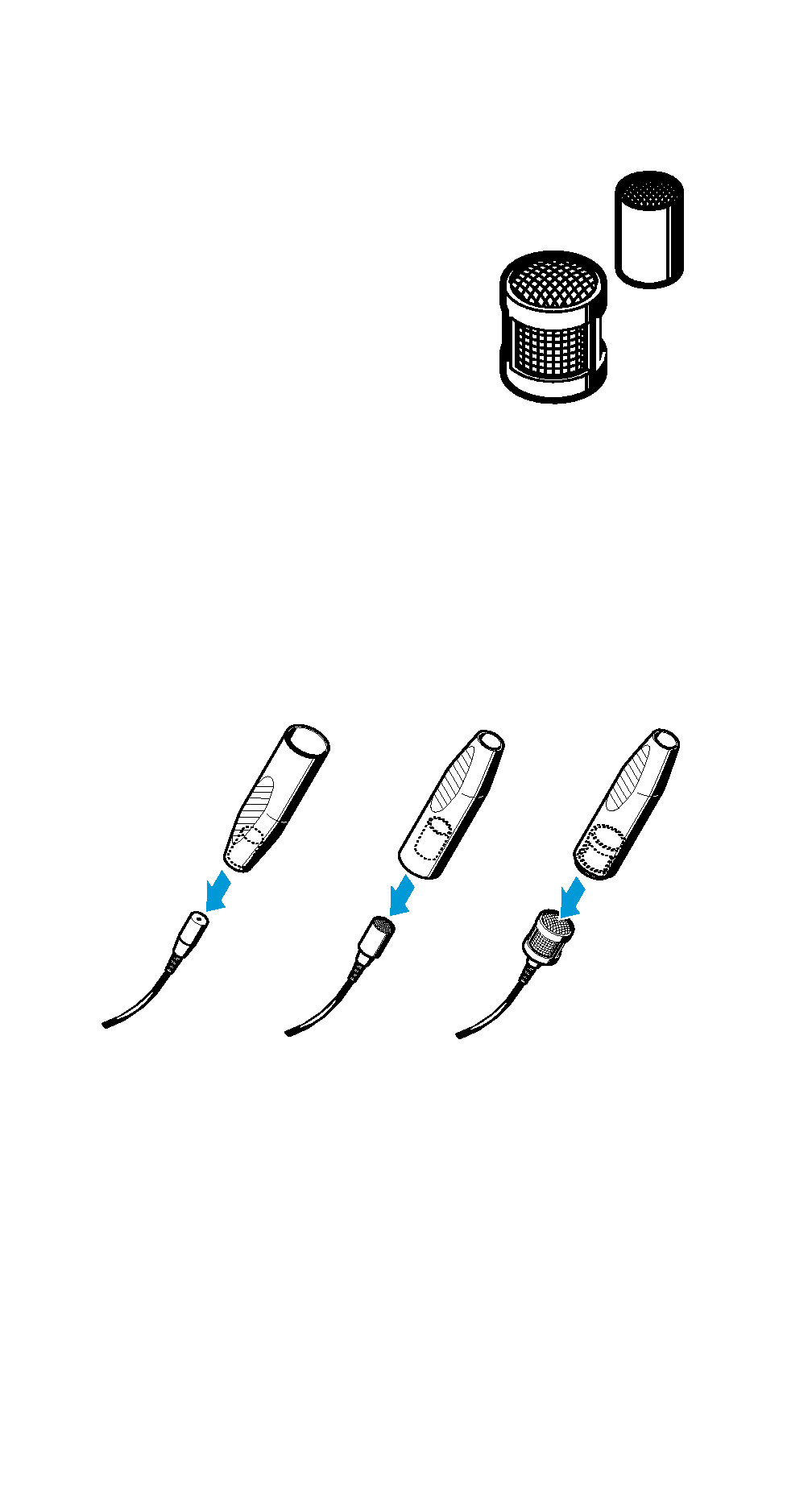

Treble boost
Your microphone is supplied
with two different frequency
response caps.
These caps allow you to adjust
the treble response of the
microphone
(see
"Free-field
frequency response curve" on
page 7). In addition, the large
frequency response cap attenuates wind noise by
approx. 15 dB and provides an extended protection
against the ingress of moisture.
Slip the cap of your choice onto the microphone until
it locks into place.
Make-up protection
When putting on make-up, protect the MKE 1 by
using the make-up protector. The make-up protector
is easy to install: just slip it onto the microphone
(with or without frequency response cap). The make-
up protector prevents make-up and hair spray from
penetrating the microphone.
Only remove the make-up protector after make-up
haas been completed.
MZC 1-1
MZC 1-2
