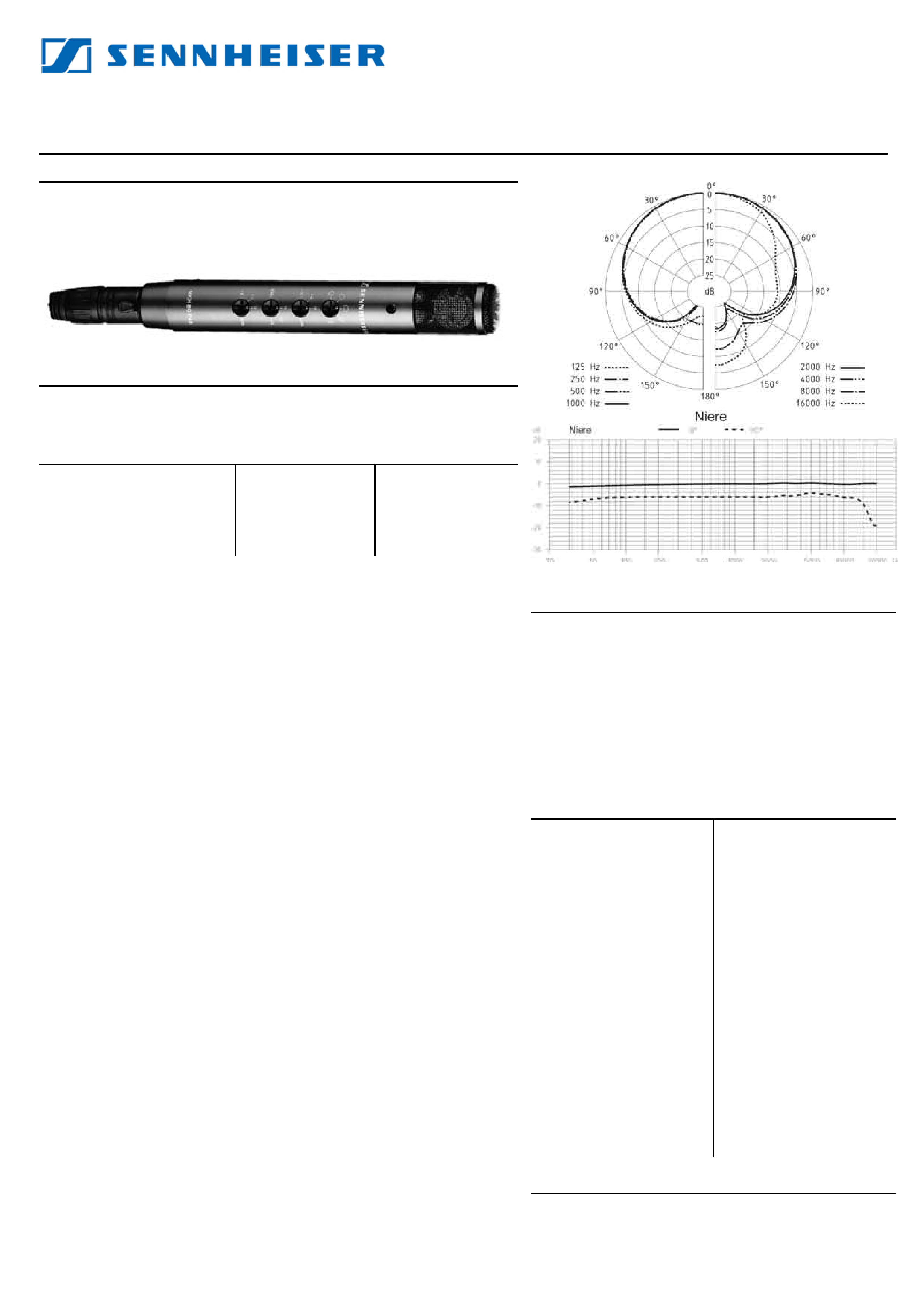

Microphones 4
RF condenser microphone (variable pattern)
MKH 80-P48
Publ.: 30.10.2003
Cat. No. 03004
Description
Features
- Wide, flat frequency response
- Extended low frequency response
- Exceptionally low inherent self-noise
- Wide dynamic range
- Switchable pre-attenuation, switchable roll-off filter
and switchable treble emphasis
- Transformerless and fully floating balanced output
- LED for on-axis alignment
- Haematite-anodised light metal body
Technical data
Pick-up pattern
omni-
directional...cardioid...fig.
eight
Sensitivity in free field, no
load (1kHz)
40 mV/Pa +- 1 dB
Nominal impedance
150 Ohm
Min. terminating
impedance
1000 Ohm
Equivalent noise level
10 dB
Equivalent noise level
weighted as per CCIR
468-3
20 dB
Power supply
Phantom 48 +- 4 V
Current consumption
3 mA
Dimensions
d 26,7 x 176 mm
Weight
135 g
Profile
Studio microphone with 5 switchable pick-up patterns
(omni-directional,
wide
cardioid,
cardioid,
super-cardioid,
figure-of-eight),
switchable
The MKH 80 is a variable pattern condenser microphone with five
switchable pick-up patterns. It is a superior microphone for any
recording application, offering high clarity and the absolute minimum
colouration. It is visually unobtrusive due to its compact design.
Delivery includes
1 MKH 80 P 48, 1 MZS 80 shock mount,
1 MZW 80 windshield
Recommended Accessories
Battery power supply unit
MZA 14 P 48 U
Cat. No.02960
Foam windshield
MZW 80-ANT
Cat. No.03780
Shock mount
MZS 80
Cat. No.03685
Popshield
MZP 40
Cat. No.03132
background image
Microphones 4
RF condenser microphone (variable pattern)
MKH 80-P48
Publ.: 30.10.2003
Cat. No. 03004
Description
Features
- Wide, flat frequency response
- Extended low frequency response
- Exceptionally low inherent self-noise
- Wide dynamic range
- Switchable pre-attenuation, switchable roll-off filter
and switchable treble emphasis
- Transformerless and fully floating balanced output
- LED for on-axis alignment
- Haematite-anodised light metal body
Technical data
Pick-up pattern
omni-
directional...cardioid...fig.
eight
Sensitivity in free field, no
load (1kHz)
40 mV/Pa +- 1 dB
Nominal impedance
150 Ohm
Min. terminating
impedance
1000 Ohm
Equivalent noise level
10 dB
Equivalent noise level
weighted as per CCIR
468-3
20 dB
Power supply
Phantom 48 +- 4 V
Current consumption
3 mA
Dimensions
d 26,7 x 176 mm
Weight
135 g
Profile
Studio microphone with 5 switchable pick-up patterns
(omni-directional,
wide
cardioid,
cardioid,
super-cardioid,
figure-of-eight),
switchable
The MKH 80 is a variable pattern condenser microphone with five
switchable pick-up patterns. It is a superior microphone for any
recording application, offering high clarity and the absolute minimum
colouration. It is visually unobtrusive due to its compact design.
Delivery includes
1 MKH 80 P 48, 1 MZS 80 shock mount,
1 MZW 80 windshield
Recommended Accessories
Battery power supply unit
MZA 14 P 48 U
Cat. No.02960
Foam windshield
MZW 80-ANT
Cat. No.03780
Shock mount
MZS 80
Cat. No.03685
Popshield
MZP 40
Cat. No.03132
background image
Microphones 4
RF condenser microphone (variable pattern)
MKH 80-P48
Publ.: 30.10.2003
Cat. No. 03004
Description
pre-attenuation,
switchable
roll-off
filter
and
switchable treble emphasis. Frequency response 30 -
20,000 Hz, sensitivity (free field, no load) 40 mV/Pa ±
1 dB at 1 kHz, nominal impedance 150 Ohm, min.
terminating impedance 1 kOhm, equivalent noise
level A-weighted 10 dB, CCIR-weighted 20 dB, max.
sound pressure level 136 (142) dB at 1 kHz, phantom
powering
48 ± 4 V, supply current 3 mA, dimensions Ø 26.7 x
176 mm, weight 135 g. Values in parentheses with
attenuator switched on (6/12 dB).
The MKH 80 is a variable pattern condenser microphone with five
switchable pick-up patterns. It is a superior microphone for any
recording application, offering high clarity and the absolute minimum
colouration. It is visually unobtrusive due to its compact design.
Delivery includes
1 MKH 80 P 48, 1 MZS 80 shock mount,
1 MZW 80 windshield
Recommended Accessories
Battery power supply unit
MZA 14 P 48 U
Cat. No.02960
Foam windshield
MZW 80-ANT
Cat. No.03780
Shock mount
MZS 80
Cat. No.03685
Popshield
MZP 40
Cat. No.03132
