SENNHEISER MX 680 SPORTS Owner's Manual

Cover page of SENNHEISER MX 680 SPORTS Owner's Manual

Owner's Manual for SENNHEISER MX 680 SPORTS, downloadable as a PDF file.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 8 pages
  • File size: 0.82 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
Printed in China
Publ. 10/09, A01
Instruction manual
MX 680 SPORTS
background image
Printed in China
Publ. 10/09, A01
Instruction manual
MX 680 SPORTS
background image
1
Important safety instructions
In order to prevent damage to health:
Set the volume to a low level before
inserting the earphones into your ears!
Avoid listening at high volume levels
for long periods of time.
The earphones contain magnets that
generate a magnetic field which could
cause interference with cardiac pace-
makers and implanted defibrillators.
Keep the earphones at least 1.2"
(3 cm) from cardiac pacemakers or
implanted defibrillators.
In order to prevent accidents:
Do not wear the earphones in an envi-
ronment that requires your special
attention (e.g. in traffic).
Keep the earphones and accessory
parts out of reach of children.
In order to prevent damage to the
earphones:
Do not heat the earphones (hairdryer,
heating, extended exposure to sun-
light, etc.).
Do not store wet earphones in a bag.
Specifications
Frequency response 18 to 20,000 Hz
SPL
118 dB
(1kHz/1Vrms)
Impedance
16
Weight
Approx. 12 g
background image
2
Delivery includes
1 pair of MX 680 Sports earphones
1 extension cable with volume control
1cable clip
1 storage pouch
1 instruction manual
Sound quality and
correct fit
Use the earphones:
With EarFins during sports activities
Without EarFins during normal daily
use
To ensure a comfortable fit and the best
possible sound performance, adapt the
earphones to your ear using the supplied
ear pads. Place the earphones as close as
possible in front of your ear canals.
1 pair of foam ear pads
2 pairs of ear sleeves
(size S and L)
2 pairs of air cushion
adapters
(size S and L)
3 pairs of EarFins
(size S, M and L)
1 pair of housing rings
WARNING Hearing damage due to
high volumes!
Listening at high volume
levels for long periods can
lead to permanent hearing
defects.
Avoid listening at high
volume levels for long
periods of time.
background image
3

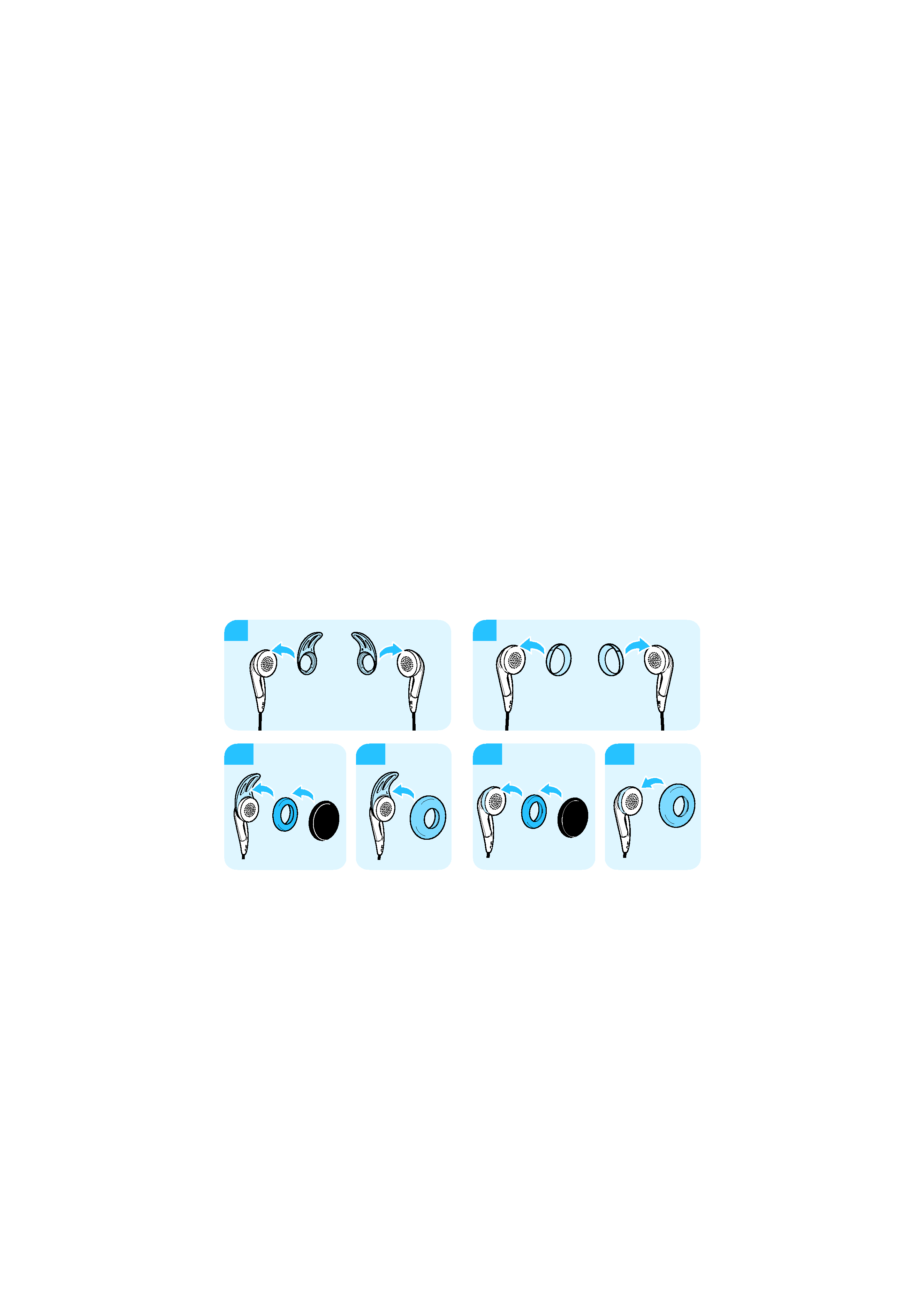

Sports adjustment with EarFins
To ensure that the earphones are
securely seated during sports activities:
Select the correct size of EarFins and
attach them to the earphones (
1).
Observe the "
L" (left) and "R" (right)
markings
on
the
earphones
and
EarFins.
Choose between the solid ear sleeves
with the foam ear pads (
2a) or the air
cushion adapters (
2b) and attach
them to the earphones.
Normal adjustment without EarFins
To adjust the earphones for daily use:
Select the housing rings and attach
them to the earphones (
1).
Choose between the solid ear sleeves
with the foam ear pads (
2a) or the air
cushion adapters (
2b) and attach
them to the earphones.
R
L
1
2a
2b
S/L
S/L
S/M/L
a
R
L
1
2a
2b
S/L
S/L
background image
4
Inserting into the ears
To use the earphones with EarFins:
Slightly press the EarFins down.
With the EarFins pressed down, insert
the earphones into your ear.
Release the EarFins and position the
eaphones so that a comfortable and
snug fit is ensured.
1
R
L
2
R
L
Accessory
parts
are
available
from your
Sennheiser
partner.
To find your Sennheiser partner,
please
visit
our
website
at
www.sennheiser.com > Service &
Support > Service Partners.
L
3
R
