SENNHEISER SK 100 G3 Owner's Manual

Cover page of SENNHEISER SK 100 G3 Owner's Manual

Owner's Manual for SENNHEISER SK 100 G3, downloadable as a PDF file.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 40 pages
  • File size: 5.64 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
SK 100
Instruction manual
background image
SK 100
Instruction manual
background image
1
Contents
Contents
Important safety instructions ................................................. 2
The SK 100 G3 bodypack transmitter.................................... 3
The frequency bank system............................................... 3
Areas of application............................................................. 4
Delivery includes.........................................................................5
Product overview........................................................................ 6
Overview of the SK 100 G3 bodypack transmitter........ 6
Overview of the displays .................................................... 7
Putting the bodypack transmitter into operation..............8
Inserting the batteries/accupack...................................... 8
Charging the accupack ....................................................... 8
Connecting the microphone cable/instrument cable.... 8
Attaching and positioning the microphones ................. 9
Attaching the bodypack transmitter to clothing ...... 10
Using the bodypack transmitter.......................................... 11
Switching the bodypack transmitter on/off ............... 11
Deactivating the lock mode temporarily...................... 12
Muting the audio signal or deactivating
the RF signal....................................................................... 13
Selecting a standard display........................................... 15
Using the operating menu..................................................... 16
The buttons ........................................................................ 16
Overview of the operating menu .................................. 17
Working with the operating menu ............................... 18
Adjusting settings via the operating menu ...................... 20
The main menu "Menu"................................................... 20
The extended menu "Advanced Menu"........................ 23
Synchronizing the bodypack transmitter
with a receiver.......................................................................... 26
Synchronizing the bodypack transmitter
with the receiver ­ individual operation ...................... 26
Synchronizing bodypack transmitters
with receivers ­ multi-channel operation .................... 26
Cleaning the bodypack transmitter .................................... 27
Recommendations and tips .................................................. 28
If a problem occurs ... ............................................................. 29
Accessories and spare parts.................................................. 30
Specifications............................................................................ 31
Connector assignment ..................................................... 32
Polar diagrams and frequency response curves
of the microphones........................................................... 33
Manufacturer Declarations.................................................... 34
Index ........................................................................................... 36
An animated instruction manual can be viewed
on the SK 100 G3 product page on our website
at www.sennheiser.com.
background image
2
Important safety instructions
Important safety instructions
·
Read this instruction manual.
·
Keep this instruction manual. Always include this
instruction manual when passing the product on to third
parties.
·
Heed all warnings and follow all instructions in this
instruction manual.
·
Use only a cloth for cleaning the product.
·
Do not place the product near any heat sources such as
radiators, stoves, or other devices (including amplifiers)
that produce heat.
·
Only
use
attachments/accessories
specified
by
Sennheiser.
·
Refer all servicing to qualified service personnel.
Servicing is required if the product has been damaged in
any way, liquid has been spilled, objects have fallen
inside, the product has been exposed to rain or mois-
ture, does not operate properly or has been dropped.
·
WARNING: To reduce the risk of short circuits, do not use
the product near water and do not expose it to rain or
moisture.
Replacement parts
When replacement parts are required, be sure the service
technician uses replacement parts specified by Sennheiser
or those having the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric
shock, or other hazards.
Intended use
Intended use of the ew 100 G3 series products includes:
·
having read these instructions especially the chapter
"Important safety instructions",
·
using the products within the operating conditions and
limitations described in this instruction manual.
"Improper use" means using the products other than as
described in this instruction manual, or under operating
conditions which differ from those described herein.
background image
3
The SK 100 G3 bodypack transmitter
The SK 100 G3 bodypack
transmitter
This bodypack transmitter is part of the evolution wireless
series generation 3 (ew G3). With this series, Sennheiser
offers
high-quality
state-of-the-art
RF
transmission
systems with a high level of operational reliability and ease
of use. Transmitters and receivers permit wireless transmis-
sion with studio-quality sound.
Features of the evolution wireless 100 G3 series:
·
Optimized PLL synthesizer and microprocessor
technology
·
HDX noise reduction system
·
Pilot tone squelch control
·
True diversity technology
·
Switching bandwidth of 42 MHz
·
Increased immunity to intermodulation and
interferences in multi-channel operation
The frequency bank system
The bodypack transmitter is available in 6 UHF frequency
ranges with 1,680 transmission frequencies per frequency
range:
Each frequency range (A­E, G) offers 21 frequency banks
with up to 12 channels each:
Each of the channels in the frequency banks "1" to "20"
has been factory-preset to a fixed frequency (frequency
preset).
The factory-preset frequencies within one frequency bank
are intermodulation-free. These frequencies cannot be
changed.
516 ­ 558
566 ­ 608
626 ­ 668
734 ­ 776
780 ­ 822
823 ­ 865
Range A:
Range G:
Range B:
Range C:
Range D:
Range E:
Frequency bank
1... 20
Frequency bank
U
Channel
12 ­ frequency preset
Channel
1 ­ frequency preset
Channel
2 ­ frequency preset
Channel
12 ­ freely selectable frequency
Channel
1 ­ freely selectable frequency
Channel
2 ­ freely selectable frequency
background image
4
The SK 100 G3 bodypack transmitter
For an overview of the frequency presets, please refer to the
supplied frequency information sheet. Updated versions of
the frequency information sheet can be downloaded from
the
SK 100 G3
product
page
on
our
website
at
www.sennheiser.com.
The frequency bank "U" allows you to freely select and
store frequencies. It might be that these frequencies are
not intermodulation-free.

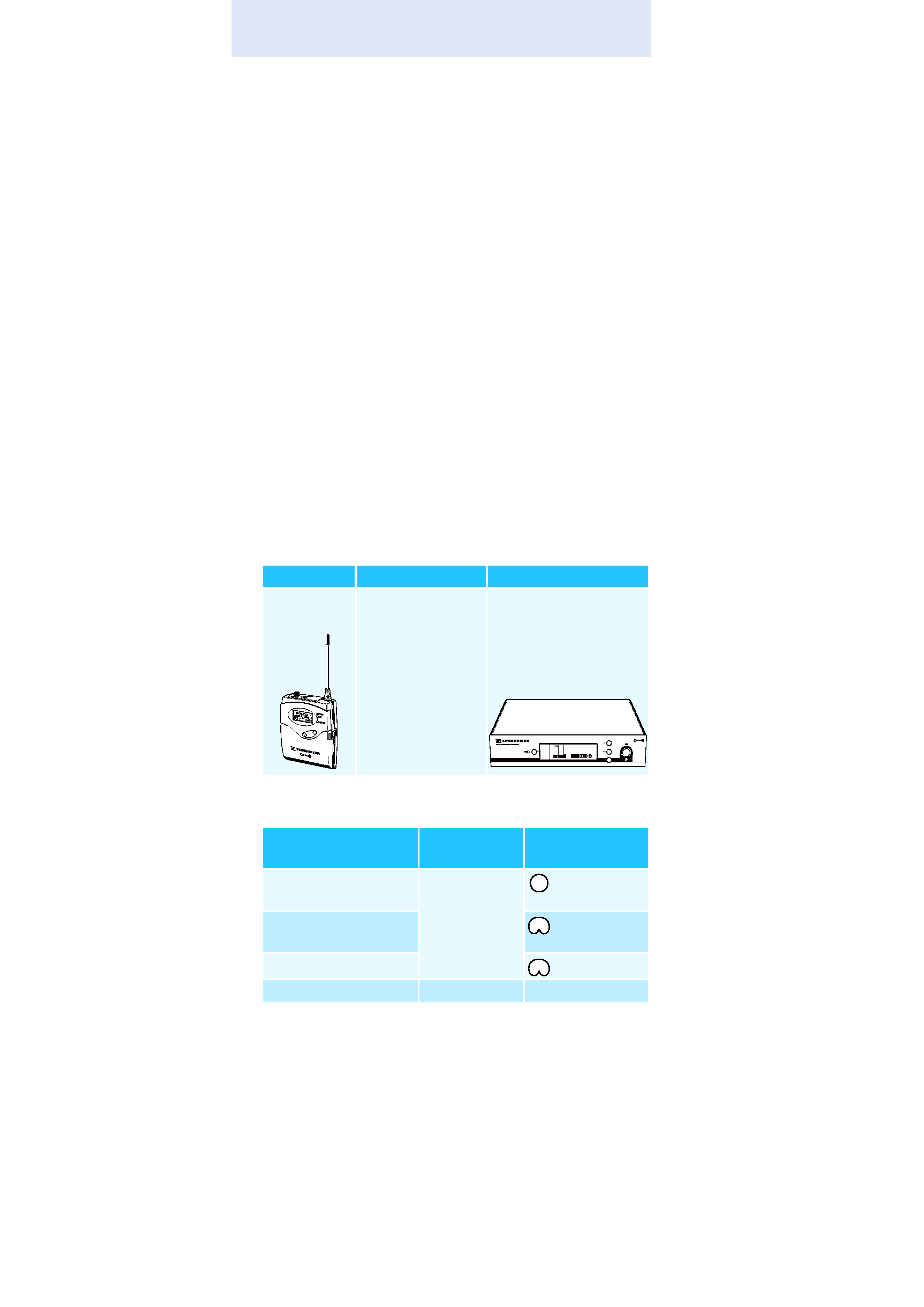

Areas of application
The bodypack transmitter can be combined with the
EM 100 G3 stationary receiver.
The EM 100 G3 stationary receiver is available in the same
UHF frequency ranges and is equipped with the same
frequency bank system with factory-preset frequencies.
This has the advantage that
·
a transmission system is ready for immediate use after
switch-on,
·
several transmission systems can be operated simulta-
neously on the preset frequencies without causing
intermodulation interference.
Overview of the microphones and instrument cables:
Transmitter Combinable with
Receiver
SK 100 G3
·
Clip-on micro-
phones:
ME 2, ME 4
·Headmics:
ME 3
·Instrument
cable:
CI 1
EM 100 G3
Microphone/
instrument cable
Microphone
type
Pick-up pattern
ME 2 clip-on
microphone
pre-polarized
condenser
microphone
­ omni
ME 4 clip-on
microphone
­ cardioid
ME 3 headmic
­ cardioid
CI 1 instrument cable
­
­
533.875
ew100 G3
20.12
PEAK
MUTE
-10
0
40
25
10 -20
-30
AF
RF
MHz
SET
P
