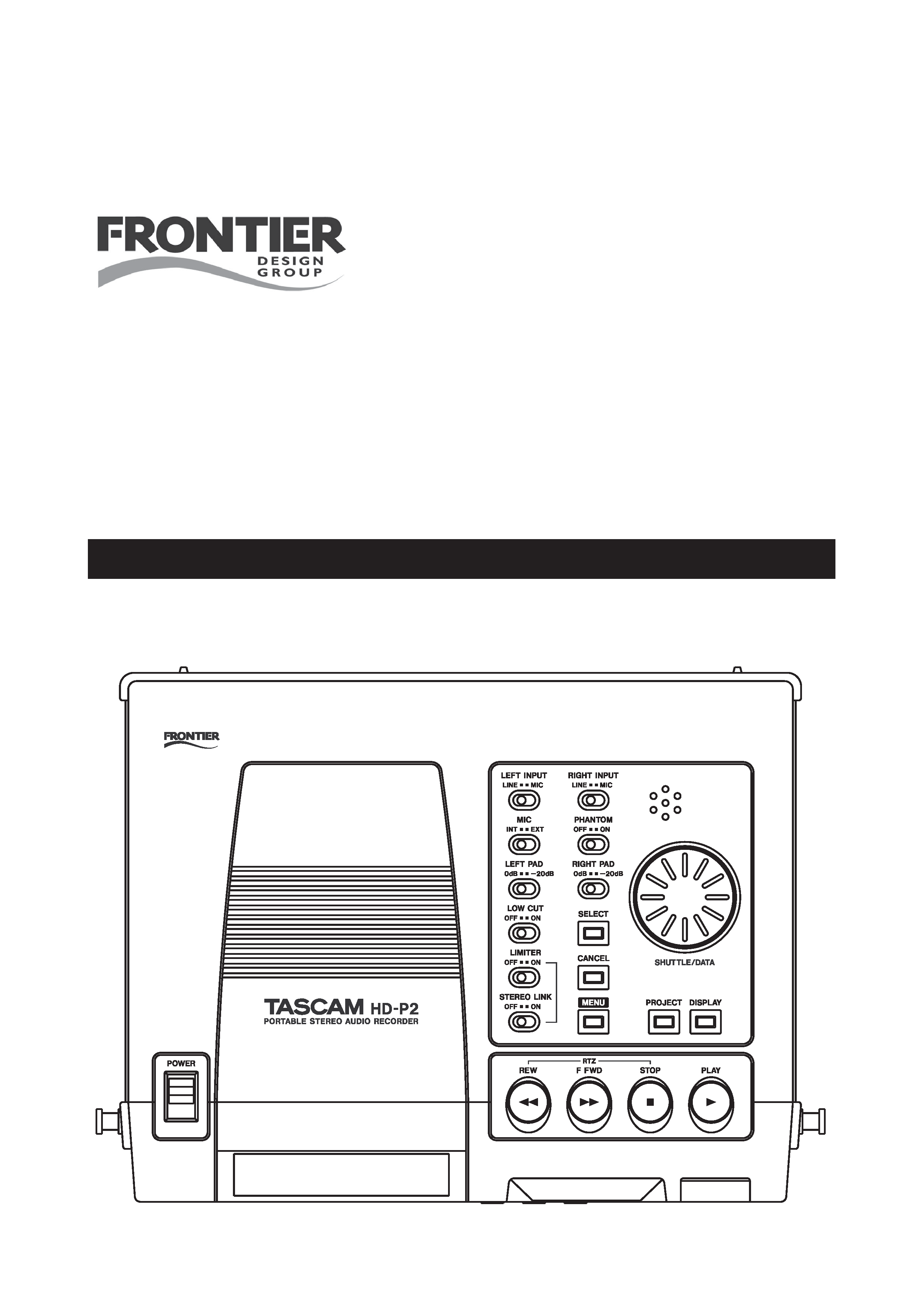

D00895120A

HD-P2

Portable Stereo Audio Recorder

OWNER'S MANUAL

D00895120A

HD-P2

Portable Stereo Audio Recorder

OWNER'S MANUAL

2 TASCAM HD-P2 Owner's Manual

Important Safety Precautions

The exclamation point within an equilateral triangle is intended to alert the user to

the presence of important operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

The lightning flash with arrowhead symbol, within equilateral triangle, is intended

to alert the user to the presence of uninsulated "dangerous voltage" within the

product's enclosure that may be of sufficient magnitude to constitute a risk of

electric shock to persons.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

WARNING: TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

This appliance has a serial number

located on the rear panel. Please record

the model number and serial number and

retain them for your records.

Model number

Serial number

For the customers in Europe

WARNING

This is a Class A product. In a domestic environment,

this product may cause radio interference in which

case the user may be required to take adequate

measures.

Pour les utilisateurs en Europe

AVERTISSEMENT

I l s ' a g i t d ' u n p r o d u i t d e C l a s s e A . D a n s u n

environnement domestique, cet appareil peut

provoquer des interférences radio, dans ce cas

l'utilisateur peut être amené à prendre des mesures

appropriées.

Für Kunden in Europa

Warnung

Dies ist eine Einrichtung, welche die Funk-Entstö

rung nach Klasse A besitzt. Diese Einrichtung kann

im Wohnbereich Funkstörungen versursachen; in

diesem Fall kann vom Betrieber verlang werden,

angemessene Maßnahmen durchzuführen und dafür

aufzukommen.

TO THE USER

This equipment has been tested and found to comply

with the limits for a Class A digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful

interference when the equipment is operated in a

commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and,

if not installed and used in accordance with the

instruction manual, may cause harmful interference to

radio communications.

Operation of this equipment in a residential area is

likely to cause harmful interference in which case the

user will be required to correct the interference at his

own expense.

CAUTION

Changes or modifications to this equipment not

expressly approved by TEAC CORPORATION for

compliance could void the user's authority to operate

this equipment.

For U.S.A.

CE Marking Information

a) Applicable electromagnetic environment:

E2, E3, E4

b) Peak inrush current: 600 mA

TASCAM HD-P2 Owner's Manual

Important Safety Instructions

1 Readtheseinstructions.

2 Keeptheseinstructions.

3 Heedallwarnings.

4 Followallinstructions.

5 Donotusethisapparatusnearwater.

6 Cleanonlywithdrycloth.

7 Do not block any ventilation openings. Install in

accordancewiththemanufacturer'sinstructions.

8 Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9 Donotdefeatthesafetypurposeofthepolarizedor

grounding-typeplug.Apolarizedplughastwoblades

withonewiderthantheother.Agroundingtypeplug

hastwobladesandathirdgroundingprong.Thewide

bladeorthethirdprongareprovidedforyoursafety.If

the provided plug does not fit into your outlet, consult

anelectricianforreplacementoftheobsoleteoutlet.

10 Protect the power cord from being walked on

or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the

apparatus.

11 Only use attachments/accessories specified by the

manufacturer.

12 Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when

movingthecart/apparatuscombinationtoavoidinjury

fromtip-over.

13 Unplug this apparatus during lightning storms or

whenunusedforlongperiodsoftime.

14 Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has

been exposed to rain or moisture, does not operate

normally,orhasbeendropped.

· Donotexposethisapparatustodripsorsplashes.

· Do not place any objects filled with liquids, such as

vases,ontheapparatus.

· Donotinstallthisapparatusinaconfinedspacesuch

asabookcaseorsimilarunit.

· The apparatus draws nominal non-operating power

from the AC outlet with its POWER switch in the off

position.

· The apparatus should be located close enough to the

ACoutletsothatyoucaneasilygraspthepowercord

plugatanytime.

· An apparatus with Class I construction shall be

connectedtoanACoutletwithaprotectivegrounding

connection.

CAUTION

When using the HD-P2, only use the AC adapter

and cable supplied.

Do not use the supplied AC adapter and cable

with any other product.

Batteries

Ifbatteriesareusedimproperly,orifleakageorbreak-

ageoccurs,theunitwillnotfunction.Pleaseobservethe

cautionsindicatedonthebatteriesandtheirpackagingto

ensureproperusage.

Whenloadingbatteriesintothisproduct,rememberthefol-

lowing:

· Wheninsertingbatteriesbesureoftheirdirection(po-

larity). Refer to the diagram inside the battery compart-

ment.

· Do not combine batteries of different types or specifica-

tionstogether.

· Donotuseanoldbatterytogetherwithanewone.

Whennecessary,changeallbatteriesatthesametime

withanewset.

· Iftheproductisnotusedoveralengthyperiod,remove

thebatteriestoeliminatethepossibilityofbatteryleak-

agewhichwouldresultindamagetotheunit.

· Donotattempttorechargebatteriesthatarenon-re-

chargeable.

Trademarks

WindowsandWindowsXParetrademarksofMicro-

softCorporation.

Macintosh,MacOS10.3andhigher,andFireWireare

trademarksofAppleComputer.

CompactFlashisatrademarkofSanDiskCorpora-

tion.

MicrodriveisatrademarkofIBMCorporation.

4 TASCAM HD-P2 Owner's Manual

Table of Contents

Introduction

Introduction ................................................5

Document Conventions .............................5

About this manual .....................................5

Supplied accessories ..................................5

System Organization

Projects........................................................6

Files .............................................................6

Markers .......................................................6

Settings .......................................................6

Media Considerations ................................6

File System Format.....................................7

The HD-P2 Interface

Keys.............................................................8

Transport Keys and Hold Switch ...............8

Menu keys and Shuttle/Data wheel .........8

Audio Switches, Inputs & Outputs

Audio Switches...........................................9

Left Side ......................................................9

Right Side....................................................9

Power Setup

Power ..........................................................10

AC Power ....................................................10

Batteries......................................................10

Inserting Batteries......................................10

Approximate Battery Life ..........................10

FireWire IEEE.1394 Connector ...................10

Power Operation Notes .............................10

Operation

Power Control.............................................11

Inserting and Removing Media.................11

Adjusting the Display ................................11

Default Project............................................11

Recording Audio.........................................11

Playing Audio .............................................12

HD-P2 Playback Considerations ................12

Media Space and Recording ......................12

HD-P2 Screens and Menus

Monitoring..................................................13

Audible Alerts.............................................13

Operational Screen.....................................13

Screen Icons ................................................13

Menu Navigation .......................................14

Main Menu .................................................14

Project Menus .............................................14

Project Main Menu .....................................14

Project Settings Menu................................14

Project Files Menu ......................................16

Project Trash Manager ...............................16

Change/New Project ..................................17

System Menus ............................................17

System Settings..........................................17

Set System Time .........................................18

Power Management ..................................18

Audio Clock Management .........................18

Media Management...................................18

Media Information ....................................19

Media Speed Check....................................19

Media Cleanup ..........................................19

Reformat Media .........................................19

Scan Media .................................................19

Software Update ........................................20

Default Project Settings .............................20

Project Templates .......................................20

Display Menu..............................................20

Timecode

Overview ....................................................21

Timecode Settings......................................21

Clock Source................................................21

Frame Rate..................................................21

Rate Pull Up/Down.....................................22

FreeWheel ...................................................22

Jam Sync .....................................................22

Trigger Mode ..............................................22

Trigger on Frame ........................................22

Trigger-Frame..............................................22

Timecode Origin .........................................22

Timecode Offset .........................................22

Offset ..........................................................22

Key Shortcuts

Shortcuts.....................................................23

Shifted MENU Keys ....................................23

Shifted STOP Keys......................................23

External PS/2 Keyboard Equivalents

External PS/2 Keyboard Equivalents ........24

Docking and Conforming

FireWire Dock .............................................25

Compact Flash Card Layout .......................25

HD-P2 Conform Application ......................25

Choose Project ............................................25

Choose Output File Setting .......................25

Conform Project..........................................25

HD-P2 Conform Application Screens.........26

Dimensional Drawing ................................26

Specifications

Specifications..............................................27

TASCAM HD-P2 Owner's Manual

Introduction

The HD-P2 is a compact, lightweight Portable High

Definition Stereo Audio Recorder. It uses standard

Compact Flash memory cards to record in mono or

stereo, 16- or 24-bit, at samples rates from 44.1kHz

to 192kHz. An advanced clocking system is included,

with the ability to chase external timecode and lock to

an outside word clock or video reference signal. The

HD-P2 supports digital and analog audio inputs and

outputs, and has a built-in microphone and speaker.

The HD-P2 records audio as standard Broadcast Wave

Files non-destructively. This means you can record

a file, rewind, and record another file at the same

location without fear of losing the first recording. A

built-in, dynamic Edit Decision List orders file play-

back based on file record times. A file edit screen is

provided for auditioning (and editing) of individual

files.

Supplied accessories

In addition to this manual, the HD-P2 has been packed

with the following:

AC adaptor............................................................. 1

IFFF1394 cable...................................................... 1

Shoulder strap ........................................................ 1

Contact your TASCAM supplier if any of these items

are missing.

About this manual

In this manual, we use the following typeface conven-

tions:

The names of keys, features, switches, and controls

are given in the following typface: ERASE.

When the display shows a message, this is shown in

the following typeface: Welcome.

The names of menus shown on the screeen are

given in the following typeface: DisplayMenu.

The names of sub-menus shown on the screeen are

given in the following typeface: Random.

Thank you for your purchase of the TASCAM HD-P2

Portable Stereo Audio Recorder. Before using the

unit, please take time to read this manual thoroughly

to ensure that you understand the operation of its

many useful and convenient functions. After you have

finished reading this manual, please keep it in a safe

place for future reference.

Document Conventions

Throughout this document the following conventions will be used:

BWF (Broadcast Wave File) All audio files are

stored using this format with the file extension .wav

Time Stamp The timecode value stored in the BWF

audio file header relating to the start time of that

file.

Creation Date The date/time used by the file system

to mark files, derived from the real-time system

clock.

EDL (Edit Decision List) Playlist of audio files in a

project based on timecode, date, and size attributes.

Reviews

There are no reviews of this manual yet.

Related Products

TEAC V5010 Owner's Manual

This manual has 12 pages, file size: 2.71 MB. It's available in languages: French, English, Spanish, Dutch, German, Italian.

TEAC V3RX Service Manual

This manual has 47 pages, file size: 5.94 MB. It's available in languages: English.

TEAC US-122L Owner's Manual

This manual has 28 pages, file size: 3.27 MB. It's available in languages: English.

TEAC MCDX25 Owner's Manual

This manual has 24 pages, file size: 0.67 MB. It's available in languages: Swedish, English, Danish, Finnish.

TEAC FW-1804 Owner's Manual

This manual has 20 pages, file size: 0.86 MB. It's available in languages: English.
