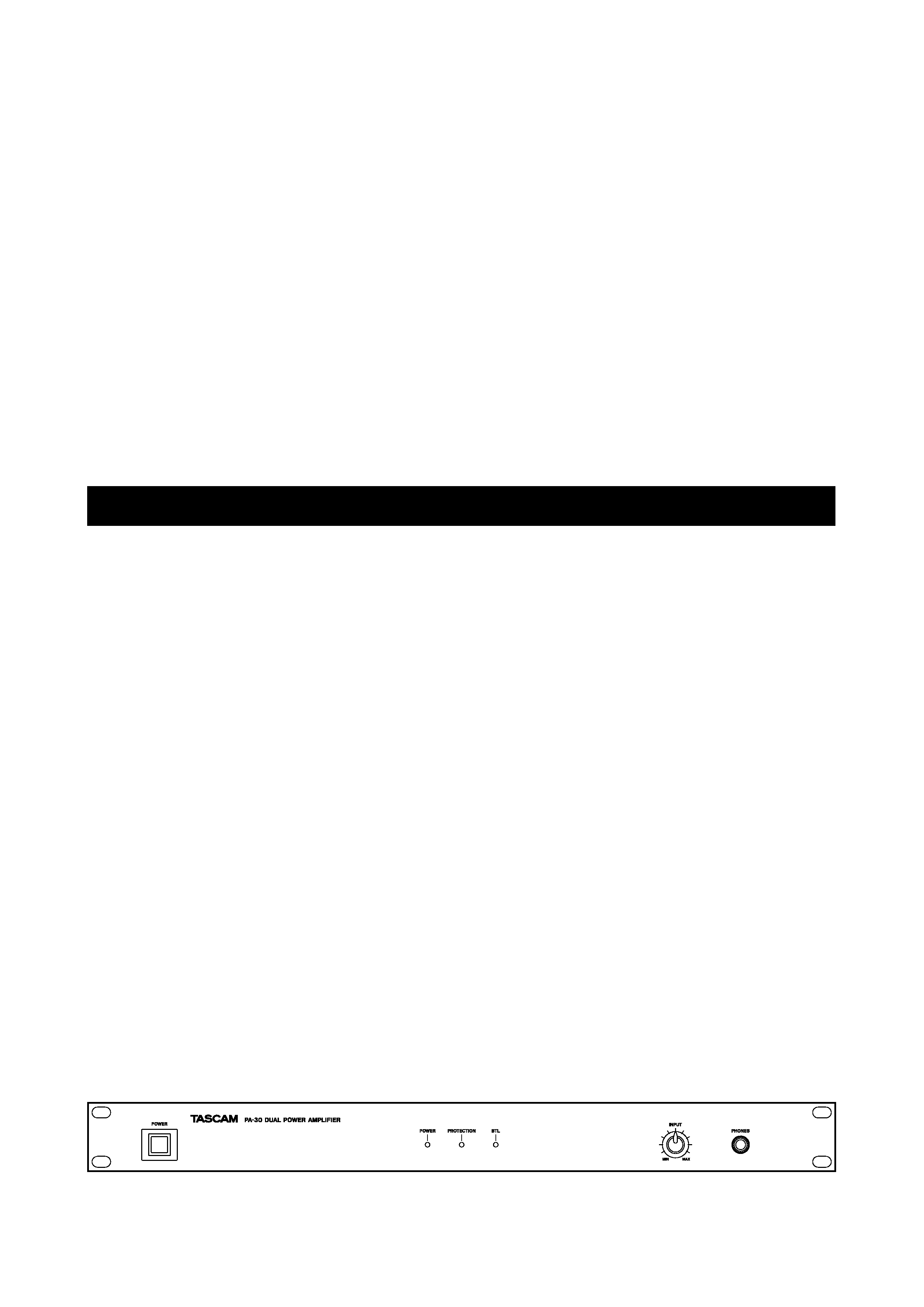

The
TASCAM
PA-30
is
a
high-performance
professional audio power amplifier for nearfield studio
monitoring and low-level sound reinforcement. In
stereo mode, the PA-30 delivers 30 watts per channel
continuously into an 8 ohm load - with no more than
0.05% total harmonic distortion. For applications
requiring higher output power, the unit may be
operated in BTL (Balanced Transformerless) mode -
also known as 'bridged' operation - and will deliver a
full 60 watts continuously into 8 ohms (see the 'BTL
Operation' section of this manual on page 9). In either
mode,
it
exhibits
a
flat
frequency
response
characteristic from 20 Hz to 20 kllz (+0, 1dB), with
very low residual hum and noise.
For maximum flexibility, the PA-30 is equipped with
both XLR-type balanced and RCA-type unbalanced
input connectors. These accommodate nominal input
signal operating levels of +4 dBm and 10 dBV,
respectively essentially eliminating the necessity for
external compensating pads or gain stages. A single,
continuously
variable
INPUT
LEVEL
control
attenuates input signals so the unit's sensitivity can be
calibrated to the gain structure of the source equipment.
The PA-30 is designed and built to provide years of
trouble-free service with little or no maintenance. Its
well built power transformer easily handles continuous
full-power operation, and all power semiconductor
circuits are mounted on a large convection-cooled
heatsink.
Multiple resettable electronic protection circuits guard
against destructive turn-on transients, output overload,
DC offsets and output shorts.
While the PA-30 is almost indestructible, it has been
engineered to be easy to service. Like all TASCAM
professional products, it is backed by a worldwide
network of TASCAM dealers and TEAC authorized
TASCAM service centers.
Connection and operation of the PA-30 is simple and
straightforward. This manual presents a detailed
description of the unit's features, along with basic
connection instructions and specifications. Please take
a few moments to study it before connecting and
operating your PA-30 Power Amplifier.
TABLE OF CONTENTS
Introduction................................................................. 2
Important Safety Instructions ..................................... 3
Summary of Operating Precautions............................ 4
Features....................................................................... 5
Connection & Installation........................................... 7
BTL Operation............................................................ 9
Specifications............................................................ 10
