AV Control Receiver
Operating Instructions
Model No.
SA-DX850
SA-DX750
RQT5818-B
E
EB
SA-DX850
Note:
"EB" on the packaging indicates the United Kingdom.
Before connecting, operating or adjusting this product,
please read these instructions completely.
Please keep this manual for future reference.
background image
AV Control Receiver
Operating Instructions
Model No.
SA-DX850
SA-DX750
RQT5818-B
E
EB
SA-DX850
Note:
"EB" on the packaging indicates the United Kingdom.
Before connecting, operating or adjusting this product,
please read these instructions completely.
Please keep this manual for future reference.
background image
The radio.....................................................................................22
Manual tuning ..............................................................................22
Preset tuning ...............................................................................23
RDS broadcasts .......................................................................24
To display RDS information.........................................................24
PTY search..................................................................................24
EON tuning ..................................................................................25
PTY displays................................................................................25
2
RQT5818
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these
instructions carefully.
Table of contents
These operating instructions are applicable to models SA-
DX850 and SA-DX750, however, are intended primarily for
model SA-DX850.
CAUTION
Do not place anything on top of this unit or block the heat
radiation vents in any way. In particular, do not place tape decks
or CD/DVD players on this unit as heat radiated from it can
damage your software.
NO
Before use
Supplied accessories................................................................3
Safety precautions.....................................................................3
Caution for AC Mains Lead .....................................................4
Control reference guide ...........................................................5
Operations
DSP sound modes ...................................................................16
STEREO mode............................................................................16
SURROUND mode......................................................................16
SFC modes..................................................................................17
Enjoying the sounds ...............................................................18
Adjusting the tone and balance ...................................................20
Using headphones.......................................................................20
Muting the volume .......................................................................21
Adjusting the subwoofer level......................................................21
Using the TAPE MONITOR .........................................................21
Connections
Connections ................................................................................6
Connecting video equipment .........................................................6
Connecting audio equipment.........................................................7
Connecting digital equipment ........................................................7
Antenna connections .....................................................................8
Connecting the AC mains lead and other information ...................9
Speaker connections ..............................................................10
Placement of speakers ................................................................10
Connecting speakers...................................................................10
Preparations
Customizing your receiver ....................................................12
Basic steps ..................................................................................13
Adjusting speaker output level............................................15
Radio functions
Reference
Making a recording..................................................................26
Timer function...........................................................................27
The HELP function...................................................................28
Maintenance ..............................................................................28
Troubleshooting guide ...........................................................29
Specifications ...........................................................................30
Enjoying surround sound
Pages
Connect your equipment
6­9
Position and connect the speakers
10­11
Change the settings
12­14
Adjust speaker output level
15
Sit back and enjoy the experience
18
background image
3
RQT5818
Bef
ore
use

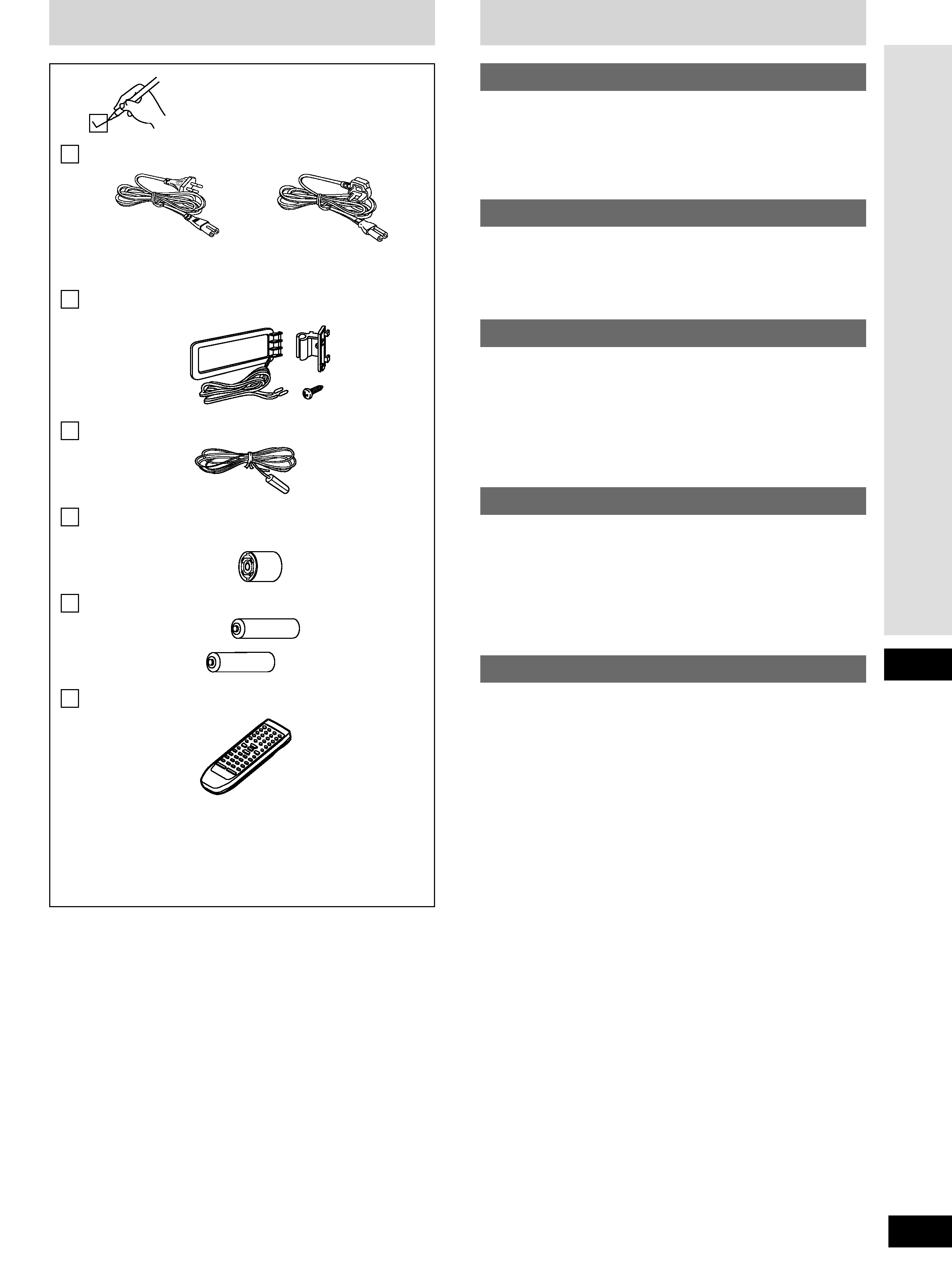

Please check and identify the supplied
accessories.
AC mains lead...................................................................1
AM loop antenna set (RSA0012) .....................................1
(AM loop antenna, antenna holder, screw)
Refer to the separate booklet, "Remote Control", for remote
control operation details.
Use the numbers indicated in parentheses when asking for
replacement parts.
FM indoor antenna (RSA0007-L) .....................................1
Batteries ............................................................................2
Remote control (EUR7702030) ........................................1
Safety precautions
Placement
Set the unit up on an even surface away from direct sunlight, high
temperatures, high humidity, and excessive vibration. These
conditions can damage the cabinet and other components, thereby
shortening the unit's service life.
Do not place heavy items on the unit.
Voltage
Do not use high voltage power sources. This can overload the
unit and cause a fire.
Do not use a DC power source. Check the source carefully when
setting the unit up on a ship or other place where DC is used.
AC mains lead protection
Ensure the AC mains lead is connected correctly and not
damaged. Poor connection and lead damage can cause fire or
electric shock. Do not pull, bend, or place heavy items on the lead.
Grasp the plug firmly when unplugging the lead. Pulling the AC
mains lead can cause electric shock.
Do not handle the plug with wet hands. This can cause electric
shock.
Foreign matter
Do not let metal objects fall inside the unit. This can cause
electric shock or malfunction.
Do not let liquids get into the unit. This can cause electric shock
or malfunction. If this occurs, immediately disconnect the unit from
the power supply and contact your dealer.
Do not spray insecticides onto or into the unit. They contain
flammable gases which can ignite if sprayed into the unit.
Service
Do not attempt to repair this unit by yourself. If sound is
interrupted, indicators fail to light, smoke appears, or any other
problem that is not covered in these operating instructions occurs,
disconnect the AC mains lead and contact your dealer or an
authorized service center. Electric shock or damage to the unit can
occur if the unit is repaired, disassembled or reconstructed by
unqualified persons.
Extend operating life by disconnecting the unit from the power
source if it is not to be used for a long time.
Antenna plug (SJP9009) ..................................................1
(Only for the United Kingdom)
For the United Kingdom
(VJA0733)
For Continental Europe
(RJA0019-2K)
Supplied accessories
background image
Caution for AC Mains Lead
4
RQT5818
(For United Kingdom)
("EB" area code model only)
For your safety, please read the following text
carefully.
This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure
that the replacement fuse has a rating of 5-ampere
and that it is approved by ASTA or BSI to BS 1362.
Check for the ASTA mark
or the BSI mark
on
the body of the fuse.
If the plug contains a removable fuse cover you must
ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used
until a replacement cover is obtained.
A replacement fuse cover can be purchased from your
local dealer.
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUITABLE
FOR THE SOCKET OUTLET IN YOUR HOME
THEN THE FUSE SHOULD BE REMOVED AND
THE PLUG CUT OFF AND DISPOSED OF
SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL
SHOCK IF THE CUT OFF PLUG IS INSERTED
INTO ANY 13-AMPERE SOCKET.
If a new plug is to be fitted please observe the wiring
code as stated below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in
accordance with the following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the
coloured markings identifying the terminals in your
plug, proceed as follows:
The wire which is coloured Blue must be connected to
the terminal which is marked with the letter N or
coloured Black or Blue.
The wire which is coloured Brown must be connected
to the terminal which is marked with the letter L or
coloured Brown or Red.
WARNING: DO NOT CONNECT EITHER WIRE TO
THE EARTH TERMINAL WHICH IS MARKED WITH
THE LETTER E, BY THE EARTH SYMBOL
OR
COLOURED GREEN OR GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF­KEEP DRY.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of
AC mains plug (figures A and B). Confirm the AC
mains plug fitted and follow the instructions below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
Figure A
Figure B
Fuse cover
2. Replace the fuse and close or attach the fuse
cover.
Figure A
Fuse
(5 ampere)
Figure B
Fuse
(5 ampere)
background image
Control reference guide
5
RQT5818
Bef
ore
use
TUNED
MONO
LOW IMP
SPEAKERS
EON
PS
PTY
RT
kHz
MHz
PRO LOGIC
DIGITAL
WAKE
SLEEP
SOUND MODE
STEREO SURROUND
SFC
LC
R
LS
S LFE RS
PCM
FIXED
M
RDS
AB
INPUT SELECTOR
TAPE MONITOR
BASS/TREBLE
BALANCE
UP
VOLUME
DOWN
SPEAKERS
PHONES
PRESET
BAND
FM MODE
TUNING
AB
DVD 6CH INPUT
LR
­
+
DIGITAL INPUT
25
26
27
28
29 30 31 32 33
36
35
34
37
STEREO
TIMER
MEMORY
RDS
SFC MODE
DSP
SOUNDMODE
10
11
12 13 14
15
16 17 18 19
20
21 22 23 24
4
5 6
1 2 3
7 8 9
EON
DISPLAY MODE
PTY SEARCH
MODE
TIME
WAKE
HELP
RESET
PTY SELECTOR
Main unit
Display section
q
q Standby/on switch [8] ........................................................(13)
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of power.
w
w Standby indicator [^]
When the unit is connected to the AC mains supply, this
indicator lights up in standby mode and goes out when the unit
is turned on.
e
e Wake indicator [WAKE] .......................................................(27)
r
r
Speaker select buttons [SPEAKERS, A, B]..................(13, 18)
Speaker on/off button [SPEAKERS] .............................(15, 18)
t
t RDS button [RDS].................................................................(24)
y
y Timer button [TIMER, -MODE, ­TIME] ................................(27)
u
u DSP sound mode select button
[DSP SOUND MODE] ......................................................(13, 18)
i
i SFC mode select button [SFC MODE] ..........................(13, 18)
o
o Memory button [MEMORY] ..................................................(23)
!
!00 Volume control [VOLUME] ..................................................(18)
!
!11 Input selector [INPUT SELECTOR] .....................................(18)
!
!22 Digital input select button/indicator [DIGITAL INPUT]......(18)
!
!33 Help/reset button [-HELP, ­RESET]....................................(28)
!
!44
DVD 6ch input select button/indicator [DVD 6CH INPUT] .....(19)
!
!55 Headphone jack [PHONES] .................................................(20)
!
!66 Tuning/PTY select buttons
[TUNING, PTY SELECTOR, 2, 1]..................................(22, 24)
!
!77 Preset channel/display mode button
[PRESET, DISPLAY MODE] ...........................................(23, 24)
!
!88 Band select/EON button [BAND, EON].........................(22, 25)
!
!99 FM mode select/PTY search button
[FM MODE, PTY SEARCH] .............................................(22, 24)
@
@00 Display section
@
@11 Tape monitor button [TAPE MONITOR]..............................(21)
@
@22 Tone and balance select button
[BASS/TREBLE, BALANCE] ................................................(20)
@
@33 Tape monitor indicator ........................................................(21)
@
@44 Tone and balance adjust buttons [­, +, L, R] .....................(20)
SA-DX850
SA-DX750
SA-DX850
@
@55 Display
@
@66 Frequency unit indicators [kHz, MHz] ................................(22)
@
@77 Program format indicators [L, C, R, LS, S, LFE, RS].........(18)
@
@88
Front speaker indicators [-SPEAKERS-, Å, i].................(18)
Front speaker indicator [-SPEAKERS-] ..............................(18)
@
@99
Low impedance indicator [LOW IMP] .................................(14)
#
#00 Tuned indicator [TUNED].....................................................(22)
#
#11 Stereo indicator [STEREO] ..................................................(22)
#
#22 Monaural indicator [MONO].................................................(22)
#
#33 Memory indicator [~] ..........................................................(23)
#
#44 Timer indicators [SLEEP, WAKE] .......................................(27)
#
#55 RDS indicators [
, PS, RT, PTY, EON] .........................(24)
#
#66
Signal format indicators
[FIXED, PCM,
, % DIGITAL, % PRO LOGIC] .....(16, 18)
Signal format indicators
[FIXED, PCM, % DIGITAL, % PRO LOGIC] ................(16, 18)
#
#77 DSP sound mode indicators
[-SOUND MODE-, SFC, STEREO, SURROUND] .................(18)
SA-DX750
SA-DX850
RDS
SA-DX850
SA-DX750
SA-DX850
Reference pages are given in parentheses.
Refer to the separate booklet, "Remote Control", for a guide to the
remote control's buttons.

Reviews

There are no reviews of this manual yet.

Related Products

Cover page of TECHNICS SLVP50 Service Manual

This manual has 68 pages, file size: 54.32 MB. It's available in languages: English.

Cover page of TECHNICS SL-1500MK2 Service Manual

This manual has 19 pages, file size: 4.93 MB. It's available in languages: English.

Cover page of TECHNICS SLPJ20 Service Manual

This manual has 50 pages, file size: 8.89 MB. It's available in languages: English.

Cover page of TECHNICS SU-A600 Owner's Manual

This manual has 16 pages, file size: 0.9 MB. It's available in languages: English.

Cover page of TECHNICS SUVX800 Service Manual

This manual has 24 pages, file size: 9.89 MB. It's available in languages: English.
